NSN 5305-00-992-6142 MS1699570, MS16995-70, 00-992-6142
Product Details | SOCKET HEAD CAP SCREW
5305-00-992-6142 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: MS1699570, MS16995-70, 5305-00-992-6142, 00-992-6142, 5305009926142, 009926142
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-992-6142 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

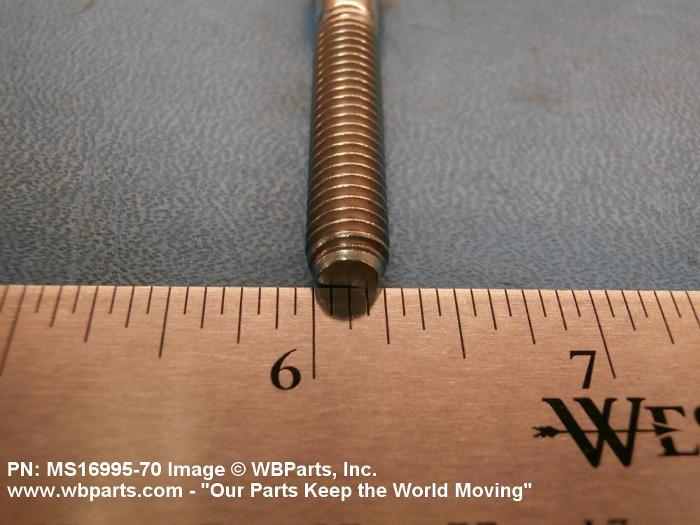

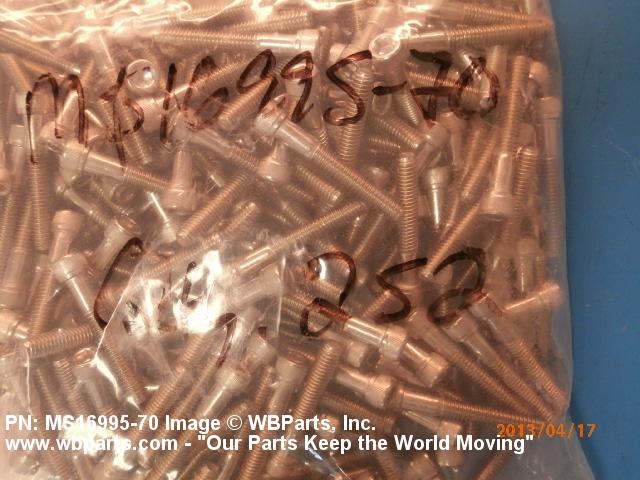

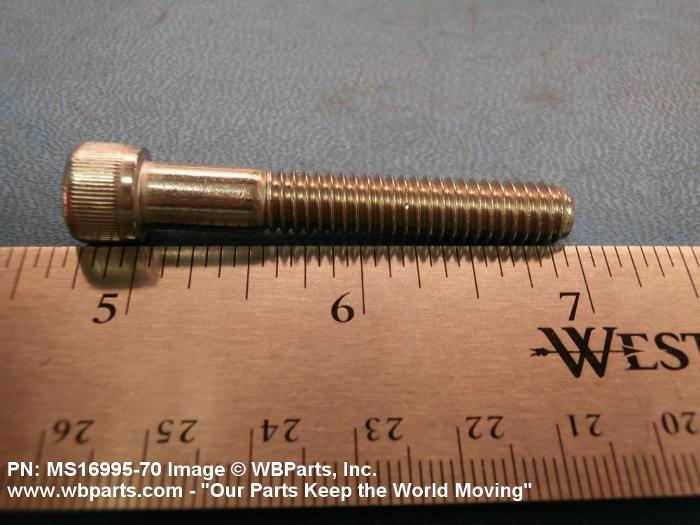

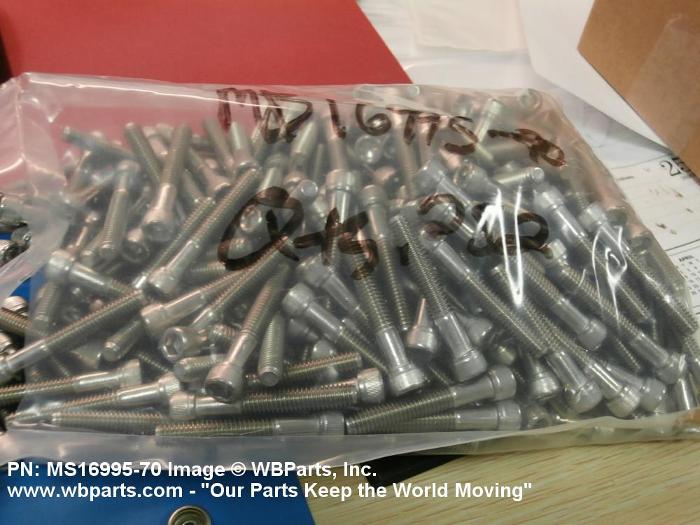

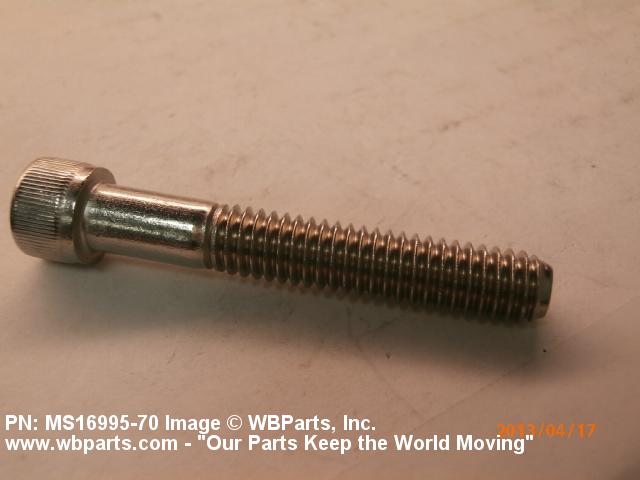

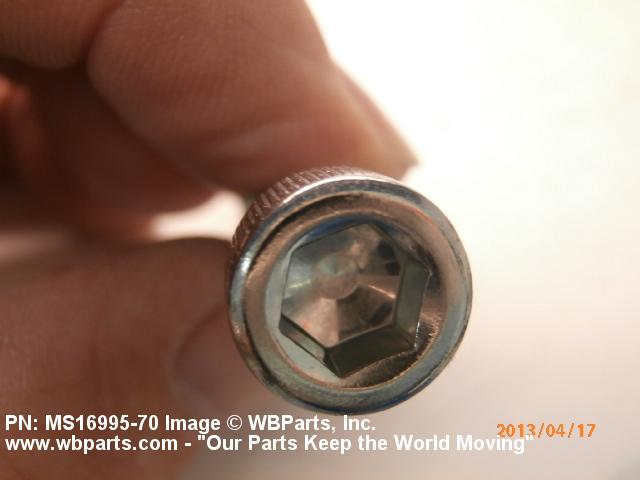

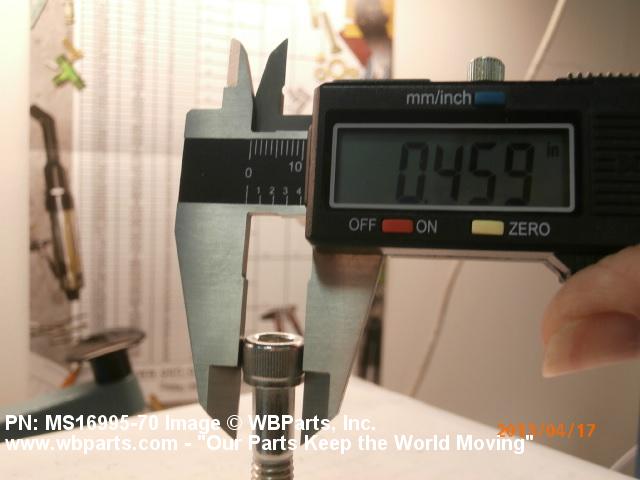

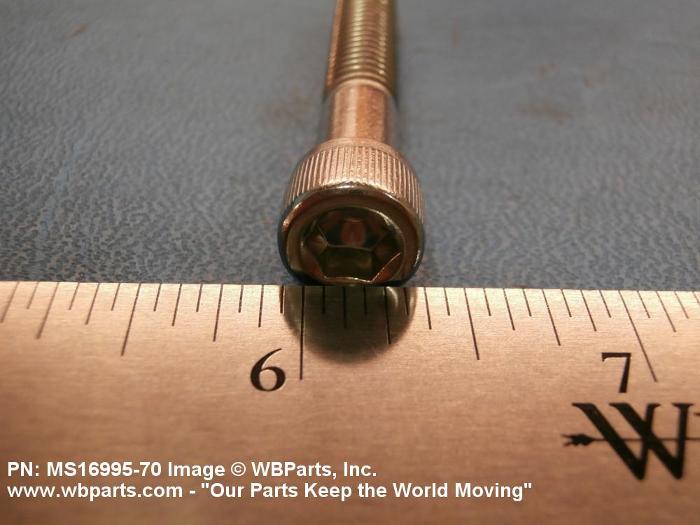

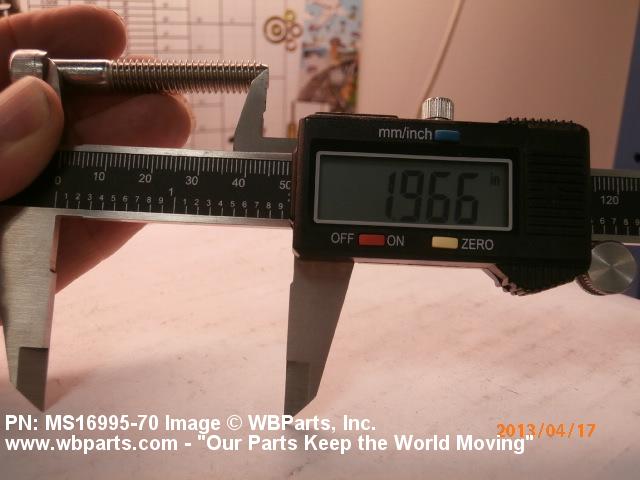

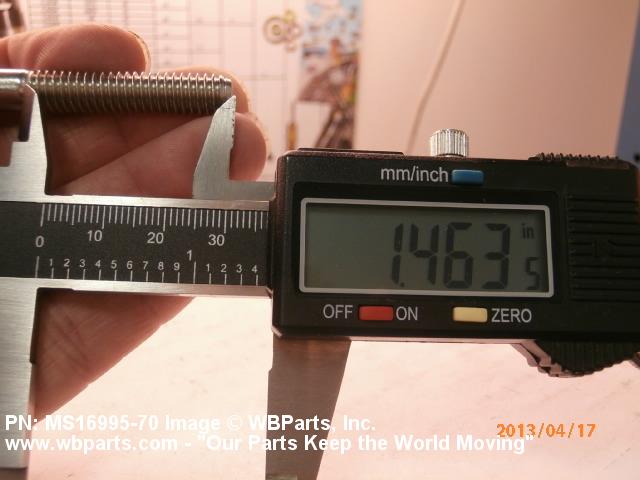

Drawings & Photos | NSN 5305-00-992-6142
Demand History | NSN 5305-00-992-6142
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1699570 | 2018-12-361 | 814 | Israel |
| MS16995-70 | 2018-11-310 | 814 | Israel |
| MS1699570 | 2013-01-09 | 252 | Israel |
| MS1699570 | 2013-01-09 | 252 | Israel |
| MS1699570 | 2013-01-09 | 252 | Israel |
| MS1699570 | 2012-05-150 | 210 | Israel |
| MS1699570 | 2012-03-88 | 78 | Israel |
| MS1699570 | 2012-03-73 | 78 | Israel |
| MS16995-70 | 2011-12-349 | 813 | Israel |
| MS1699570 | 2011-12-341 | 271 | Israel |
Cross Reference | NSN 5305-00-992-6142
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 003-007868-070 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| FF-S-86 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS16995-70 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16995-70 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| V2C11117-6DJ4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| V2C1117-6DJ4 | 99517 | VACCO INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-992-6142
Technical Data | NSN 5305-00-992-6142
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

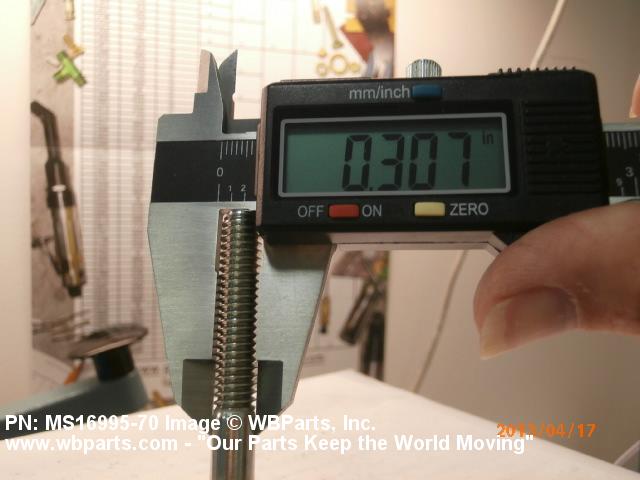

| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.125 INCHES MAXIMUM |
| FASTENER LENGTH | 2.000 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 80.0 ROCKWELL B MINIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 80000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 30000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.457 INCHES MINIMUM AND 0.469 INCHES MAXIMUM |

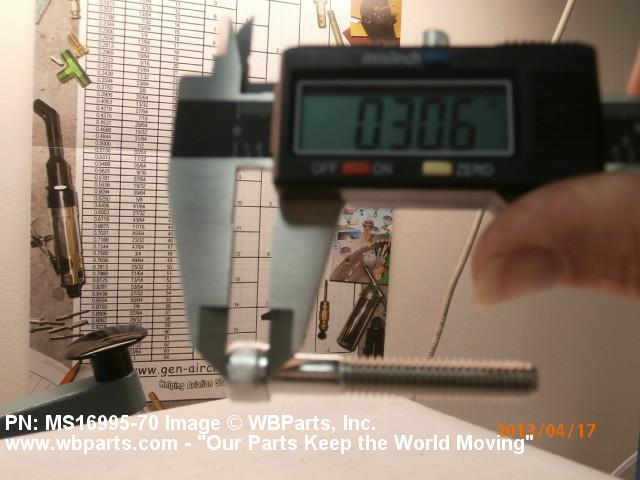

| HEAD HEIGHT | 0.306 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |

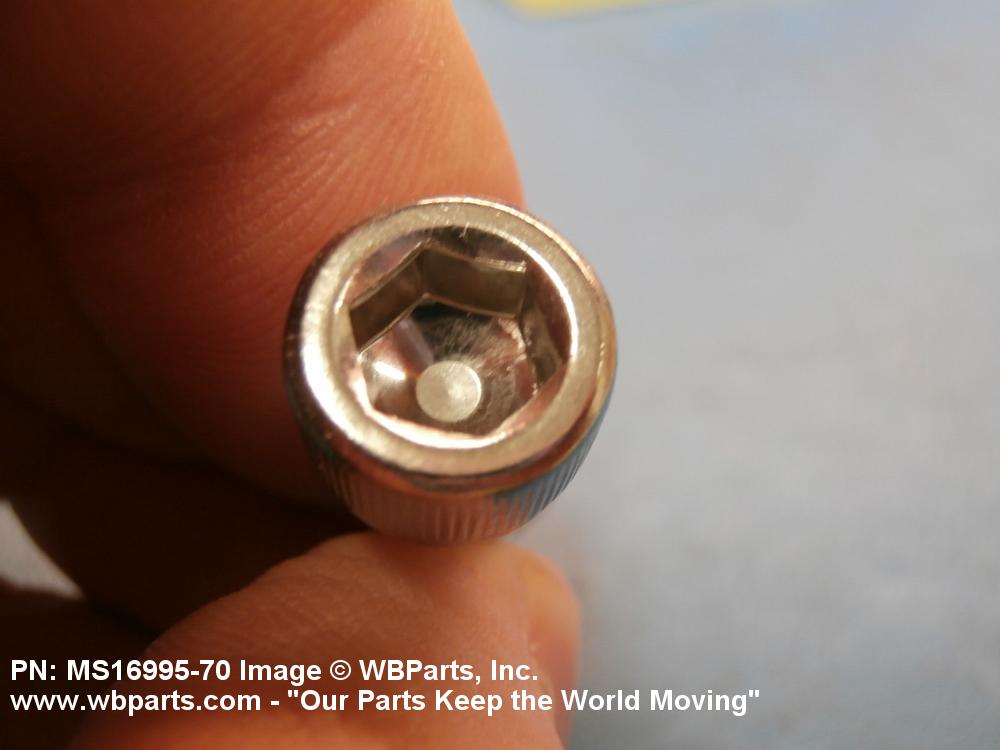

| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.250 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 81348-FFS86 SPECIFICATION OR 96906-MS16995-70 STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 6 TYPE |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY MATERIAL |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY CONDITION A |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16995-70 |
Restrictions/Controls & Freight Information | NSN 5305-00-992-6142
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
