NSN 5305-00-993-0190 MS35204214, MS35204-214, MS35206214

Product Details | MACHINE SCREW

5305-00-993-0190 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS35204214, MS35204-214, MS35206214, MS35206-214, MS3522314, MS35223-14, MS3522514, MS35225-14, N80P9005C13, N80P9005C6, AN51545, AN515-4-5, AN5154R5, AN515-4R5, AN5154RS, AN515-4RS, C10395, C103950205, C10395-0205, P283344, C766, 0717593, 10114800, 11R29 , 19023, 19023ADX, 2019134, 2200107, 220-0107, 38710020, 3871-0020, 50000224104, 50000224-104, 50135014, 501350-14, 60239630, 60-23-9630, 71042632, 7104-2632, 803398, 807918, 852938, 85293800, 852938-00, 935.63.11.022, 9356311022, 9461192405, 946119-2405, 5305-00-993-0190, 00-993-0190, 5305009930190 , 009930190

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-993-0190	06657 ( SCREW, MACHINE )

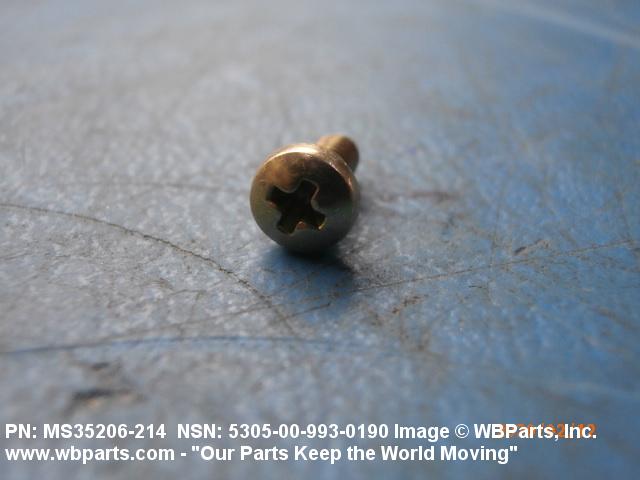

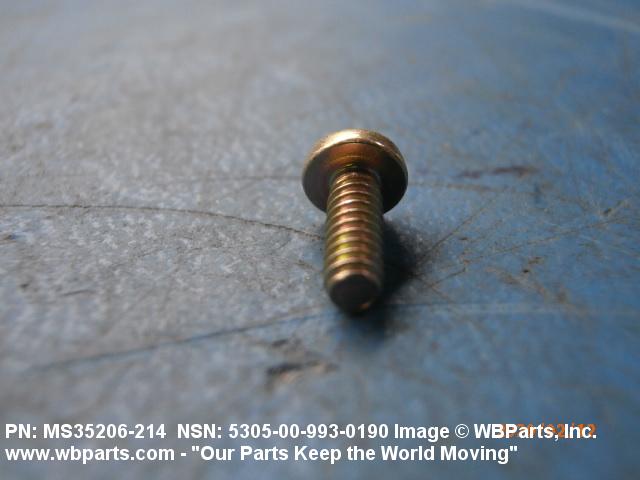

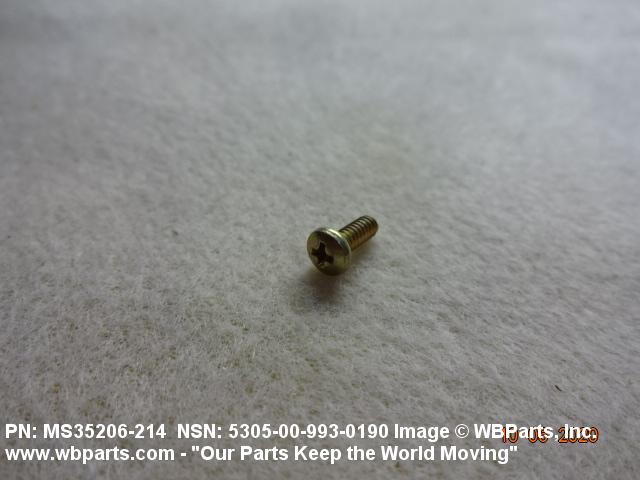

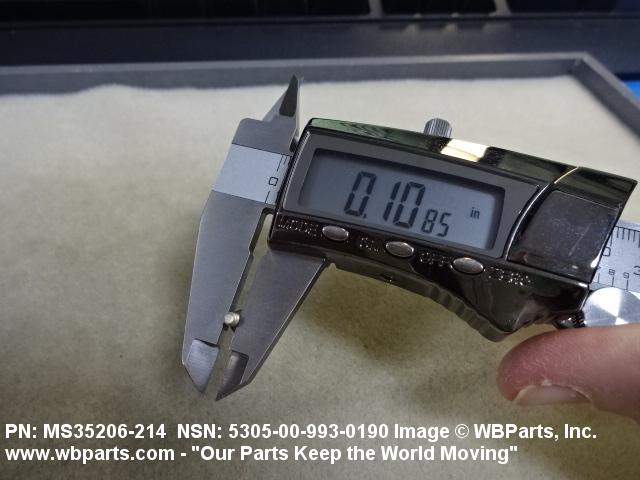

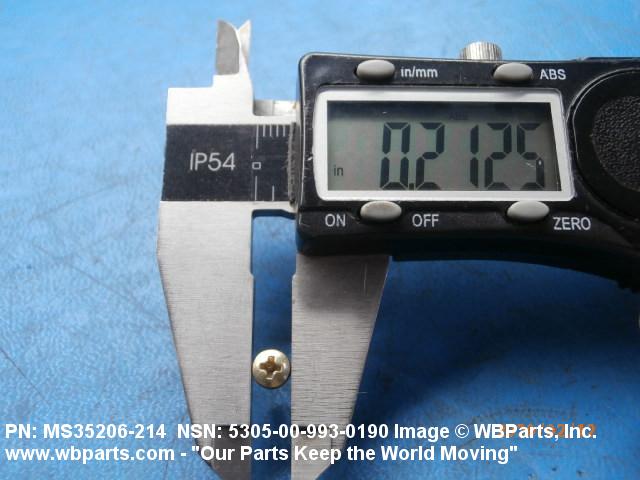

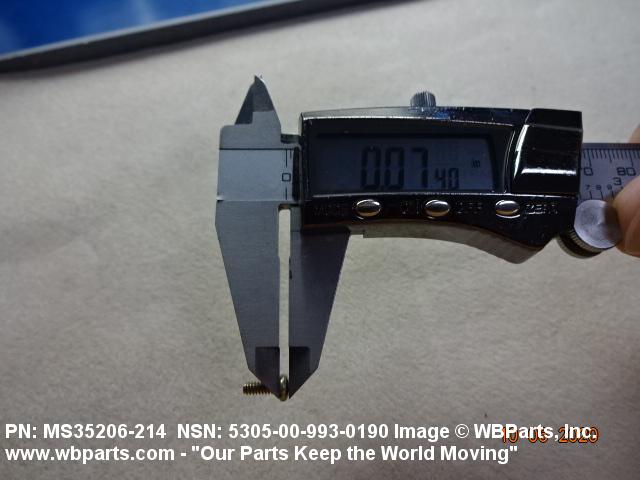

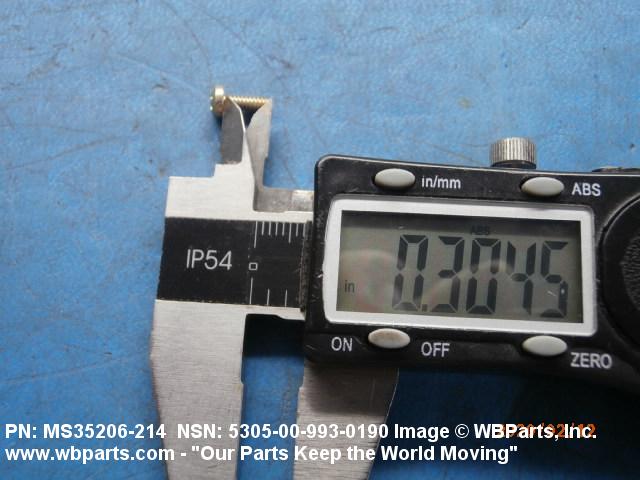

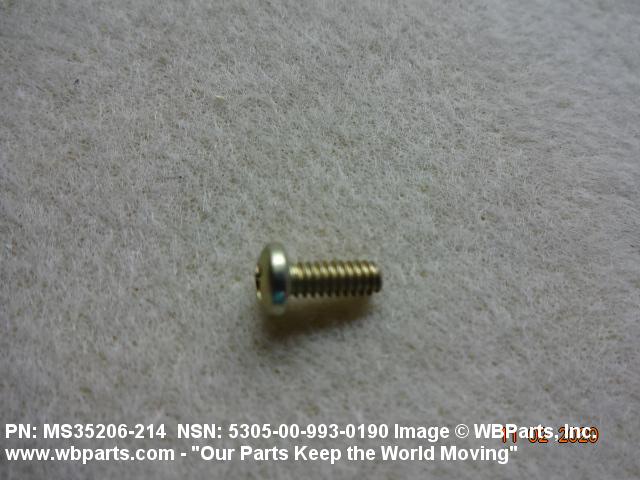

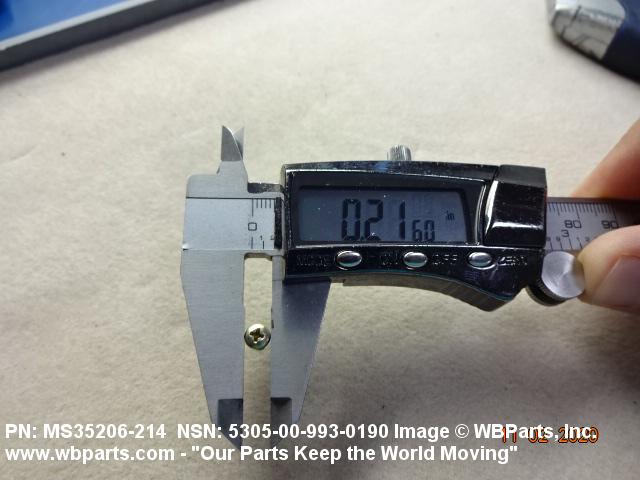

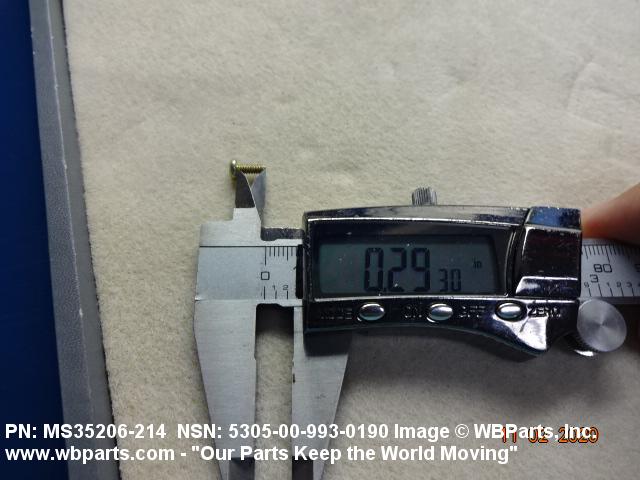

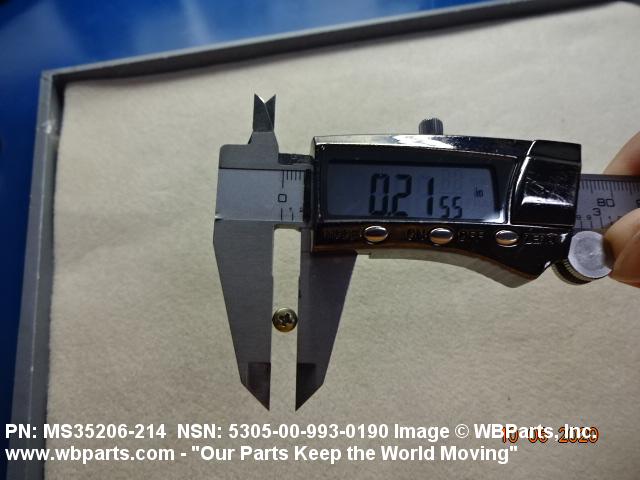

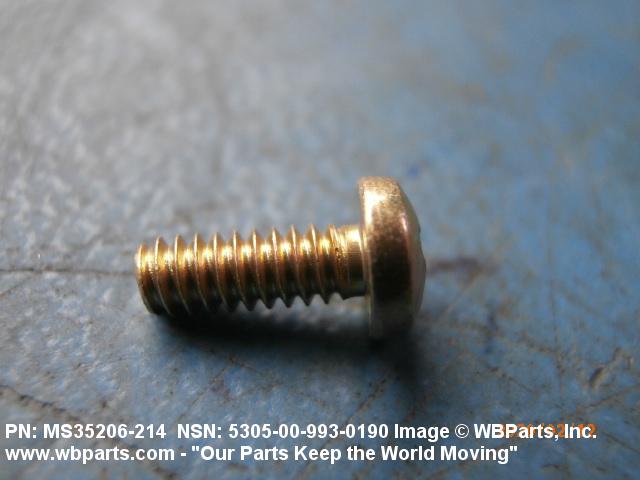

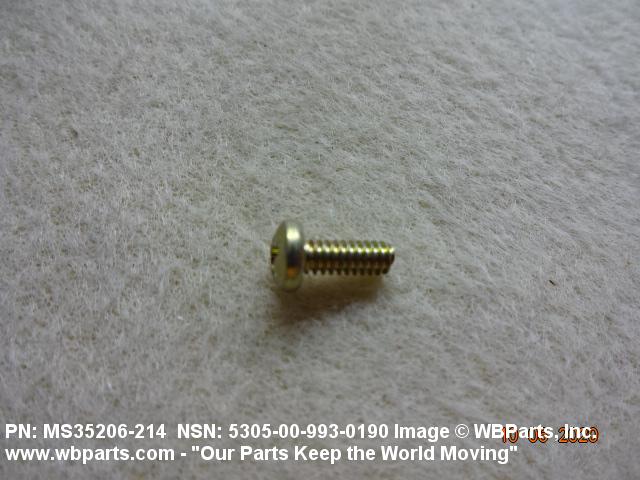

Drawings & Photos | NSN 5305-00-993-0190

Part Number	Request Date	QTY	Origin
MS35206214	2025-11-309	126	Israel
MS35206214	2023-07-192	50	US
MS35206214	2023-06-165	200	us
5305-00-993-0190	2022-11-333	100	United States
5305-00-993-0190	2021-08-224	200	United States
MS35206214	2021-07-203	325	United States
MS35206214	2021-07-203	65	United States
5305-00-993-0190	2020-10-280	200	United States
5305-00-993-0190	2020-08-218	50	United States
5305-00-993-0190	2020-06-169	50	United States
5305-00-993-0190	2019-10-294	20	United States
5305-00-993-0190	2018-02-47	20	United States
5305-00-993-0190	2018-02-44	20	United States
5305-00-993-0190	2018-02-32	20	United States
5305-00-993-0190	2017-06-159	18	US
MS35206214	2015-08-237	952	South Korea
MS35206214	2014-08-240	156	United States
MS35206214	2014-07-191	430	South Korea
MS35206214	2013-11-325	50	United States
MS35206-214	2012-11-310	60
AN5154R5	2011-10-294	100	United States
5305-00-993-0190	2011-04-119	48	US
5305-00-993-0190	2011-03-87	60	United States
MS35206214	2011-01-17	50	US
5305-00-993-0190	2010-10-291	15	CA
MS35206214	2008-06-170	160	US

Cross Reference | NSN 5305-00-993-0190

Part Number	Cage Code	Manufacturer
0717593	S3002	GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH
11R29	45152	OSHKOSH CORPORATION
11R29	75Q65	OSHKOSH DEFENSE, LLC
19023	73734	FEDERAL SCREW PRODUCTS INC.
19023ADX	1VN02	AIRDALE EXPRESS LLC
2019134	001JK	EMBRAER S/A
2019134	FB459	EMBRAER AVIATION INTERNATIONAL
2019134	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
220-0107	54193	DATA I/O CORPORATION
3871-0020	19397	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
50000224-104	96238	DNE TECHNOLOGIES, INC.
501350-14	96214	RAYTHEON COMPANY DBA RAYTHEON
5305009930190	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
60-23-9630	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
7104-2632	14028	SYPRIS ELECTRONICS, LLC
803398	19203	PICATINNY ARSENAL
807918	19203	PICATINNY ARSENAL
852938	19203	PICATINNY ARSENAL
852938-00	32345	DEFENSE REDUCTION AGENCY
935.63.11.022	S4080	PILATUS AIRCRAFT LTD
946119-2405	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
AN515-4-5	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN515-4R5	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN515-4RS	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
C10395	60678	ROSEMOUNT AEROSPACE INC. DBA ROSEMOUNT AEROSPACE DIVISION
C10395-0205	U8539	ROSEMOUNT AEROSPACE LTD
C766	03487	ANDREA ELECTRONICS CORPORATION
C766	3GET4	ANDREA SYSTEMS LLC
MS35204-214	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35206-214	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35206-214	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35223-14	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35225-14	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N80P9005C13	33173	MPD, INC.
N80P9005C6	24446	GENERAL ELECTRIC CO
N80P9005C6	24454	GENERAL ELECTRIC CO ELECTRONIC COMPONENTS DIVISION OF
P283344	01794	NORTEL NETWORKS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-993-0190

Compare

Related Products | NSN 5305-00-993-0190

5305-00-993-0191, 5305-00-993-0496, 5305-00-993-0504, 5305-00-993-0633, 5305-00-993-0647

Technical Data | NSN 5305-00-993-0190

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC

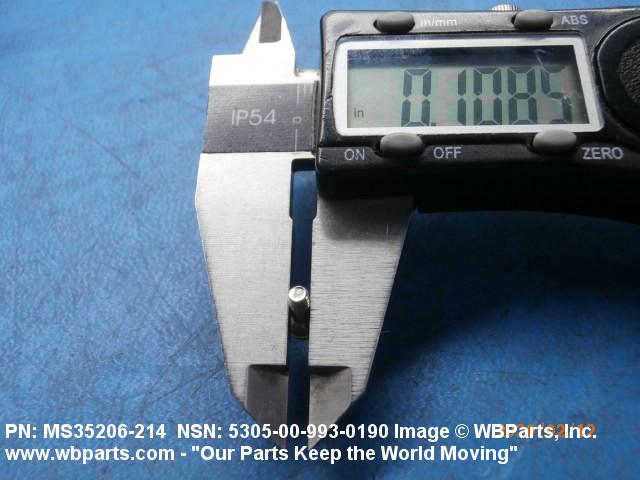

NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.262 INCHES MINIMUM AND 0.312 INCHES MAXIMUM

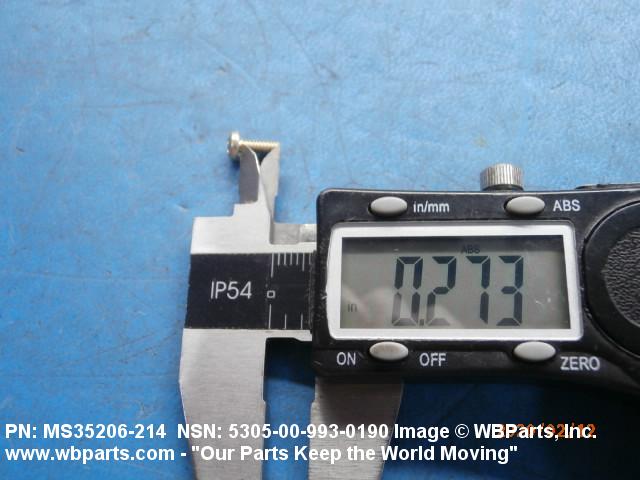

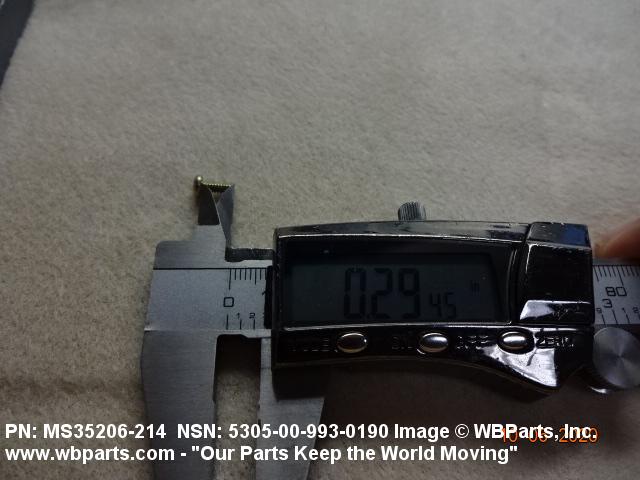

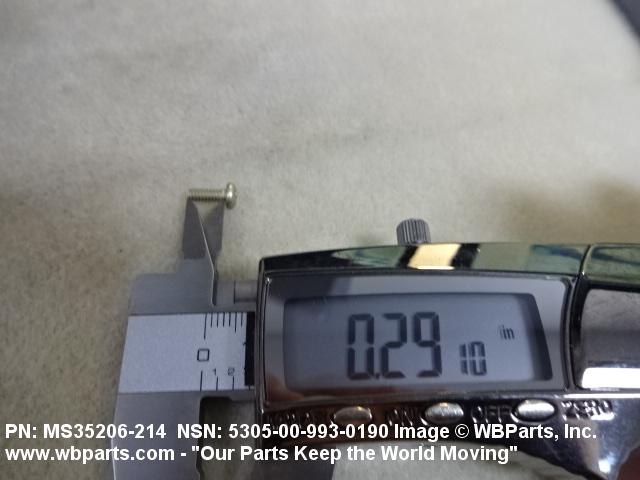

FASTENER LENGTH	0.281 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
SCREW MATERIAL	STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1013
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	55000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN

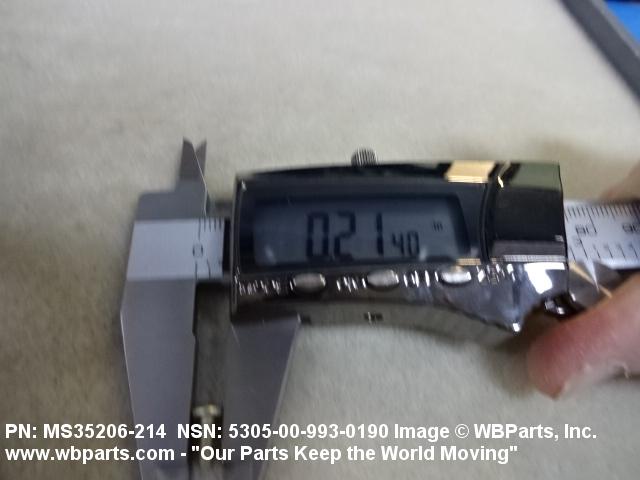

HEAD DIAMETER	0.205 INCHES MINIMUM AND 0.219 INCHES MAXIMUM

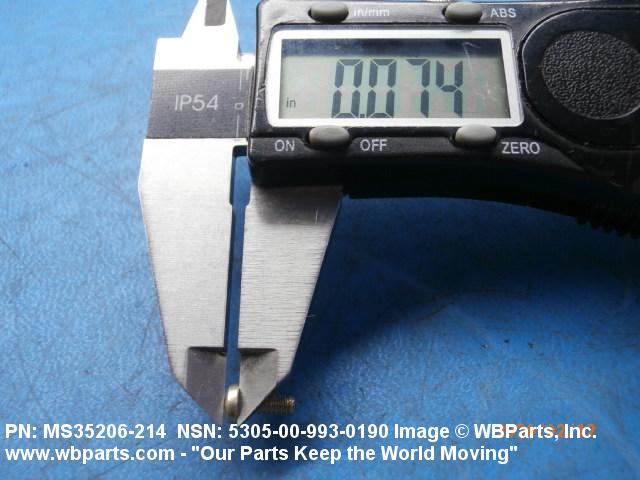

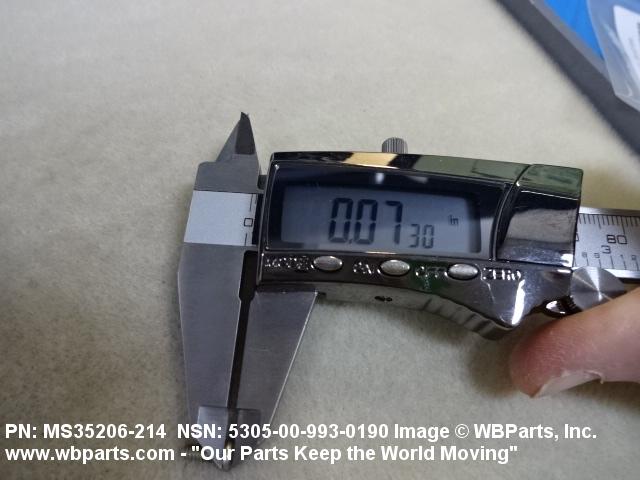

HEAD HEIGHT	0.070 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-993-0190

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-993-0190

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	6	Critical Repair Part to a Non-Combat Essential End Item. Those parts or components whose failure in a noncombat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
