NSN 5305-00-993-3152 MS1699614, MS16996-14, 77C707911P66

Product Details | SOCKET HEAD CAP SCREW

5305-00-993-3152 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS1699614, MS16996-14, 77C707911P66, 5305-00-993-3152, 00-993-3152, 5305009933152, 009933152

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	30 MAR 1967	00-993-3152	16282 ( SCREW, CAP, SOCKET HEAD )

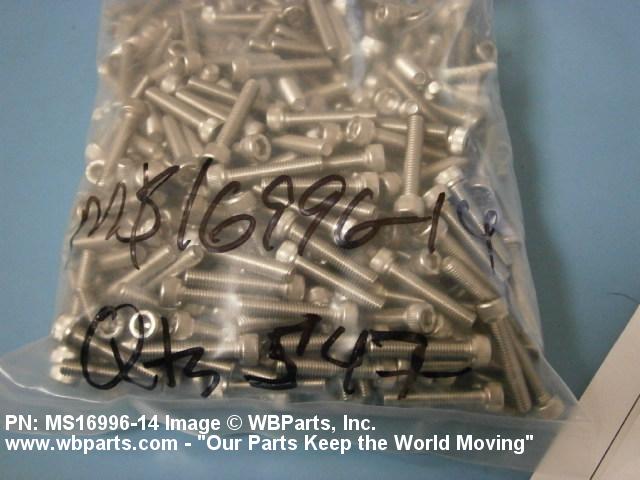

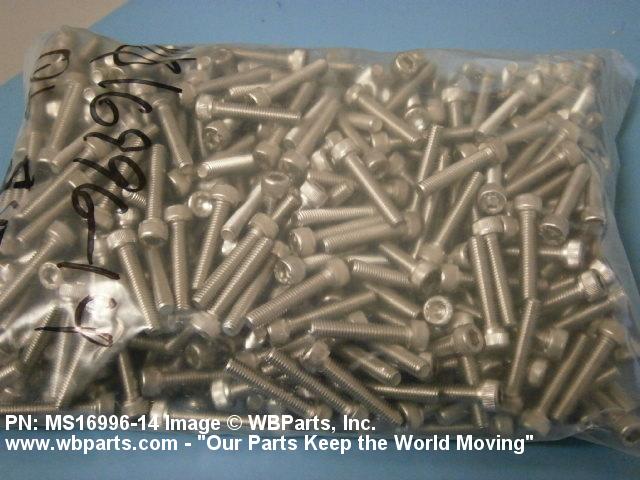

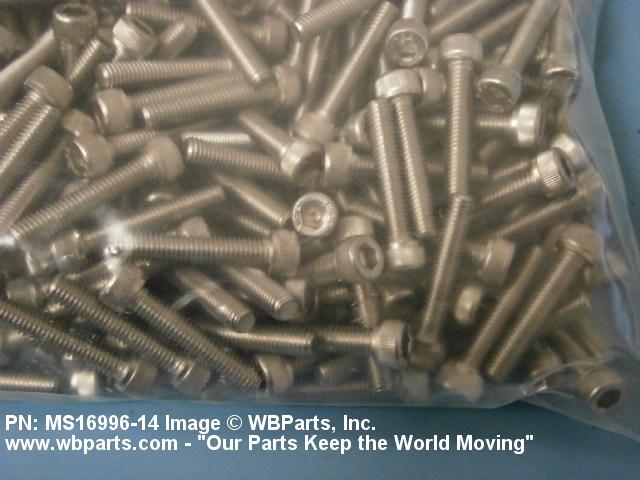

Drawings & Photos | NSN 5305-00-993-3152

Part Number	Request Date	QTY	Origin
MS1699614	2023-09-258	55	US
MS1699614	2021-03-82	9	United States
MS1699614	2020-04-99	25	United States
MS1699614	2019-10-288	10	United States
MS1699614	2018-11-318	100	Taiwan
MS16996-14	2018-11-310	1352	Israel
MS1699614	2017-12-352	3400	US
MS16996-14	2011-12-349	1641	Israel
MS1699614	2011-12-341	547	Israel
MS1699614	2011-09-264	142	United Kingdom
MS1699614	2011-02-47	200	UK
MS1699614	2011-02-33	340	TW
5305-00-993-3152	2010-10-298	40	PK
5305-00-993-3152	2010-09-267	8	US
MS1699614	2010-01-28	15	US
5305-00-993-3152	2009-10-279	46	PK

Cross Reference | NSN 5305-00-993-3152

Part Number	Cage Code	Manufacturer
77C707911P66	03538	LOCKHEED MARTIN CORPORATION DIV MST
MS16996-14	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-993-3152

Compare

Related Products | NSN 5305-00-993-3152

5305-00-993-3273, 5305-00-993-3408, 5305-00-993-3553, 5305-00-993-3555, 5305-00-993-3556

Technical Data | NSN 5305-00-993-3152

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	1.000 INCHES MAXIMUM
FASTENER LENGTH	1.000 INCHES MAXIMUM
MATERIAL	STEEL COMP 304 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
HARDNESS RATING	80.0 ROCKWELL B MINIMUM OVERALL
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	30000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER
HEAD DIAMETER	0.303 INCHES MINIMUM AND 0.313 INCHES MAXIMUM
HEAD HEIGHT	0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.156 INCHES MINIMUM AND 0.159 INCHES MAXIMUM
TEST DATA DOCUMENT	81348-FF-S-86 SPECIFICATION
NONDEFINITIVE SPEC/STD DATA	6 TYPE
DEPARTURE FROM CITED DOCUMENT	AS MODIFIED BY MATERIAL
DEPARTURE FROM CITED DESIGNATOR	AS MODIFIED BY CONDITION A
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS16996-14

Restrictions/Controls & Freight Information | NSN 5305-00-993-3152

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XN	National Security Agency ATTN: L111 Fort George G. Meade, MD 20755-6000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-993-3152

Navy

Category	Code	Description
Cognizance Codes	9Z	Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg
Source of Supply	S9I	Defense Industrial Supply Center Philadelphia, PA 19111
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
