NSN 5305-00-999-4085 NAS1351314P, NAS1351-3-14P, 10114810

Product Details | SOCKET HEAD CAP SCREW

5305-00-999-4085 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: NAS1351314P, NAS1351-3-14P, 10114810 , 5305-00-999-4085, 00-999-4085, 5305009994085, 009994085

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	11 APR 1966	00-999-4085	16282 ( SCREW, CAP, SOCKET HEAD )

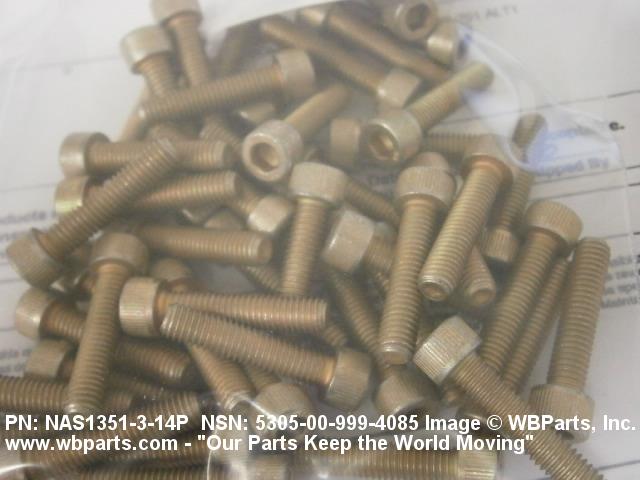

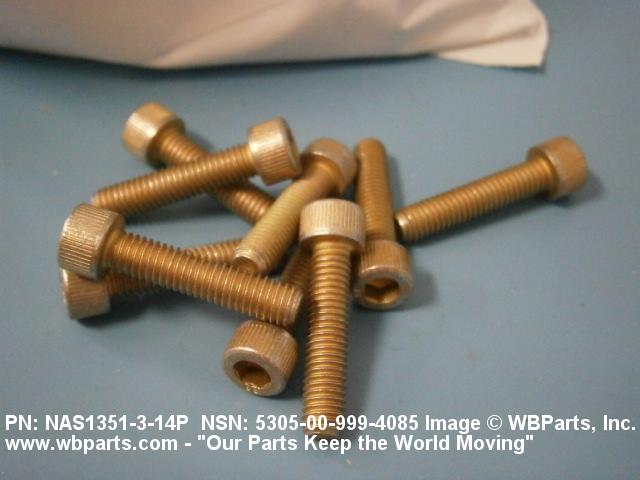

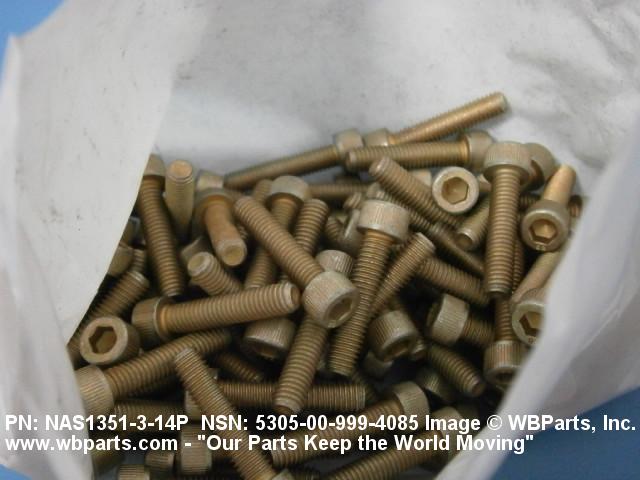

Drawings & Photos | NSN 5305-00-999-4085

Part Number	Request Date	QTY	Origin
5305-00-999-4085	2025-04-91	10	Croatia
NAS1351314P	2024-07-206	192	Japan
NAS1351314P	2024-03-78	26	United States
5305-00-999-4085	2012-04-111	4	US
NAS1351314P	2011-11-334	200	US
NAS1351314P	2011-11-322	50	United States
NAS1351-3-14P	2011-11-313	50	US
NAS1351-3-14P	2011-11-313	50	US
NAS1351-3-14P	2011-10-284	50	United States
5305-00-999-4085	2011-04-96	3	DIBBS
5305-00-999-4085	2008-09-267	520	United States
NAS1351314P	2006-02-38	7000	US

Cross Reference | NSN 5305-00-999-4085

Part Number	Cage Code	Manufacturer
NAS1351-3-14P	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-999-4085

Compare

Related Products | NSN 5305-00-999-4085

5305-00-999-4086, 5305-00-999-4087, 5305-00-999-4088, 5305-00-999-4089, 5305-00-999-4094

Technical Data | NSN 5305-00-999-4085

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNRF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.783 INCHES MINIMUM AND 0.875 INCHES MAXIMUM
FASTENER LENGTH	0.845 INCHES MINIMUM AND 0.875 INCHES MAXIMUM
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	180000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	155000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER
HEAD DIAMETER	0.303 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
HEAD HEIGHT	0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.156 INCHES MINIMUM AND 0.159 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS1351 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
DEPARTURE FROM CITED DOCUMENT	ONE

Restrictions/Controls & Freight Information | NSN 5305-00-999-4085

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
No Freight Information

Management | NSN 5305-00-999-4085

Army

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
