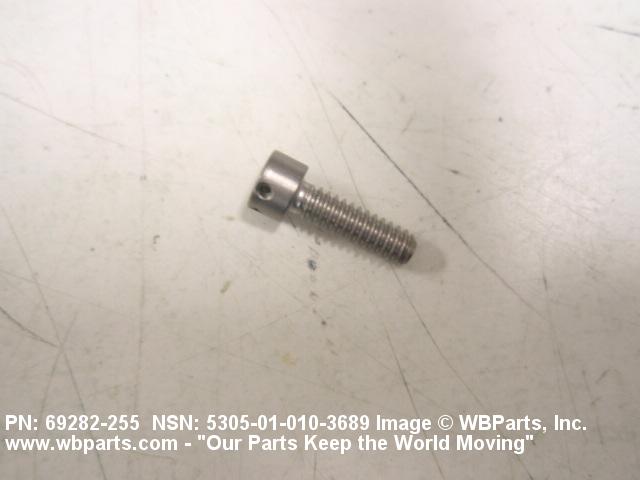

Product Details | SOCKET HEAD CAP SCREW
5305-01-010-3689 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: 69282255, 69282-255, 5305-01-010-3689, 01-010-3689, 5305010103689, 010103689
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 SEP 1975 | 01-010-3689 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-01-010-3689
Demand History | NSN 5305-01-010-3689
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 69282-255 | 2024-02-51 | 2 | DIBBS |
| 5305-01-010-3689 | 2014-06-181 | 50 | US |
| 5305-01-010-3689 | 2010-06-153 | 167 | United States |
| 5305-01-010-3689 | 2010-03-74 | 167 | DIBBS |
| 5305-01-010-3689 | 2009-05-141 | 167 | DIBBS |
| 5305-01-010-3689 | 2009-04-105 | 115 | DIBBS |
| 5305-01-010-3689 | 2008-04-115 | 197 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-010-3689
Related Products | NSN 5305-01-010-3689
Technical Data | NSN 5305-01-010-3689
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.690 INCHES NOMINAL |
| FASTENER LENGTH | 0.609 INCHES MINIMUM AND 0.641 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5735,TYPE A-286 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 24.0 ROCKWELL C MINIMUM AND 36.0 ROCKWELL C MAXIMUM OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.303 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| HEAD HEIGHT | 0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |

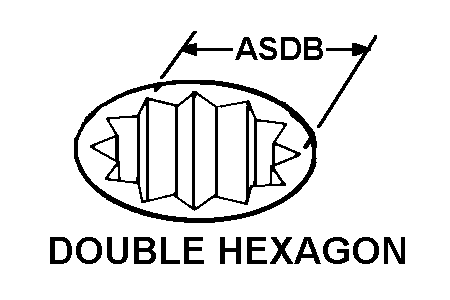

| INTERNAL DRIVE STYLE | D4 DOUBLE HEXAGON |
| WIDTH ACROSS FLATS | 0.156 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E12 ROUND LONGITUDINAL HOLE |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 4 |
| HOLE DIAMETER | 0.047 INCHES NOMINAL |
| SURFACE FINISH | 63.0 MICROINCHES BEARING SURFACE OF HEAD 63.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | 69282-255 |
