NSN 5305-01-010-7553 509441-518, 01-010-7553, 509441518
Product Details | SOCKET HEAD CAP SCREW
5305-01-010-7553 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: 509441-518, 5305-01-010-7553, 01-010-7553, 5305010107553, 509441518, 010107553
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 OCT 1975 | 01-010-7553 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

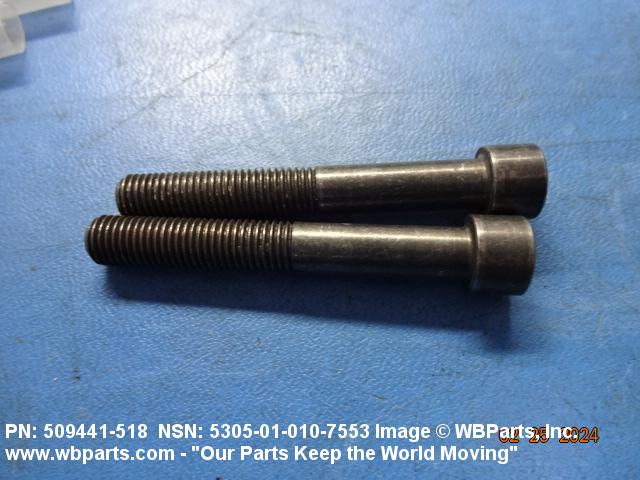

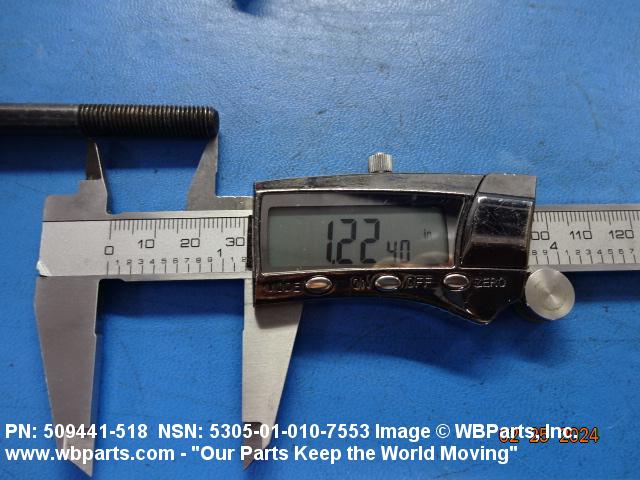

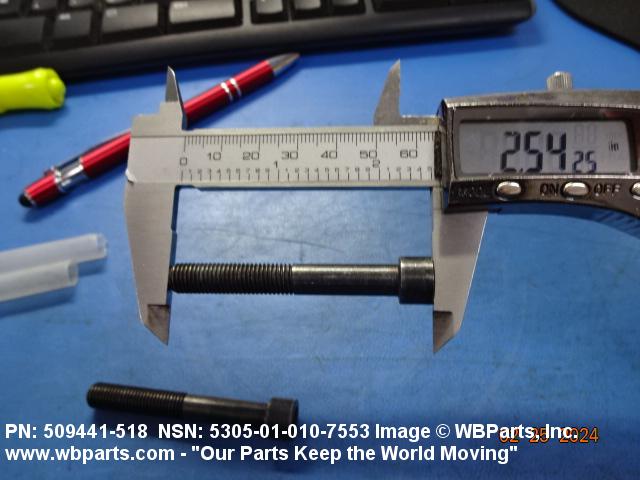

Drawings & Photos | NSN 5305-01-010-7553
Demand History | NSN 5305-01-010-7553
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-010-7553 | 2025-02-43 | 36 | DIBBS |
| 509441518 | 2025-02-35 | 1 | United States |
| 5305-01-010-7553 | 2025-02-35 | 36 | DIBBS |
| 5305-01-010-7553 | 2024-03-73 | 46 | DIBBS |
| 5305-01-010-7553 | 2024-02-39 | 2 | United States |
| 5305-01-010-7553 | 2023-11-325 | 17 | DIBBS |
| 5305-01-010-7553 | 2023-05-130 | 2 | US |
| 5305-01-010-7553 | 2021-04-94 | 18 | DIBBS |
| 5305-01-010-7553 | 2017-08-243 | 25 | DIBBS |
Cross Reference | NSN 5305-01-010-7553
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 509441-518 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-010-7553
Related Products | NSN 5305-01-010-7553
Technical Data | NSN 5305-01-010-7553
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |

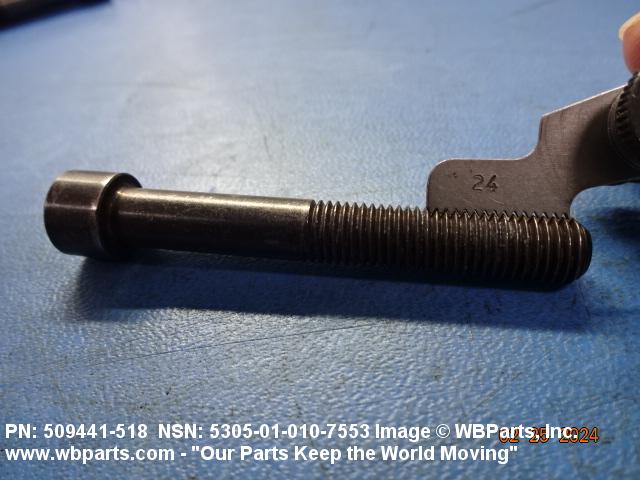

| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.250 INCHES NOMINAL |

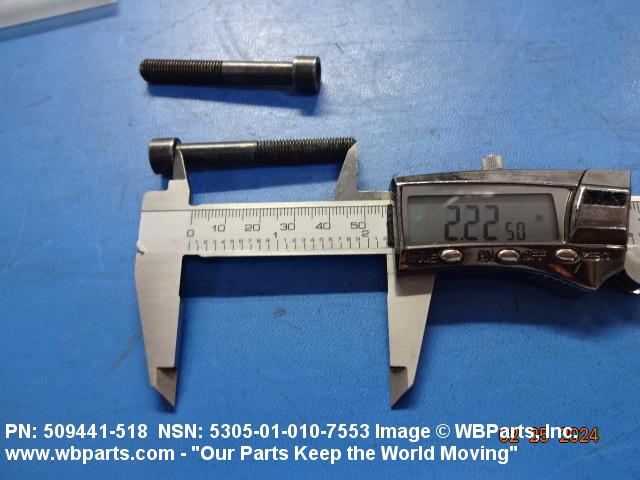

| FASTENER LENGTH | 2.250 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OR STEEL COMP 8735 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |

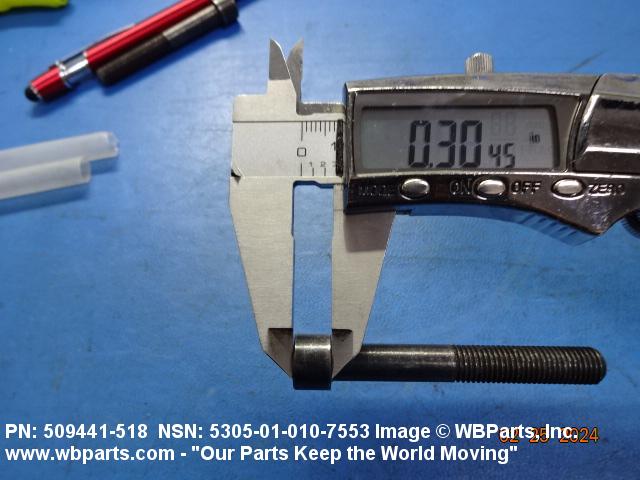

| HEAD DIAMETER | 0.469 INCHES NOMINAL |
| HEAD HEIGHT | 0.313 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |

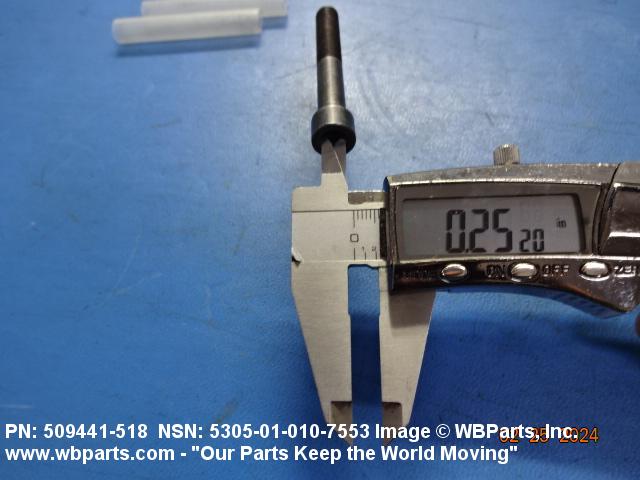

| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |
