NSN 5305-01-018-1415 NAS163506LL7, NAS1635-06LL7, TS163506LL7
Product Details | SOCKET HEAD CAP SCREW
5305-01-018-1415 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS163506LL7, NAS1635-06LL7, TS163506LL7, TS1635-06LL7, 5305-01-018-1415, 01-018-1415, 5305010181415, 010181415
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAR 1976 | 01-018-1415 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

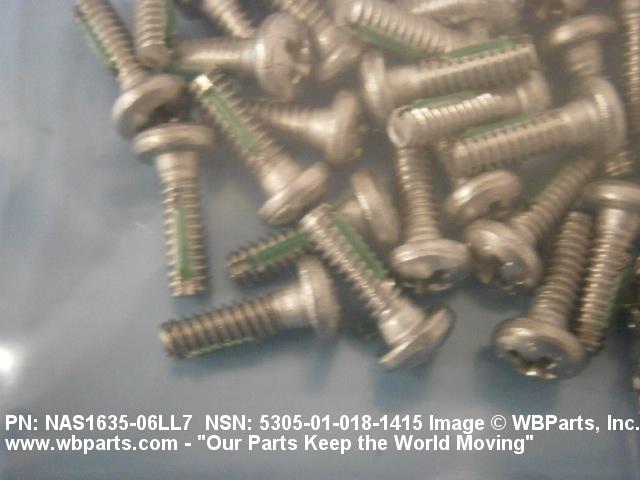

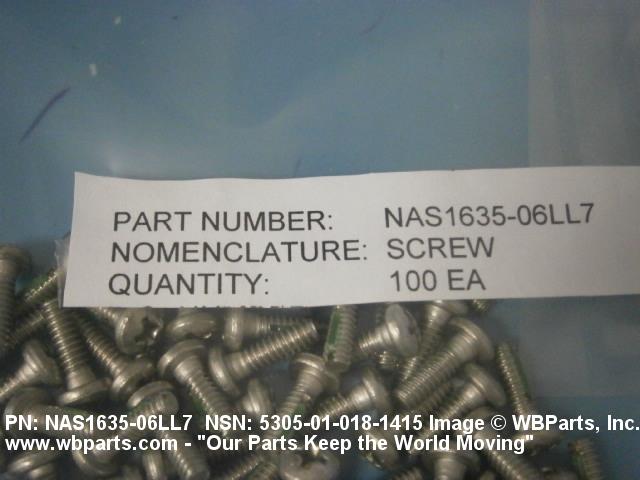

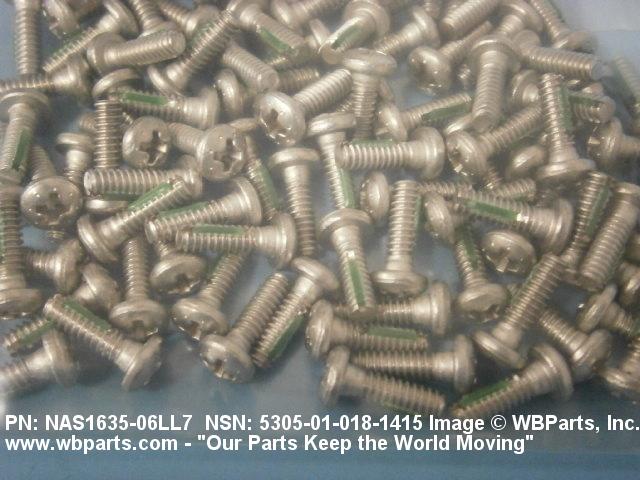

Drawings & Photos | NSN 5305-01-018-1415
Demand History | NSN 5305-01-018-1415
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-018-1415 | 2025-07-197 | 100 | DIBBS |
| 5305-01-018-1415 | 2025-03-63 | 81 | DIBBS |
| 5305-01-018-1415 | 2024-01-23 | 117 | DIBBS |
| 5305-01-018-1415 | 2023-07-205 | 32 | DIBBS |
| 5305-01-018-1415 | 2021-08-236 | 135 | DIBBS |
| 5305-01-018-1415 | 2016-06-165 | 167 | DIBBS |
| NAS1635-06LL7 | 2013-08-229 | 150 | Canada |
| NAS163506LL7 | 2012-03-82 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-018-1415
Technical Data | NSN 5305-01-018-1415
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.346 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| FASTENER LENGTH | 0.408 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072,FINISH E300 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C32 PAN |
| HEAD DIAMETER | 0.256 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| HEAD HEIGHT | 0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| LOCKING FEATURE | STRIP THREADS |
| SPECIFICATION/STANDARD DATA | 80205-NAS1635 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-01-018-1415
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
