NSN 5305-01-020-9558 NAS135204H8P, NAS1352-04H8P, 01-020-9558

Product Details | SOCKET HEAD CAP SCREW

5305-01-020-9558 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: NAS135204H8P, NAS1352-04H8P, 5305-01-020-9558, 01-020-9558, 5305010209558, 010209558

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	07 MAY 1976	01-020-9558	16282 ( SCREW, CAP, SOCKET HEAD )

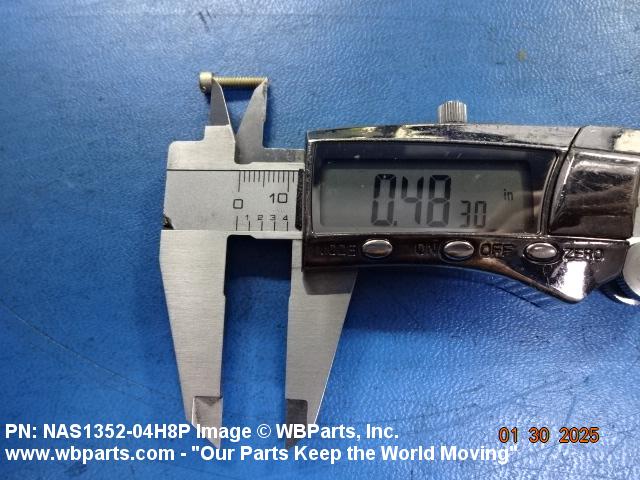

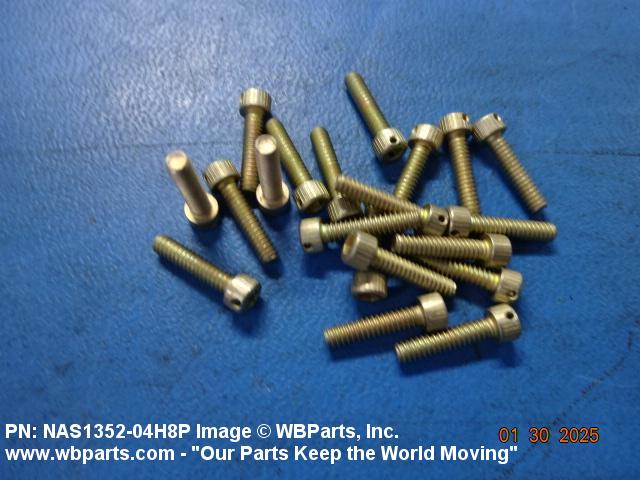

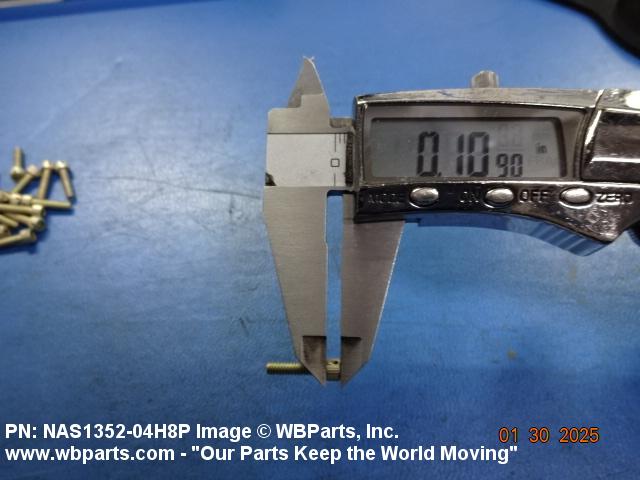

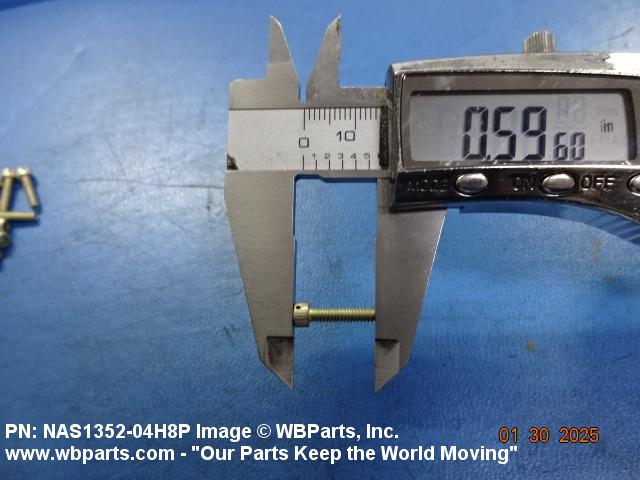

Drawings & Photos | NSN 5305-01-020-9558

Part Number	Request Date	QTY	Origin
NAS135204H8P	2025-09-248	500	United States
5305-01-020-9558	2025-03-90	1663	DIBBS
5305-01-020-9558	2025-03-82	1663	DIBBS
NAS135204H8P	2025-01-14	8	United States
5305-01-020-9558	2024-10-291	165	DIBBS
5305-01-020-9558	2023-10-288	820	DIBBS
5305-01-020-9558	2023-04-106	820	DIBBS
5305-01-020-9558	2021-07-202	989	DIBBS
5305-01-020-9558	2021-07-187	989	DIBBS

Cross Reference | NSN 5305-01-020-9558

Part Number	Cage Code	Manufacturer
NAS1352-04H8P	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-020-9558

Compare

Related Products | NSN 5305-01-020-9558

5305-01-020-9560, 5305-01-020-9569, 5305-01-020-9572, 5305-01-020-9573, 5305-01-020-9577

Technical Data | NSN 5305-01-020-9558

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNRC
NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.420 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
FASTENER LENGTH	0.470 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL
HARDNESS RATING	38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	180000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	155000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER
HEAD DIAMETER	0.176 INCHES MINIMUM AND 0.183 INCHES MAXIMUM
HEAD HEIGHT	0.108 INCHES MINIMUM AND 0.112 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.094 INCHES MINIMUM AND 0.095 INCHES MAXIMUM
HOLE CONFIGURATION STYLE	E12 ROUND LONGITUDINAL HOLE
HOLE TYPE	DRILLED
HOLE QUANTITY	2
HOLE DIAMETER	0.036 INCHES NOMINAL
SPECIFICATION/STANDARD DATA	80205-NAS1352 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5305-01-020-9558

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-01-020-9558

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
