NSN 5305-01-028-3293 3176207C124, 3176207-C-124, 3176213C007
Product Details | SOCKET HEAD CAP SCREW
5305-01-028-3293 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: 3176207C124, 3176207-C-124, 3176213C007, 3176213-C-007, 5305-01-028-3293, 01-028-3293, 5305010283293, 010283293
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 SEP 1976 | 01-028-3293 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

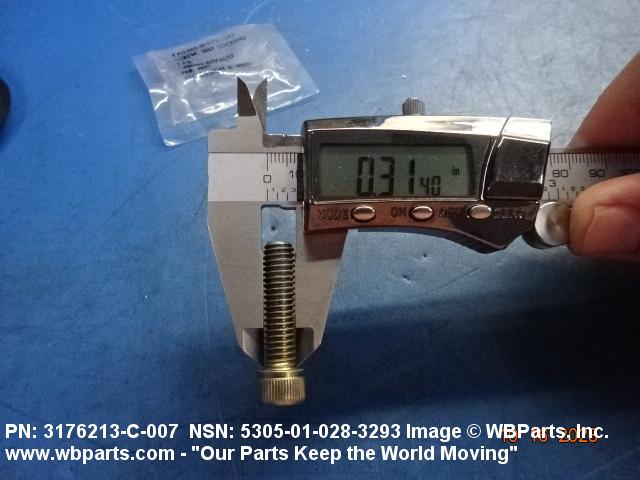

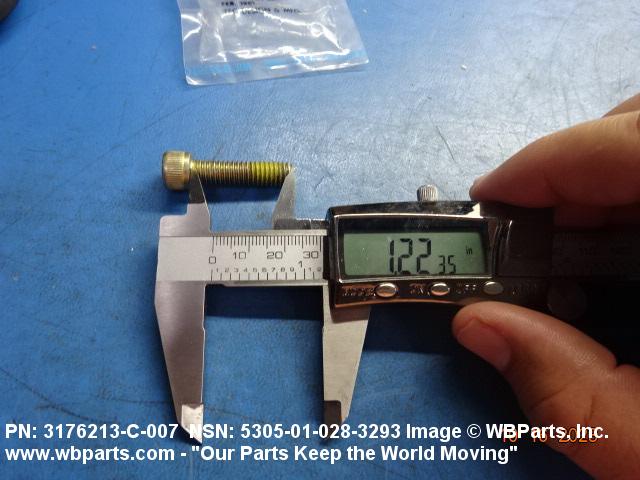

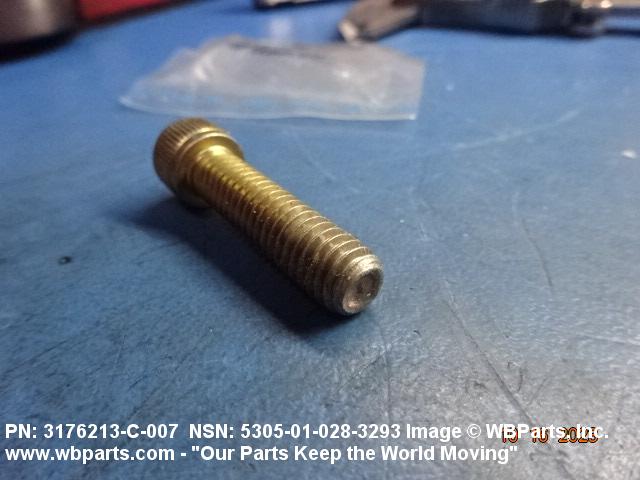

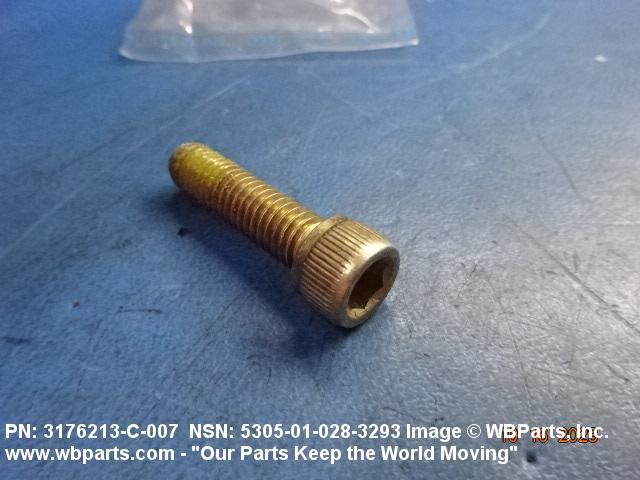

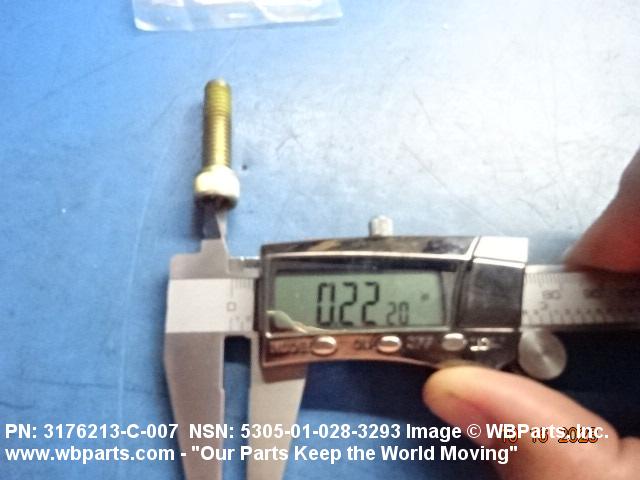

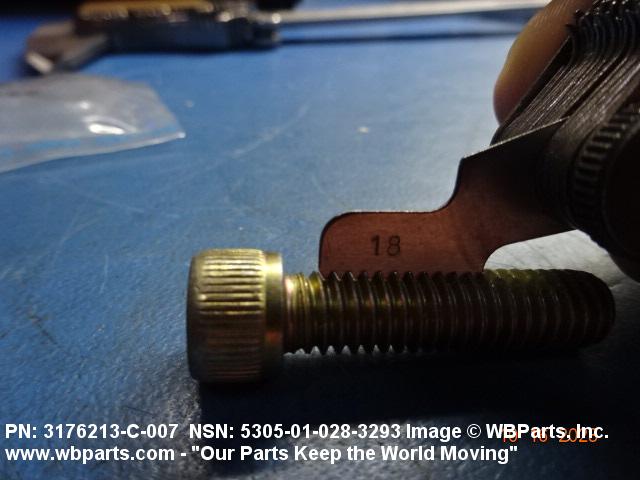

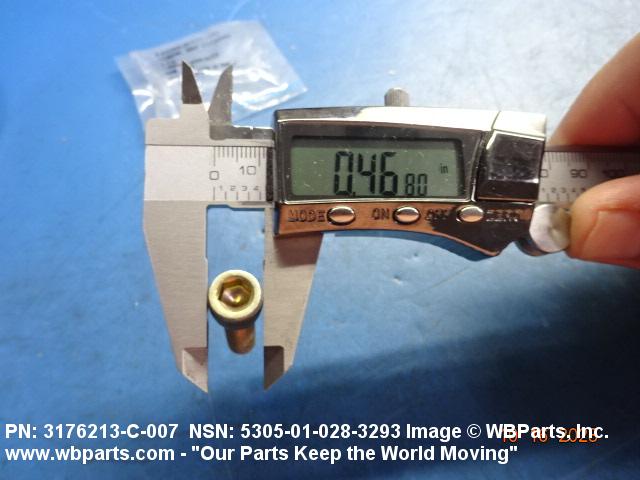

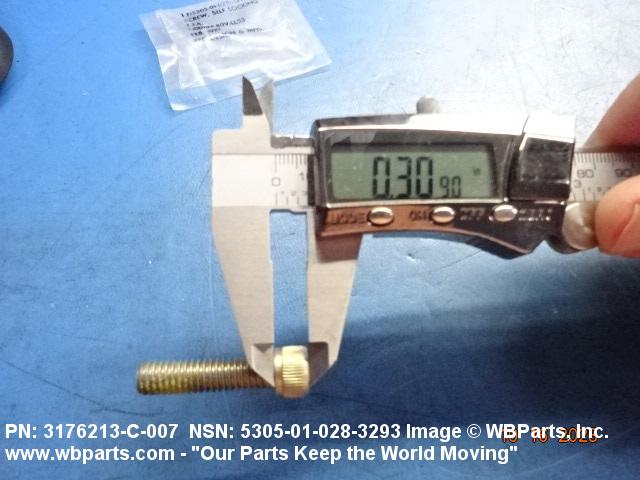

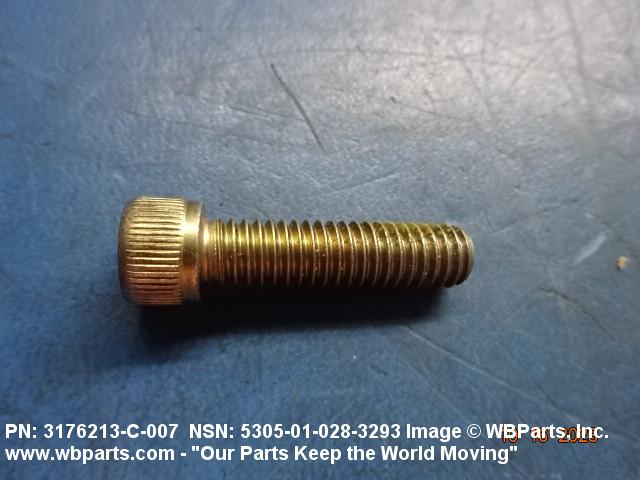

Drawings & Photos | NSN 5305-01-028-3293
Demand History | NSN 5305-01-028-3293
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-028-3293 | 2025-12-338 | 16564 | DIBBS |
| 5305-01-028-3293 | 2025-10-302 | 16564 | DIBBS |
| 5305-01-028-3293 | 2025-10-294 | 16564 | DIBBS |
| 5305-01-028-3293 | 2025-07-198 | 6274 | DIBBS |
| 5305-01-028-3293 | 2025-07-190 | 6274 | DIBBS |
| 5305-01-028-3293 | 2025-02-57 | 2439 | DIBBS |
| 5305-01-028-3293 | 2025-02-49 | 2439 | DIBBS |
| 5305-01-028-3293 | 2023-07-207 | 22 | United States |
| 5305-01-028-3293 | 2010-08-228 | 55058 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-028-3293
Related Products | NSN 5305-01-028-3293
Technical Data | NSN 5305-01-028-3293
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.139 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| FASTENER LENGTH | 1.250 INCHES NOMINAL |
| MATERIAL | PLASTIC POLYAMIDE LOCKING FEATURE STEEL FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-F-18240 MIL SPEC SINGLE MATERIAL RESPONSE LOCKING FEATURE |
| SURFACE TREATMENT | ZINC AND CHROMATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B633, TYPE 2, CLASS 3 ASSN STD ALL TREATMENT RESPONSES FASTENER |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 170000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 150000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.457 INCHES MINIMUM AND 0.469 INCHES MAXIMUM |
| HEAD HEIGHT | 0.306 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |
| LOCKING FEATURE | PATCH THREADS |
| SURFACE FINISH | 63.0 MICROINCHES BEARING SURFACE OF HEAD 63.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS |
