NSN 5305-01-031-8315 2509175, 01-031-8315, 010318315
Product Details | MACHINE SCREW
5305-01-031-8315 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 2509175, 5305-01-031-8315, 01-031-8315, 5305010318315, 010318315
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 DEC 1976 | 01-031-8315 | 06657 ( SCREW, MACHINE ) |

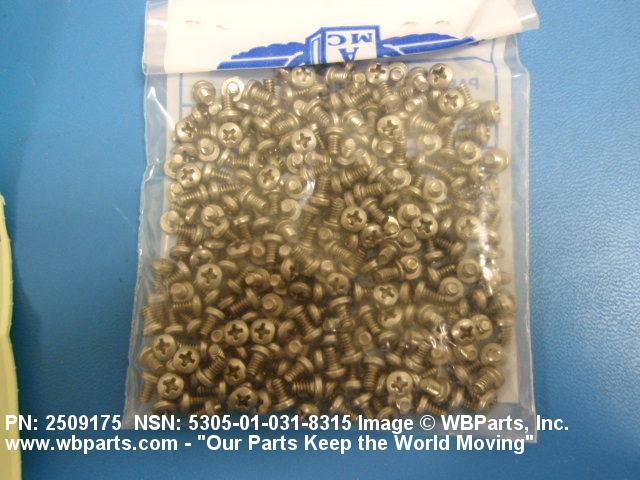

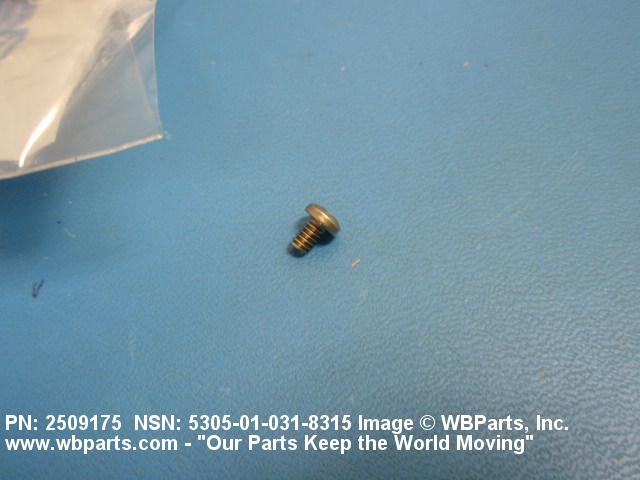

Drawings & Photos | NSN 5305-01-031-8315
Demand History | NSN 5305-01-031-8315
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-031-8315 | 2025-11-308 | 300 | DIBBS |
| 5305-01-031-8315 | 2025-09-266 | 100 | DIBBS |
| 5305-01-031-8315 | 2025-07-205 | 200 | DIBBS |
| 5305-01-031-8315 | 2025-07-197 | 200 | DIBBS |
| 5305-01-031-8315 | 2025-06-169 | 100 | DIBBS |
| 5305-01-031-8315 | 2025-06-161 | 100 | DIBBS |
| 5305-01-031-8315 | 2025-05-132 | 610 | US |
| 5305-01-031-8315 | 2025-05-126 | 600 | DIBBS |
| 5305-01-031-8315 | 2025-03-85 | 884 | DIBBS |
| 5305-01-031-8315 | 2025-02-56 | 500 | DIBBS |
| 5305-01-031-8315 | 2024-05-135 | 51 | DIBBS |
| 5305-01-031-8315 | 2024-05-127 | 51 | DIBBS |
| 5305-01-031-8315 | 2022-11-306 | 529 | DIBBS |
| 5305-01-031-8315 | 2018-08-241 | 294 | DIBBS |
| 5305-01-031-8315 | 2018-06-157 | 213 | DIBBS |
| 5305-01-031-8315 | 2017-05-151 | 367 | DIBBS |
| 5305-01-031-8315 | 2017-05-142 | 367 | DIBBS |
| 2509175 | 2009-05-125 | 250 | US |
| 2509175 | 2009-04-112 | 100 | United States |
Cross Reference | NSN 5305-01-031-8315
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2509175 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-031-8315
Restrictions/Controls & Freight Information | NSN 5305-01-031-8315
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-031-8315
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
