NSN 5305-01-045-3030 HT401648Y, HT4016-4-8Y, ST3M506481
Product Details | SHOULDER SCREW
5305-01-045-3030 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 IN.) (1.5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is designed to be driven with either a wrench or an inserted driver or both in sizes below No. 10 (0.190 IN.) (5 mm) nominal diameter. No. 10 (0.190 IN.) (5 mm) and larger sizes must be designed for any type of inserted driver, but may also provide for external wrenching of the head. A locking feature may be incorporated in the design of the head or threads. For items which are both shouldered and have an externally relieved body, use SCREW, EXTERNALLY RELIEVED BODY. For items with a No. 10 (0.190 IN.) (5 mm) or larger thread diameter without an inserted driver head, use BOLT, SHOULDER. Excludes BOLT, INTERNAL WRENCHING and SCREW, CAP, SOCKET HEAD.
Part Alternates: HT401648Y, HT4016-4-8Y, ST3M506481, ST3M506-4-8-1, 5305-01-045-3030, 01-045-3030, 5305010453030, 010453030
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JUL 1977 | 01-045-3030 | 22846 ( SCREW, SHOULDER ) |

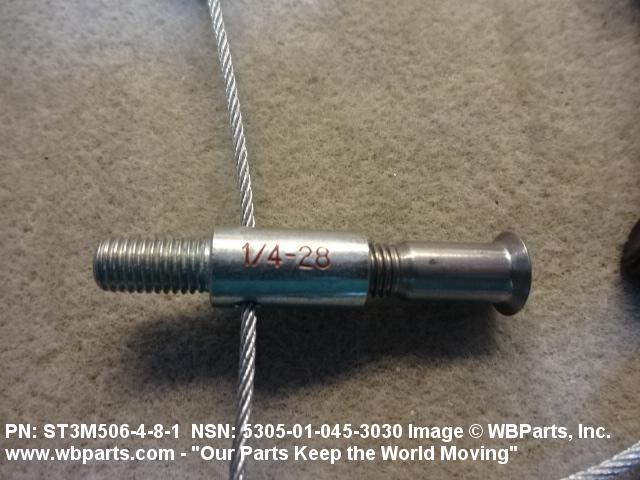

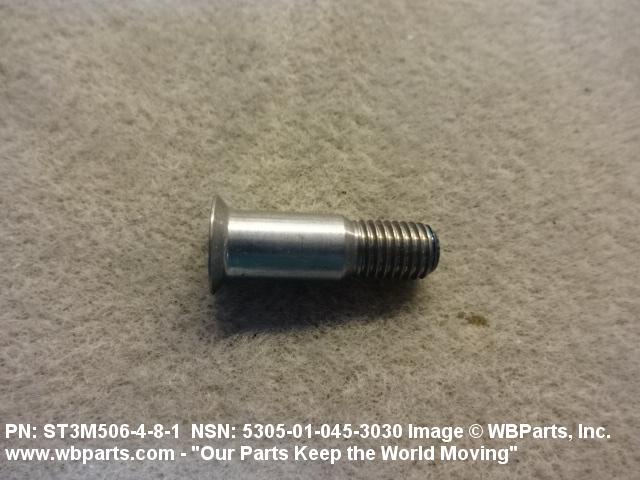

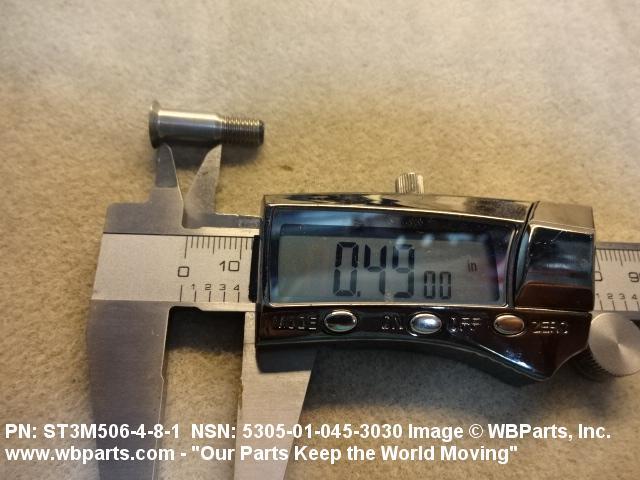

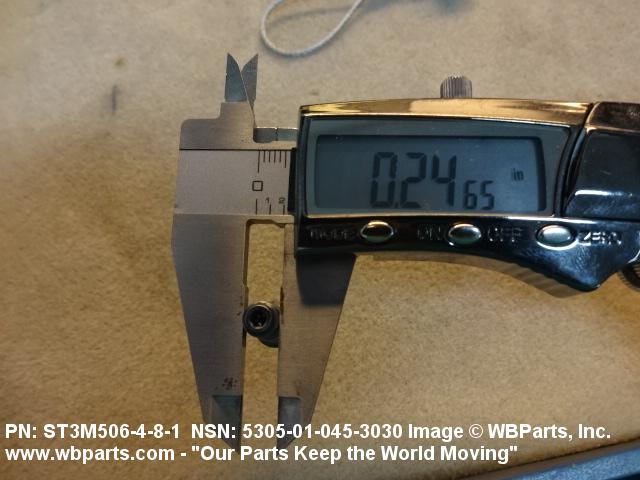

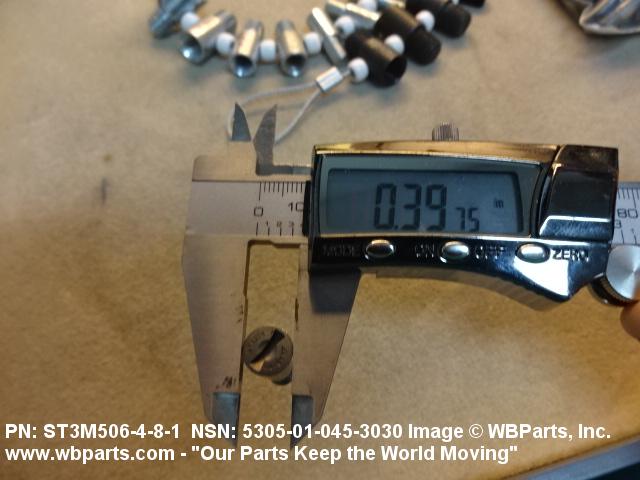

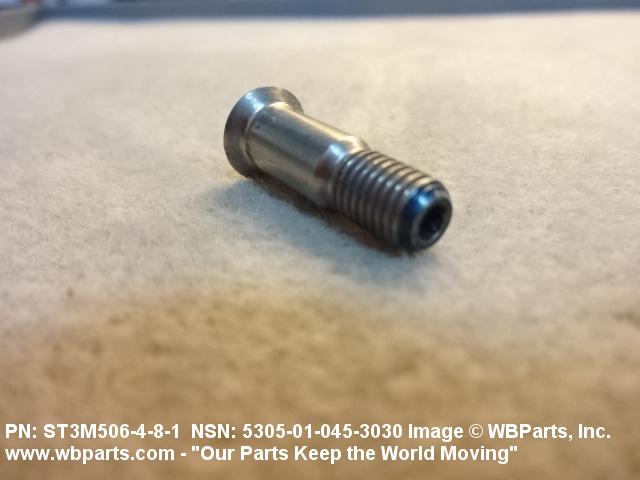

Drawings & Photos | NSN 5305-01-045-3030
Demand History | NSN 5305-01-045-3030
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HT4016-4-8Y | 2023-01-29 | 53 | DIBBS |
| ST3M506-4-8-1 | 2023-01-29 | 53 | DIBBS |
| HT4016-4-8Y | 2020-09-274 | 18 | DIBBS |
| ST3M506-4-8-1 | 2020-09-274 | 18 | DIBBS |
| HT4016-4-8Y | 2019-08-240 | 95 | DIBBS |
| ST3M506-4-8-1 | 2019-08-240 | 95 | DIBBS |
| 5305-01-045-3030 | 2019-02-45 | 227 | United States |
| 5305-01-045-3030 | 2018-12-336 | 227 | DIBBS |
| 5305-01-045-3030 | 2018-08-238 | 89 | DIBBS |
| 5305-01-045-3030 | 2012-11-318 | 157 | DIBBS |
| 5305-01-045-3030 | 2012-10-279 | 58 | DIBBS |
| 5305-01-045-3030 | 2012-09-262 | 36 | DIBBS |
| 5305-01-045-3030 | 2012-02-46 | 36 | DIBBS |
| 5305-01-045-3030 | 2008-04-120 | 1000 | DIBBS |
| 5305-01-045-3030 | 2008-04-119 | 36 | DIBBS |
| 5305-01-045-3030 | 2008-04-119 | 599 | DIBBS |
| 5305-01-045-3030 | 2008-04-105 | 36 | DIBBS |
| 5305-01-045-3030 | 2008-04-105 | 599 | DIBBS |
| 5305-01-045-3030 | 2008-03-80 | 36 | DIBBS |
Cross Reference | NSN 5305-01-045-3030
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HT4016-4-8Y | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HT4016-4-8Y | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HT4016-4-8Y | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HT4016-4-8Y | 73197 | HI-SHEAR CORPORATION |
| HT4016-4-8Y | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HT4016-4-8Y | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HT4016-4-8Y | 97928 | HUCK INTL INC |
| ST3M506-4-8-1 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| ST3M506-4-8-1 | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| ST3M506-4-8-1 | 60516 | WEST COAST AEROSPACE INC |
| ST3M506-4-8-1 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-045-3030
Related Products | NSN 5305-01-045-3030
Technical Data | NSN 5305-01-045-3030
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

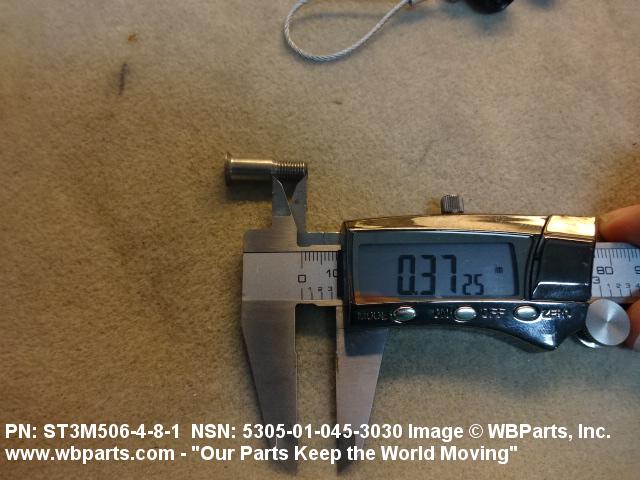

| THREAD LENGTH | 0.372 INCHES MINIMUM AND 0.422 INCHES MAXIMUM |
| FASTENER LENGTH | 0.632 INCHES MINIMUM AND 0.662 INCHES MAXIMUM |
| MATERIAL | STEEL COMP XM-13 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5629 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C54 OVAL COUNTERSUNK |
| HEAD DIAMETER | 0.421 INCHES MINIMUM AND 0.426 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

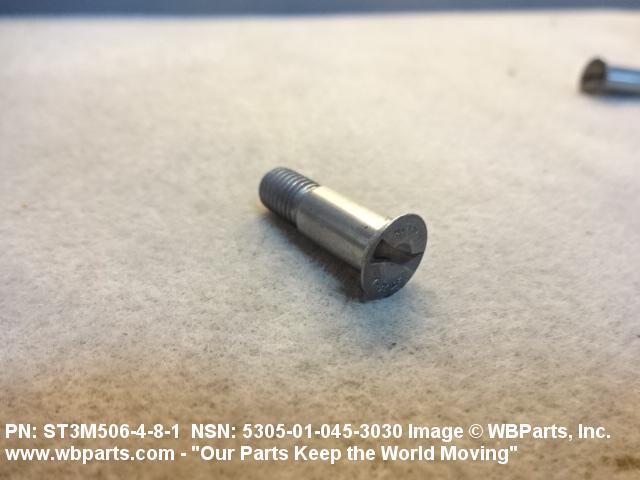

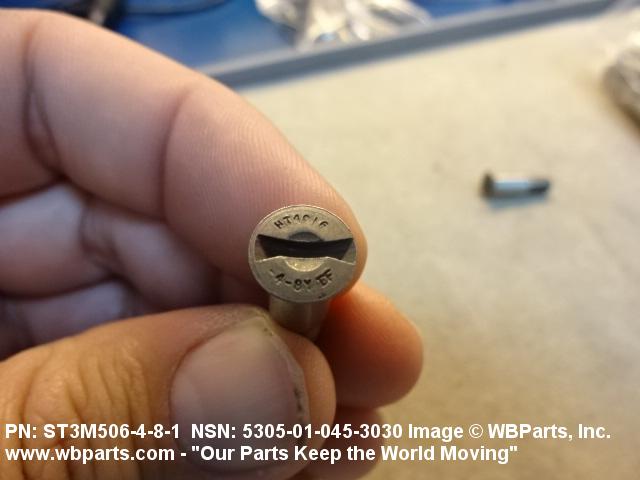

| INTERNAL DRIVE STYLE | D9 HIGH-TORQUE |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |

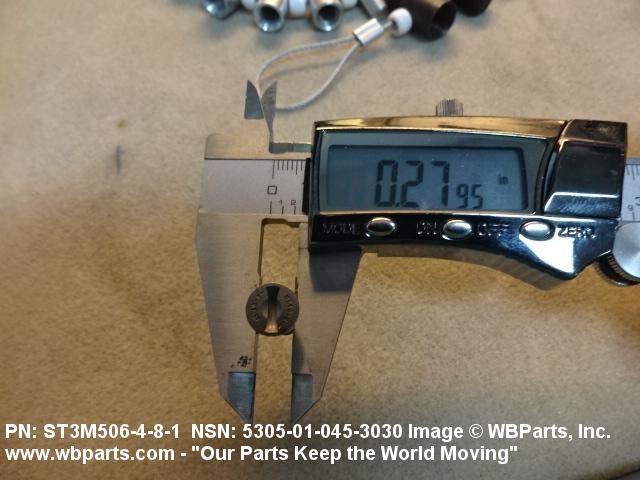

| SHOULDER DIAMETER | 0.2802 INCHES MINIMUM AND 0.2807 INCHES MAXIMUM FIRST SHOULDER |
| SHOULDER LENGTH | 0.176 INCHES MINIMUM AND 0.204 INCHES MAXIMUM FIRST SHOULDER |

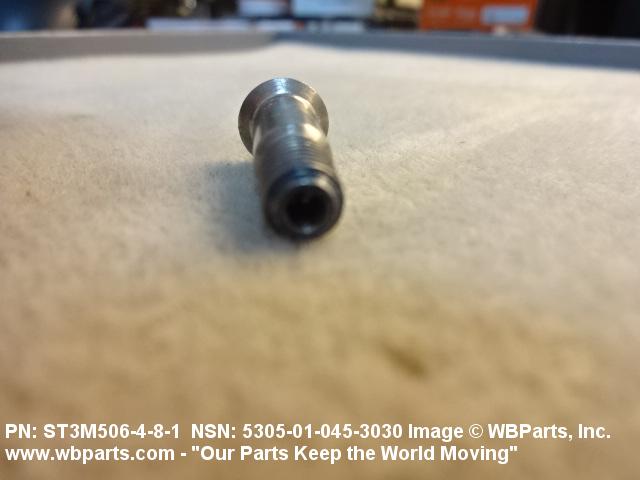

| SPECIAL FEATURES | SOCKET DRIVE RECESS IN THREAD END 0.0947 IN. MIN AND 0.0967 IN. MAX WIDTH ACROSS FLATS |
| III END ITEM IDENTIFICATION | FMS - AIRCRAFT, HORNET F/A-18;AIRCRAFT, EAGLE F-15;AIRCRAFT, HORNET F/A-18;AIRCRAFT, HARRIER AV-8B |
| MANUFACTURERS CODE | 73197 |
| DESIGN CONTROL REFERENCE | HT4016-4-8Y |
Restrictions/Controls & Freight Information | NSN 5305-01-045-3030
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-045-3030
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
