NSN 5305-01-077-9909 NAS1801348, NAS1801-3-48, BACS12CB348

Product Details | MACHINE SCREW

5305-01-077-9909 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: NAS1801348, NAS1801-3-48, BACS12CB348, BACS12CB3-48, 323776, 5305-01-077-9909, 01-077-9909, 5305010779909, 010779909

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	05 JUN 1979	01-077-9909	18257 ( SCREW, CAP, HEXAGON HEAD )

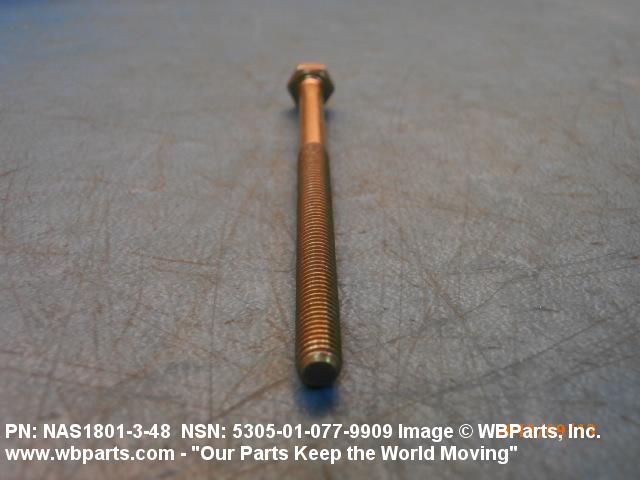

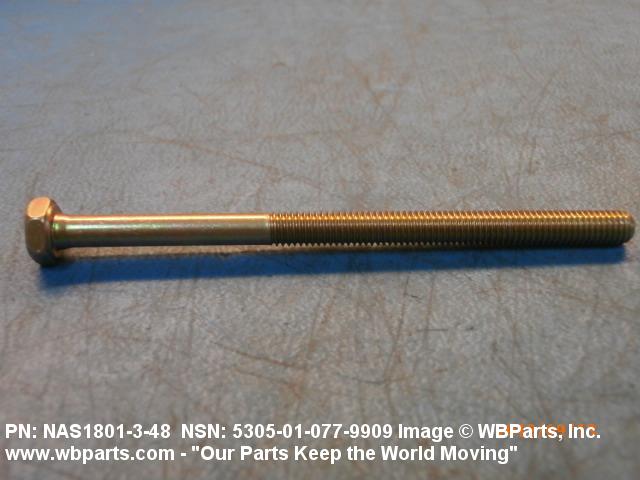

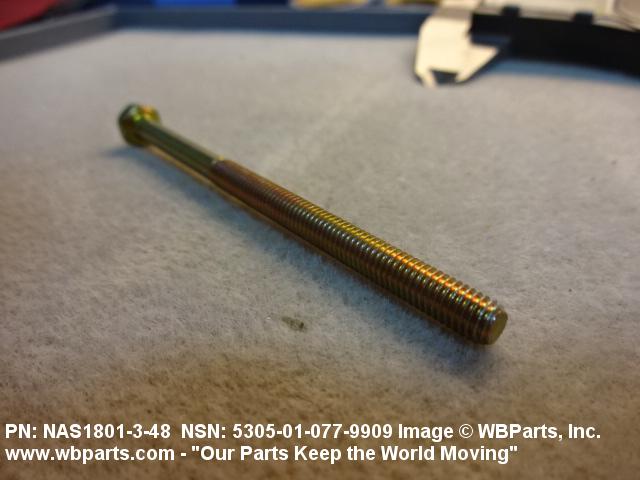

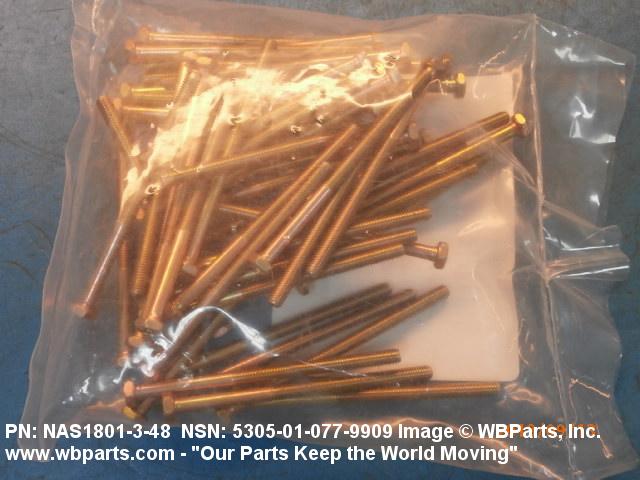

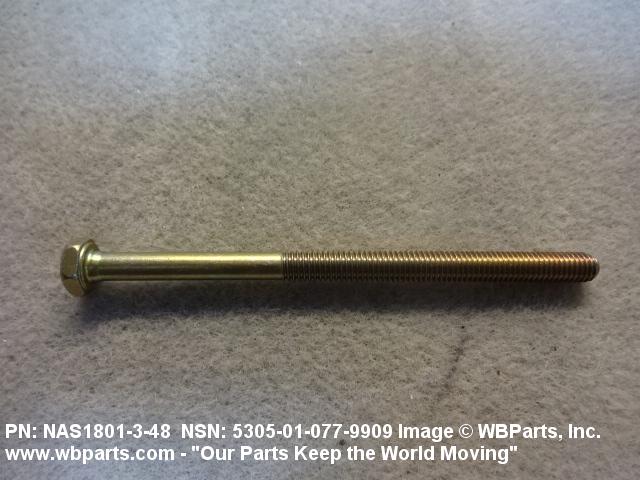

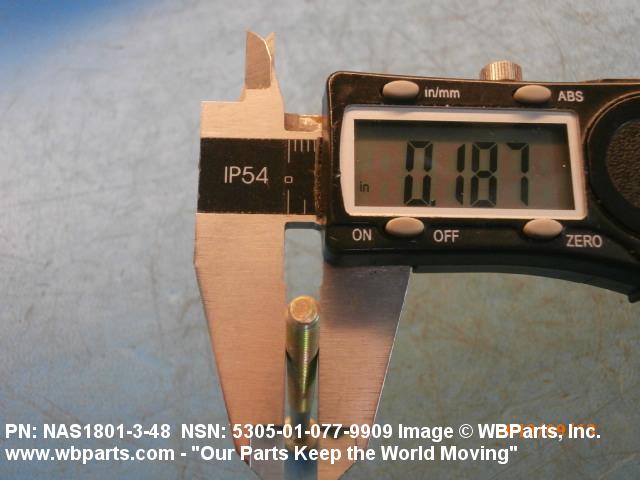

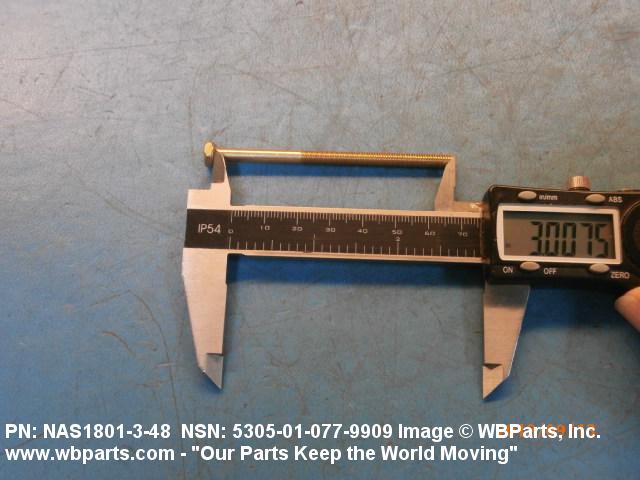

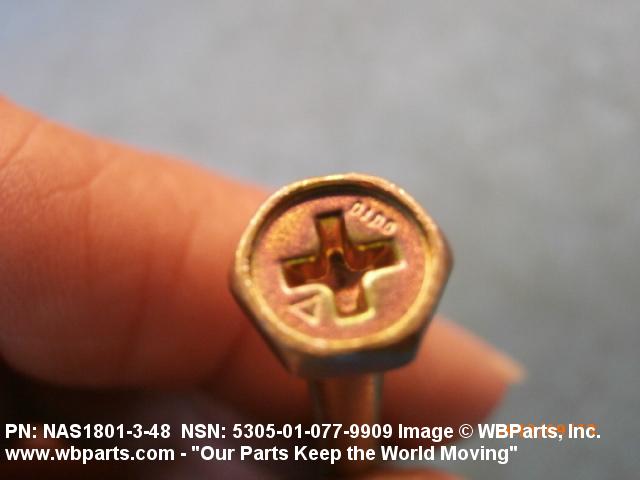

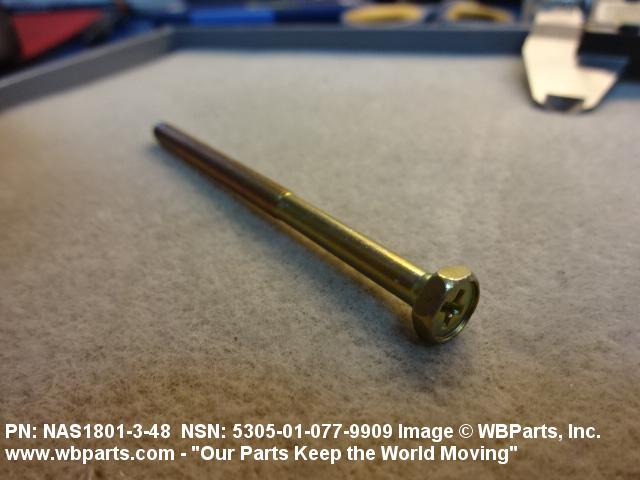

Drawings & Photos | NSN 5305-01-077-9909

Part Number	Request Date	QTY	Origin
5305-01-077-9909	2025-05-124	284	DIBBS
5305-01-077-9909	2024-07-207	18	DIBBS
5305-01-077-9909	2023-12-351	53	DIBBS
NAS1801348	2023-11-318	100	United States
5305-01-077-9909	2023-09-260	149	DIBBS
5305-01-077-9909	2023-06-176	31	DIBBS
NAS1801348	2023-05-137	100	Malta
5305-01-077-9909	2022-05-137	10	Saudi Arabia
5305-01-077-9909	2022-05-136	10	Saudi Arabia
5305-01-077-9909	2022-01-24	50	United States
NAS1801348	2022-01-11	120	Malta
5305-01-077-9909	2021-07-196	50	United States
5305-01-077-9909	2018-09-253	50	United States
5305-01-077-9909	2018-07-183	50	United States
5305-01-077-9909	2016-08-221	3567	DIBBS
NAS1801348	2014-08-226	15	US
NAS1801348	2009-02-56	20	US
NAS1801348	2009-02-56	20	US
NAS1801348	2009-02-43	20	US
NAS1801348	2008-04-116	500	us
NAS1801348	2006-08-229	100	Malaysia

Cross Reference | NSN 5305-01-077-9909

Part Number	Cage Code	Manufacturer
323776	62983	EATON AEROSPACE LLC
BACS12CB3-48	77272	THE BOEING COMPANY DBA BOEING
BACS12CB3-48	81205	THE BOEING COMPANY DBA BOEING
NAS1801-3-48	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-077-9909

Compare

Related Products | NSN 5305-01-077-9909

5305-01-077-9910, 5305-01-077-9912, 5305-01-077-9913, 5305-01-077-9914, 5305-01-077-9915

Technical Data | NSN 5305-01-077-9909

Characteristic	Specifications

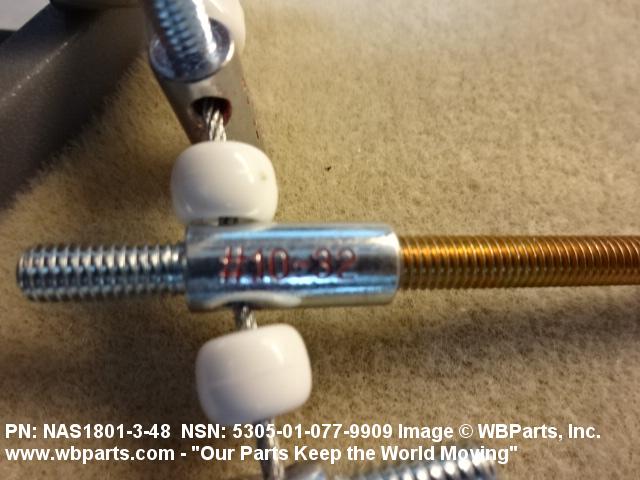

THREAD SERIES DESIGNATOR	UNJF

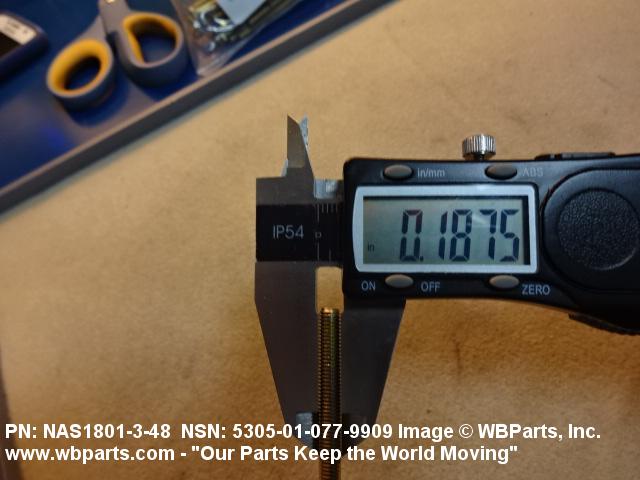

NOMINAL THREAD DIAMETER	0.190 INCHES

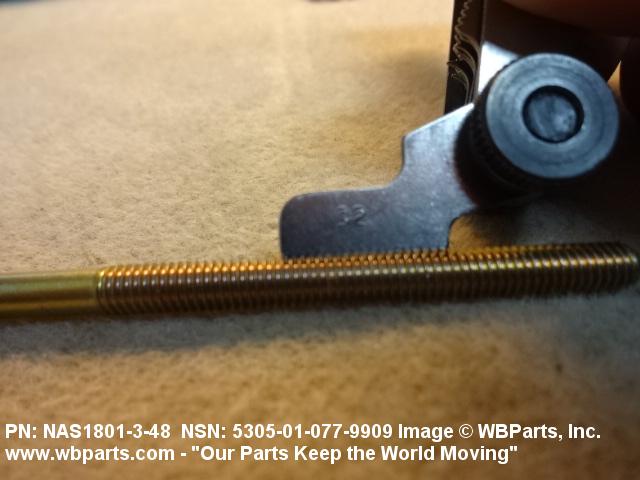

THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

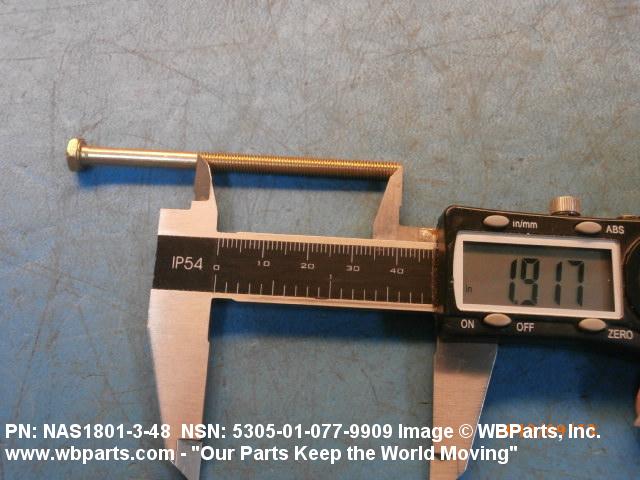

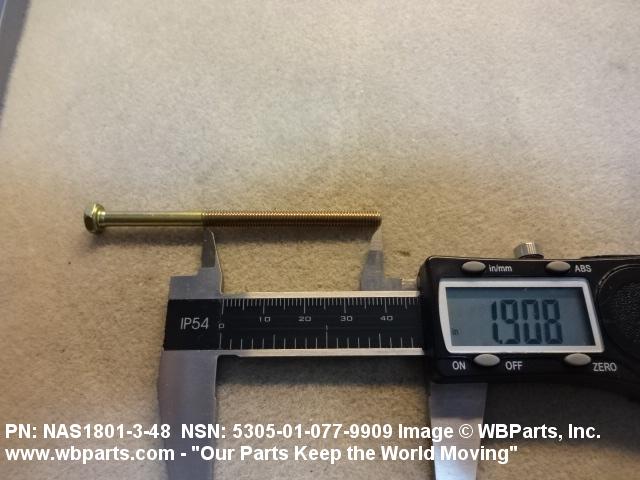

THREAD LENGTH	1.750 INCHES MINIMUM

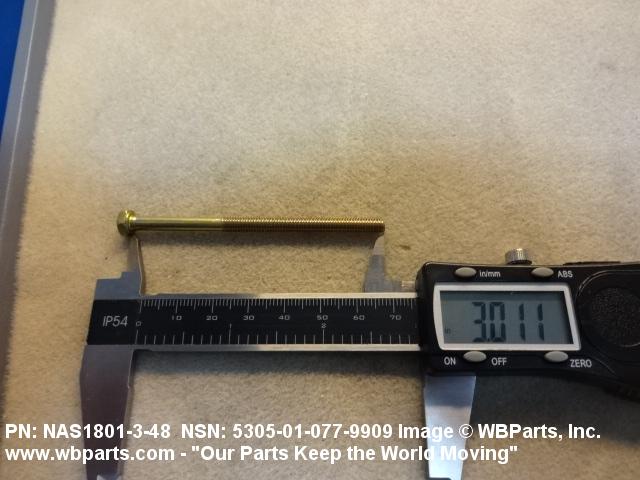

FASTENER LENGTH	2.984 INCHES MINIMUM AND 3.031 INCHES MAXIMUM
SCREW MATERIAL	STEEL COMP E4340 OR STEEL COMP 8740
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR AMS 6322 ASSN STD 2ND MATERIAL RESPONSE
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH
HEAD STYLE	A1 HEXAGON

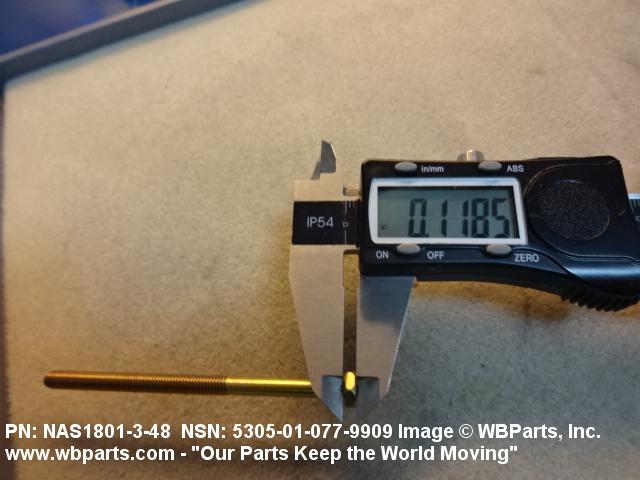

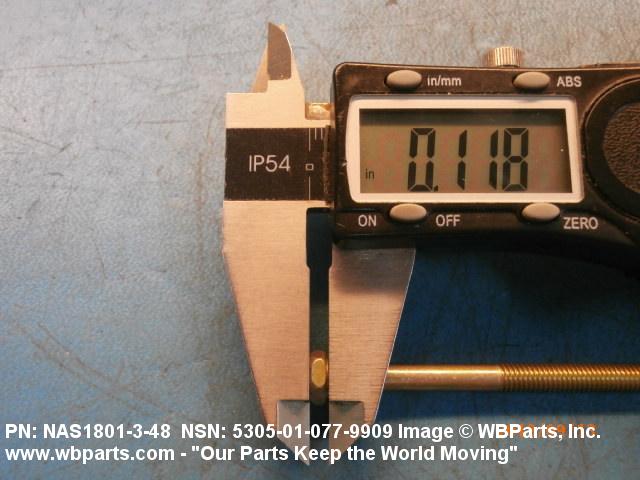

HEAD HEIGHT	0.105 INCHES MINIMUM AND 0.120 INCHES MAXIMUM

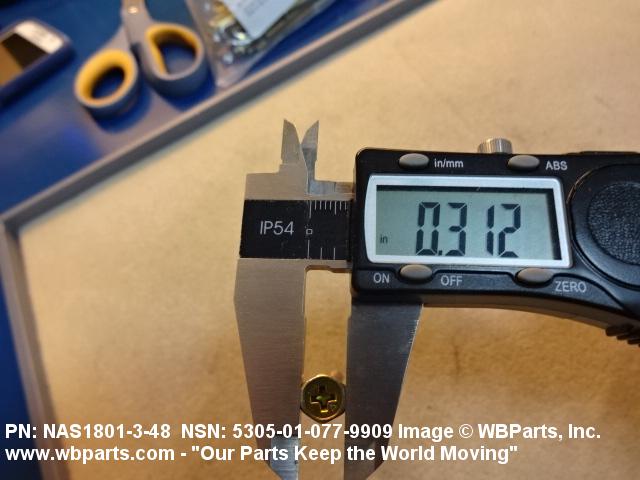

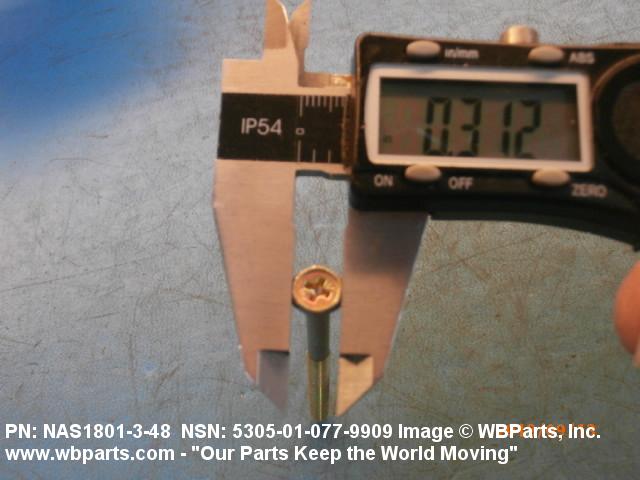

WIDTH BETWEEN FLATS	0.305 INCHES MINIMUM AND 0.314 INCHES MAXIMUM

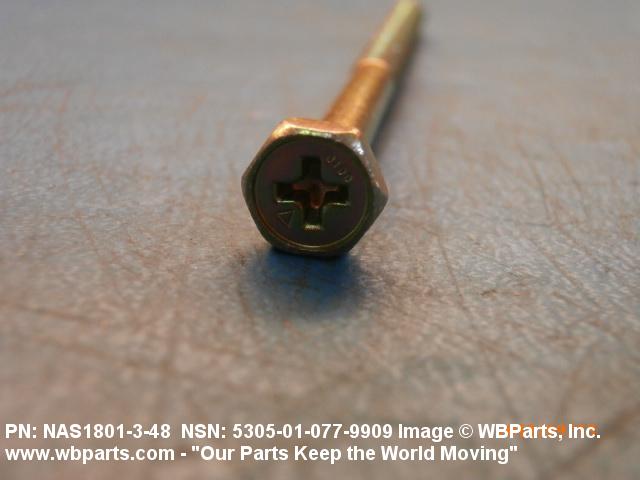

INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
SPECIFICATION/STANDARD DATA	80205-NAS1801 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5305-01-077-9909

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-01-077-9909

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
