NSN 5305-01-101-9426 MS1699733L, MS16997-33L, NAS13529

Product Details | SOCKET HEAD CAP SCREW

5305-01-101-9426 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS1699733L, MS16997-33L, NAS13529, NAS1352-9, FFS86, FF-S-86, 5305-01-101-9426, 01-101-9426, 5305011019426, 011019426

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 OCT 1980	01-101-9426	16282 ( SCREW, CAP, SOCKET HEAD )

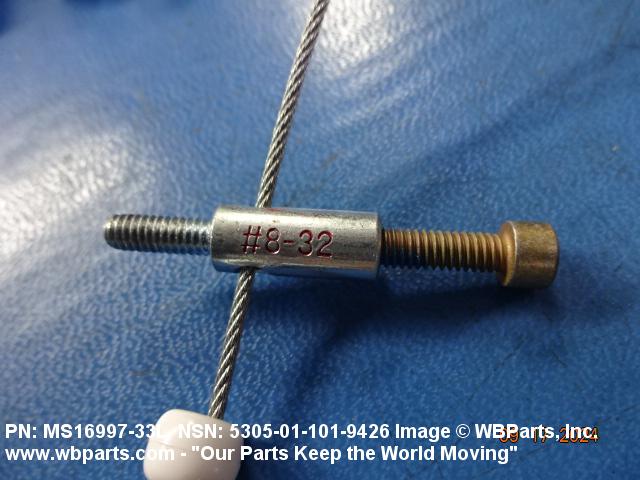

Drawings & Photos | NSN 5305-01-101-9426

Part Number	Request Date	QTY	Origin
5305-01-101-9426	2025-05-126	162	DIBBS
5305-01-101-9426	2025-04-91	1001	DIBBS
5305-01-101-9426	2025-03-83	1001	DIBBS
5305-01-101-9426	2024-09-256	150	United States
5305-01-101-9426	2024-09-250	150	United States
5305-01-101-9426	2024-08-243	150	United States
5305-01-101-9426	2024-07-189	162	DIBBS
5305-01-101-9426	2024-06-161	89	DIBBS
5305-01-101-9426	2024-05-137	662	DIBBS
5305-01-101-9426	2024-04-105	662	DIBBS
5305-01-101-9426	2024-04-96	200	US
5305-01-101-9426	2024-02-46	1780	DIBBS
5305-01-101-9426	2023-03-75	944	DIBBS
FFS86	2022-05-143	40	United States
FFS86	2021-12-347	40	US
5305-01-101-9426	2021-02-54	3800	DIBBS
5305-01-101-9426	2021-02-39	3800	DIBBS
MS1699733L	2018-12-344	25000	us
5305-01-101-9426	2015-08-232	2825	DIBBS
FFS86	2013-08-229	80	Canada
FFS86	2012-03-74	2	US
FFS86	2011-08-222	50	US
5305-01-101-9426	2011-08-218	0	DIBBS
FFS86	2011-08-214	50	US
FFS86	2011-03-61	8	US
FFS86	2011-03-60	5000	US
MS1699733L	2010-09-265	2000	US
5305-01-101-9426	2010-06-179	48	DIBBS

Cross Reference | NSN 5305-01-101-9426

Part Number	Cage Code	Manufacturer
FF-S-86	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS16997-33L	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS1352-9	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-101-9426

Compare

Related Products | NSN 5305-01-101-9426

5305-01-101-9427, 5305-01-101-9428, 5305-01-101-9429, 5305-01-101-9430, 5305-01-101-9432

Technical Data | NSN 5305-01-101-9426

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC

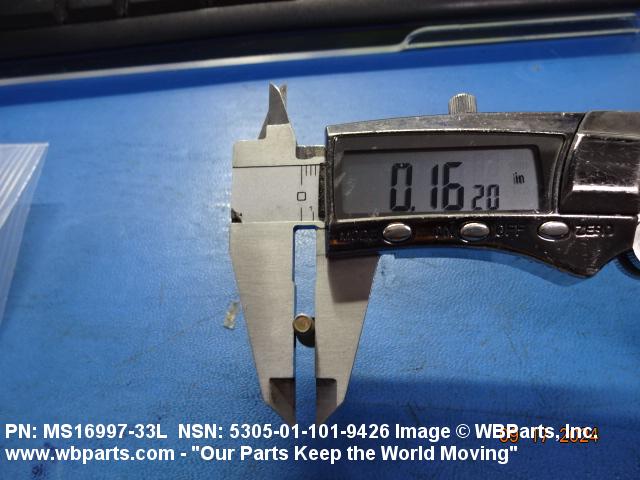

NOMINAL THREAD DIAMETER	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.532 INCHES MINIMUM AND 0.625 INCHES MAXIMUM

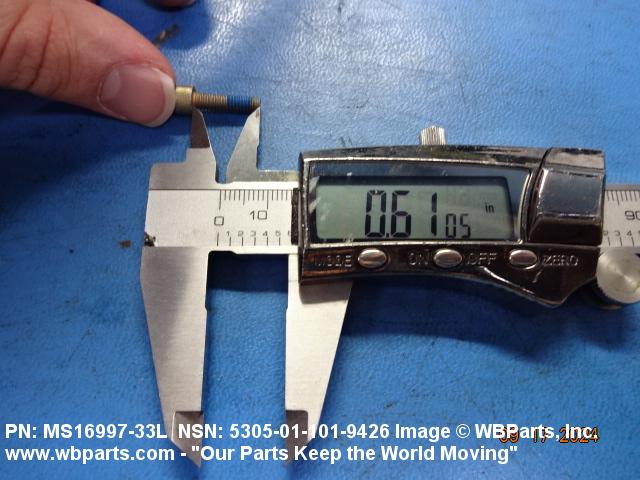

FASTENER LENGTH	0.594 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
MATERIAL	PLASTIC LOCKING FEATURE STEEL FASTENER
SURFACE TREATMENT	CADMIUM AND CHROMATE FASTENER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE FASTENER
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER

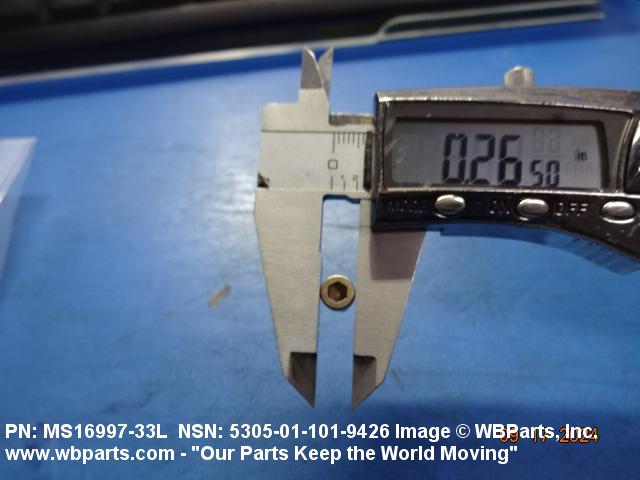

HEAD DIAMETER	0.262 INCHES MINIMUM AND 0.270 INCHES MAXIMUM

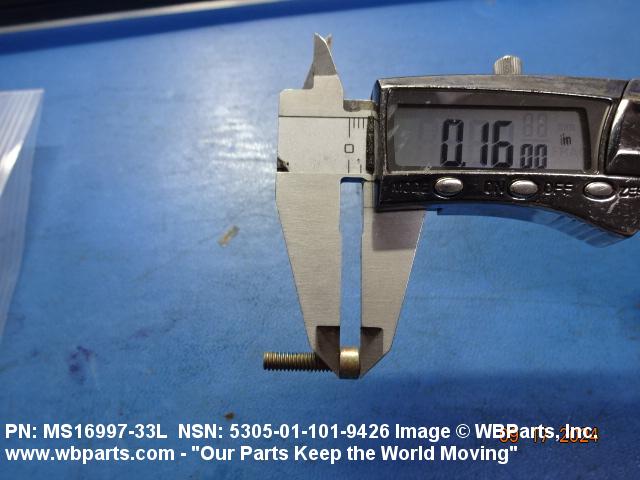

HEAD HEIGHT	0.159 INCHES MINIMUM AND 0.164 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON

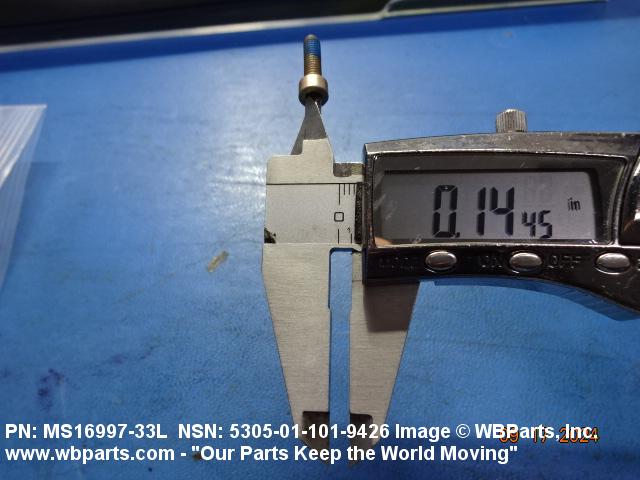

WIDTH ACROSS FLATS	0.1406 INCHES MINIMUM AND 0.1426 INCHES MAXIMUM
LOCKING FEATURE	PATCH OR STRIP THREADS
NONDEFINITIVE SPEC/STD DATA	6 TYPE

Restrictions/Controls & Freight Information | NSN 5305-01-101-9426

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-01-101-9426

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
