NSN 5305-01-111-9418 NAS13511036P, NAS1351-10-36P, 3024A8775
Product Details | SOCKET HEAD CAP SCREW
5305-01-111-9418 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS13511036P, NAS1351-10-36P, 3024A8775 , 5305-01-111-9418, 01-111-9418, 5305011119418, 011119418
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 APR 1981 | 01-111-9418 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

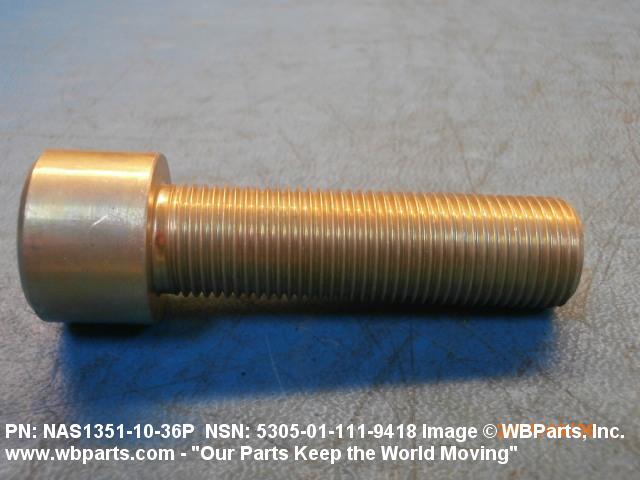

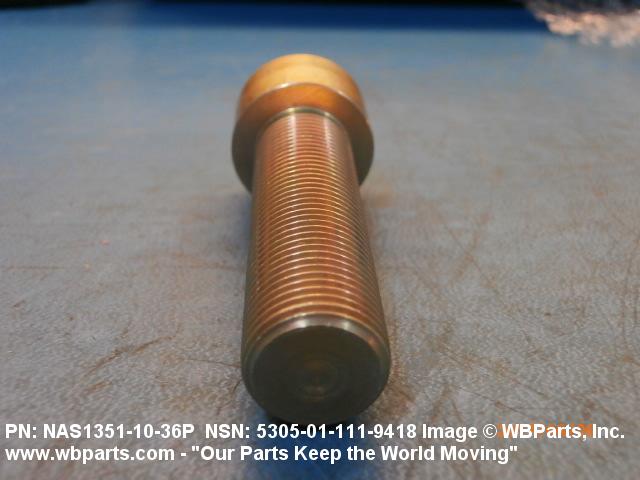

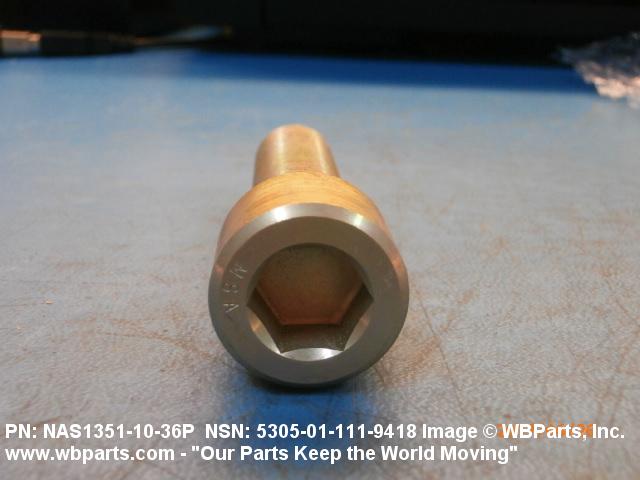

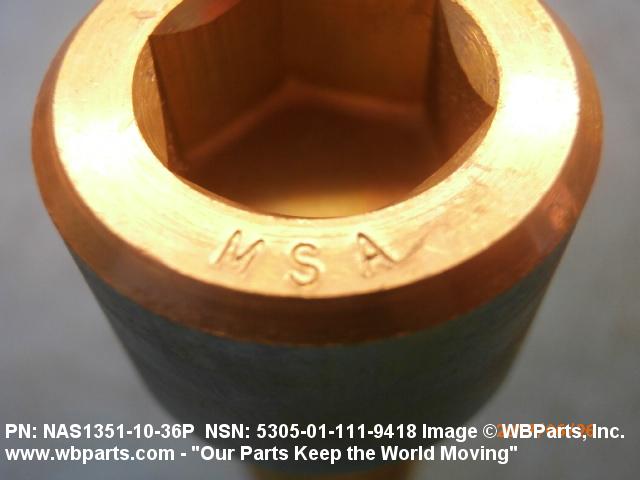

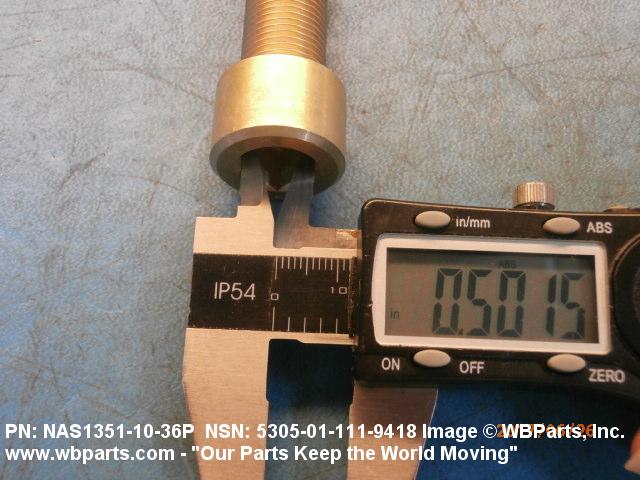

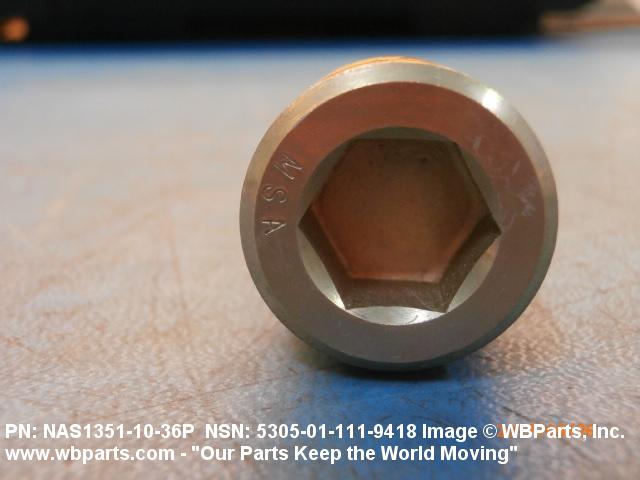

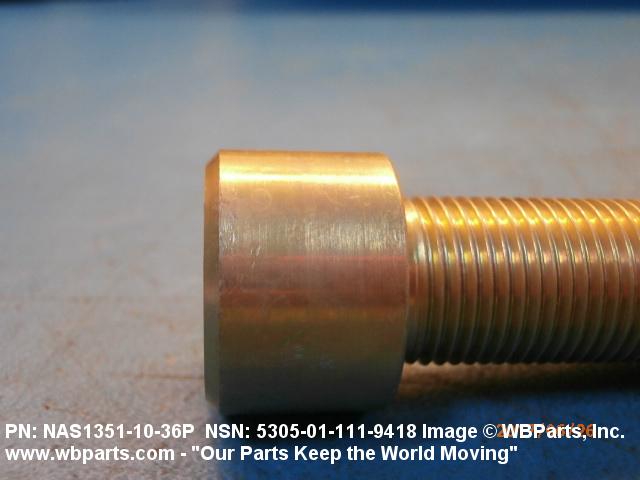

Drawings & Photos | NSN 5305-01-111-9418
Demand History | NSN 5305-01-111-9418
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS13511036P | 2017-06-179 | 60 | United States |
| NAS13511036P | 2017-06-173 | 60 | United States |
| NAS13511036P | 2017-06-170 | 10 | United States |
| 5305-01-111-9418 | 2016-11-327 | 1 | DIBBS-RFPs |
| 5305-01-111-9418 | 2014-11-306 | 1627 | DIBBS |
| 5305-01-111-9418 | 2014-05-149 | 2010 | DIBBS |
| NAS13511036P | 2010-09-259 | 50 | RO |
| 5305-01-111-9418 | 2009-09-244 | 1794 | DIBBS |
| 5305-01-111-9418 | 2008-02-35 | 850 | DIBBS |
Cross Reference | NSN 5305-01-111-9418
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1351-10-36P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-111-9418
Technical Data | NSN 5305-01-111-9418
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNRF |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |

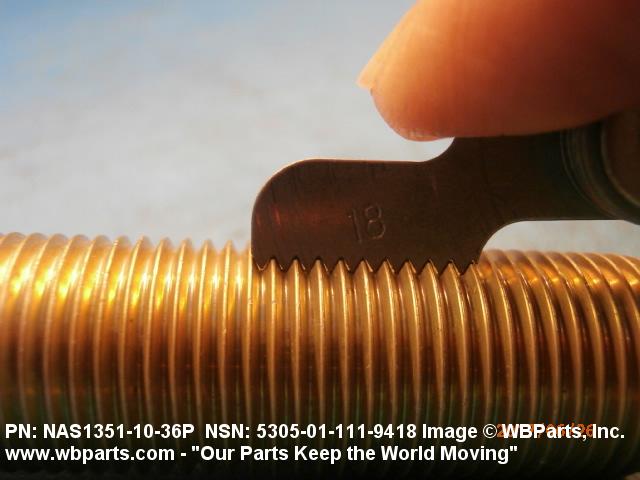

| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.750 INCHES MINIMUM |

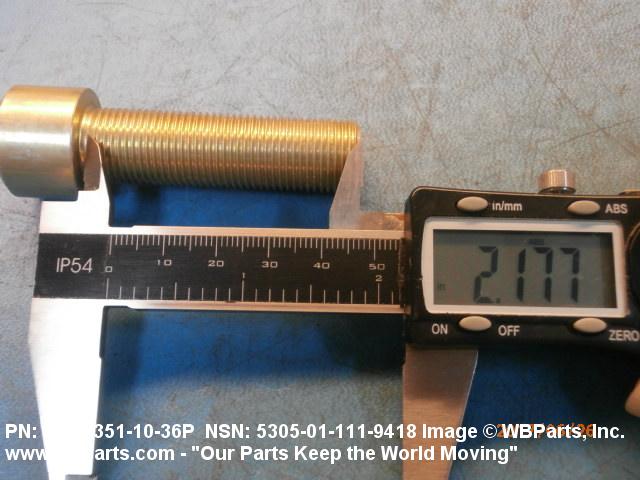

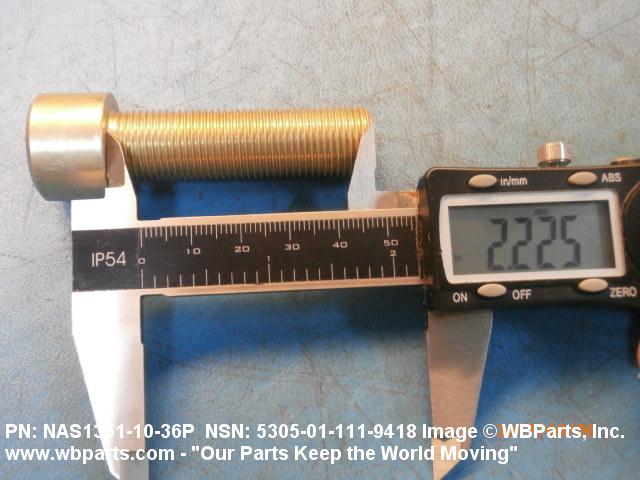

| FASTENER LENGTH | 2.190 INCHES MINIMUM AND 2.250 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 170000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 150000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

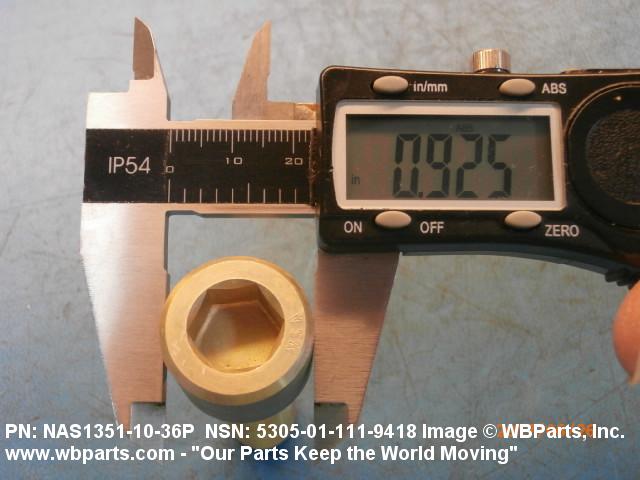

| HEAD DIAMETER | 0.921 INCHES MINIMUM AND 0.937 INCHES MAXIMUM |

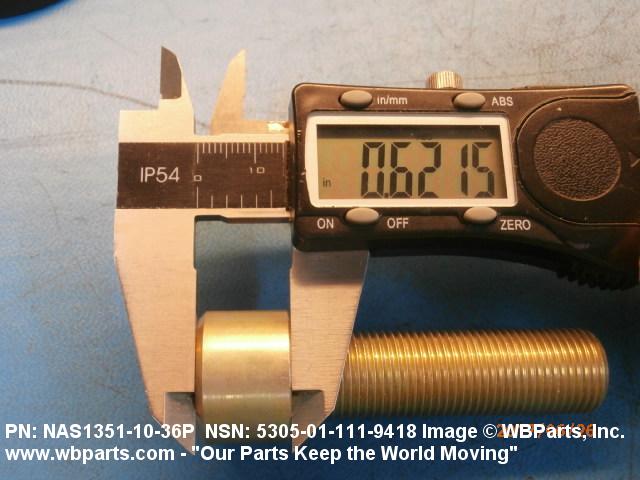

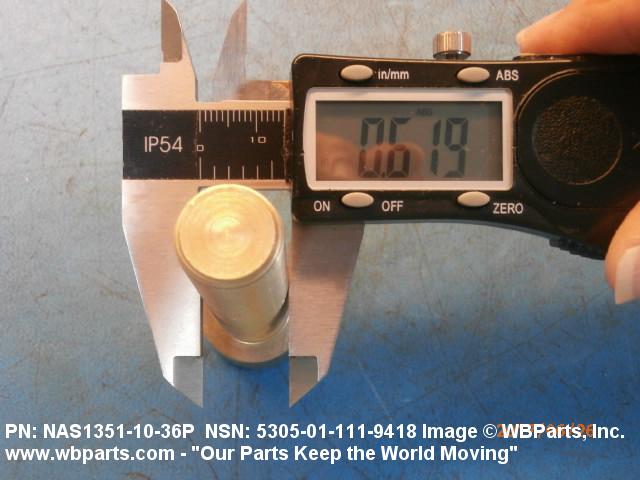

| HEAD HEIGHT | 0.616 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
