NSN 5305-01-120-3297 NAS1191C4P6L, NAS1191E4P6L, NAS119E4P6L
Product Details | MACHINE SCREW
5305-01-120-3297 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS1191C4P6L, NAS1191E4P6L, NAS119E4P6L, 5305-01-120-3297, 01-120-3297, 5305011203297, 011203297
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 OCT 1981 | 01-120-3297 | 06657 ( SCREW, MACHINE ) |

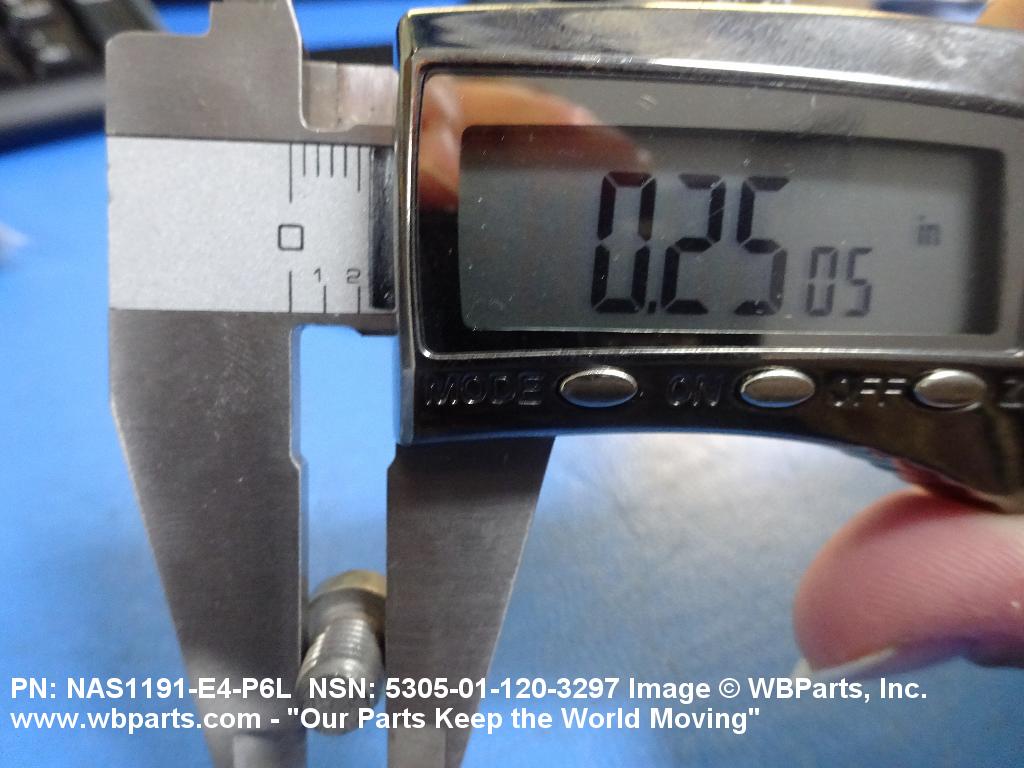

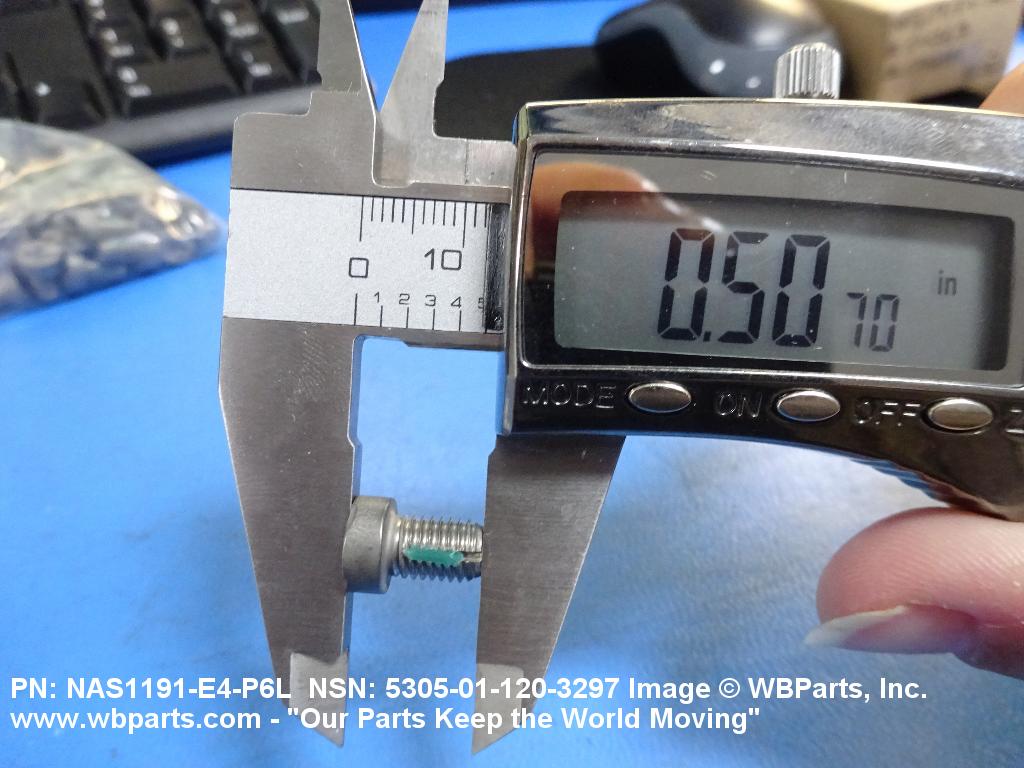

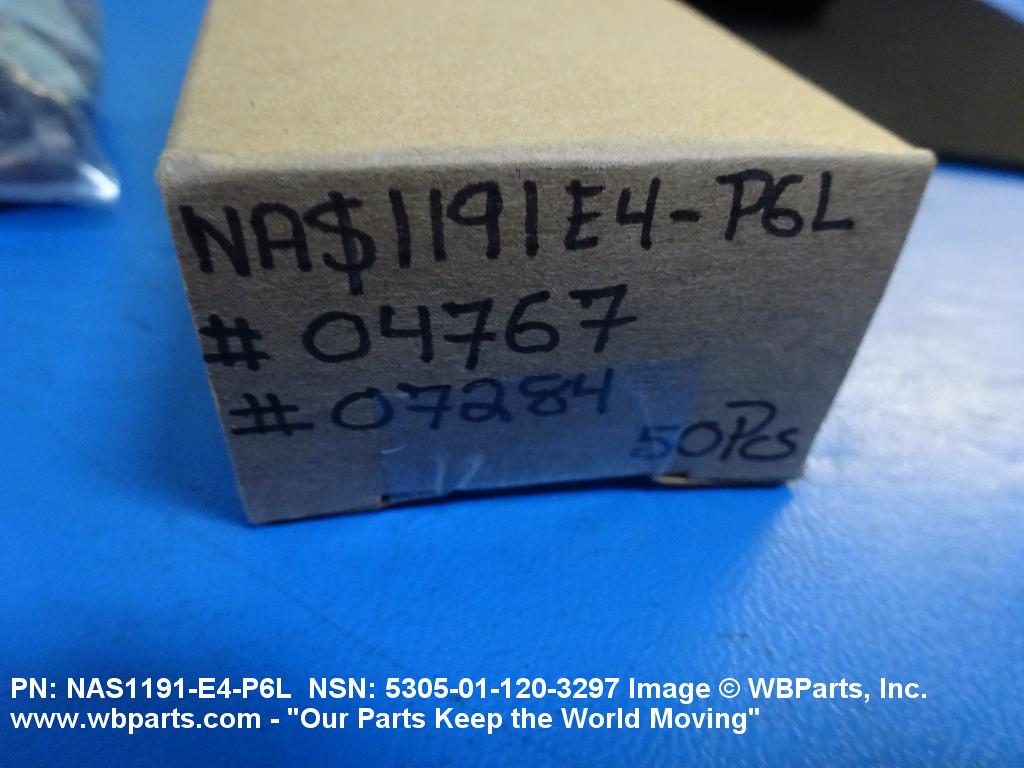

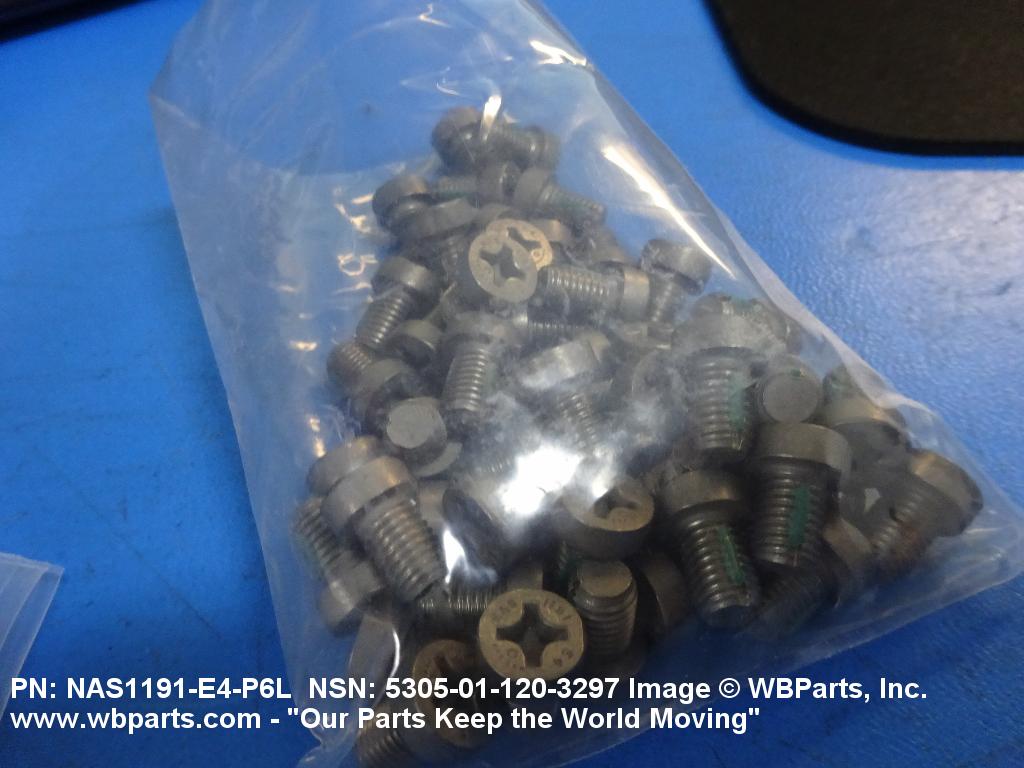

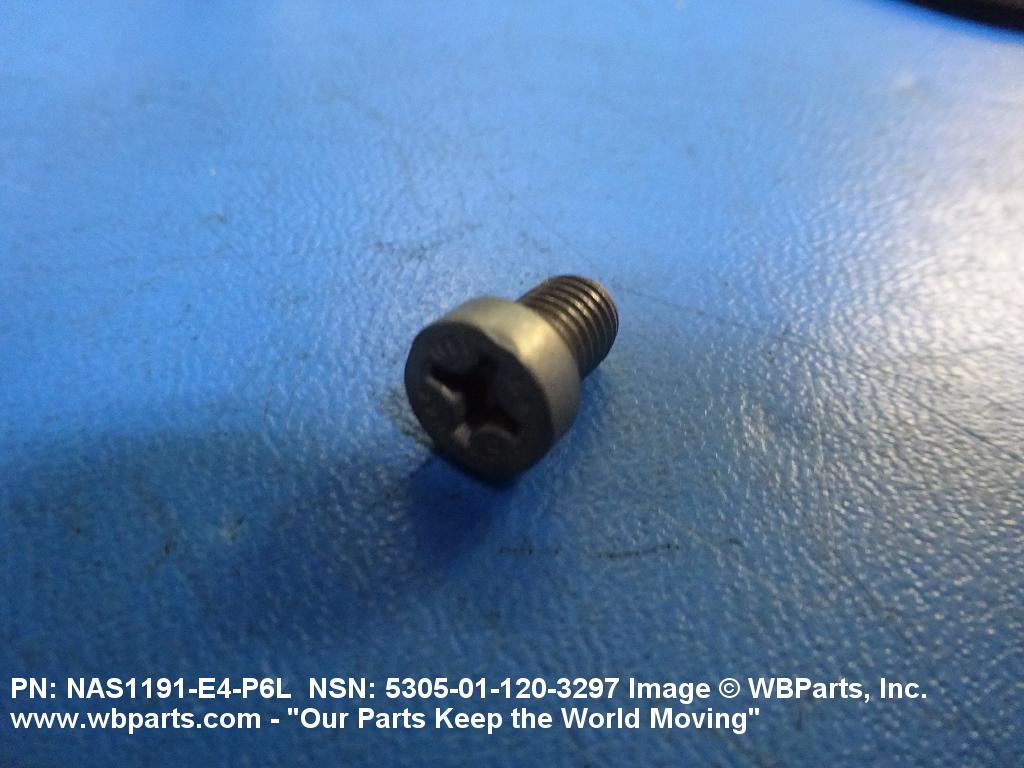

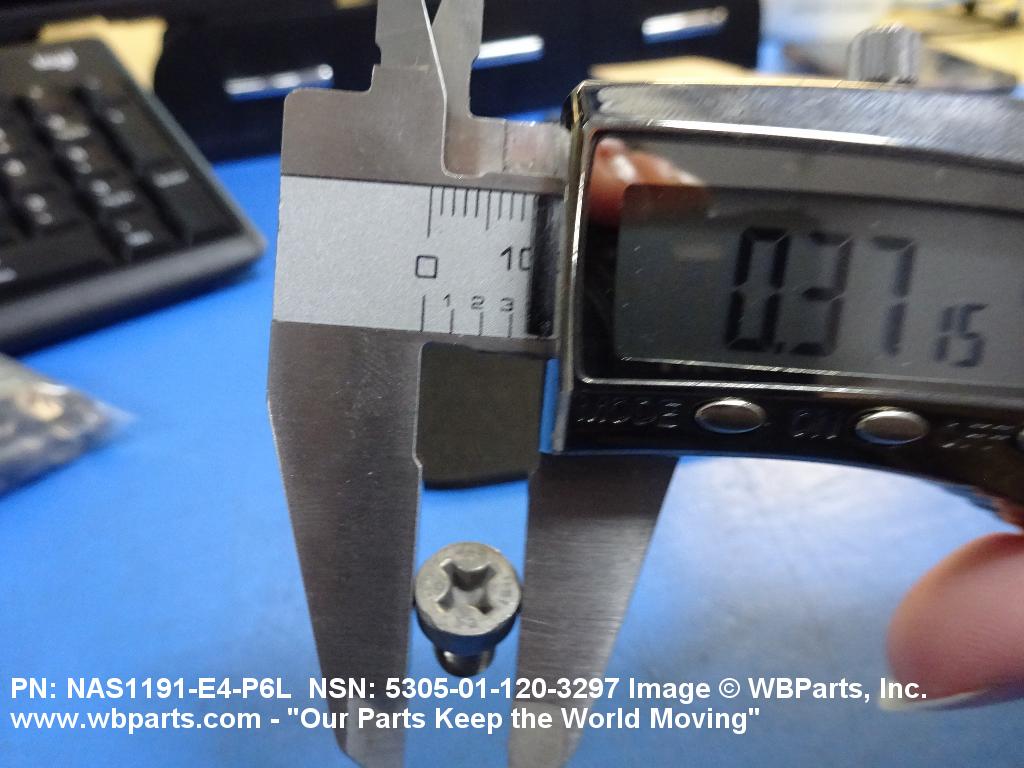

Drawings & Photos | NSN 5305-01-120-3297
Demand History | NSN 5305-01-120-3297
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-120-3297 | 2025-03-82 | 375 | DIBBS |
| 5305-01-120-3297 | 2024-09-267 | 557 | DIBBS |
| 5305-01-120-3297 | 2024-09-259 | 557 | DIBBS |
| 5305-01-120-3297 | 2024-07-184 | 258 | DIBBS |
| 5305-01-120-3297 | 2024-06-176 | 258 | DIBBS |
| 5305-01-120-3297 | 2023-04-106 | 82 | DIBBS |
| NAS1191E4P6L | 2022-04-104 | 200 | United States |
Cross Reference | NSN 5305-01-120-3297
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1191C4P6L | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1191E4P6L | 04348 | LAWRENCE ENGINEERING AND SUPPLY INC |
| NAS1191E4P6L | 07679 | HARDWARE SPECIALTY CO. INC. |
| NAS1191E4P6L | 07851 | NOR-CAL SUPPLY CO.INC. |
| NAS1191E4P6L | 08938 | AIR INDUSTRIES CO INC |
| NAS1191E4P6L | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1191E4P6L | 30902 | F AND C SALES INC |
| NAS1191E4P6L | 50568 | APCOM INC |
| NAS1191E4P6L | 53606 | PLASTIC AND METAL PRODUCTS CORPORATION |
| NAS1191E4P6L | 56357 | ND INDUSTRIES, INC. DIV EASTERN DIVISION |
| NAS1191E4P6L | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| NAS1191E4P6L | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| NAS1191E4P6L | 73197 | HI-SHEAR CORPORATION |
| NAS1191E4P6L | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1191E4P6L | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NAS1191E4P6L | 97928 | HUCK INTL INC |
| NAS1191E4P6L | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| NAS1191E4P6L | L4528 | LISI AEROSPACE CANADA CORP |
| NAS119E4P6L | 16941 | LONG-LOK FASTENERS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-120-3297
Related Products | NSN 5305-01-120-3297
Technical Data | NSN 5305-01-120-3297
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.304 INCHES MAXIMUM |
| FASTENER LENGTH | 0.344 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| SCREW MATERIAL | IRON ALLOY 660 |
| LOCKING FEATURE MATERIAL | PLASTIC POLYAMIDE |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | AMS5737 ASSN STD SINGLE MATERIAL RESPONSE |
| LOCKING FEATURE MATERIAL DOCUMENT AND CLASSIFICATION | MIL-F-18240 MIL SPEC SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | PASSIVATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A24 PAN NO. 2 |
| HEAD DIAMETER | 0.367 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| HEAD HEIGHT | 0.133 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| BEARING SURFACE OF HEAD SURFACE FINISH | 32.0 MICROINCHES |
| SHANK SURFACE FINISH | 32.0 MICROINCHES |
| THREAD SURFACE FINISH | 32.0 MICROINCHES |
| SPECIFICATION/STANDARD DATA | 80205-NAS1191 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-01-120-3297
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-120-3297
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
