NSN 5305-01-126-4076 19H1286, 9409224, 01-126-4076
Product Details | HEXAGON HEAD CAP SCREW
5305-01-126-4076 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: 19H1286, 9409224, 5305-01-126-4076, 01-126-4076, 5305011264076, 011264076
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 FEB 1982 | 01-126-4076 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

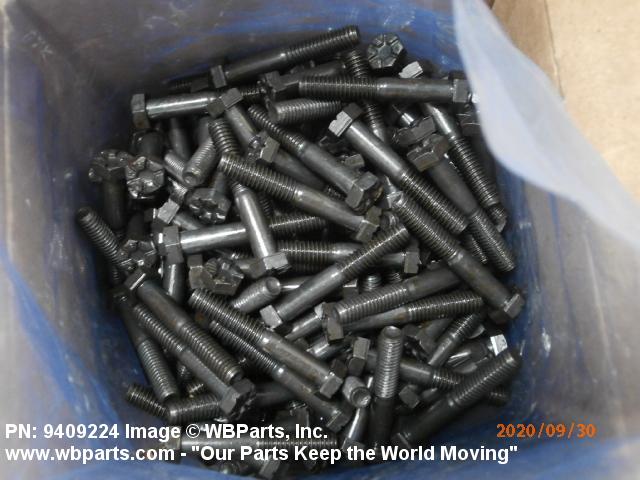

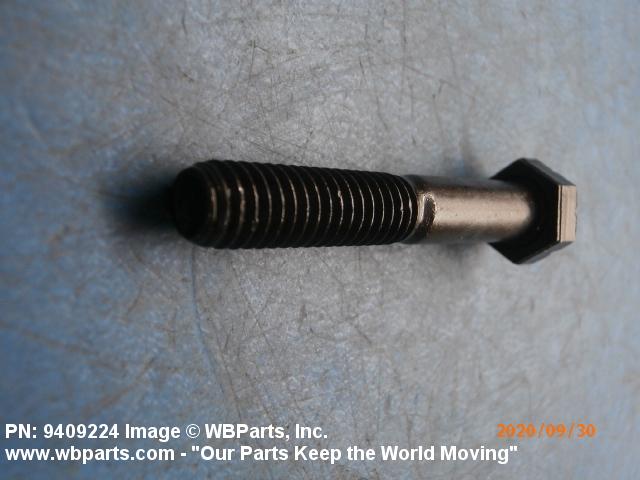

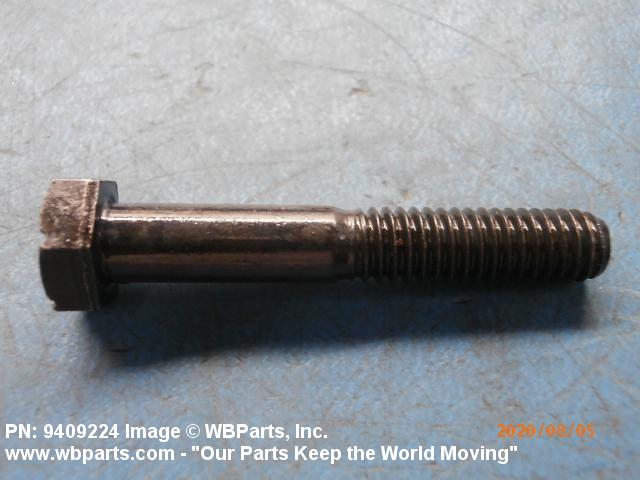

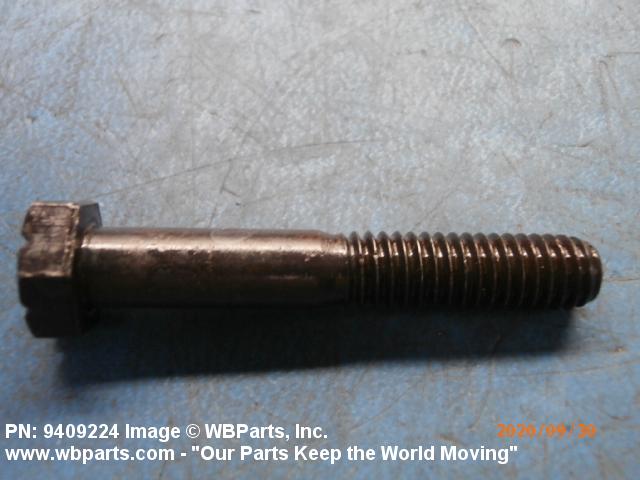

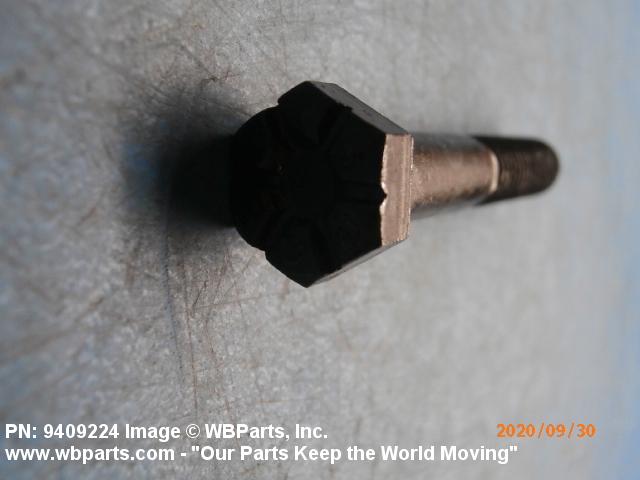

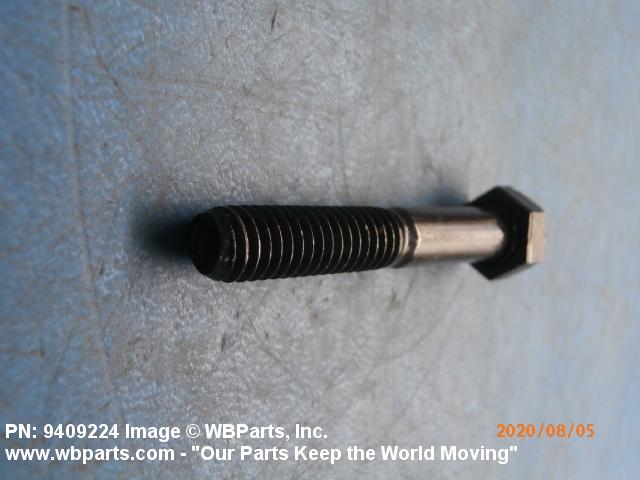

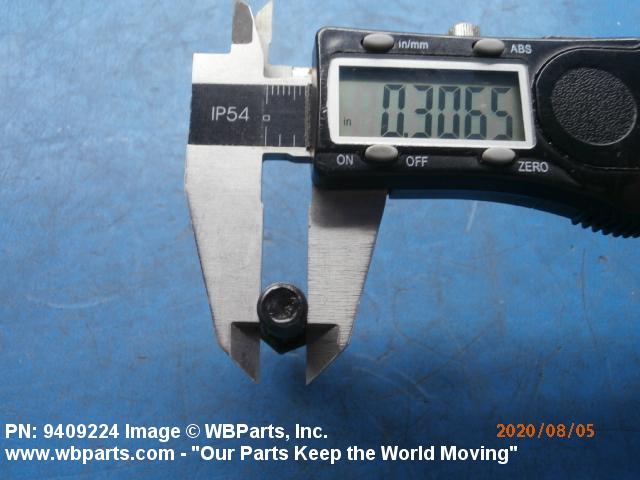

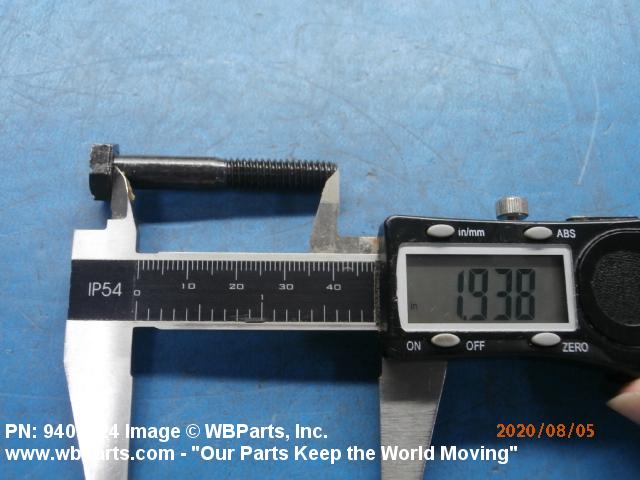

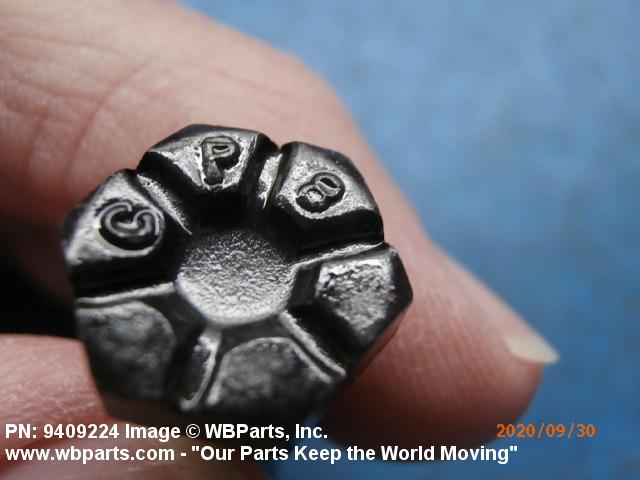

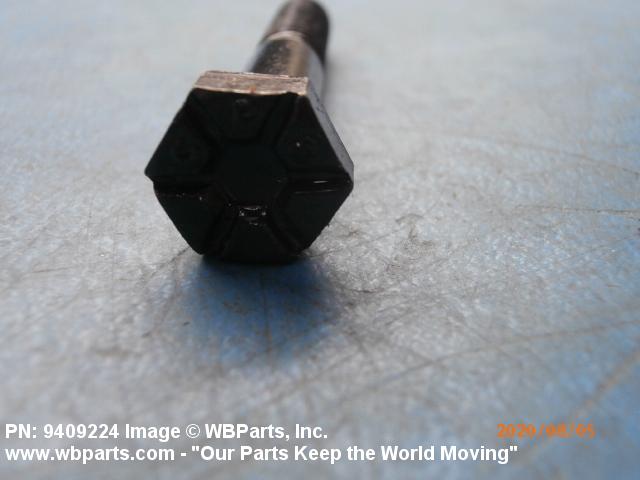

Drawings & Photos | NSN 5305-01-126-4076
Demand History | NSN 5305-01-126-4076
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9409224 | 2025-12-349 | 200 | United States |
| 19H3131 | 2023-12-344 | 415 | DIBBS |
| 9409224 | 2023-12-344 | 415 | DIBBS |
| 9409224 | 2023-08-229 | 75 | United States |
| 19H3131 | 2023-02-45 | 145 | DIBBS |
| 9409224 | 2023-02-45 | 145 | DIBBS |
| 9409224 | 2022-09-244 | 40 | United States |
| 9409224 | 2022-04-116 | 200 | United States |
| 9409224 | 2022-04-115 | 200 | United States |
| 9409224 | 2020-12-344 | 500 | United States |
| 9409224 | 2020-09-272 | 300 | United States |
| 9409224 | 2020-07-211 | 300 | United States |
| 5305-01-126-4076 | 2017-11-333 | 143 | DIBBS |
| 5305-01-126-4076 | 2016-05-131 | 205 | DIBBS |
| 5305-01-126-4076 | 2016-02-47 | 27 | DIBBS |
| 5305-01-126-4076 | 2015-12-341 | 118 | DIBBS |
| 5305-01-126-4076 | 2015-11-328 | 150 | DIBBS |
| 5305-01-126-4076 | 2014-10-295 | 72 | DIBBS |
| 5305-01-126-4076 | 2013-12-361 | 88 | DIBBS |
| 5305-01-126-4076 | 2013-12-346 | 88 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-126-4076
Technical Data | NSN 5305-01-126-4076
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |

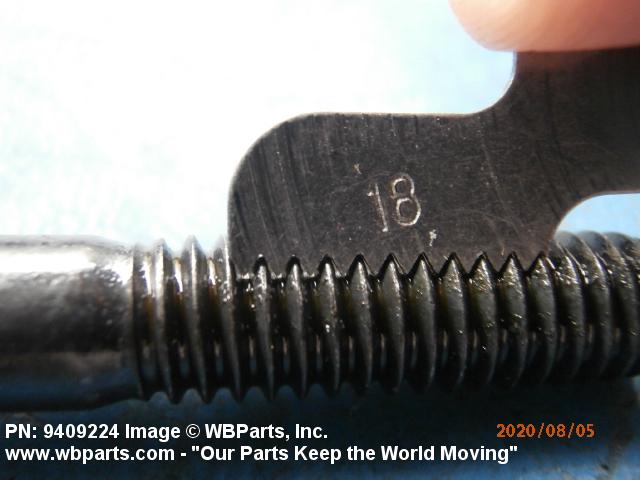

| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

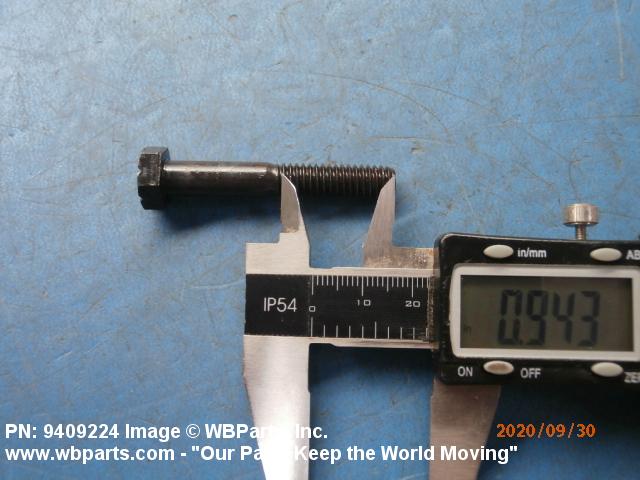

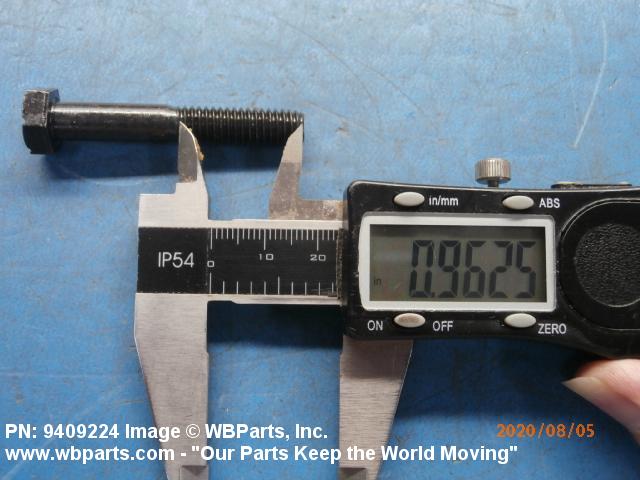

| THREAD LENGTH | 0.835 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |

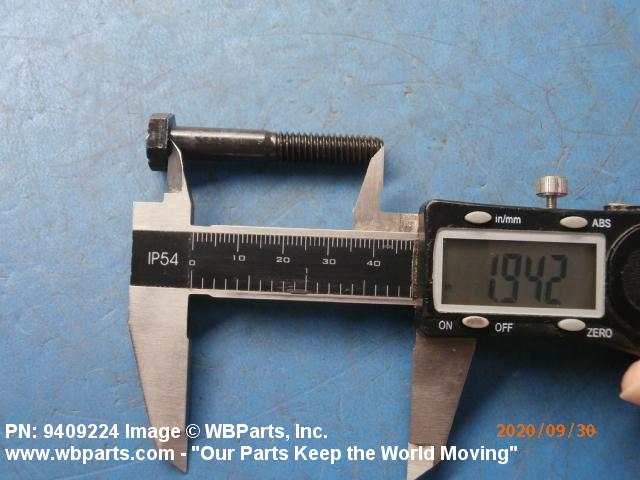

| FASTENER LENGTH | 2.000 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | G4435-M,CAGE 24617 MFR REF SINGLE MATERIAL RESPONSE OVERALL |

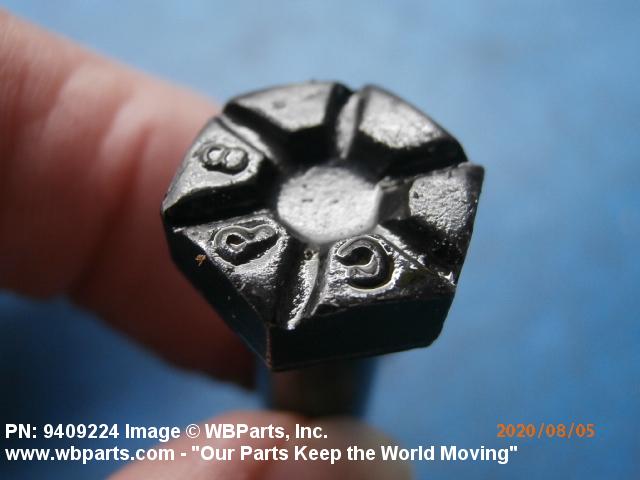

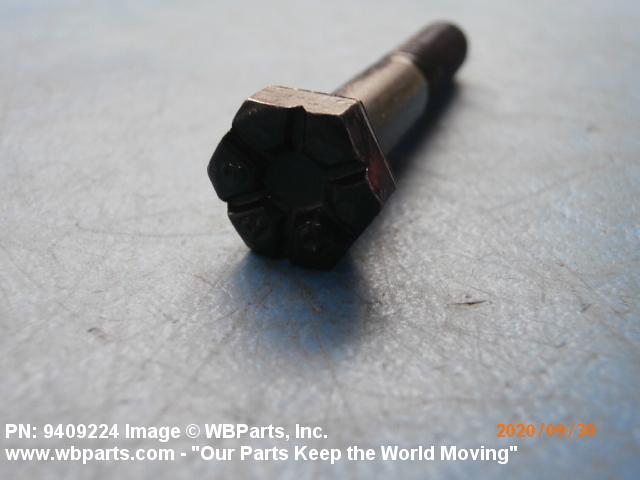

| HEAD STYLE | C1 HEXAGON |

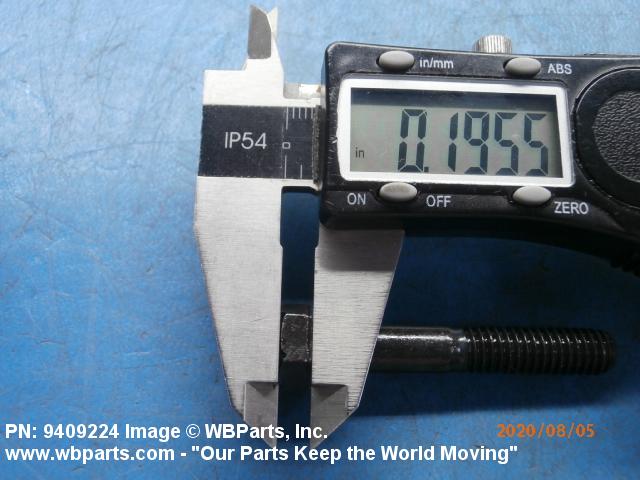

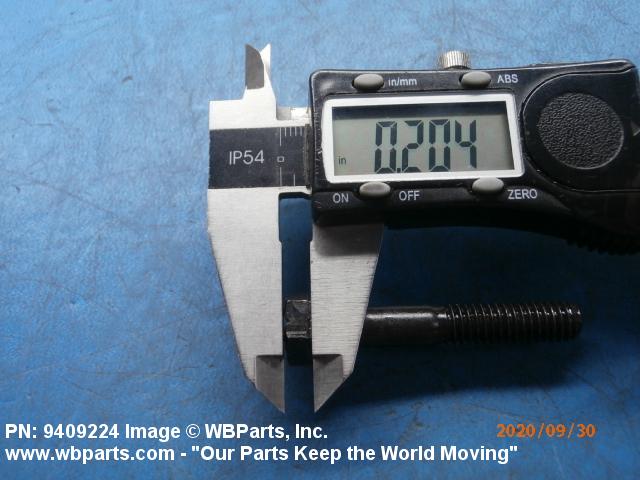

| HEAD HEIGHT | 0.195 INCHES MINIMUM AND 0.211 INCHES MAXIMUM |

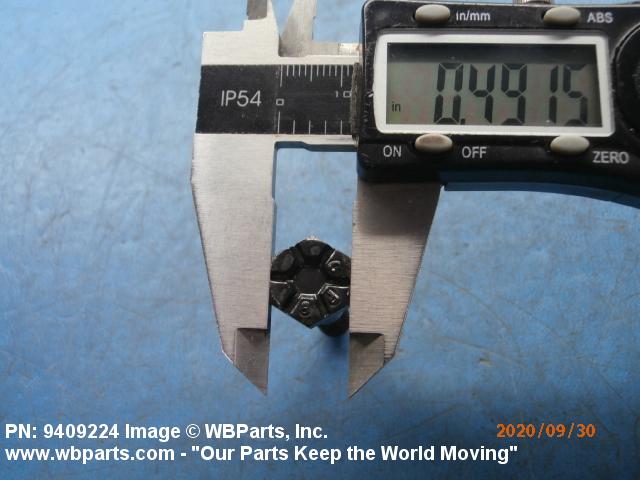

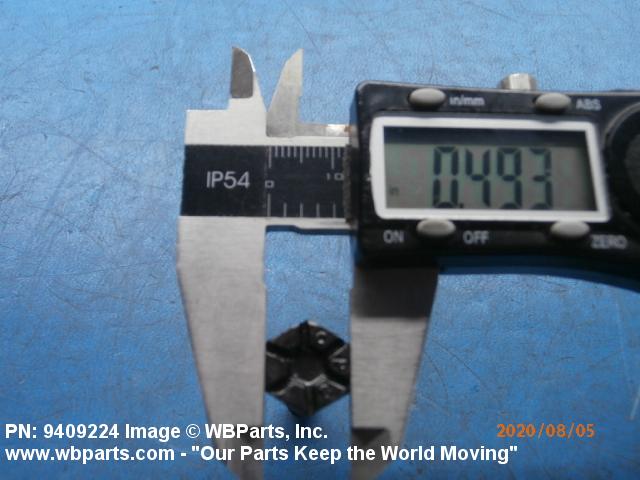

| WIDTH BETWEEN FLATS | 0.489 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-01-126-4076
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
