NSN 5305-01-128-1576 AF0072038, AF0072-038, NAS1351N38

Product Details | SOCKET HEAD CAP SCREW

5305-01-128-1576 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: AF0072038, AF0072-038, NAS1351N38, NAS1351N3-8, FIT7079038, FIT7079-038, FT1624038, FT1624-038, 8758281 , 5305-01-128-1576, 01-128-1576, 5305011281576, 011281576

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	18 MAR 1982	01-128-1576	16282 ( SCREW, CAP, SOCKET HEAD )

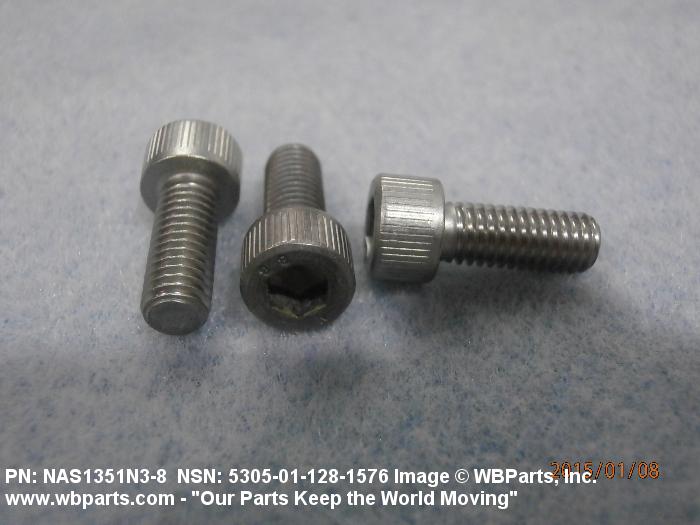

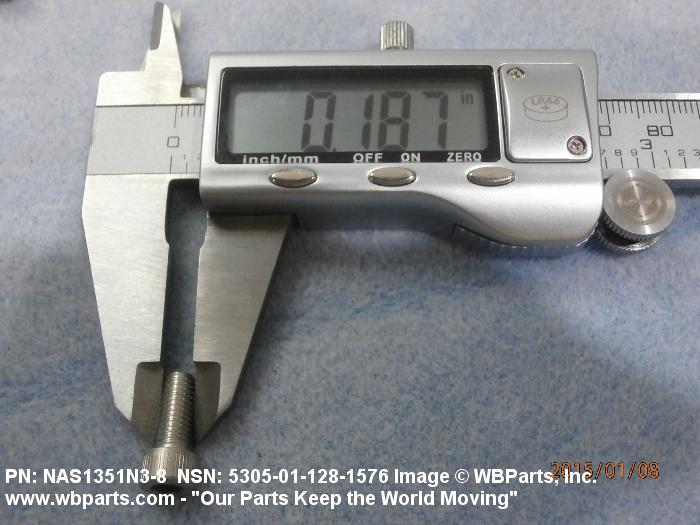

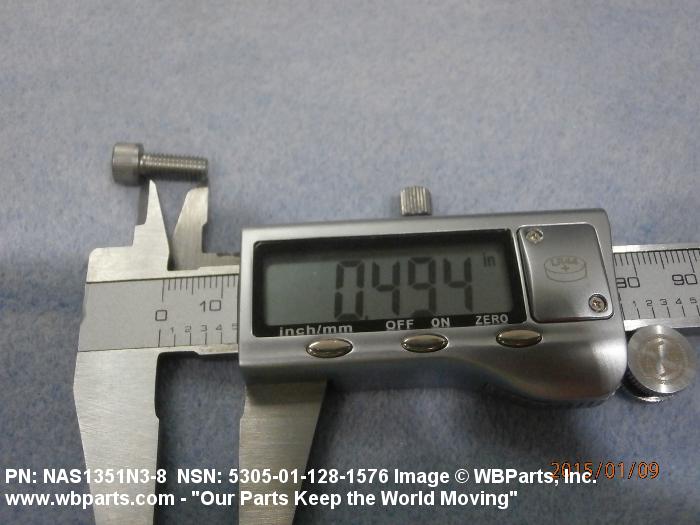

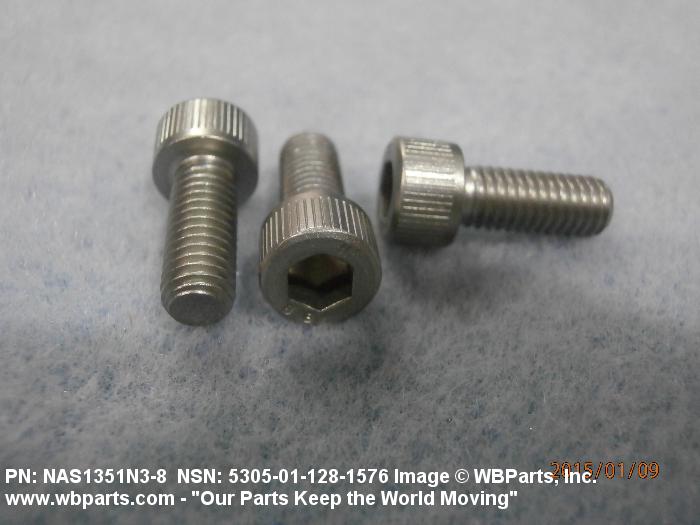

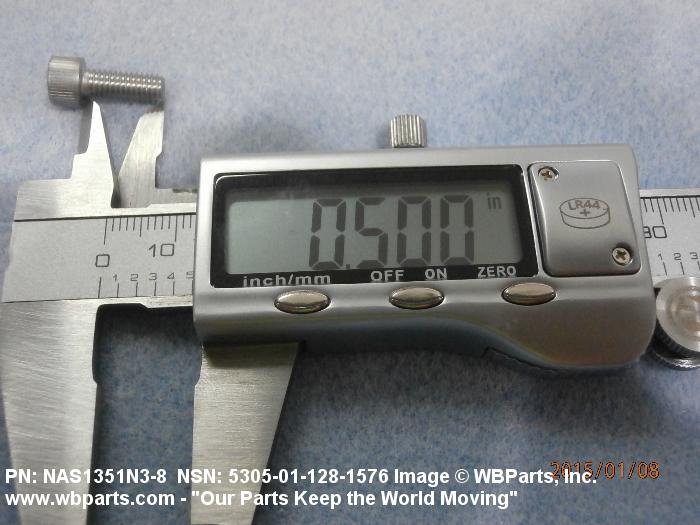

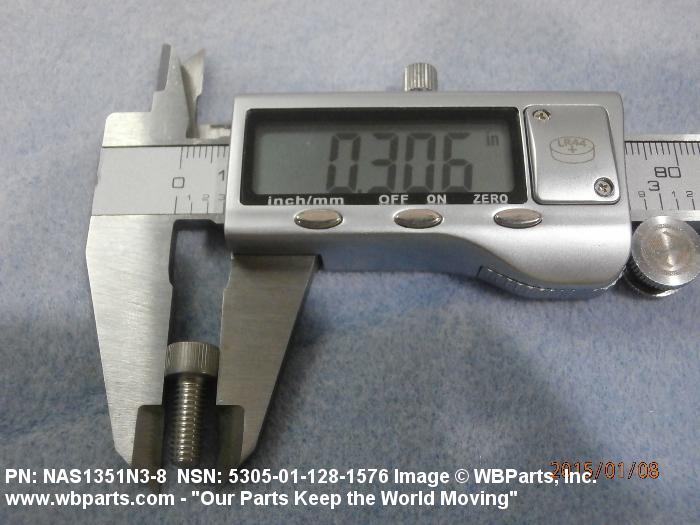

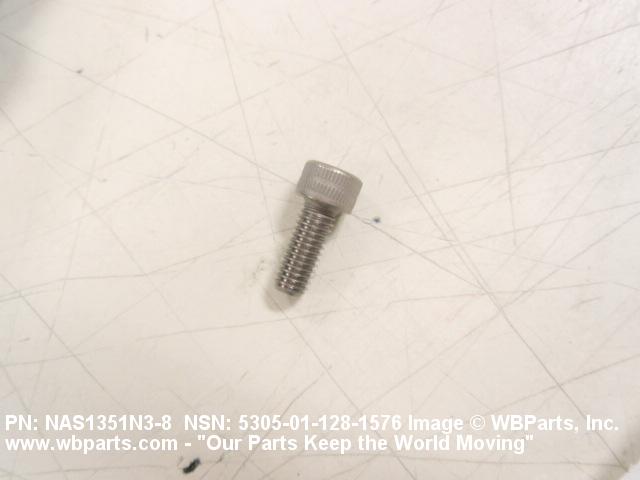

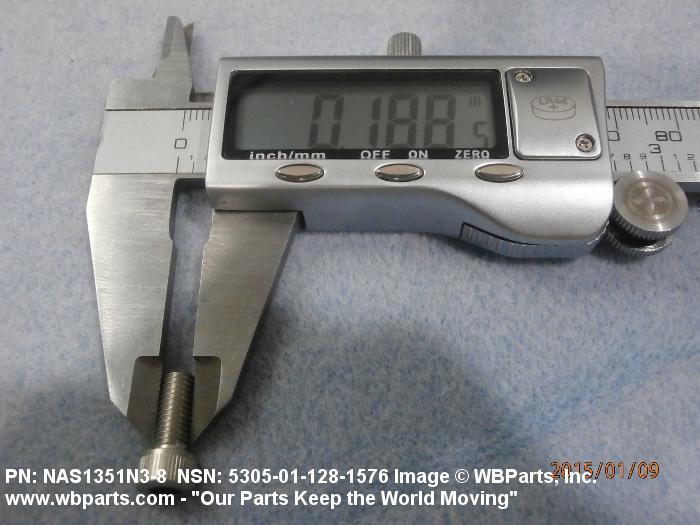

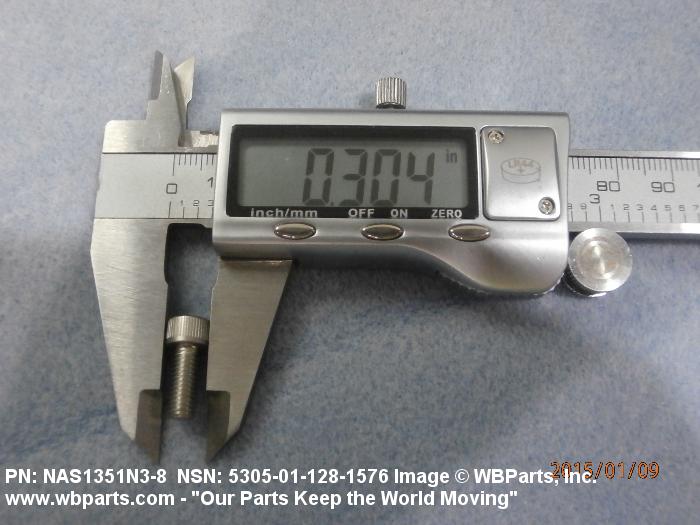

Drawings & Photos | NSN 5305-01-128-1576

Part Number	Request Date	QTY	Origin
5305-01-128-1576	2026-02-50	4399	DIBBS
5305-01-128-1576	2025-09-260	1697	DIBBS
NAS1351N38	2025-07-212	250	United States
NAS1351N38	2025-07-212	500	United States
NAS1351N38	2025-05-133	5800	Hong Kong
NAS1351N38	2025-03-72	7000	US
5305-01-128-1576	2025-01-30	1902	us
5305-01-128-1576	2025-01-28	2507	DIBBS
5305-01-128-1576	2024-12-352	300	United States
NAS1351N38	2024-10-295	52	us
NAS1351N38	2024-10-285	50	US
NAS1351N38	2024-07-185	52	US
NAS1351N38	2024-03-72	200	United States
5305-01-128-1576	2024-02-59	3095	DIBBS
NAS1351N38	2024-02-44	15240	us
NAS1351N38	2024-01-23	200	United States
NAS1351N38	2023-09-270	200	United States
5305-01-128-1576	2023-03-71	910	DIBBS
NAS1351N38	2023-02-53	60	US
NAS1351N3-8	2022-07-206	910	DIBBS
NAS1351N38	2022-04-115	350	United States
NAS1351N38	2022-03-88	50	UK
5305-01-128-1576	2021-05-137	5	US
5305-01-128-1576	2021-02-47	200	United States
NAS1351N38	2021-02-47	200	United States
5305-01-128-1576	2021-02-40	24	US
5305-01-128-1576	2020-11-331	1860	DIBBS
5305-01-128-1576	2020-07-190	649	DIBBS
5305-01-128-1576	2020-03-65	586	DIBBS
NAS1351N38	2020-02-51	100	United States
NAS1351N38	2020-02-51	200	United States
NAS1351N38	2020-02-51	400	United States
5305-01-128-1576	2020-01-27	1227	DIBBS
NAS1351N38	2019-12-343	100	United States
5305-01-128-1576	2019-12-343	100	United States
5305-01-128-1576	2019-08-232	100	United States
NAS1351N3-8	2018-10-281	51	US
5305-01-128-1576	2017-08-227	150	United States
5305-01-128-1576	2017-08-226	150	United States
NAS1351N3-8	2017-07-192	220	Australia
NAS1351N38	2017-02-46	41	United States
NAS1351N38	2016-11-307	100	United States
NAS1351N38	2016-09-272	45	United States
NAS1351N38	2016-08-228	2240	United States
5305-01-128-1576	2016-06-165	150	United States
NAS1351N38	2016-04-118	80	United States
NAS1351N38	2016-04-118	80	United States
NAS1351N38	2016-03-70	20	us
NAS1351N38	2016-03-68	50	United States
NAS1351N38	2015-12-356	350	United States
NAS1351N38	2015-12-349	80	US
5305-01-128-1576	2015-10-298	2356	DIBBS
5305-01-128-1576	2015-09-266	75	United States
NAS1351N38	2015-09-244	200	us
NAS1351N38	2015-06-174	20	US
5305-01-128-1576	2015-01-05	1144	DIBBS
NAS1351N38	2012-09-257	45	United States
NAS1351N3-8	2012-06-173	80	United States
NAS1351N38	2011-09-272	1000	US
NAS1351N38	2011-04-101	24	United States
5305-01-128-1576	2010-11-305	32	United States
NAS1351N38	2010-04-111	1950	AR
NAS1351N38	2009-06-180	500	US
5305-01-128-1576	2009-04-93	1000	Turkey
5305-01-128-1576	2009-03-65	50	United States
NAS1351N38	2008-07-211	150	US

Cross Reference | NSN 5305-01-128-1576

Part Number	Cage Code	Manufacturer
AF0072-038	22915	NORTHROP GRUMMAN CORP ELECTRONIC SYSTEMS DEFENSIVE SYSTEM
FIT7079-038	58998	EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY
FT1624-038	58794	FASTENER TECHNOLOGY CORP.
NAS1351N3-8	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-128-1576

Compare

Related Products | NSN 5305-01-128-1576

5305-01-128-1577, 5305-01-128-1578, 5305-01-128-2227, 5305-01-128-2480, 5305-01-128-2481

Technical Data | NSN 5305-01-128-1576

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNRF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.408 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
FASTENER LENGTH	0.470 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	155000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER
HEAD DIAMETER	0.303 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
HEAD HEIGHT	0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.156 INCHES MINIMUM AND 0.159 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS1351 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5305-01-128-1576

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-01-128-1576

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
