NSN 5305-01-128-8935 NAS13514H50P, NAS1351-4H50P, NAS13514H52P
Product Details | SOCKET HEAD CAP SCREW
5305-01-128-8935 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS13514H50P, NAS1351-4H50P, NAS13514H52P, NAS1351-4H52P, 5305-01-128-8935, 01-128-8935, 5305011288935, 011288935
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAR 1982 | 01-128-8935 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-01-128-8935
Demand History | NSN 5305-01-128-8935
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-128-8935 | 2025-05-139 | 71 | DIBBS |
| 5305-01-128-8935 | 2023-04-109 | 50 | DIBBS |
| NAS13514H52P | 2017-02-40 | 100 | Italy |
| NAS13514H52P | 2016-10-284 | 50 | Italy |
| NAS13514H52P | 2016-02-42 | 300 | Italy |
| NAS13514H52P | 2015-09-259 | 350 | Italy |
| 5305-01-128-8935 | 2011-01-12 | 38 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-128-8935
Related Products | NSN 5305-01-128-8935
Technical Data | NSN 5305-01-128-8935

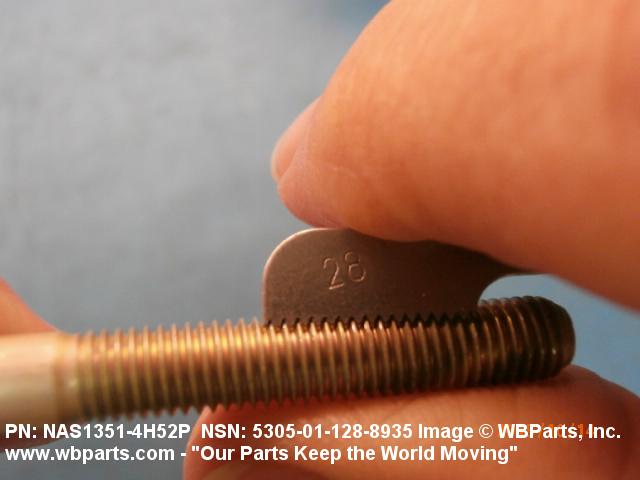

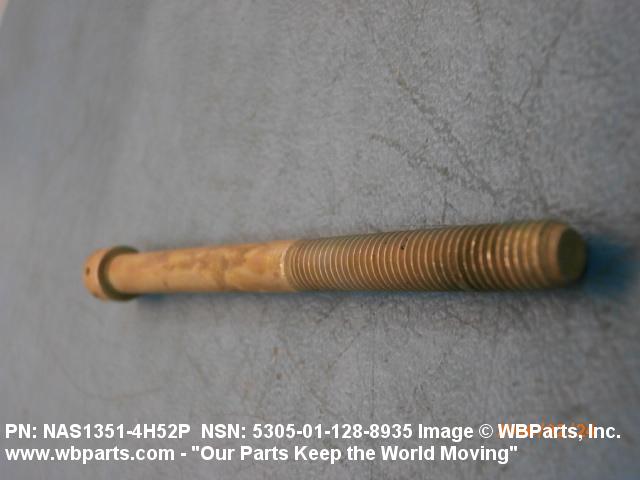

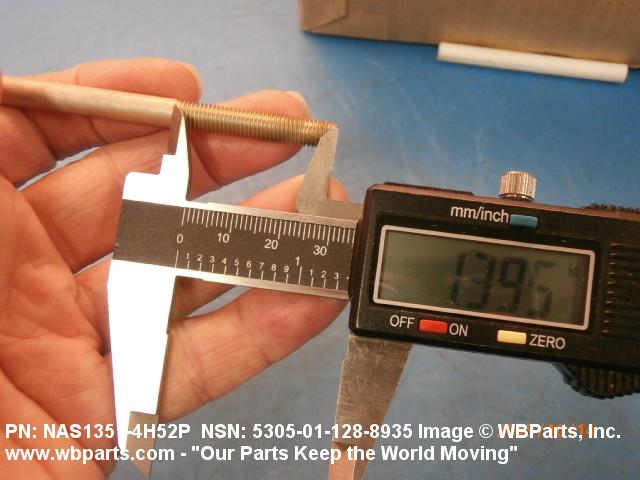

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNRF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.000 INCHES MINIMUM |

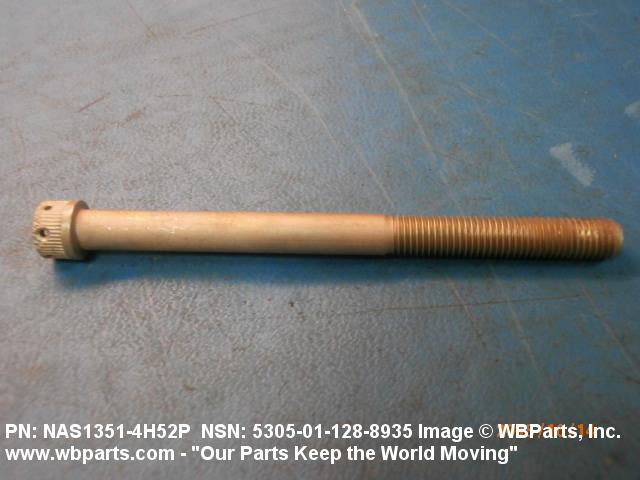

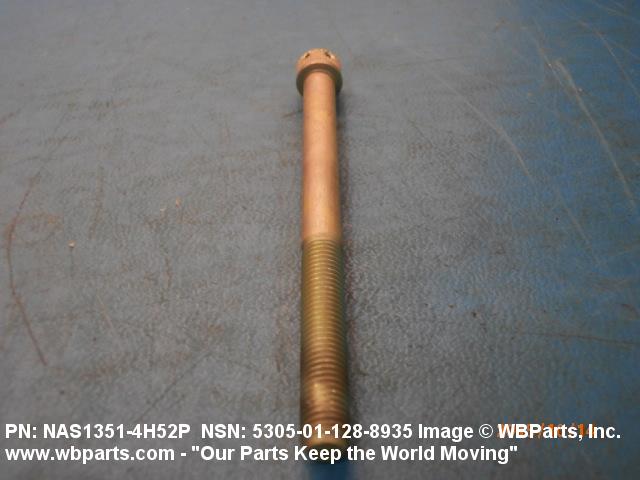

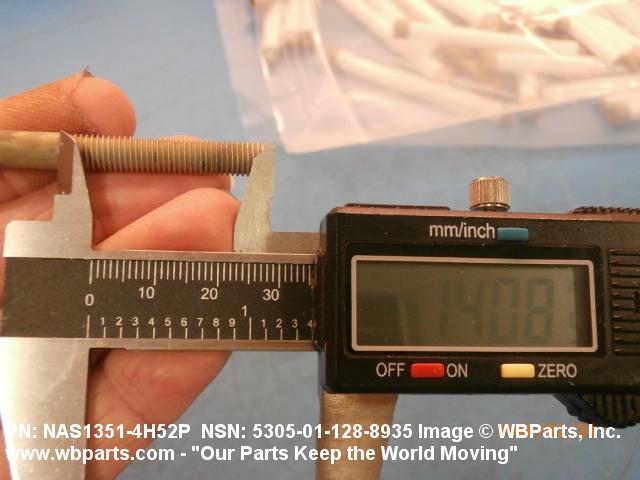

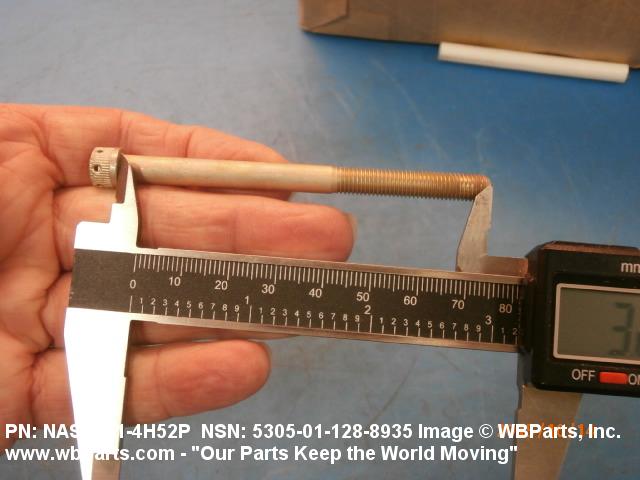

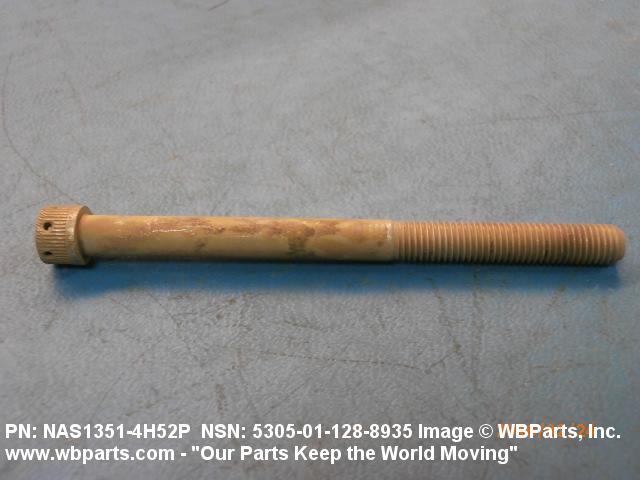

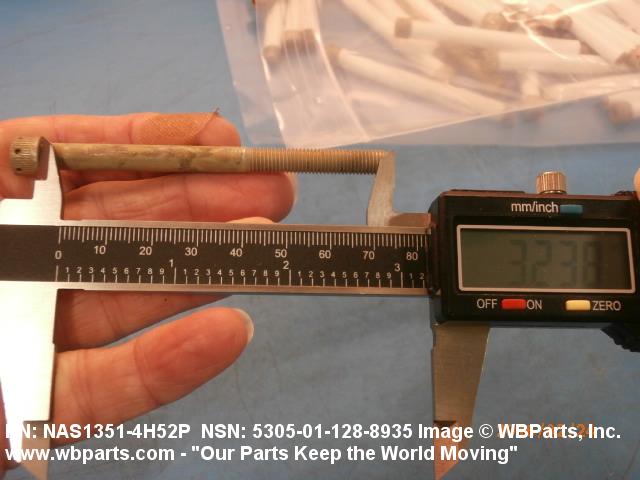

| FASTENER LENGTH | 3.190 INCHES MINIMUM AND 3.250 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 170000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 150000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

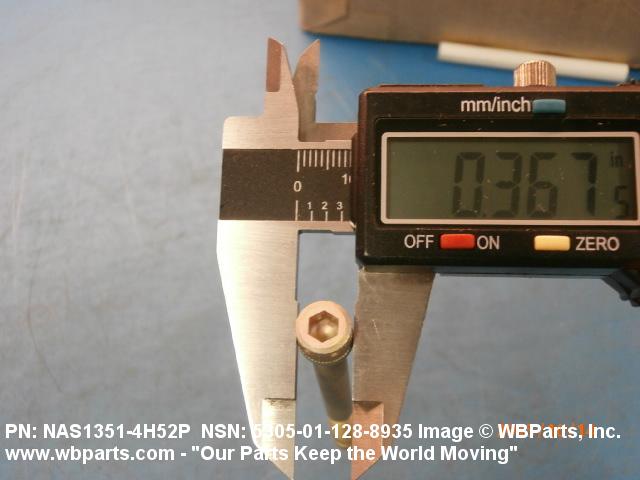

| HEAD DIAMETER | 0.365 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |

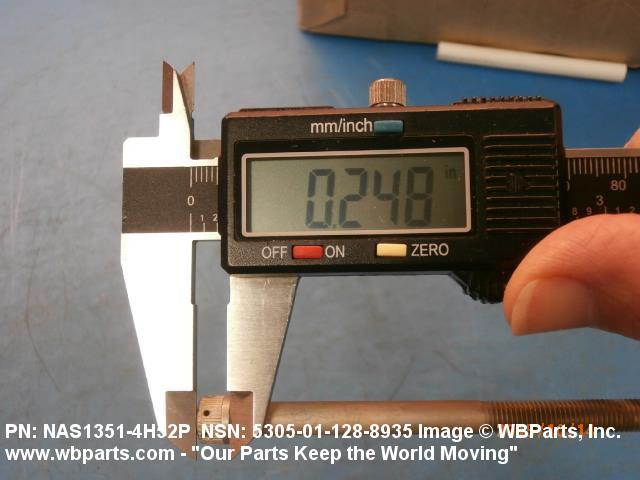

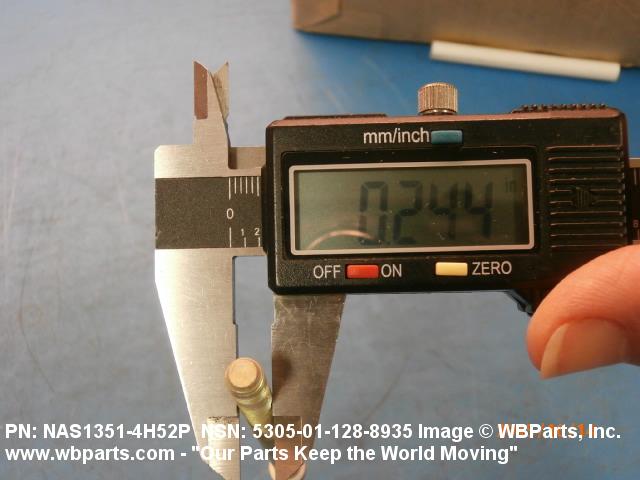

| HEAD HEIGHT | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |

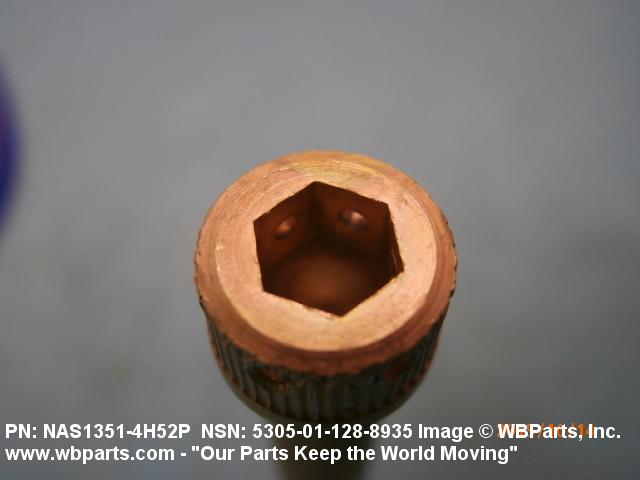

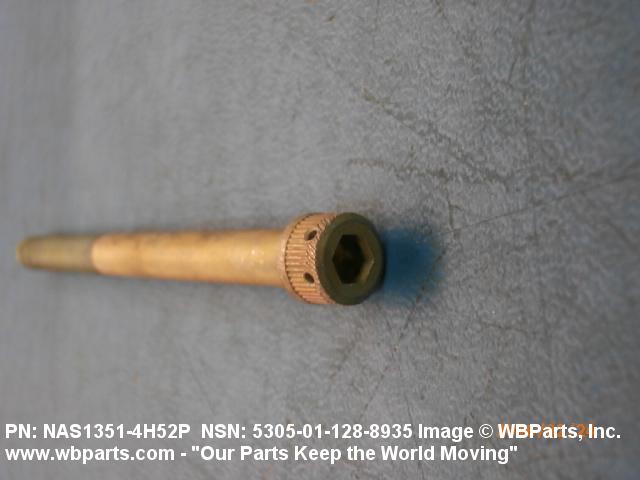

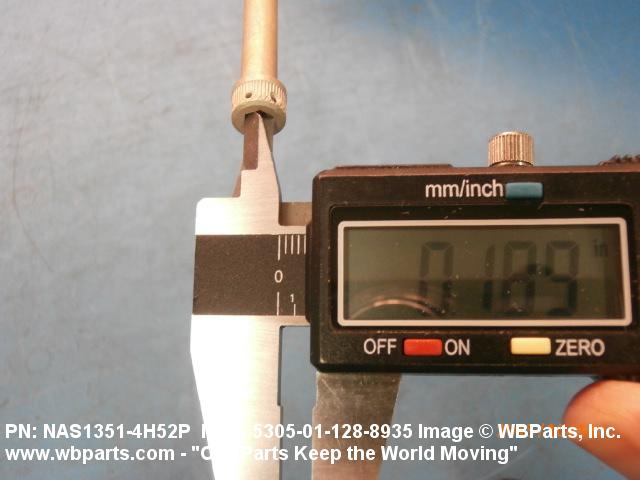

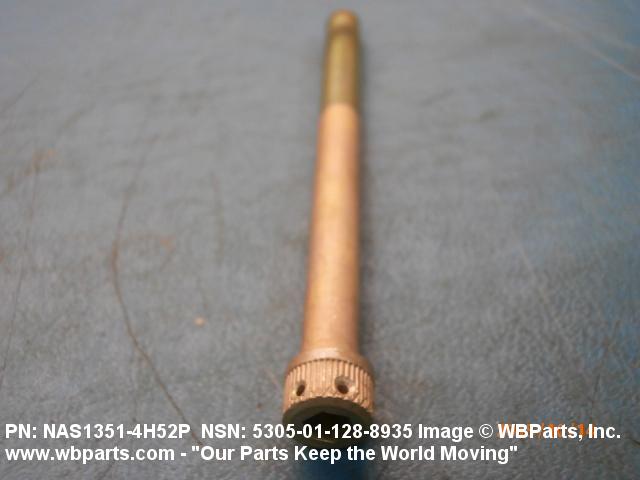

| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.188 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E11 ROUND INTERNAL HEXAGON |
| HOLE TYPE | DRILLED |

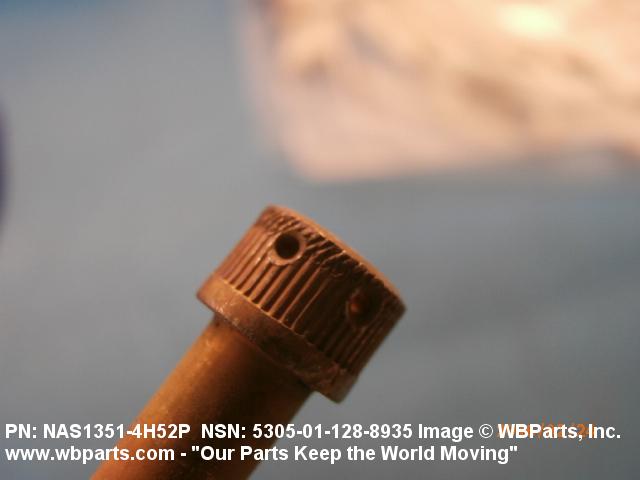

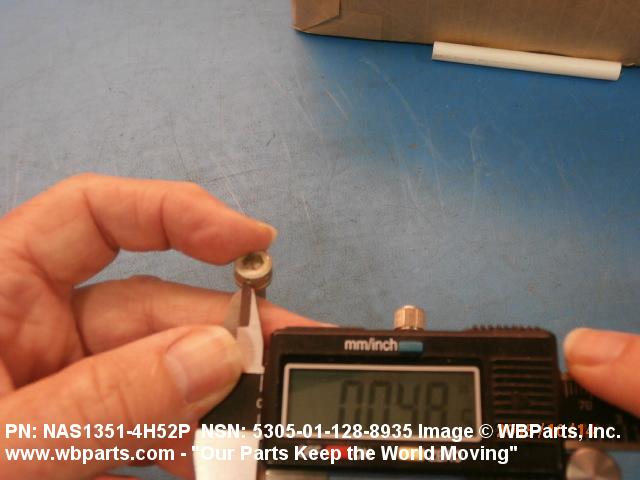

| HOLE QUANTITY | 6 |
| HOLE DIAMETER | 0.044 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1351 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
