NSN 5305-01-158-5368 MA5933066, MA5933-06-6, AIC944066
Product Details | MACHINE SCREW
5305-01-158-5368 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MA5933066, MA5933-06-6, AIC944066, AIC944-06-6, SC2671066, SC2671-06-6, IAM9336066, IAM9336-06-6, PBF1580066, PBF1580-06-6, 123630-06-6, 3M933066, 3M933-06-6, 5305-01-158-5368, 01-158-5368, 5305011585368, 123630066, 011585368
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JUL 1983 | 01-158-5368 | 06657 ( SCREW, MACHINE ) |

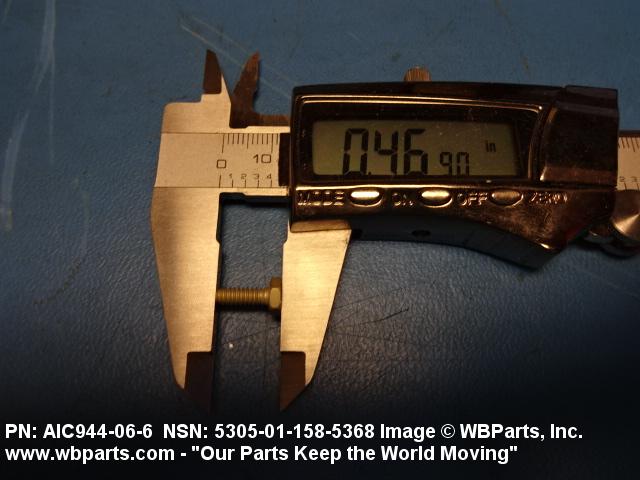

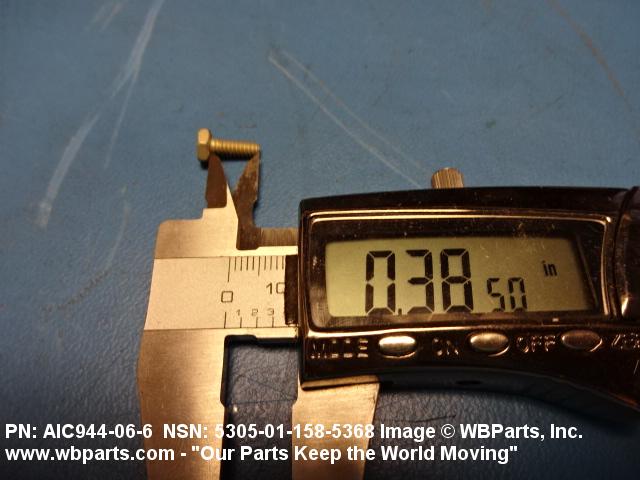

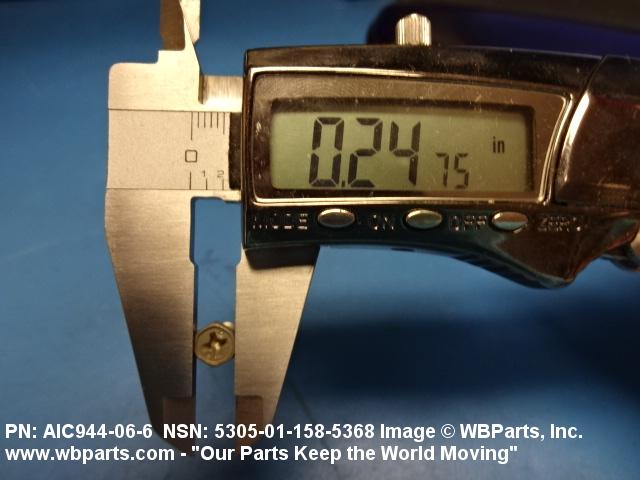

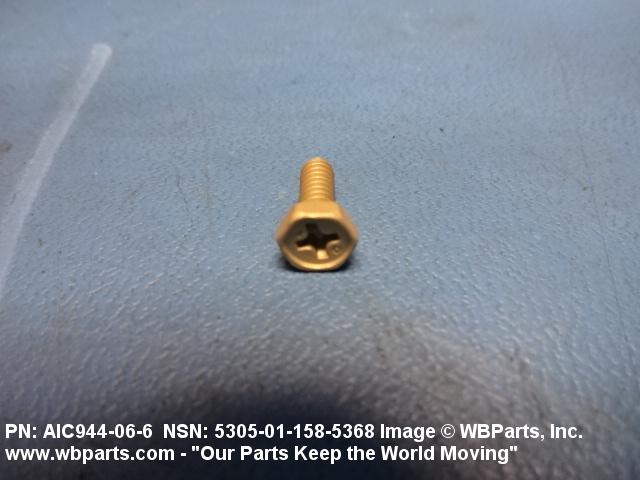

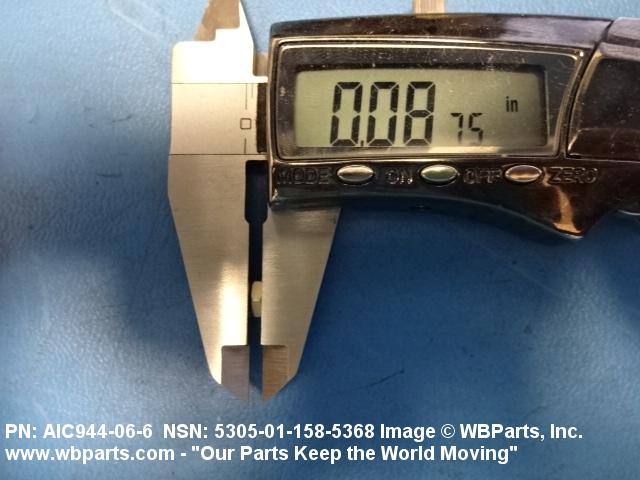

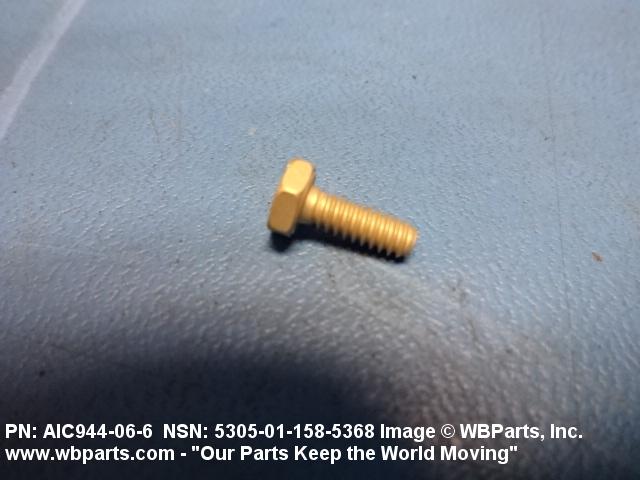

Drawings & Photos | NSN 5305-01-158-5368
Demand History | NSN 5305-01-158-5368
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-158-5368 | 2017-04-94 | 100 | United States |
| 5305-01-158-5368 | 2017-01-18 | 100 | DIBBS |
| 5305-01-158-5368 | 2008-06-155 | 621 | DIBBS |
Cross Reference | NSN 5305-01-158-5368
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 123630-06-6 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 3M933-06-6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| 3M933-06-6 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 3M933-06-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3M933-06-6 | 97928 | HUCK INTL INC |
| AIC944-06-6 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| IAM9336-06-6 | 58251 | FIRST AMERICAN SALES CO INC |
| MA5933-06-6 | 58845 | ABOUNDING SECURITY INC DIV OF MAA CORP |
| PBF1580-06-6 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| SC2671-06-6 | 06710 | VALLEY-TODECO, INC. |
| SC2671-06-6 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| SC2671-06-6 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| SC2671-06-6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| SC2671-06-6 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| SC2671-06-6 | 45722 | USM CORP SUB OF EMHART INDUSTRIES INC |
| SC2671-06-6 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| SC2671-06-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| SC2671-06-6 | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-158-5368
Technical Data | NSN 5305-01-158-5368
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.297 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| FASTENER LENGTH | 0.359 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP E4340 OR STEEL COMP 8740 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR AMS 6322 ASSN STD 2ND MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | ALUMINUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-83488 TY 2 CLASS 3 MIL SPEC SINGLE TREATMENT RESPONSE |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A1 HEXAGON |
| HEAD HEIGHT | 0.080 INCHES MINIMUM AND 0.093 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.243 INCHES MINIMUM AND 0.251 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| III END ITEM IDENTIFICATION | F/A-18 HORNET |
Restrictions/Controls & Freight Information | NSN 5305-01-158-5368
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-158-5368
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
