NSN 5305-01-163-0531 35A2A226, 01-163-0531, 011630531
Product Details | HEXAGON HEAD CAP SCREW

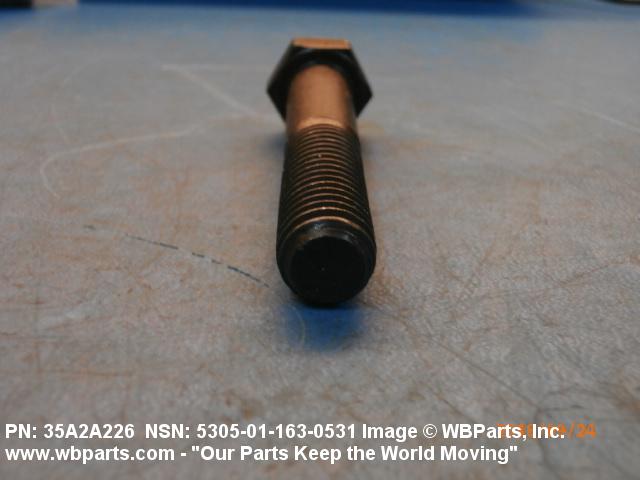

5305-01-163-0531 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: 35A2A226, 5305-01-163-0531, 01-163-0531, 5305011630531, 011630531
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 SEP 1983 | 01-163-0531 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

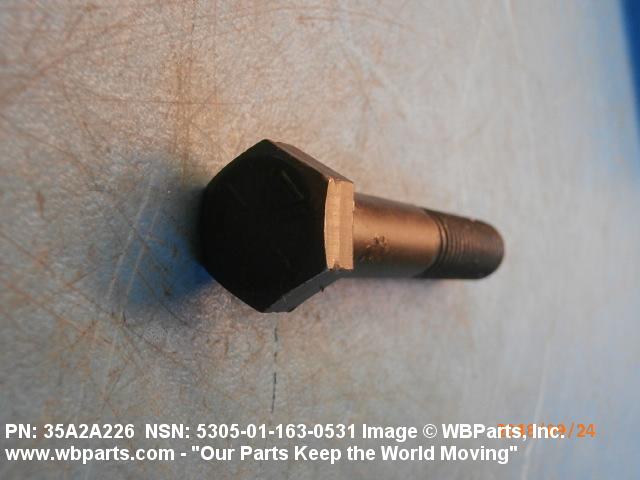

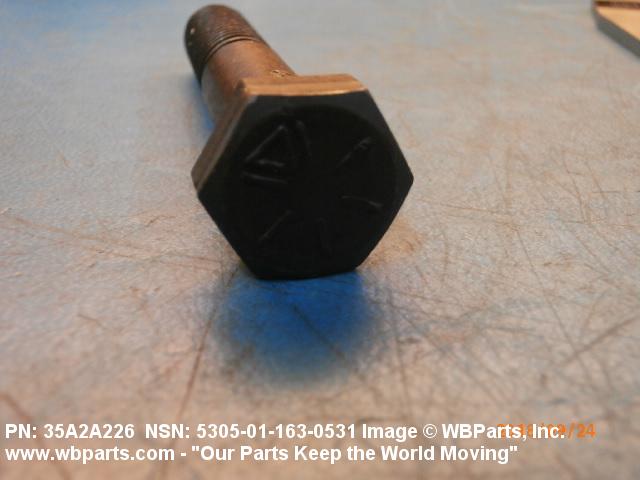

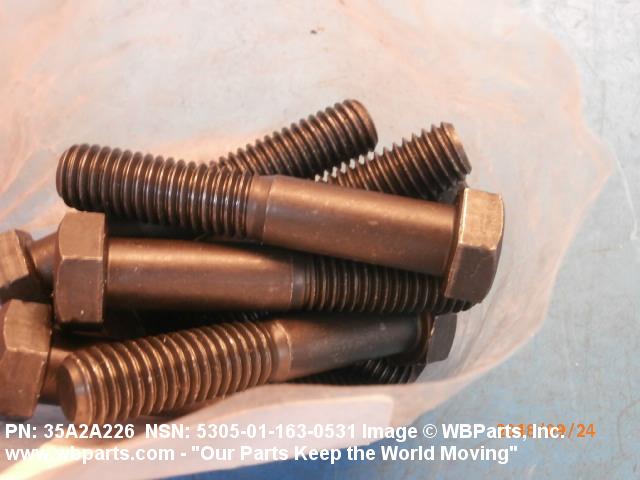

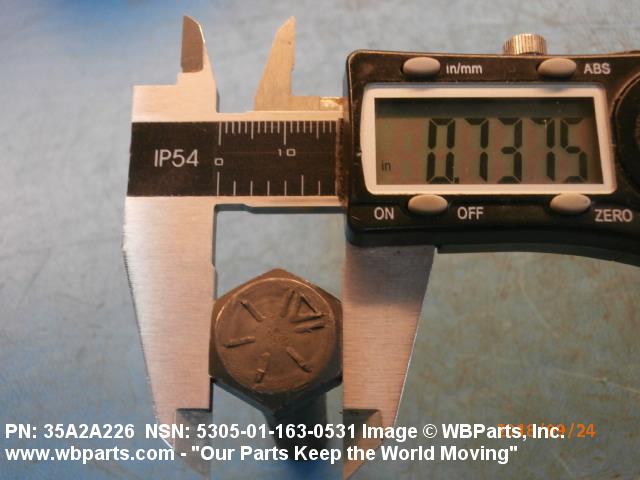

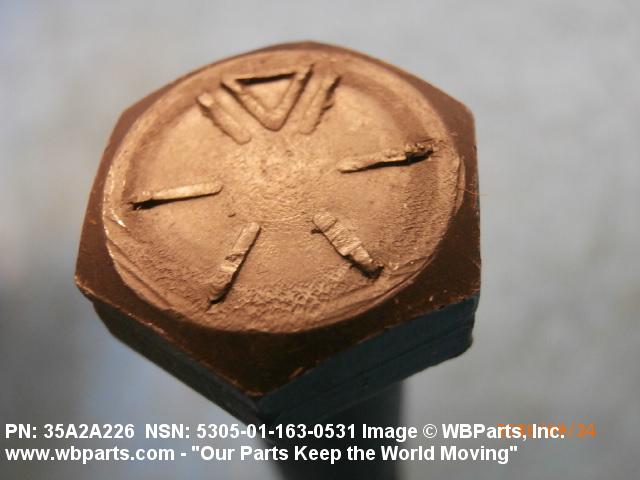

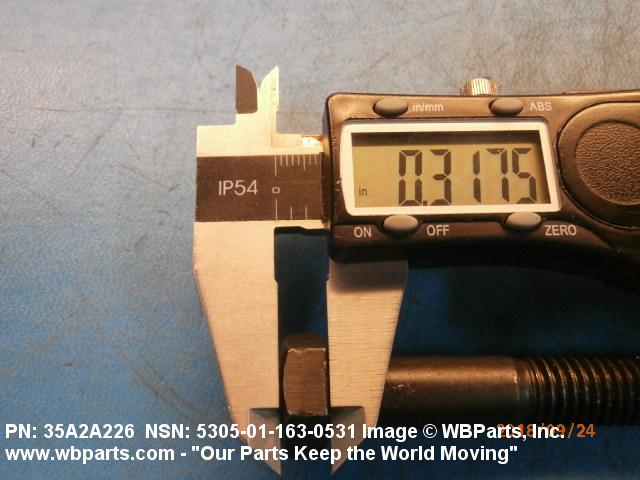

Drawings & Photos | NSN 5305-01-163-0531
Demand History | NSN 5305-01-163-0531
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 35A2A226 | 2020-07-208 | 4 | DIBBS |
| 5305-01-163-0531 | 2018-08-221 | 16 | France |
| 35A2A226 | 2018-05-150 | 16 | South Africa |
| 5305-01-163-0531 | 2018-03-66 | 16 | France |
| 5305-01-163-0531 | 2015-07-188 | 1200 | DIBBS |
| 5305-01-163-0531 | 2013-03-68 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-163-0531
Technical Data | NSN 5305-01-163-0531

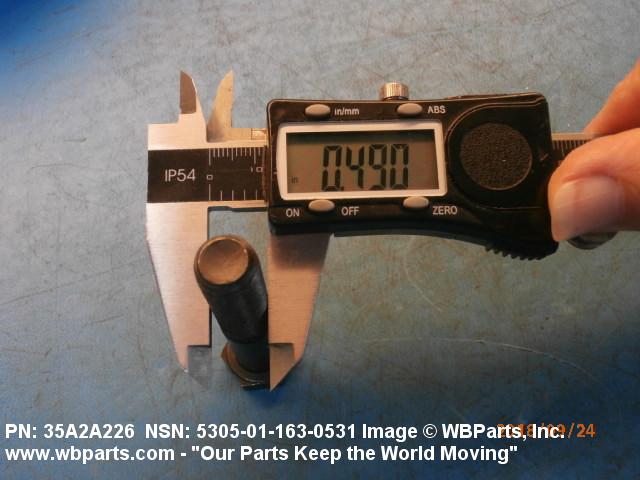

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |

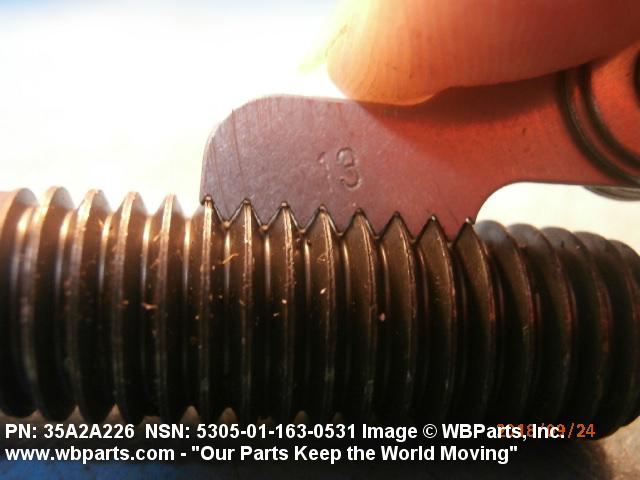

| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

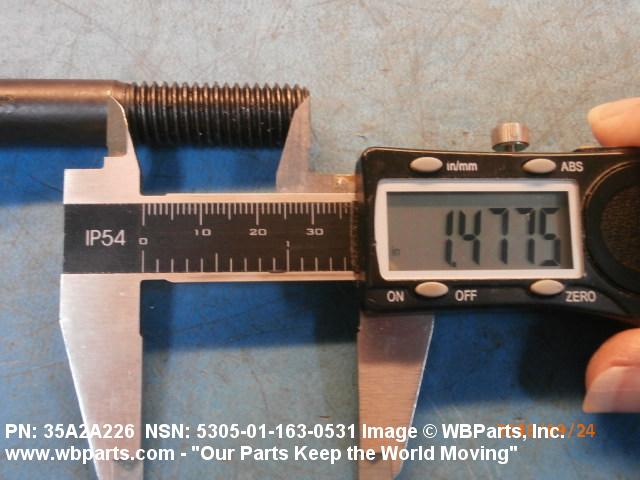

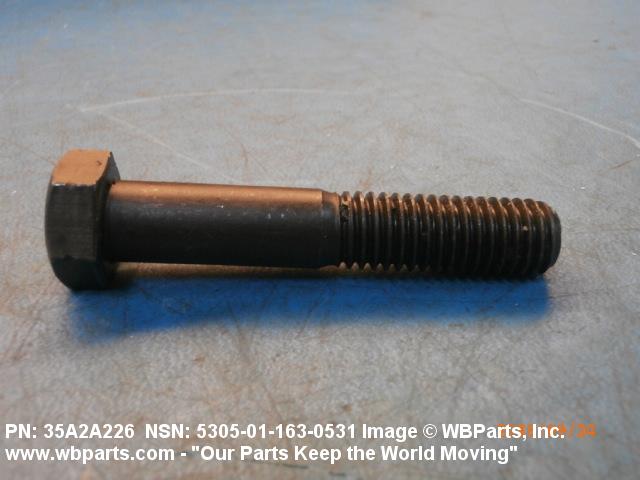

| THREAD LENGTH | 2.596 INCHES MINIMUM AND 2.750 INCHES MAXIMUM |

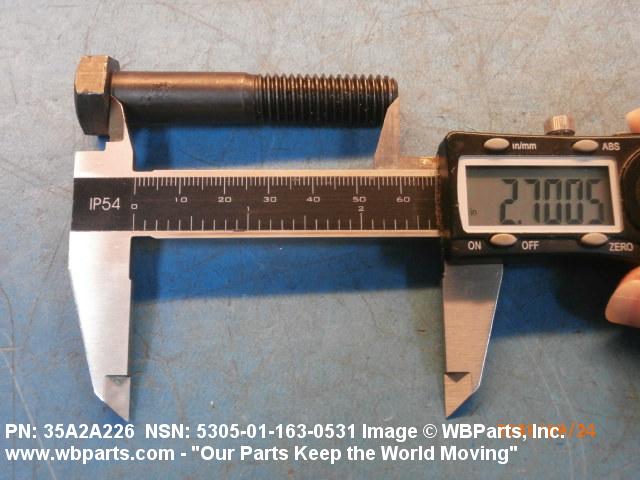

| FASTENER LENGTH | 2.750 INCHES NOMINAL |
