NSN 5305-01-164-8492 FF9231011004S, FF9231-01-1004S, 01-164-8492
Product Details | SOCKET HEAD CAP SCREW

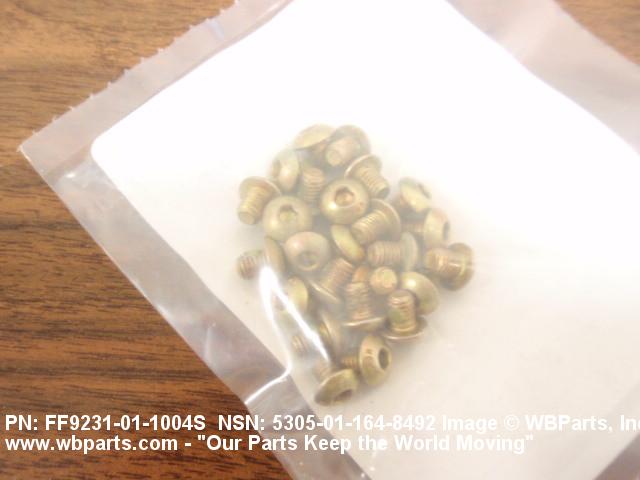

5305-01-164-8492 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: FF9231011004S, FF9231-01-1004S, 5305-01-164-8492, 01-164-8492, 5305011648492, 011648492
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 OCT 1983 | 01-164-8492 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-01-164-8492
Demand History | NSN 5305-01-164-8492
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-164-8492 | 2022-09-268 | 26 | DIBBS |
| 5305-01-164-8492 | 2019-01-13 | 205 | DIBBS |
| 5305-01-164-8492 | 2015-01-29 | 123 | DIBBS |
| 5305-01-164-8492 | 2014-10-289 | 77 | DIBBS |
| 5305-01-164-8492 | 2013-05-147 | 50 | DIBBS |
| 5305-01-164-8492 | 2013-05-147 | 100 | DIBBS |
| 5305-01-164-8492 | 2013-05-147 | 10 | DIBBS |
| 5305-01-164-8492 | 2012-11-316 | 2 | DIBBS |
| 5305-01-164-8492 | 2012-08-216 | 25 | DIBBS |
| 5305-01-164-8492 | 2012-01-02 | 100 | DIBBS |
| FF9231011004S | 2011-07-195 | 100 | AE |
| FF9231011004S | 2010-11-322 | 25 | United States |
| 5305-01-164-8492 | 2010-10-298 | 25 | DIBBS |
Cross Reference | NSN 5305-01-164-8492
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FF9231-01-1004S | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-164-8492
Related Products | NSN 5305-01-164-8492
Technical Data | NSN 5305-01-164-8492
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.188 INCHES MINIMUM |
| FASTENER LENGTH | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HEAD STYLE | B30 BUTTON |
| HEAD DIAMETER | 0.347 INCHES MINIMUM AND 0.361 INCHES MAXIMUM |
| HEAD HEIGHT | 0.091 INCHES MINIMUM AND 0.101 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.125 INCHES NOMINAL |
| LOCKING FEATURE | PELLET THREADS |
Restrictions/Controls & Freight Information | NSN 5305-01-164-8492
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
