Product Details | SETSCREW
5305-01-201-4533 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 0545610C45C, 05456-10C-45C, 06672015, 06672-015, 52W228829, 52-W-2288-29, 5305-01-201-4533, 01-201-4533, 5305012014533, 012014533
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 FEB 1985 | 01-201-4533 | 06672 ( SETSCREW ) |

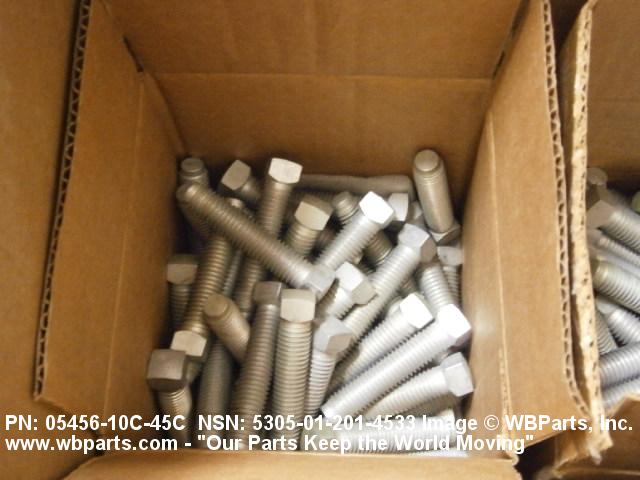

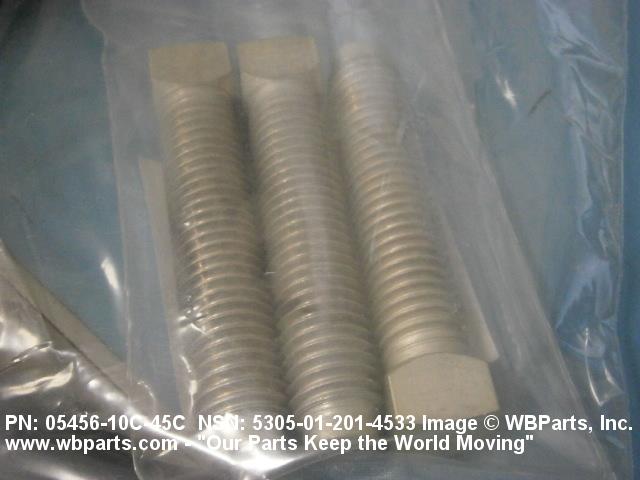

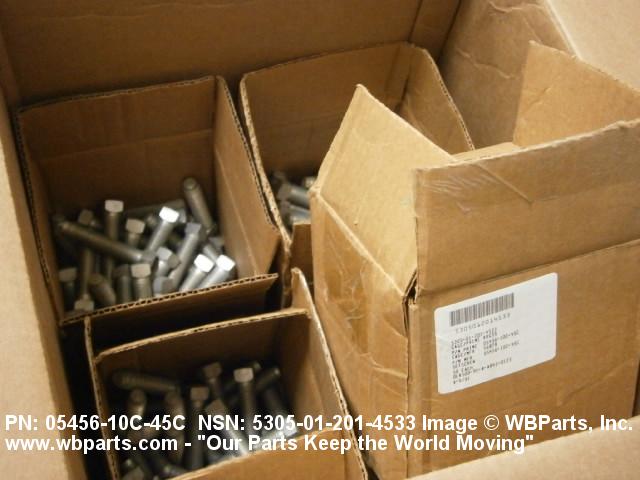

Drawings & Photos | NSN 5305-01-201-4533
Demand History | NSN 5305-01-201-4533
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0545610C45C | 2021-06-22 | 24 | US |
| 0545610C45C | 2021-06-22 | 28 | US |
| 5305-01-201-4533 | 2017-03-29 | 303 | DIBBS |
| 5305-01-201-4533 | 2017-01-29 | 244 | DIBBS |
| 5305-01-201-4533 | 2015-11-15 | 33 | DIBBS |
| 5305-01-201-4533 | 2015-07-29 | 46 | DIBBS |
| 5305-01-201-4533 | 2015-06-14 | 14 | DIBBS |
| 5305-01-201-4533 | 2012-01-06 | 0 | United States |
| 5305-01-201-4533 | 2011-11-09 | 253 | DIBBS |
| 5305-01-201-4533 | 2011-09-13 | 57 | DIBBS |
| 5305-01-201-4533 | 2011-06-16 | 5 | DIBBS |
| 5305-01-201-4533 | 2010-07-28 | 55 | DIBBS |
| 5305-01-201-4533 | 2010-06-26 | 18 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5305-01-201-4533
Related Products | NSN 5305-01-201-4533
5305-01-201-4634, 5305-01-201-4635, 5305-01-201-4636, 5305-01-201-4671, 5305-01-201-4673
Technical Data | NSN 5305-01-201-4533
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNRC |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 11 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 2.722 INCHES MINIMUM AND 2.812 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM OVERALL |
| HEAD STYLE | C13 SQUARE |
| HEAD HEIGHT | 0.452 INCHES MINIMUM AND 0.485 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.606 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D21 WITHOUT INTERNAL DRIVE |
| POINT STYLE | F21 HALF DOG |
Restrictions/Controls & Freight Information | NSN 5305-01-201-4533
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-201-4533
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
A EA : Each |
