Product Details | SOCKET HEAD CAP SCREW

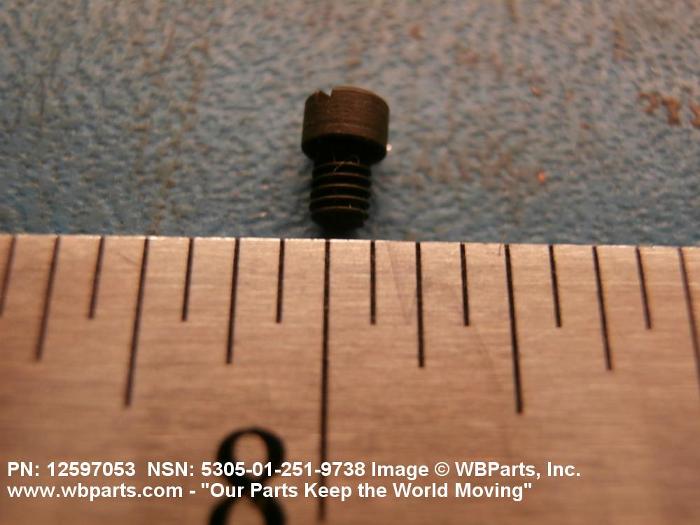

5305-01-251-9738 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: 12597053, 3602003247, 5305PL0958528 , 87XD1038, 5305-01-251-9738, 01-251-9738, 5305012519738, 012519738
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAR 1987 | 01-251-9738 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-01-251-9738

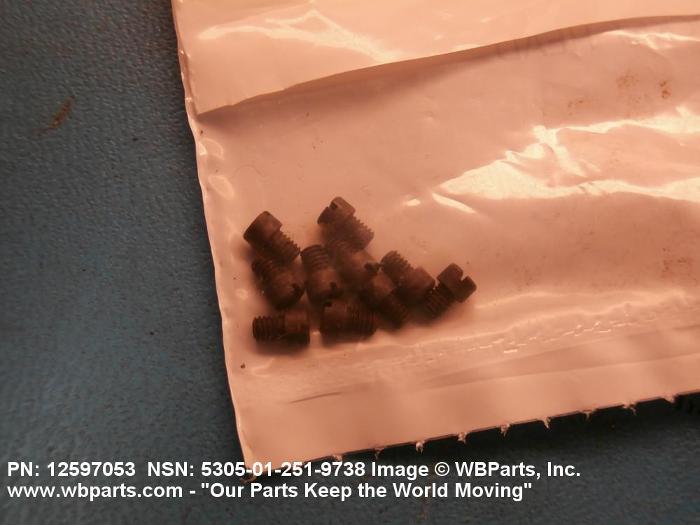

Demand History | NSN 5305-01-251-9738
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-251-9738 | 2018-09-250 | 20 | US |
| 5305-01-251-9738 | 2017-12-355 | 30 | US |
| 5305-01-251-9738 | 2017-06-165 | 20 | United States |
| 3602003247 | 2013-06-164 | 133 | United States |
| 12597053 | 2013-03-74 | 500 | United States |
| 12597053 | 2013-03-74 | 500 | United States |
| 5305-01-251-9738 | 2012-06-173 | 25000 | DIBBS |
| 5305-01-251-9738 | 2006-07-206 | 810 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-251-9738
Related Products | NSN 5305-01-251-9738
Technical Data | NSN 5305-01-251-9738
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.099 INCHES |
| THREAD QUANTITY PER INCH | 56 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 3.05 MILLIMETERS NOMINAL |
| FASTENER LENGTH | 3.05 MILLIMETERS NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-A568,COMP 1060,GRAIN SIZE 5-7 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM-A108,COMP 1055-1065 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE MANGANESE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-16232,TYPE M,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD DIAMETER | 3.48 MILLIMETERS NOMINAL |
| HEAD HEIGHT | 2.2 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | MATERIAL IS CARBON,COLD ROLLED,KILLED,AND SPHEROIDIZED; HEAT TREATMENT=HARDEN AT 840 DEG. C. IN A CARBONITRIDING ATMOSPHERE FOR 40 MIN.,OIL QUENCH,TEMPER 1 HR. MIN. TO RH A 72-75 |
Restrictions/Controls & Freight Information | NSN 5305-01-251-9738
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
