NSN 5305-01-252-6883 MS1699510, MS16995-10, 203659-001
Product Details | EXTERNALLY RELIEVED BODY SCREW
5305-01-252-6883 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercut for thread relief). It is No. 0 (0.060 IN.) (1.5 mm) or larger, and is designed to be held or driven with either a wrench or inserted driver (excluding internal socket and multiple spline types) or both in sizes below No. 10 (0.190 IN.) (5 mm) and larger sizes must have a head designed for any type inserted driver (excluding internal socket and multiple spline types) but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. See also BOLT, EXTERNALLY RELIEVED BODY and BOLT, INTERNAL WRENCHING.
Part Alternates: MS1699510, MS16995-10, 203659-001, 5305-01-252-6883, 01-252-6883, 5305012526883, 203659001, 012526883
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 APR 1987 | 01-252-6883 | 01852 ( SCREW, EXTERNALLY RELIEVED BODY ) |

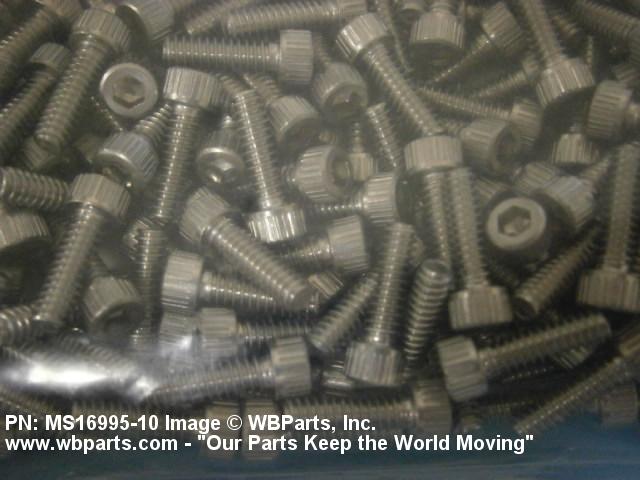

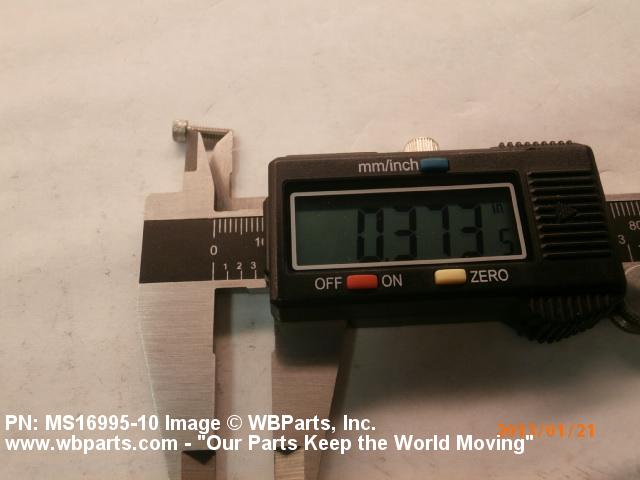

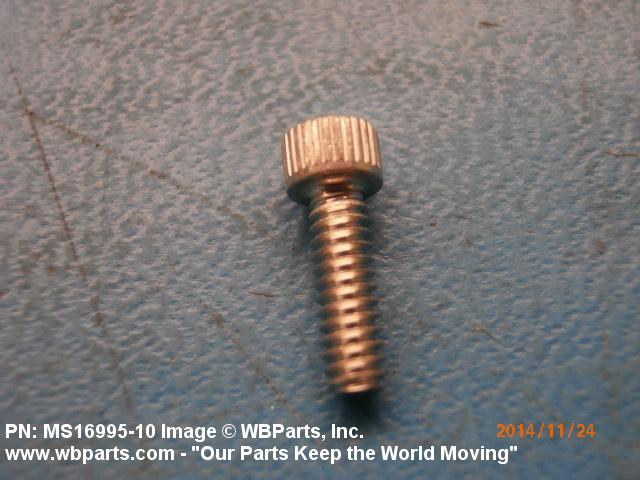

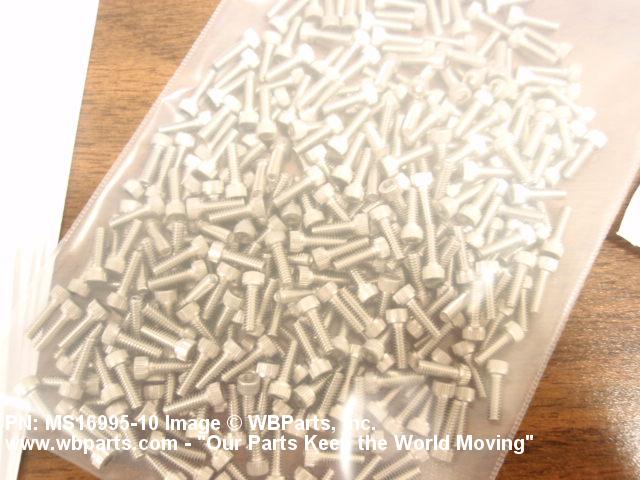

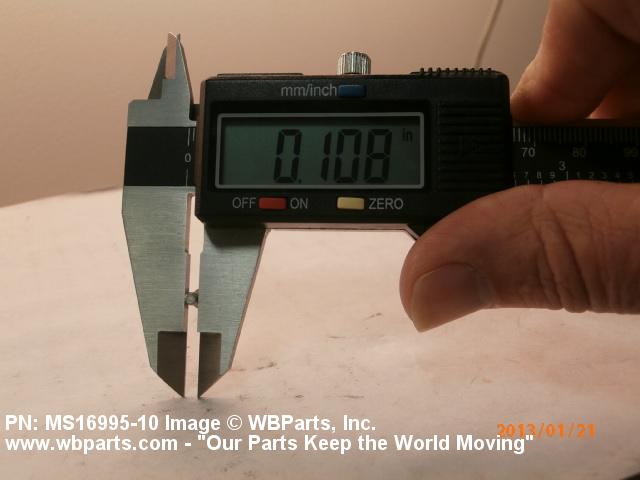

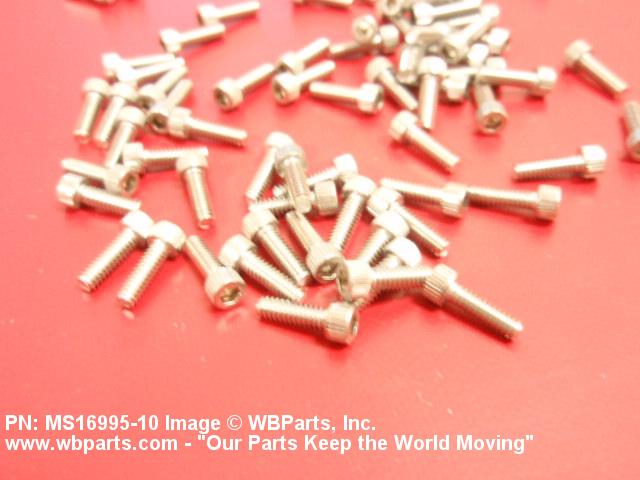

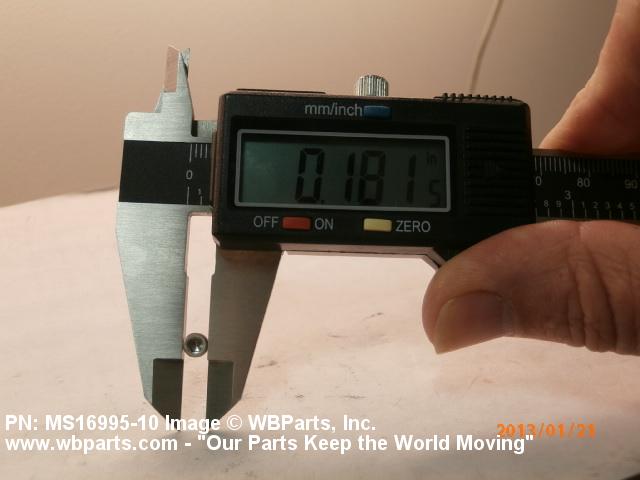

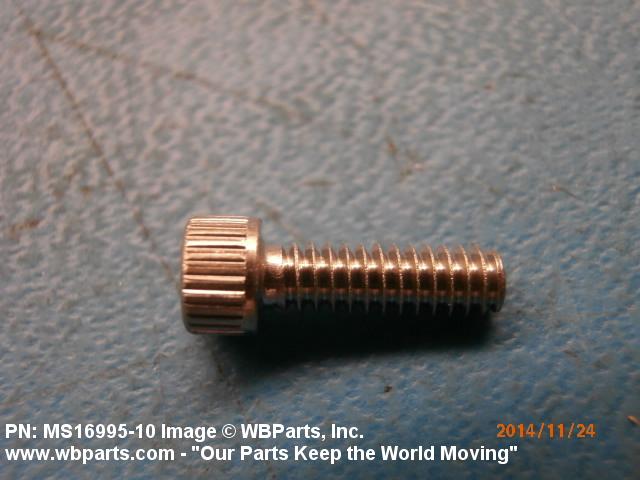

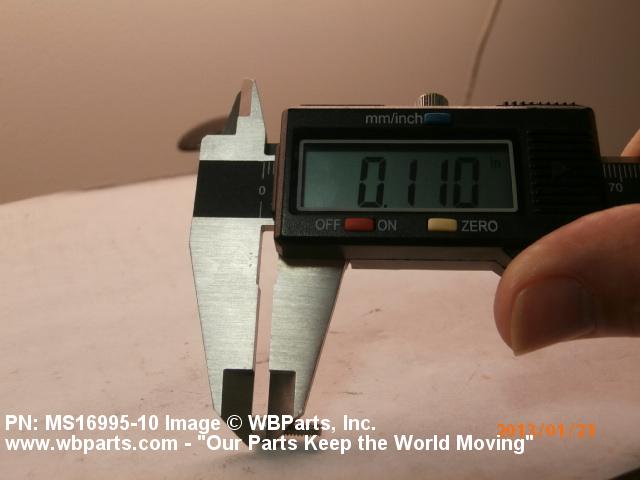

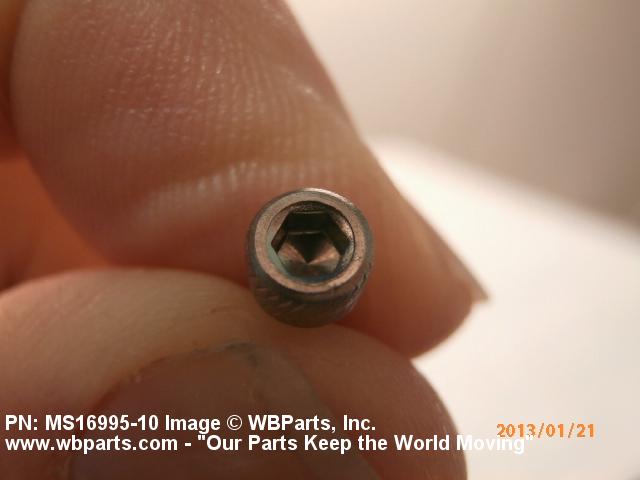

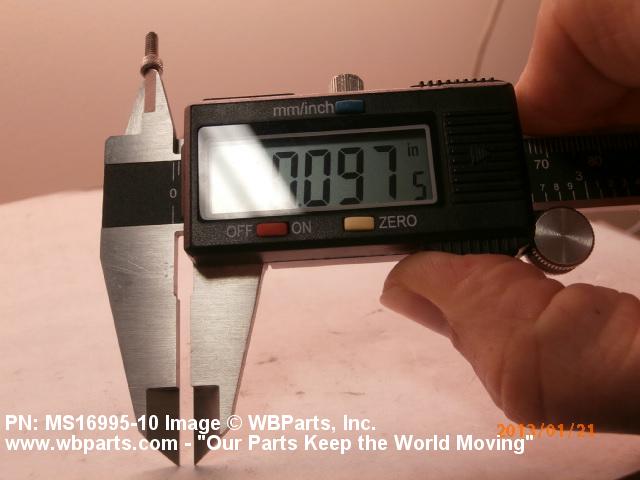

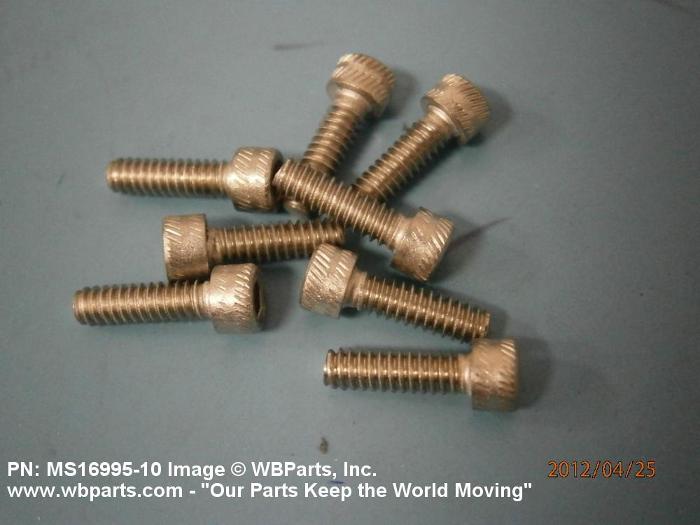

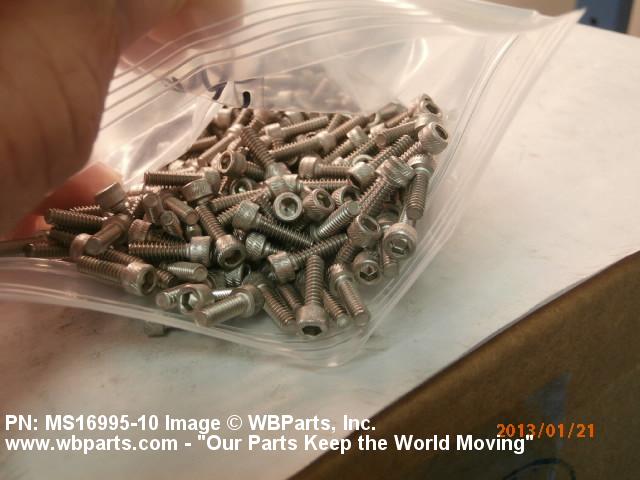

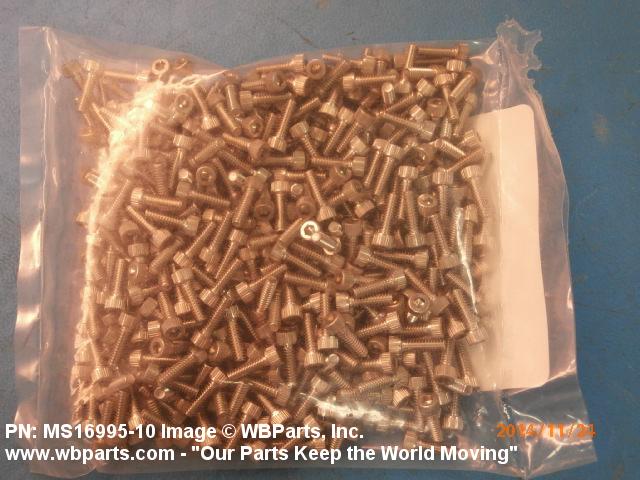

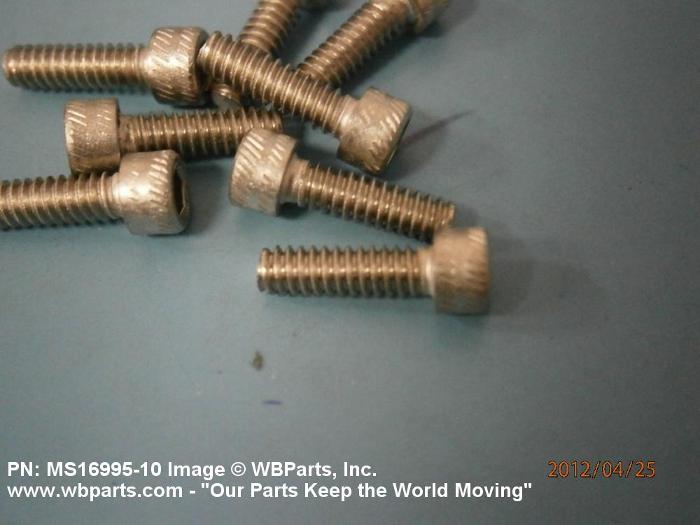

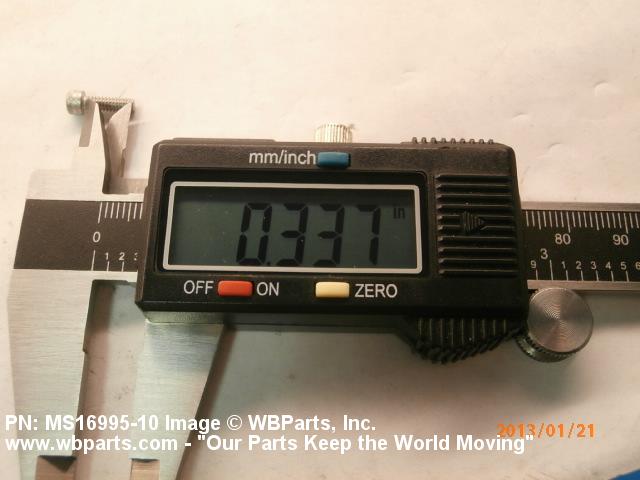

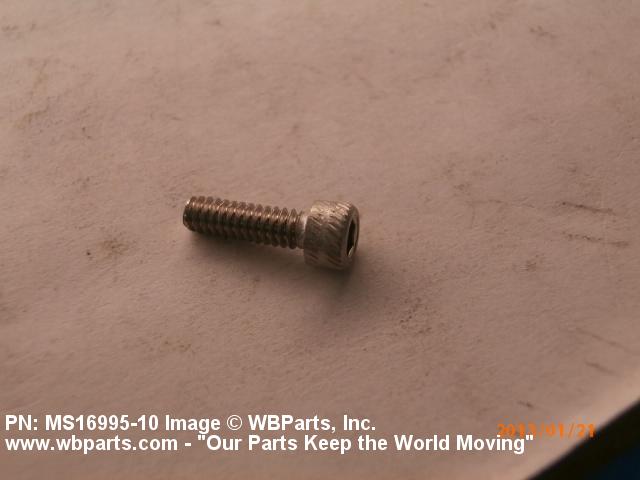

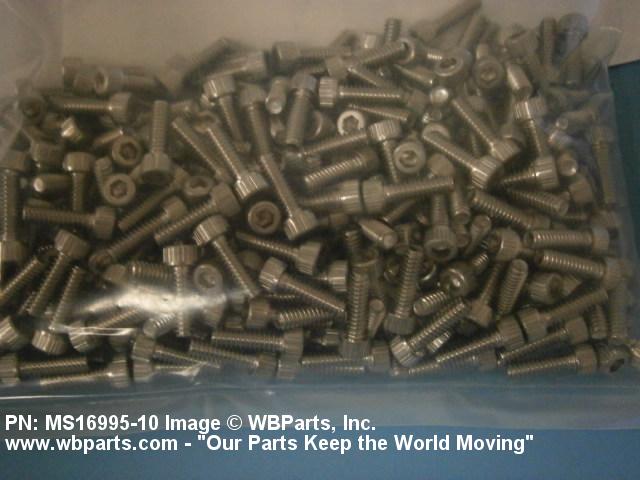

Drawings & Photos | NSN 5305-01-252-6883
Demand History | NSN 5305-01-252-6883
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1699510 | 2025-12-342 | 2000 | Korea |
| MS1699510 | 2025-08-225 | 1500 | Korea |
| MS1699510 | 2023-11-332 | 40 | TW |
| MS1699510 | 2023-07-205 | 380 | United States |
| MS1699510 | 2023-03-79 | 1200 | Korea |
| MS1699510 | 2021-12-348 | 1050 | Korea |
| MS16995-10 | 2020-12-365 | 254 | United States |
| MS16995-10 | 2020-09-268 | 603 | South Korea |
| MS16995-10 | 2020-09-268 | 603 | South Korea |
| MS16995-10 | 2020-06-174 | 2720 | Hong Kong |
| MS1699510 | 2019-10-288 | 10 | United States |
| MS1699510 | 2018-07-211 | 6600 | Malaysia |
| MS1699510 | 2018-07-211 | 6600 | Malaysia |
| MS1699510 | 2018-07-198 | 280 | IN |
| MS16995-10 | 2018-05-150 | 2470 | South Korea |
| MS16995-10 | 2018-05-149 | 2470 | South Korea |
| MS1699510 | 2017-10-298 | 17500 | Malaysia |
| MS1699510 | 2017-02-33 | 100 | United States |
| MS1699510 | 2016-05-146 | 34 | IN |
| MS16995-10 | 2015-05-141 | 4 | United States |
| MS16995-10 | 2015-05-141 | 4 | United States |
| MS1699510 | 2014-11-318 | 400 | United States |
| MS1699510 | 2014-10-281 | 24 | United States |
| MS1699510 | 2014-02-43 | 4 | United States |
| MS1699510 | 2013-08-239 | 1800 | United States |
| MS1699510 | 2013-01-29 | 51 | United States |
| MS1699510 | 2013-01-02 | 400 | United States |
| MS1699510 | 2012-12-349 | 37 | US |
| MS1699510 | 2012-03-88 | 50 | Israel |
| MS1699510 | 2012-03-83 | 8 | US |
| MS1699510 | 2012-01-13 | 320 | United States |
| MS1699510 | 2011-10-304 | 37 | United States |
| MS1699510 | 2011-05-133 | 200 | US |
| MS1699510 | 2011-04-116 | 500 | US |
| MS1699510 | 2011-02-41 | 75 | US |
| MS1699510 | 2009-01-22 | 296 | Greece |
| MS1699510 | 2008-09-247 | 92 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-252-6883
Related Products | NSN 5305-01-252-6883
Technical Data | NSN 5305-01-252-6883
| Characteristic | Specifications |
|---|---|
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 0.265 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 1 |
| FIRST DIAMETER FROM HEAD | 0.030 INCHES NOMINAL |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF FIRST DIAMETER | 0.094 INCHES NOMINAL |
| MANUFACTURERS CODE | 88932 |
| DESIGN CONTROL REFERENCE | 203659-001 |
Restrictions/Controls & Freight Information | NSN 5305-01-252-6883
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-252-6883
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
