NSN 5305-01-266-8341 NAS1301C86, NAS1301C8-6, 01-266-8341
Product Details | ASSEMBLED WASHER SCREW
5305-01-266-8341 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: NAS1301C86, NAS1301C8-6, 5305-01-266-8341, 01-266-8341, 5305012668341, 012668341
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 OCT 1987 | 01-266-8341 | 06660 ( SCREW, ASSEMBLED WASHER ) |

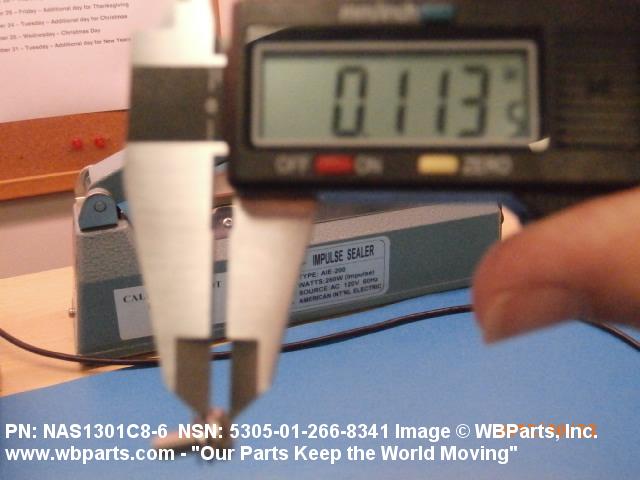

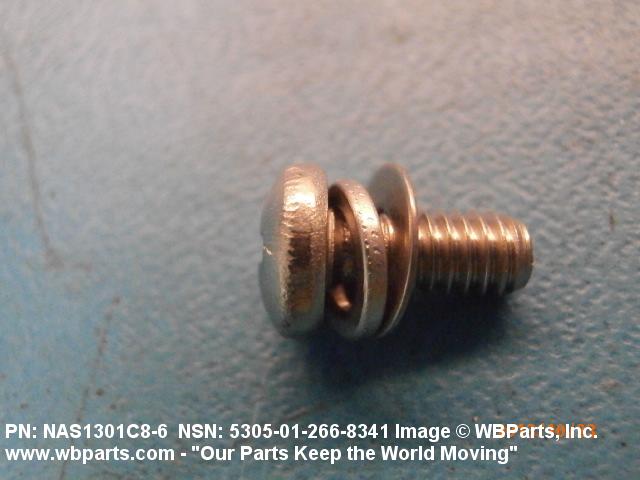

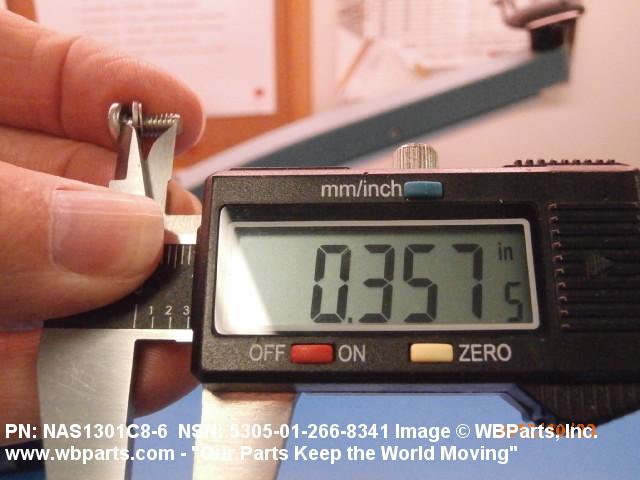

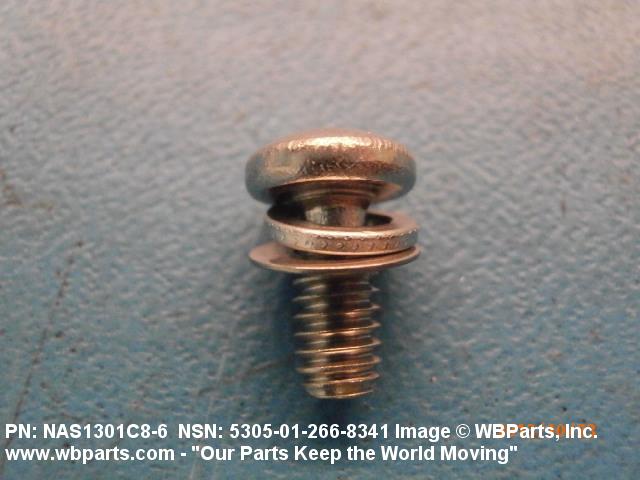

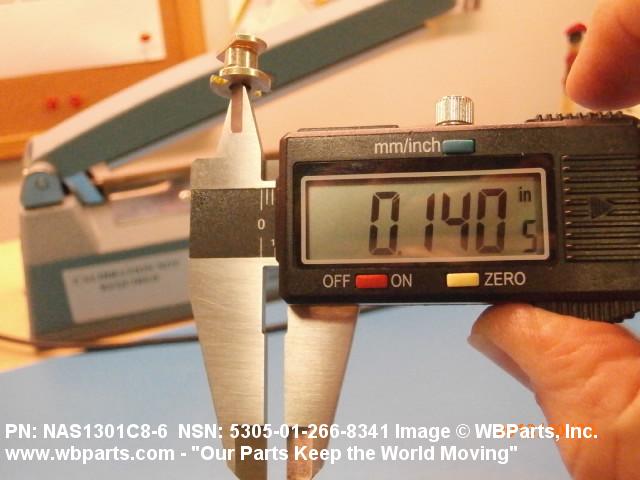

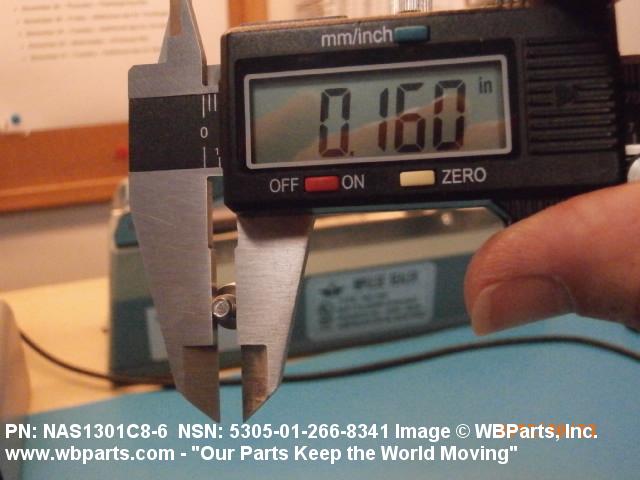

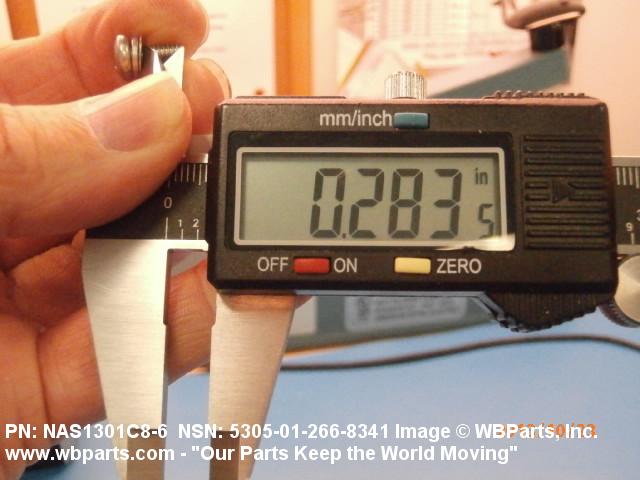

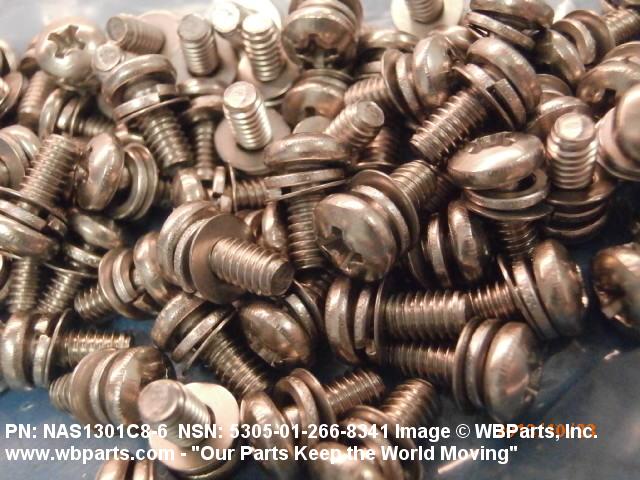

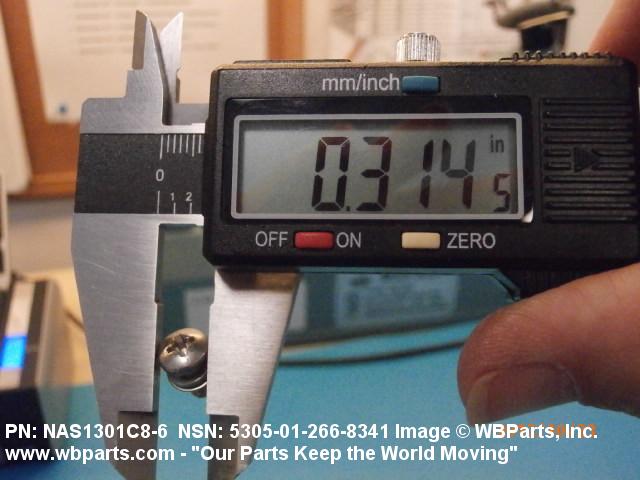

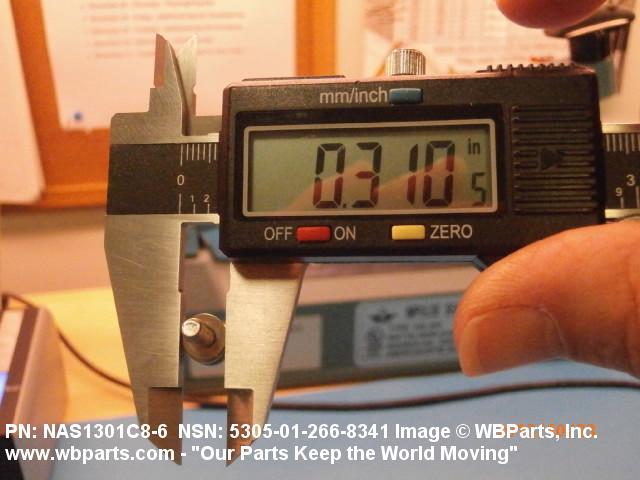

Drawings & Photos | NSN 5305-01-266-8341
Demand History | NSN 5305-01-266-8341
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1301C86 | 2014-02-56 | 650 | US |
| NAS1301C86 | 2013-10-295 | 100 | United States |
| 5305-01-266-8341 | 2012-12-348 | 60 | DIBBS |
| NAS1301C86 | 2011-03-69 | 15 | United States |
| 5305-01-266-8341 | 2010-02-36 | 20 | US |
| 5305-01-266-8341 | 2009-10-294 | 65 | DIBBS |
| 5305-01-266-8341 | 2009-07-201 | 226 | DIBBS |
| 5305-01-266-8341 | 2009-02-36 | 63 | DIBBS |
| 5305-01-266-8341 | 2008-06-155 | 84 | DIBBS |
| 5305-01-266-8341 | 2008-02-36 | 84 | DIBBS |
Cross Reference | NSN 5305-01-266-8341
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1301C8-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-266-8341
Related Products | NSN 5305-01-266-8341
Technical Data | NSN 5305-01-266-8341
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.264 INCHES MINIMUM |
| FASTENER LENGTH | 0.343 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 SECONDARY WASHER STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 302B OR STEEL COMP 303 OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 308 OR STEEL COMP 309 OR STEEL COMP 309S OR STEEL COMP 310 OR STEEL COMP 310S OR STEEL COMP 314 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 384 OR STEEL COMP 385 PRIMARY WASHER STEEL COMP 302 OR STEEL COMP 304 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC ALL MATERIAL RESPONSES SECONDARY WASHER 66 FED STD ALL MATERIAL RESPONSES PRIMARY WASHER QQ-S-763 FED SPEC ALL MATERIAL RESPONSES FASTENER |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C32 PAN |
| HEAD DIAMETER | 0.306 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| HEAD HEIGHT | 0.105 INCHES MINIMUM AND 0.115 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| WASHER QUANTITY | 2 |
| PRIMARY WASHER STYLE | G9 SPLIT HELICAL RING |
| PRIMARY WASHER OUTSIDE DIAMETER | 0.293 INCHES MAXIMUM |
| PRIMARY WASHER MATERIAL THICKNESS | 0.040 INCHES MINIMUM |
| SECONDARY WASHER RELATIONSHIP TO PRIMARY WASHER | NOT IDENTICAL |
| SECONDARY WASHER STYLE | G30 FLAT |
| SECONDARY WASHER OUTSIDE DIAMETER | 0.307 INCHES MINIMUM AND 0.317 INCHES MAXIMUM |
| SECONDARY WASHER MATERIAL THICKNESS | 0.013 INCHES MINIMUM AND 0.019 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1301 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-01-266-8341
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-266-8341
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
