NSN 5305-01-267-5317 HT40762, HT4076-2 , 10113614
Product Details | MACHINE SCREW
5305-01-267-5317 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: HT40762, HT4076-2 , 10113614 , 3M10632, 3M1063-2, 5305-01-267-5317, 01-267-5317, 5305012675317, 012675317
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 SEP 2003 | 01-267-5317 | 06657 ( SCREW, MACHINE ) |

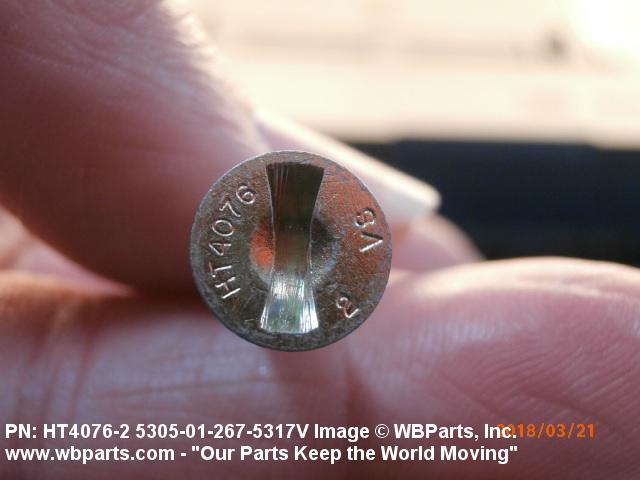

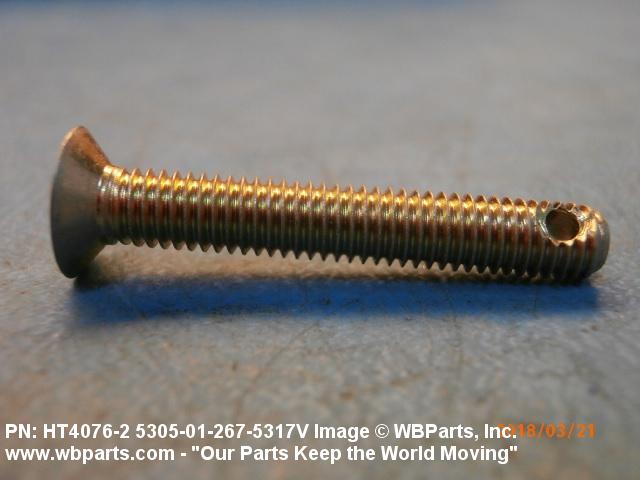

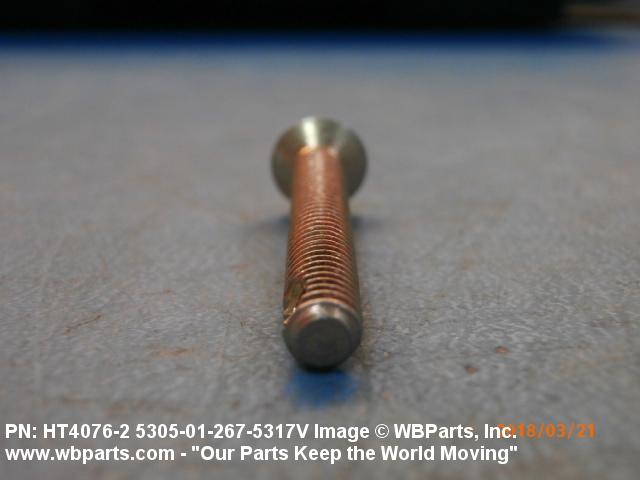

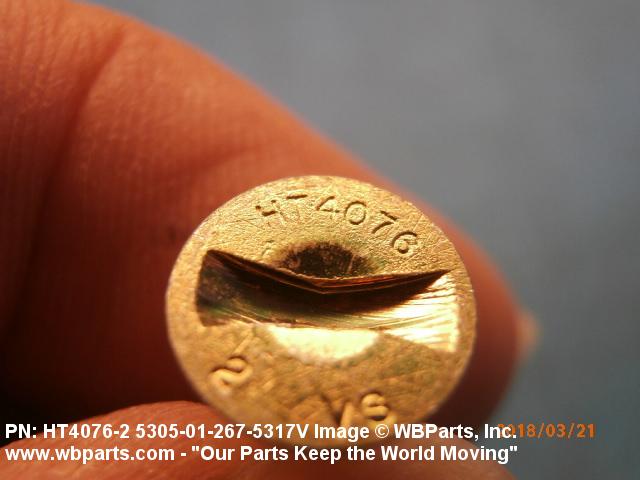

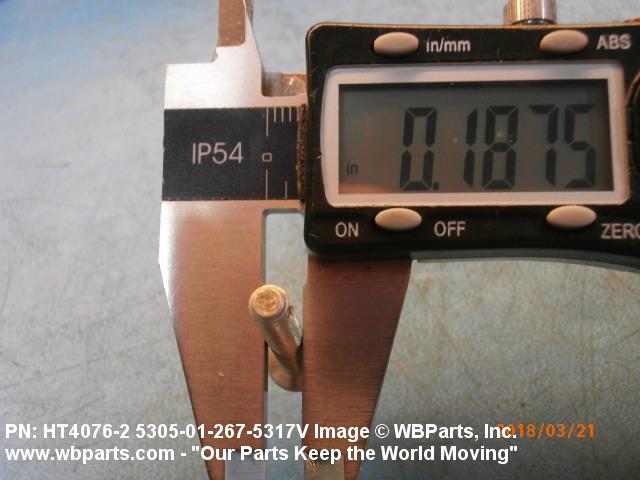

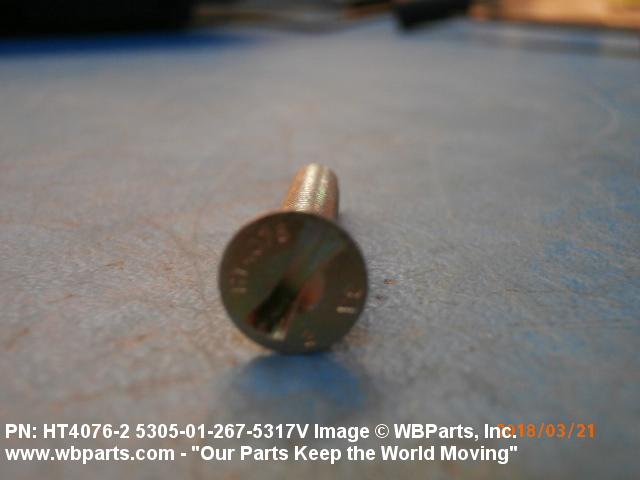

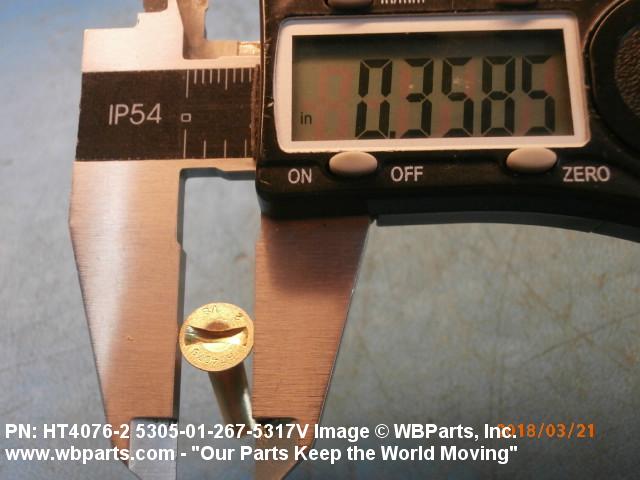

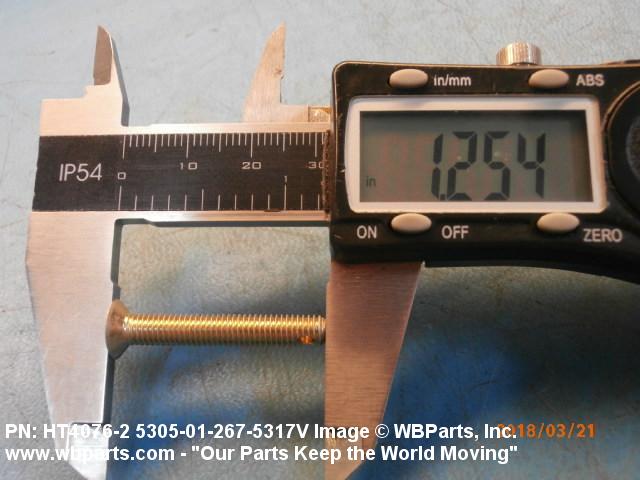

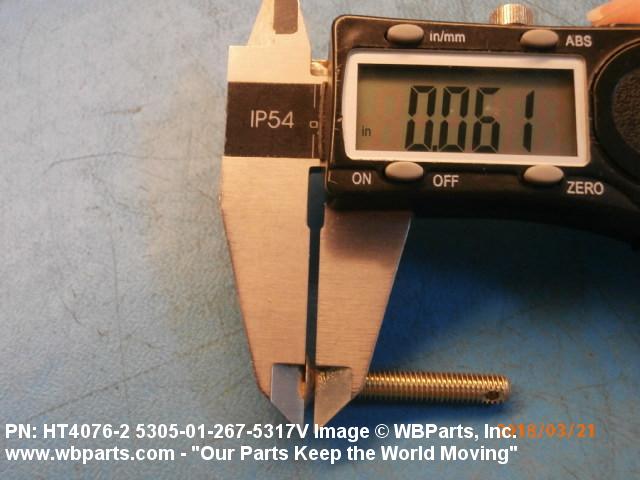

Drawings & Photos | NSN 5305-01-267-5317
Demand History | NSN 5305-01-267-5317
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M10632 | 2024-12-339 | 800 | United States |
| 5305-01-267-5317 | 2018-04-92 | 4 | Spain |
| 5305-01-267-5317 | 2017-12-354 | 73 | Spain |
| 5305-01-267-5317 | 2016-04-119 | 73 | Spain |
| HT40762 | 2015-11-316 | 72 | ES |
| 5305-01-267-5317 | 2015-10-279 | 72 | ES |
| 3M10632 | 2012-01-05 | 10 | Australia |
Cross Reference | NSN 5305-01-267-5317
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M1063-2 | 76301 | BOEING COMPANY, THE DBA BOEING |
| HT4076-2 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HT4076-2 | 73197 | HI-SHEAR CORPORATION |
| HT4076-2 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HT4076-2 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HT4076-2 | 97928 | HUCK INTL INC |
| HT4076-2 | L4528 | LISI AEROSPACE CANADA CORP |
