NSN 5305-01-269-6266 NAS1352085P, NAS1352-08-5P, 01-269-6266
Product Details | SOCKET HEAD CAP SCREW
5305-01-269-6266 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1352085P, NAS1352-08-5P, 5305-01-269-6266, 01-269-6266, 5305012696266, 012696266
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 DEC 1987 | 01-269-6266 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

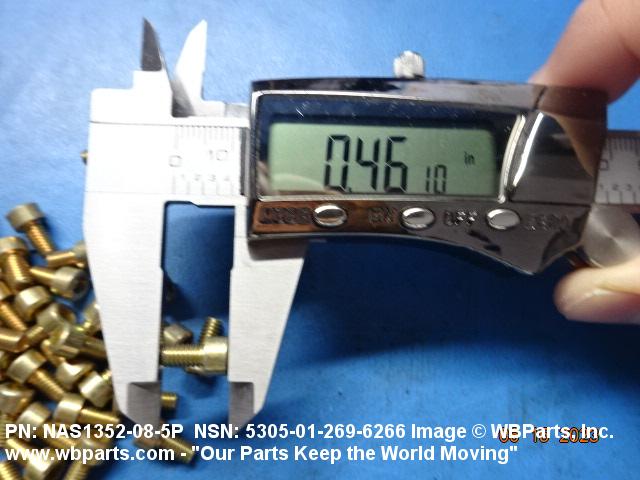

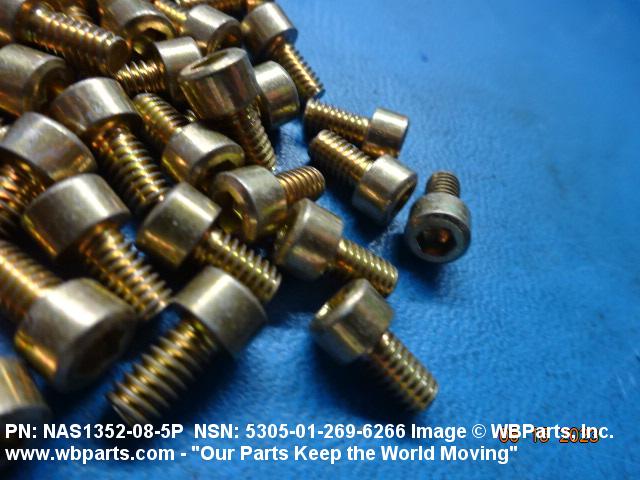

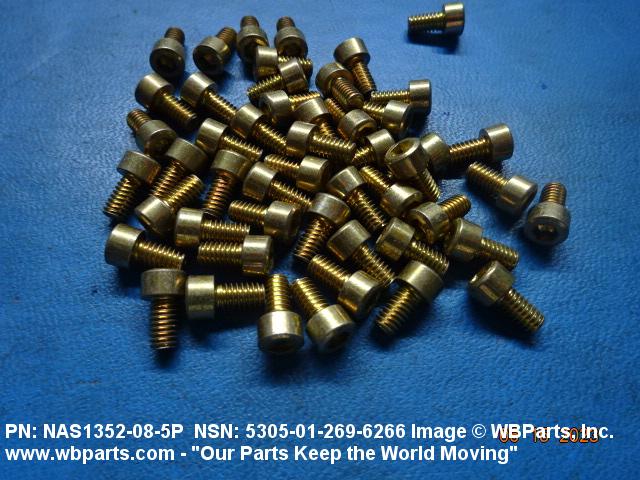

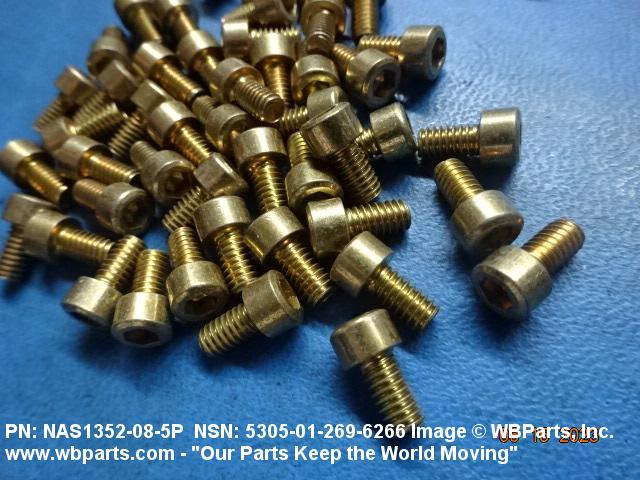

Drawings & Photos | NSN 5305-01-269-6266
Demand History | NSN 5305-01-269-6266
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1352085P | 2023-06-163 | 6 | United States |
| NAS1352085P | 2011-06-173 | 10 | US |
Cross Reference | NSN 5305-01-269-6266
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1352-08-5P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-269-6266
Technical Data | NSN 5305-01-269-6266
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNRC |

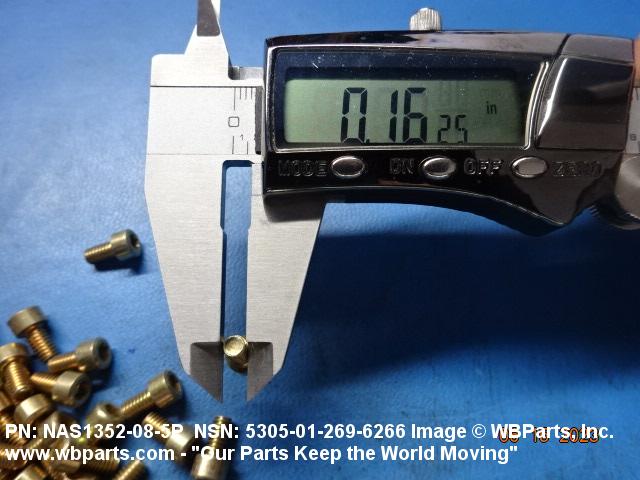

| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.220 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| FASTENER LENGTH | 0.282 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 155000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

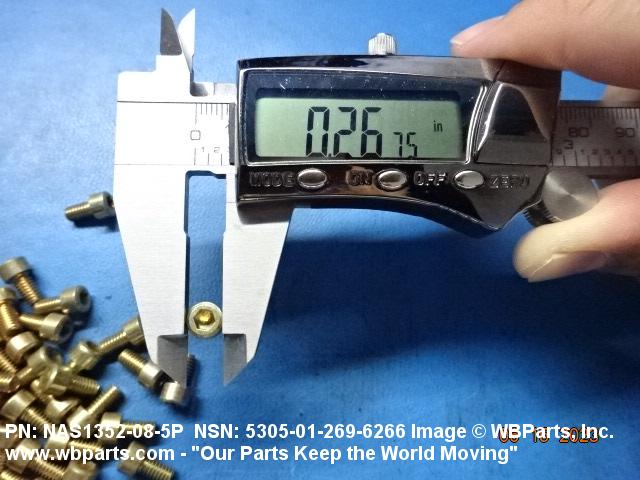

| HEAD DIAMETER | 0.262 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |

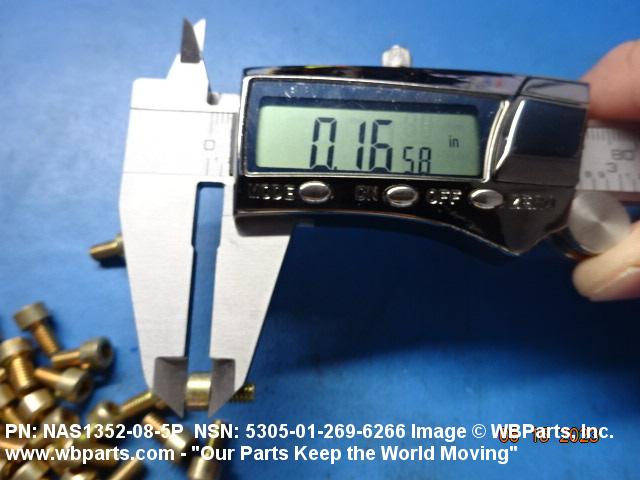

| HEAD HEIGHT | 0.159 INCHES MINIMUM AND 0.164 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |

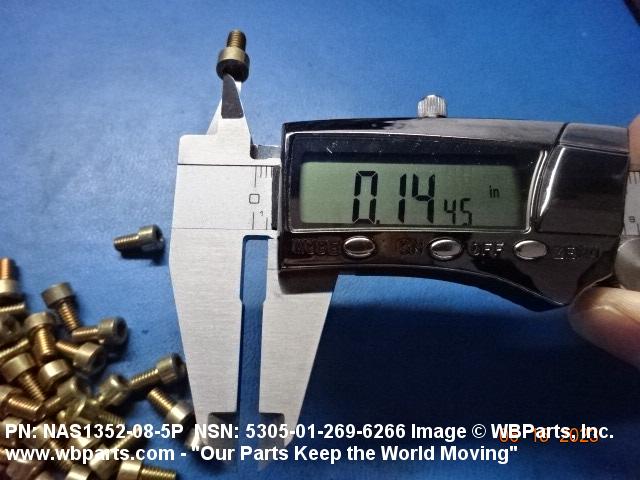

| WIDTH ACROSS FLATS | 0.1406 INCHES MINIMUM AND 0.1426 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1352 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-01-269-6266
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
