NSN 5305-01-285-5980 MS5197562, MS51975-62, 8644790-62
Product Details | SHOULDER SCREW
5305-01-285-5980 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 IN.) (1.5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is designed to be driven with either a wrench or an inserted driver or both in sizes below No. 10 (0.190 IN.) (5 mm) nominal diameter. No. 10 (0.190 IN.) (5 mm) and larger sizes must be designed for any type of inserted driver, but may also provide for external wrenching of the head. A locking feature may be incorporated in the design of the head or threads. For items which are both shouldered and have an externally relieved body, use SCREW, EXTERNALLY RELIEVED BODY. For items with a No. 10 (0.190 IN.) (5 mm) or larger thread diameter without an inserted driver head, use BOLT, SHOULDER. Excludes BOLT, INTERNAL WRENCHING and SCREW, CAP, SOCKET HEAD.
Part Alternates: MS5197562, MS51975-62, 8644790-62, 5305-01-285-5980, 01-285-5980, 5305012855980, 864479062, 012855980
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 SEP 1988 | 01-285-5980 | 22846 ( SCREW, SHOULDER ) |

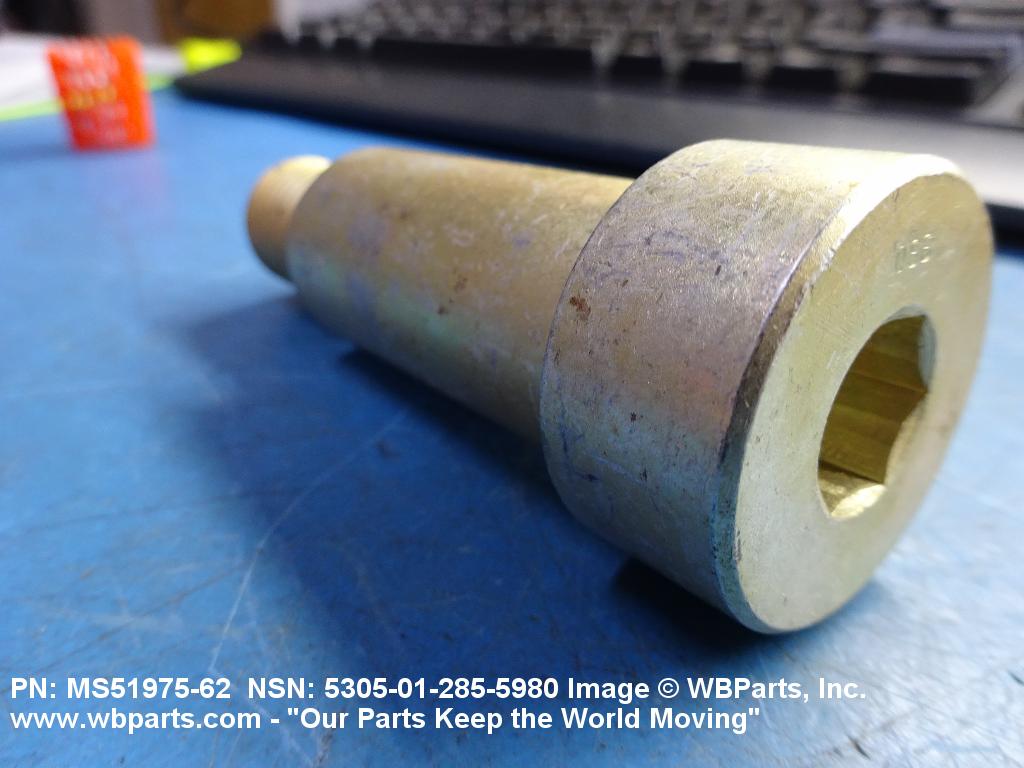

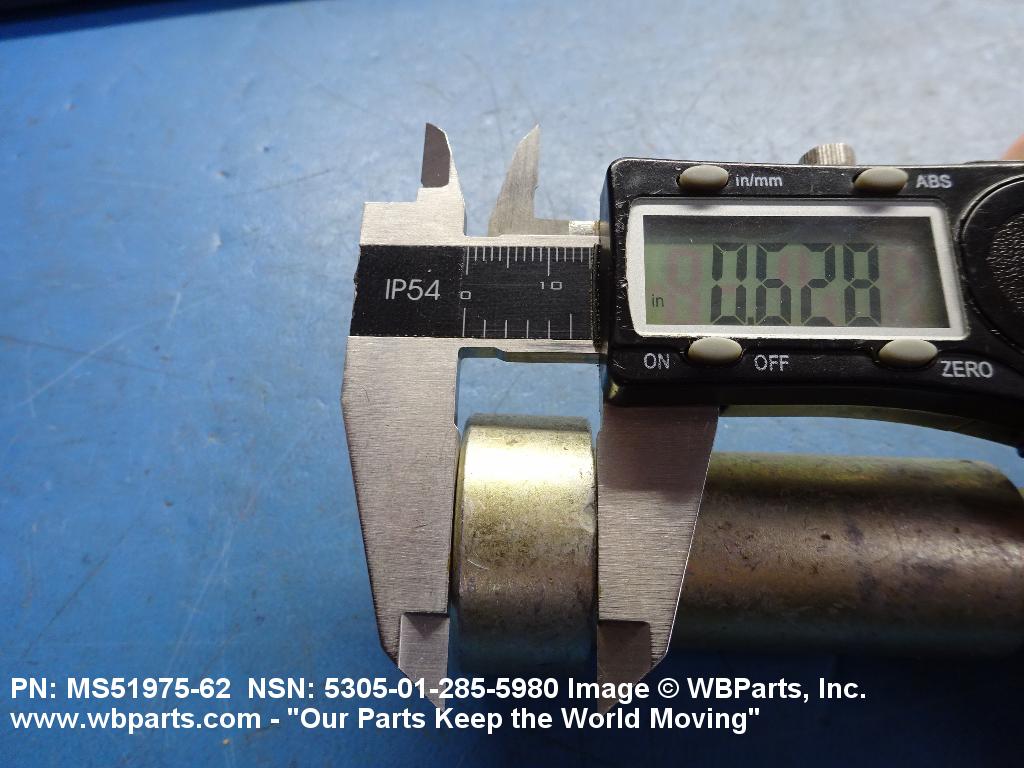

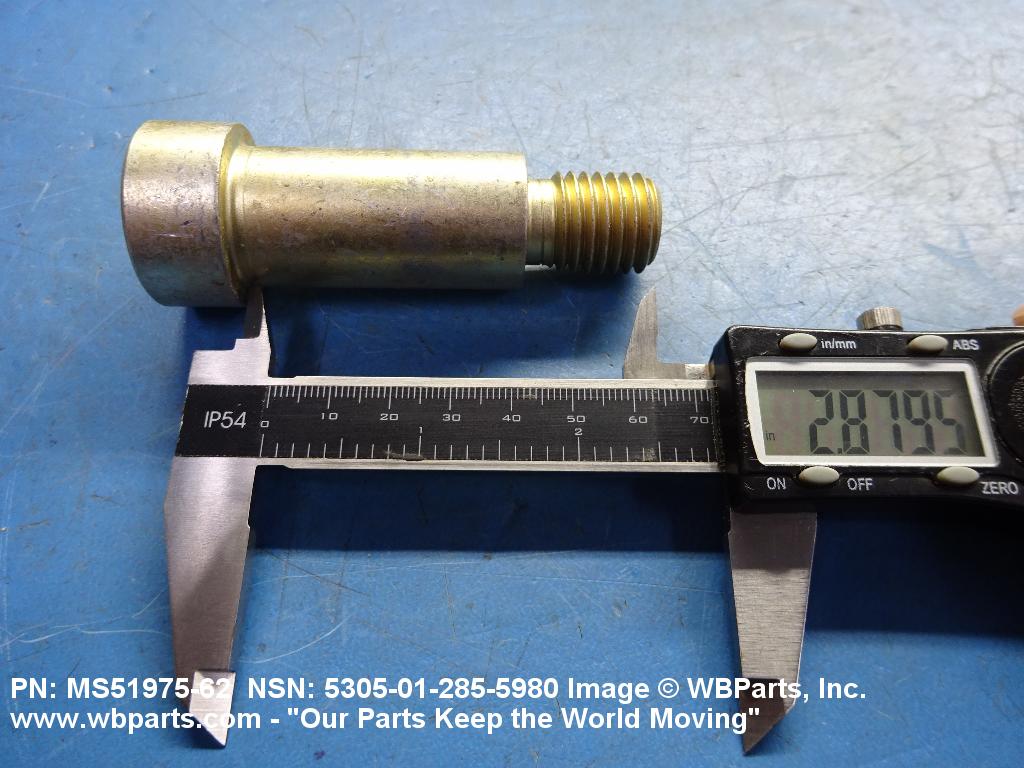

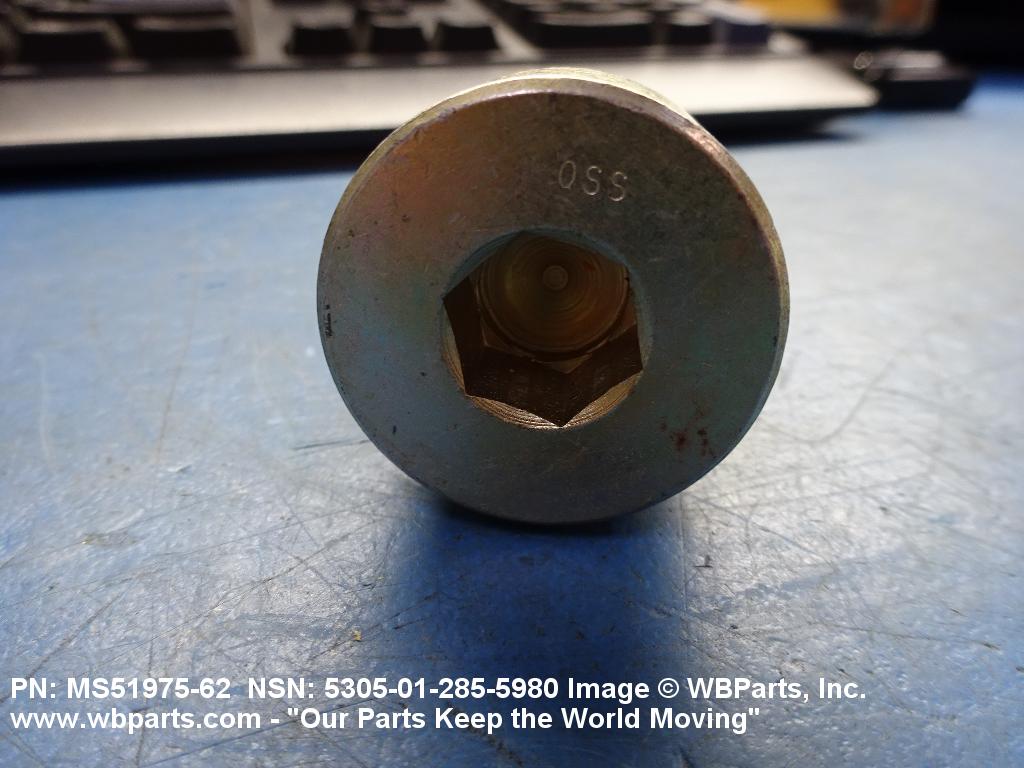

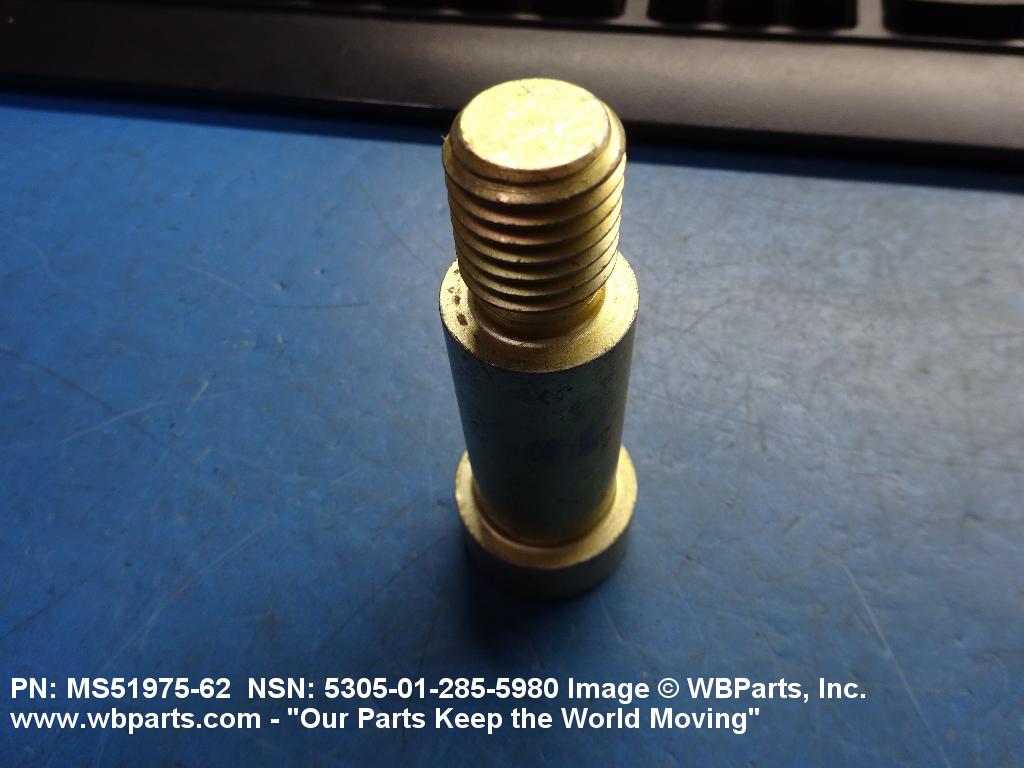

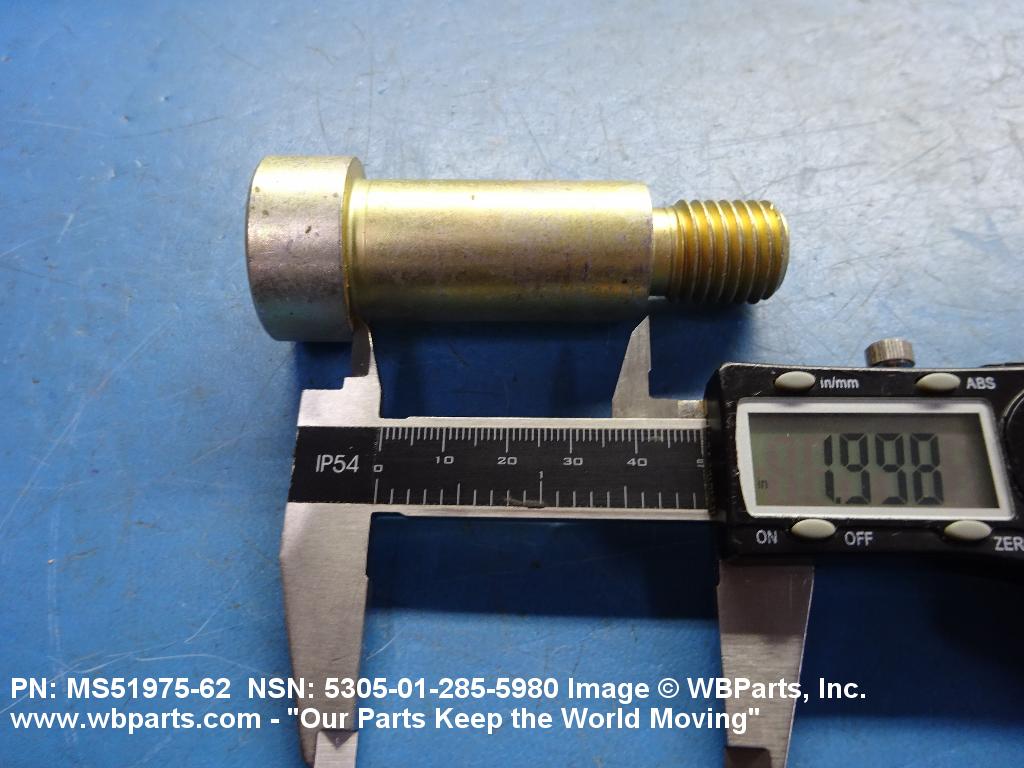

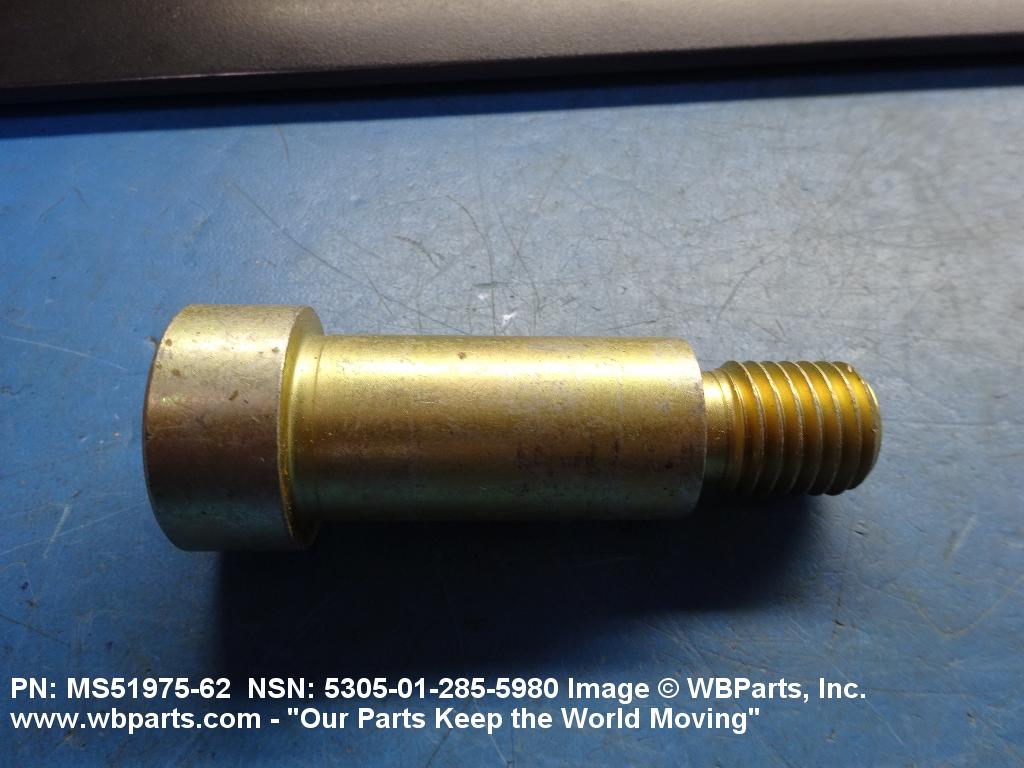

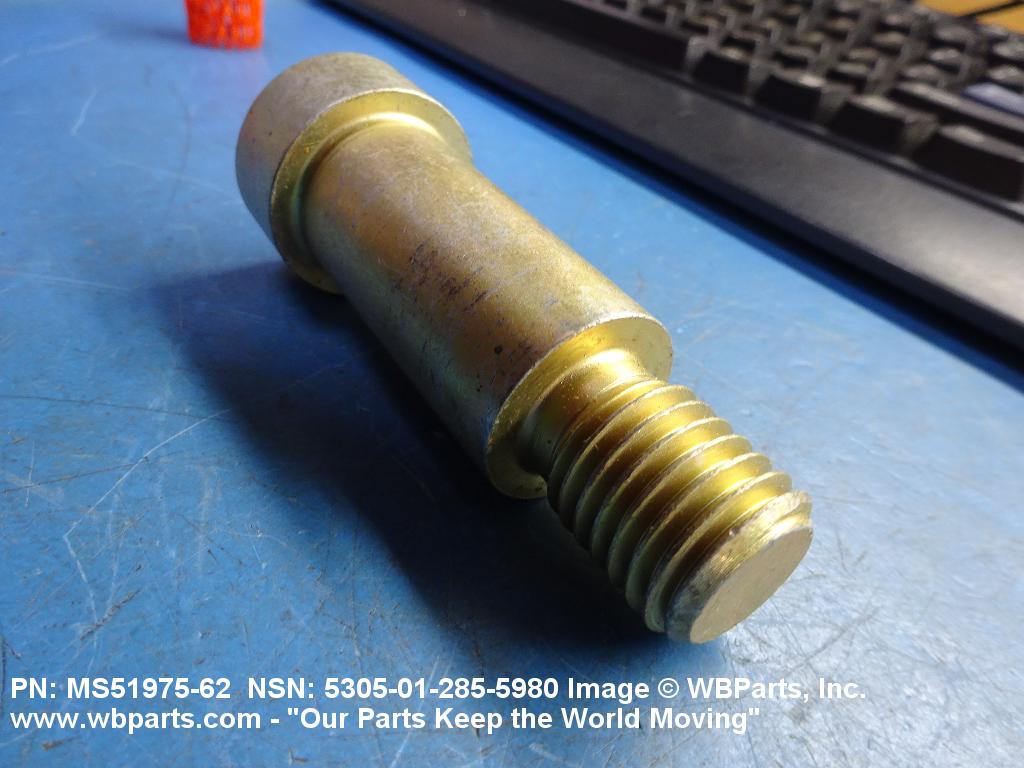

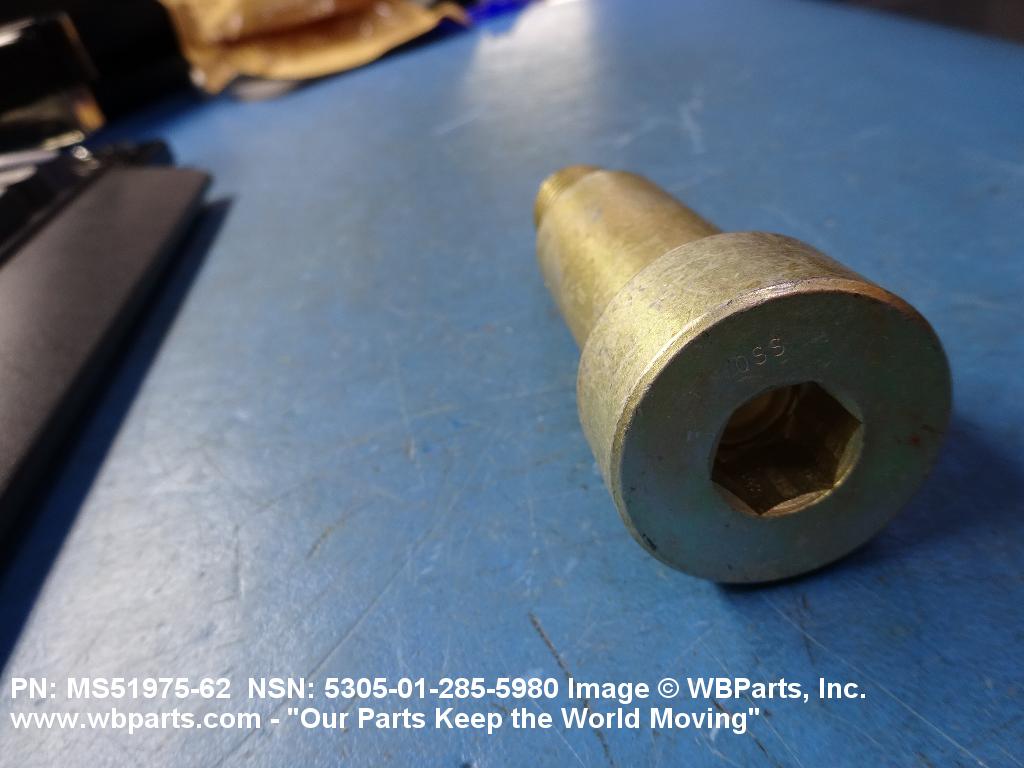

Drawings & Photos | NSN 5305-01-285-5980
Demand History | NSN 5305-01-285-5980
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-285-5980 | 2022-10-277 | 1 | United States |
| 5305-01-285-5980 | 2012-04-117 | 3 | DIBBS |
| 5305-01-285-5980 | 2012-03-79 | 1 | DIBBS |
| 5305-01-285-5980 | 2012-03-79 | 4 | DIBBS |
| 5305-01-285-5980 | 2011-06-172 | 1 | DIBBS |
Cross Reference | NSN 5305-01-285-5980
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8644790-62 | 06641 | CENTURY FASTENERS CORP. |
| 8644790-62 | 18894 | AIR ARMAMENT CENTER/ EN |
| 8644790-62 | 56672 | SYN-TECH SYSTEMS, INC. |
| MS51975-62 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS51975-62 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-285-5980
Technical Data | NSN 5305-01-285-5980
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 10 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

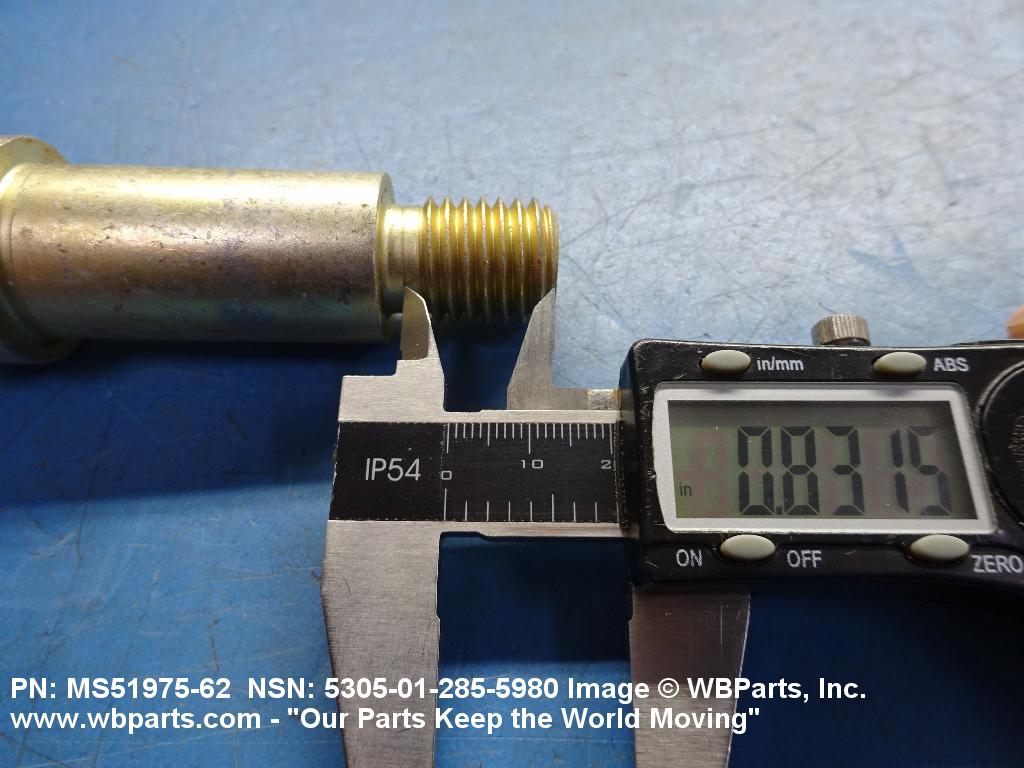

| THREAD LENGTH | 0.820 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |
| FASTENER LENGTH | 2.830 INCHES MINIMUM AND 2.870 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SINGLE SHEAR STRENGTH | 25000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

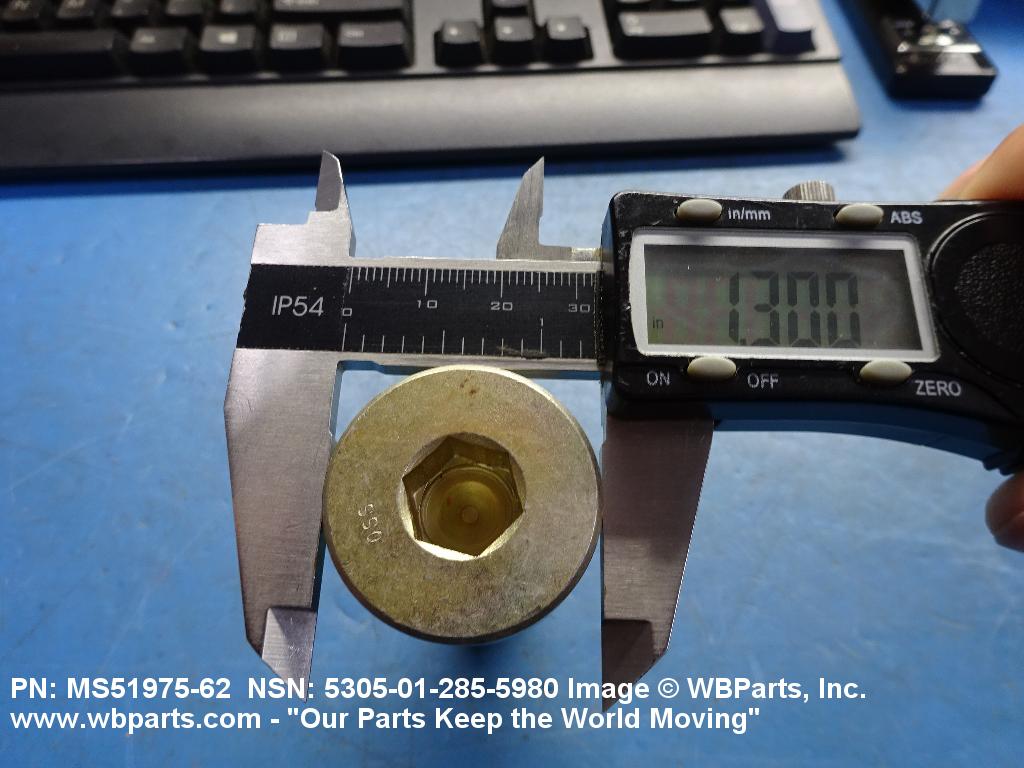

| HEAD DIAMETER | 1.287 INCHES MINIMUM AND 1.312 INCHES MAXIMUM |
| HEAD HEIGHT | 0.610 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.503 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |

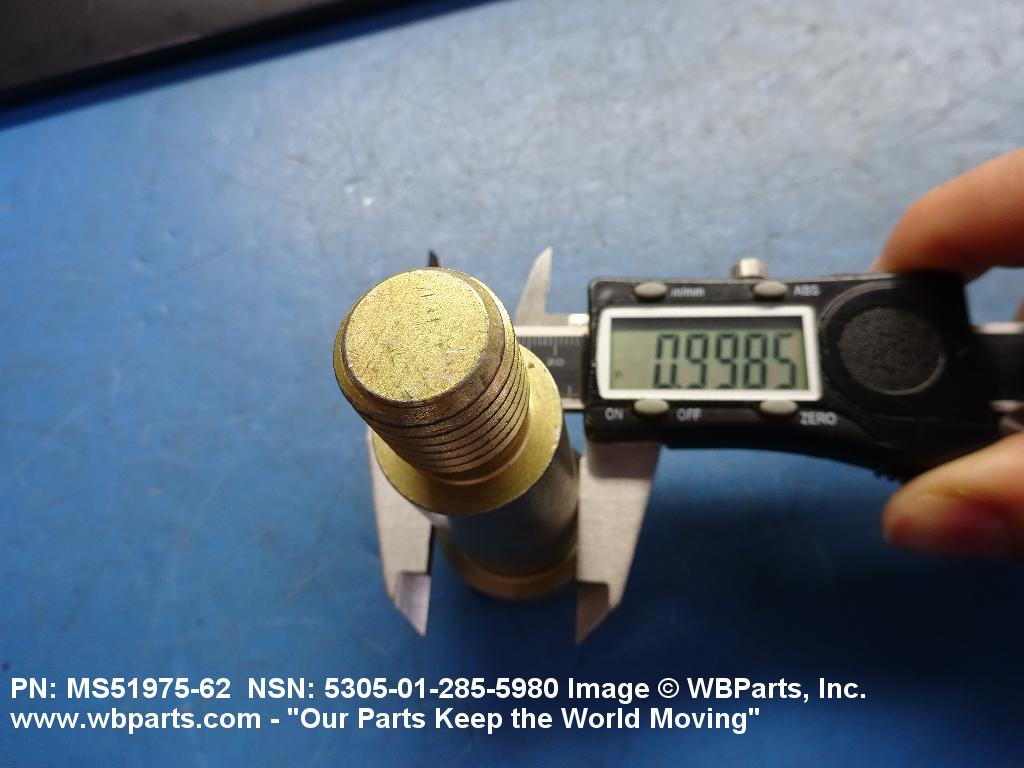

| SHOULDER DIAMETER | 0.996 INCHES MINIMUM AND 0.998 INCHES MAXIMUM FIRST SHOULDER |
| SHOULDER LENGTH | 1.990 INCHES MINIMUM AND 2.010 INCHES MAXIMUM FIRST SHOULDER |
| SPECIAL FEATURES | PLAIN OR KNURL HEAD; NECK BETWEEN SHOULDER AND THREADS 0.150 LG.; 0.605-0.638 DIA |
Restrictions/Controls & Freight Information | NSN 5305-01-285-5980
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-285-5980
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
