NSN 5305-01-286-6035 NAS1191E04T5B, 10057948 , 01-286-6035
Product Details | SOCKET HEAD CAP SCREW

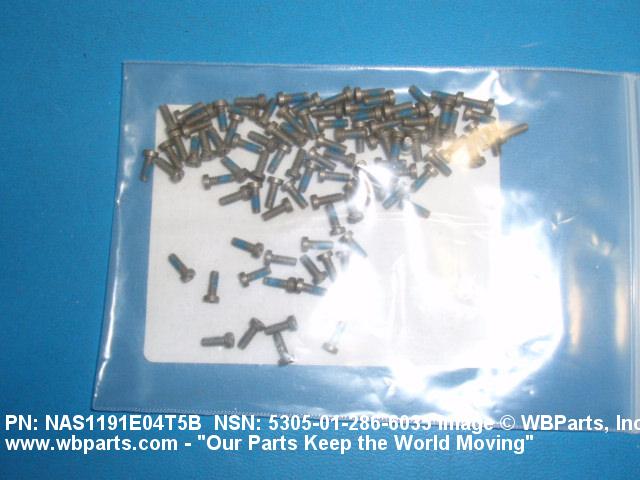

5305-01-286-6035 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1191E04T5B, 10057948 , 5305-01-286-6035, 01-286-6035, 5305012866035, 012866035
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 OCT 1988 | 01-286-6035 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-01-286-6035
Demand History | NSN 5305-01-286-6035
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-286-6035 | 2013-08-241 | 50 | Australia |
| NAS1191E04T5B | 2009-10-289 | 100 | Turkey |
| NAS1191E04T5B | 2009-10-289 | 100 | Turkey |
| NAS1191E04T5B | 2009-10-288 | 100 | Turkey |
Cross Reference | NSN 5305-01-286-6035
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1191E04T5B | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-286-6035
Related Products | NSN 5305-01-286-6035
Technical Data | NSN 5305-01-286-6035
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.231 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| FASTENER LENGTH | 0.281 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| MATERIAL | PLASTIC POLYAMIDE LOCKING FEATURE IRON ALLOY 660 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5737 ASSN STD SINGLE MATERIAL RESPONSE FASTENER |
| SURFACE TREATMENT | PASSIVATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.178 INCHES MINIMUM AND 0.183 INCHES MAXIMUM |
| HEAD HEIGHT | 0.059 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D8 TORQUE SET |
| LOCKING FEATURE | PATCH THREADS |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS |
| SPECIFICATION/STANDARD DATA | 80205-NAS1191 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
