NSN 5305-01-292-9998 NAS163506LE3, NAS1635-06LE3, NAS163506LN3

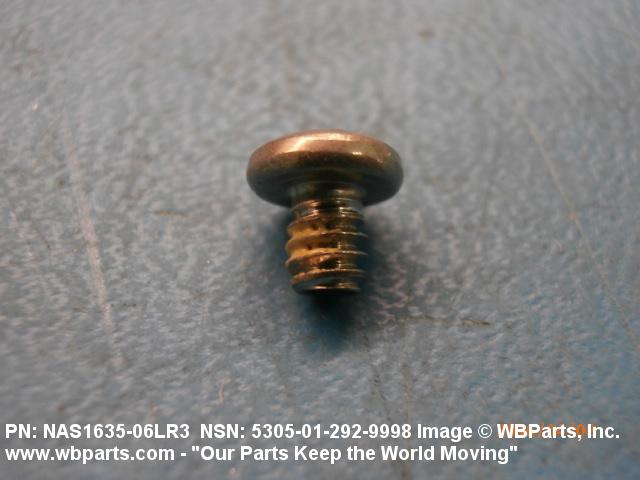

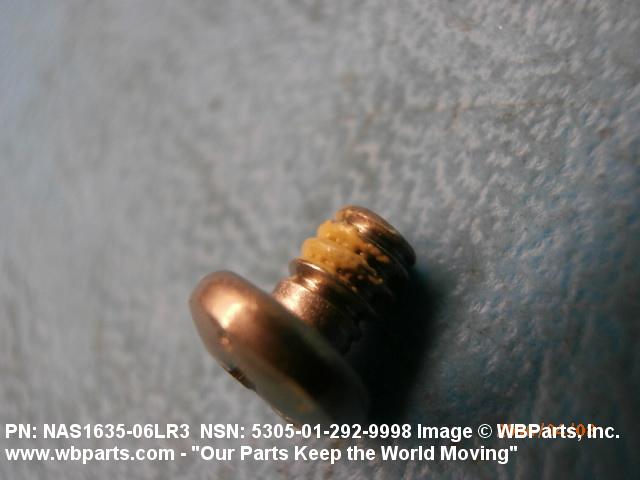

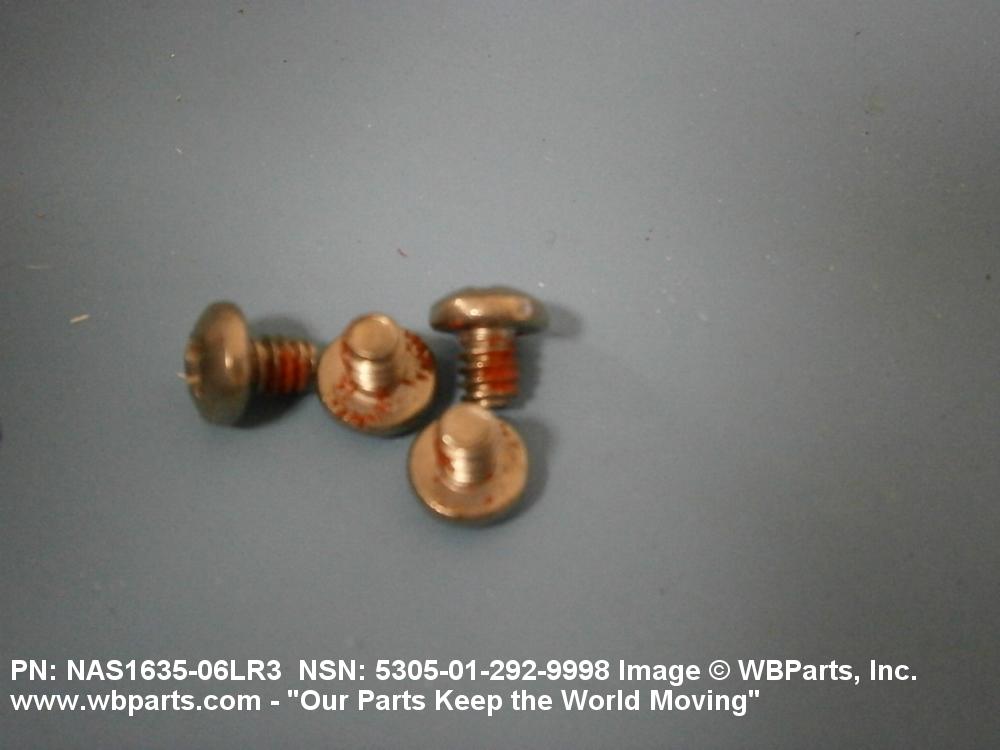

Product Details | SOCKET HEAD CAP SCREW
5305-01-292-9998 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS163506LE3, NAS1635-06LE3, NAS163506LN3, NAS1635-06LN3, NAS163506LR3, NAS1635-06LR3, 10113653 , 5305-01-292-9998, 01-292-9998, 5305012929998, 012929998
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JAN 1989 | 01-292-9998 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

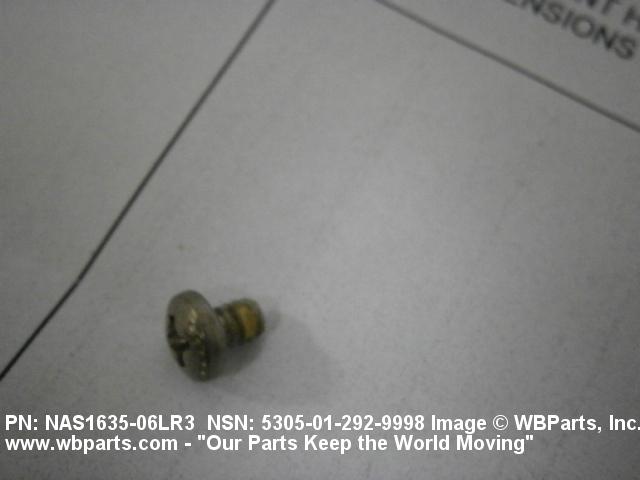

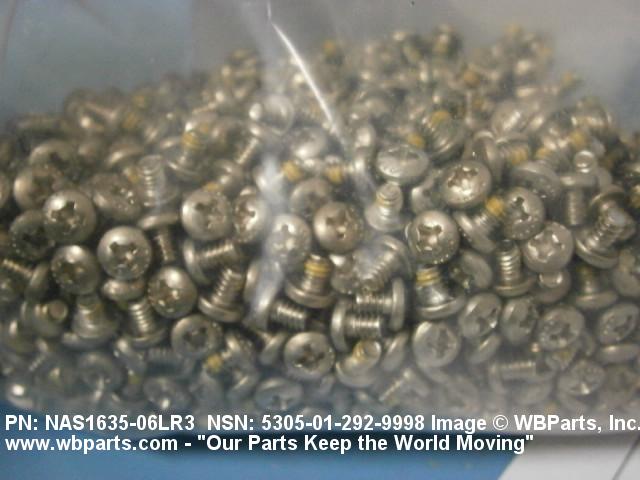

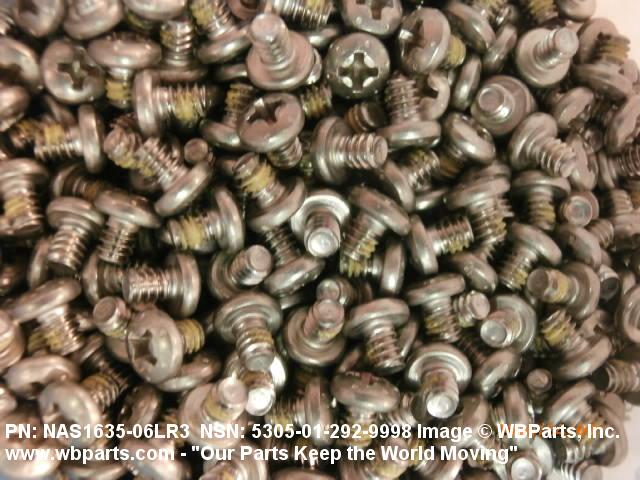

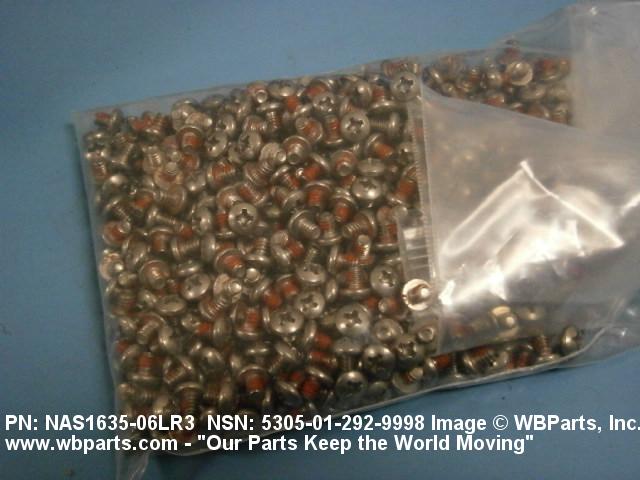

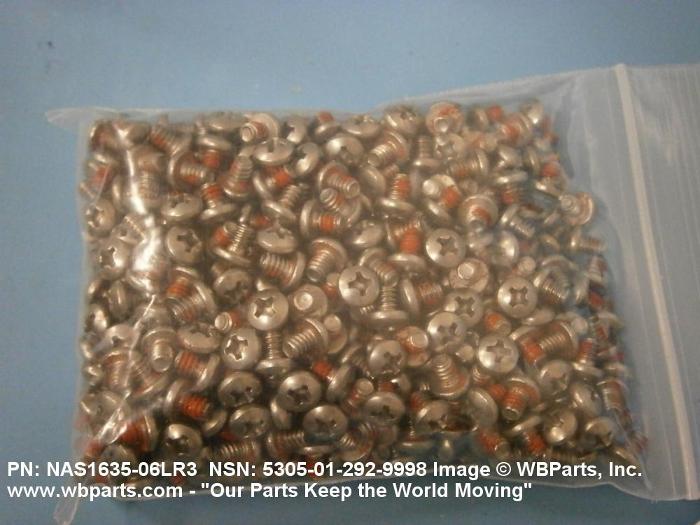

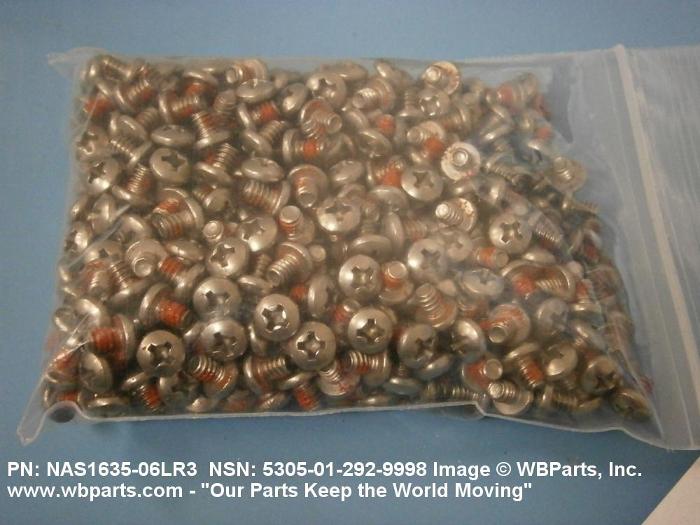

Drawings & Photos | NSN 5305-01-292-9998
Demand History | NSN 5305-01-292-9998
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS163506LR3 | 2023-11-320 | 50 | US |
| NAS163506LR3 | 2023-11-320 | 100 | US |
| 5305-01-292-9998 | 2023-04-92 | 2 | DIBBS |
| 5305-01-292-9998 | 2023-03-87 | 11 | DIBBS |
| NAS163506LR3 | 2023-02-54 | 50 | United States |
| NAS163506LR3 | 2016-10-277 | 500 | United States |
| NAS163506LR3 | 2016-03-91 | 2000 | United States |
| NAS163506LR3 | 2011-12-355 | 1300 | United States |
| NAS163506LR3 | 2011-10-300 | 1300 | United States |
| NAS163506LR3 | 2011-10-300 | 1400 | United States |
| NAS163506LR3 | 2011-10-300 | 1500 | United States |
| NAS163506LR3 | 2011-10-300 | 1600 | United States |
| NAS163506LR3 | 2011-10-300 | 2100 | United States |
| NAS163506LR3 | 2011-10-300 | 7900 | United States |
| NAS163506LE3 | 2011-09-271 | 480 | United States |
| NAS163506LR3 | 2011-09-271 | 480 | United States |
Cross Reference | NSN 5305-01-292-9998
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-292-9998
Related Products | NSN 5305-01-292-9998
Technical Data | NSN 5305-01-292-9998

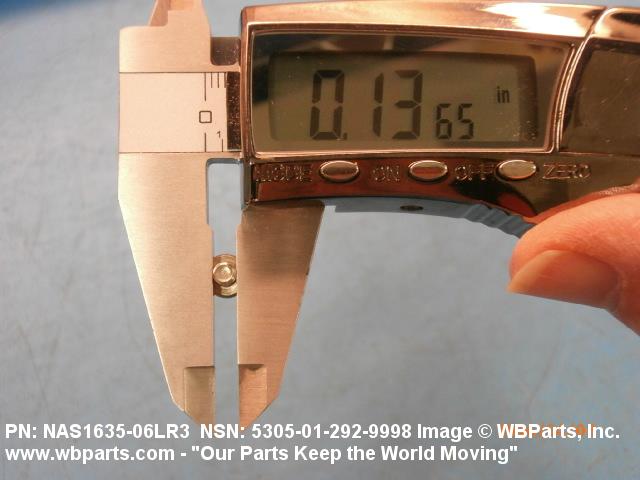

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |

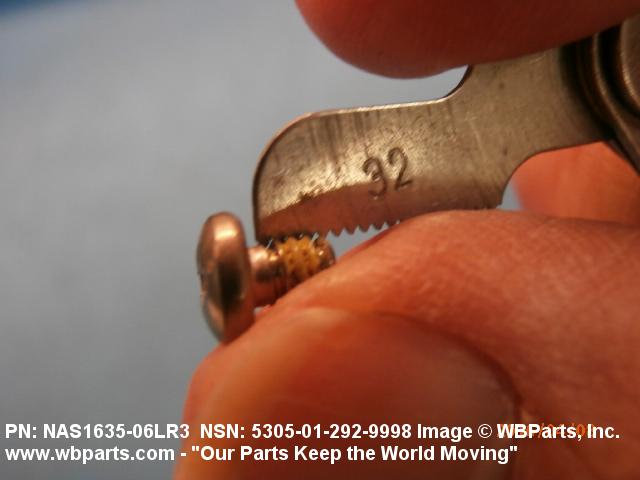

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

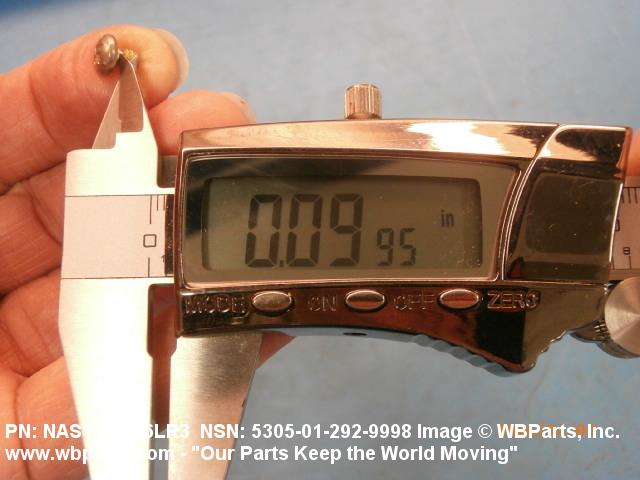

| THREAD LENGTH | 0.096 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |

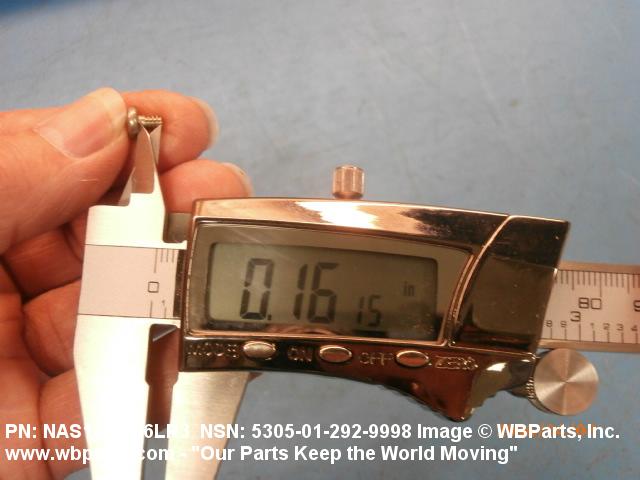

| FASTENER LENGTH | 0.158 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |
| MATERIAL | PLASTIC POLYAMIDE LOCKING FEATURE STEEL CORROSION RESISTING FASTENER |
| SURFACE TREATMENT | PASSIVATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |
| HEAD STYLE | C32 PAN |

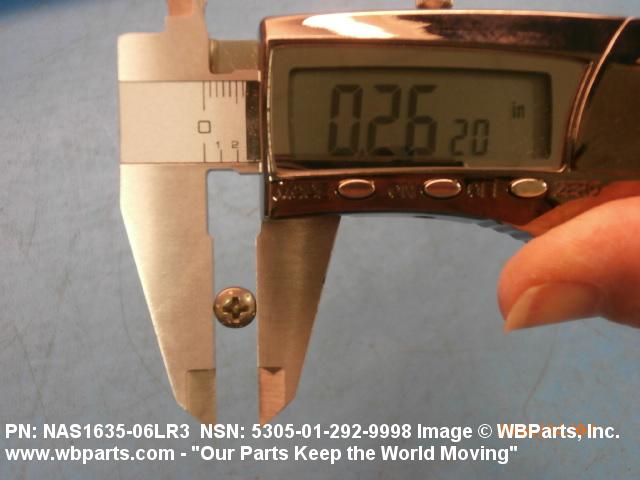

| HEAD DIAMETER | 0.256 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |

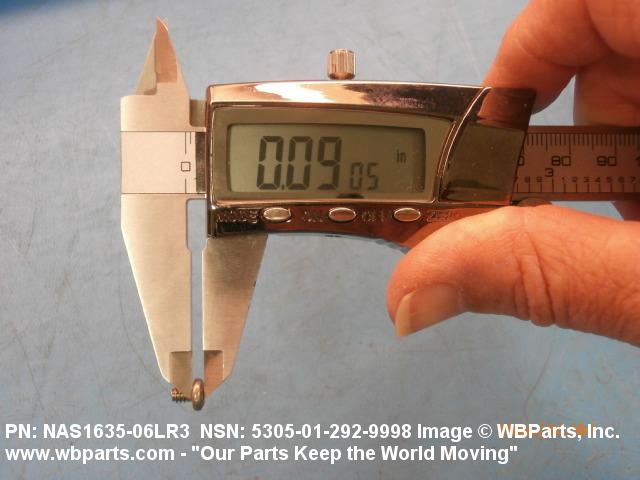

| HEAD HEIGHT | 0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |

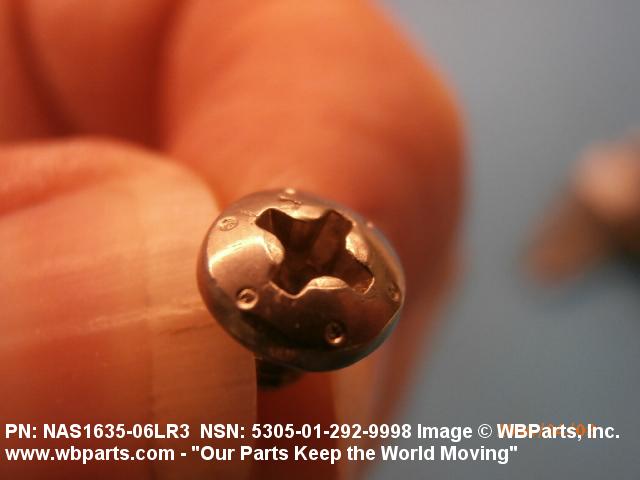

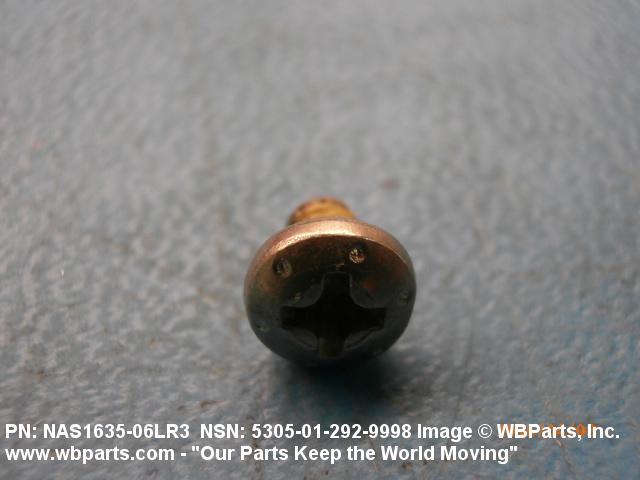

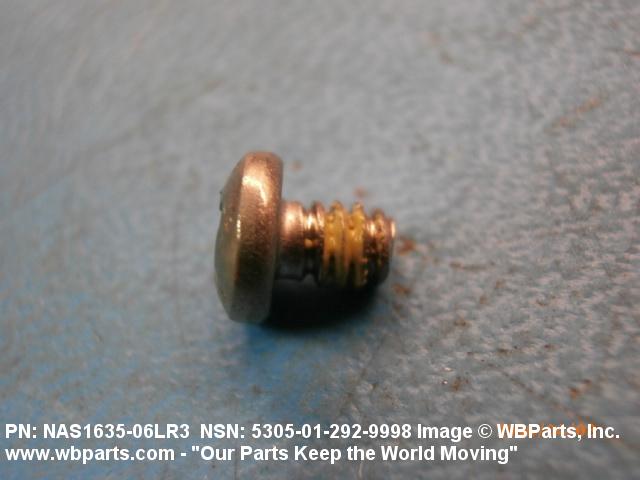

| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| LOCKING FEATURE | PATCH OR PELLET OR STRIP THREADS |
| SPECIFICATION/STANDARD DATA | 80205-NAS1635 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
