Product Details | MACHINE SCREW
5305-01-305-9561 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 59863049, 5986-3049, 5305-01-305-9561, 01-305-9561, 5305013059561, 013059561
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 AUG 1989 | 01-305-9561 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-305-9561
Cross Reference | NSN 5305-01-305-9561
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5986-3049 | 08199 | EATON AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-305-9561
Technical Data | NSN 5305-01-305-9561
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJEF |
| NOMINAL THREAD DIAMETER | 0.687 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.550 INCHES MINIMUM |
| FASTENER LENGTH | 6.712 INCHES MINIMUM AND 6.722 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL |

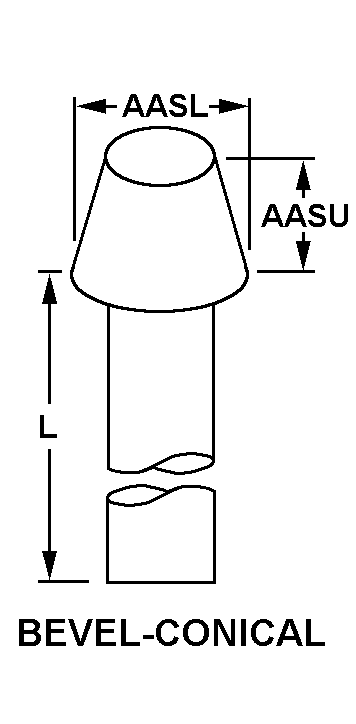

| HEAD STYLE | A19 BEVEL-CONICAL |
| HEAD DIAMETER | 0.891 INCHES MINIMUM AND 0.895 INCHES MAXIMUM |
| HEAD HEIGHT | 0.500 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | B10 SLOT |
