NSN 5305-01-317-0426 NAS13520210, NAS1352-02-10, 01-317-0426
Product Details | SOCKET HEAD CAP SCREW

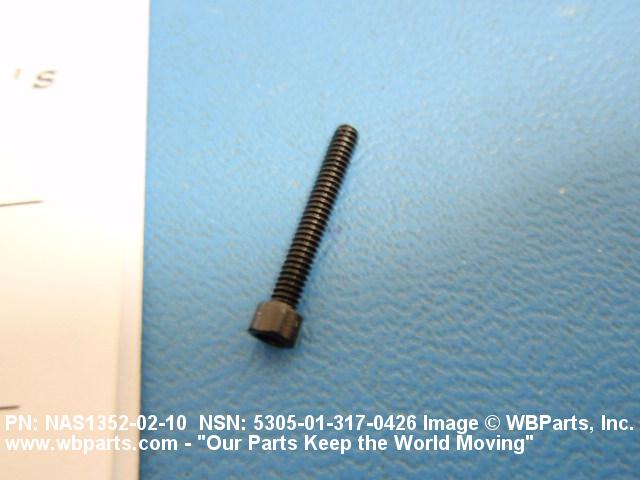

5305-01-317-0426 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS13520210, NAS1352-02-10, 5305-01-317-0426, 01-317-0426, 5305013170426, 013170426
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 MAR 1990 | 01-317-0426 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-01-317-0426
Demand History | NSN 5305-01-317-0426
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-317-0426 | 2011-04-104 | 500 | US |
| NAS13520210 | 2010-05-138 | 350 | United States |
| 5305-01-317-0426 | 2010-03-77 | 350 | United States |
Cross Reference | NSN 5305-01-317-0426
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1352-02-10 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-317-0426
Technical Data | NSN 5305-01-317-0426
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNRC |
| NOMINAL THREAD DIAMETER | 0.086 INCHES |
| THREAD QUANTITY PER INCH | 56 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.589 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| FASTENER LENGTH | 0.595 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924 CL 3 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLOR | BLACK OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 155000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.134 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| HEAD HEIGHT | 0.083 INCHES MINIMUM AND 0.086 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.078 INCHES MINIMUM AND 0.079 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1352 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
