NSN 5305-01-335-7411 NAS830310, NAS8303-10, 01-335-7411
Product Details | MACHINE SCREW
5305-01-335-7411 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS830310, NAS8303-10, 5305-01-335-7411, 01-335-7411, 5305013357411, 013357411
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 MAR 1991 | 01-335-7411 | 06657 ( SCREW, MACHINE ) |

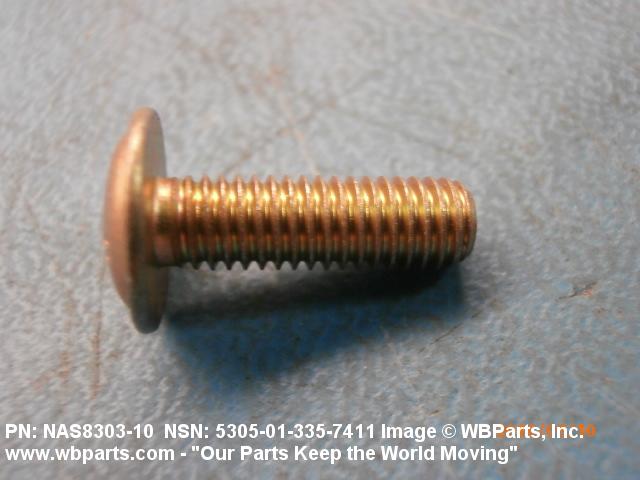

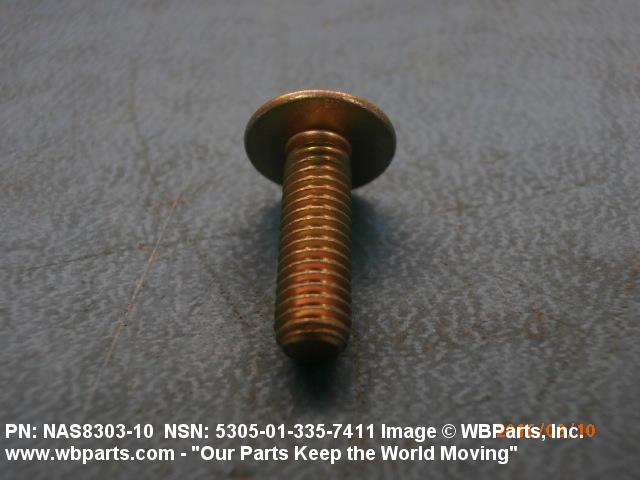

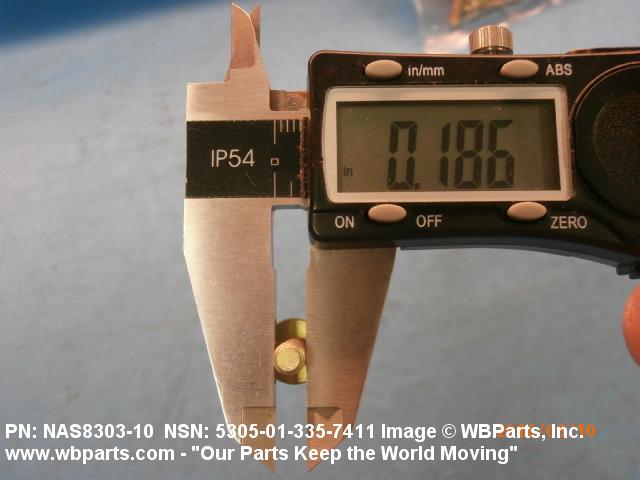

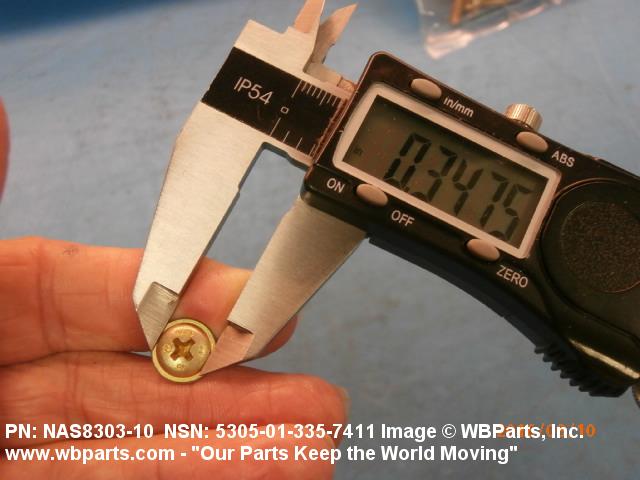

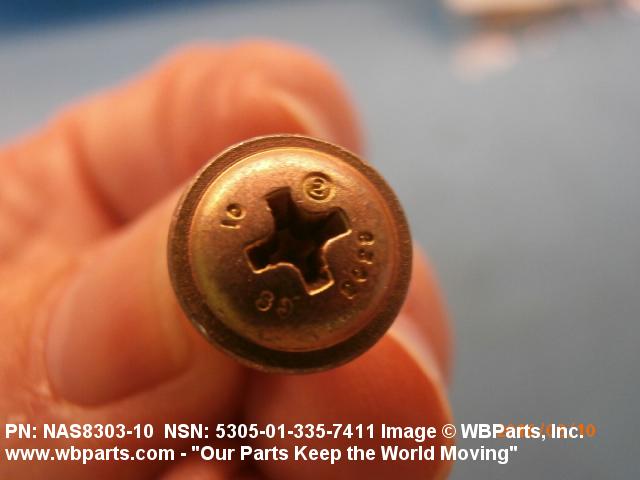

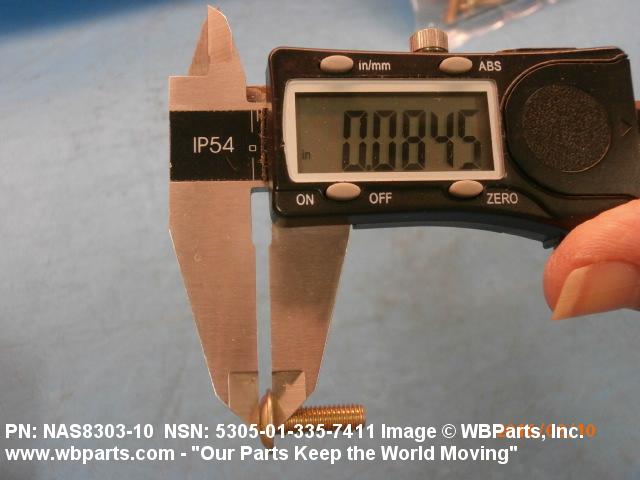

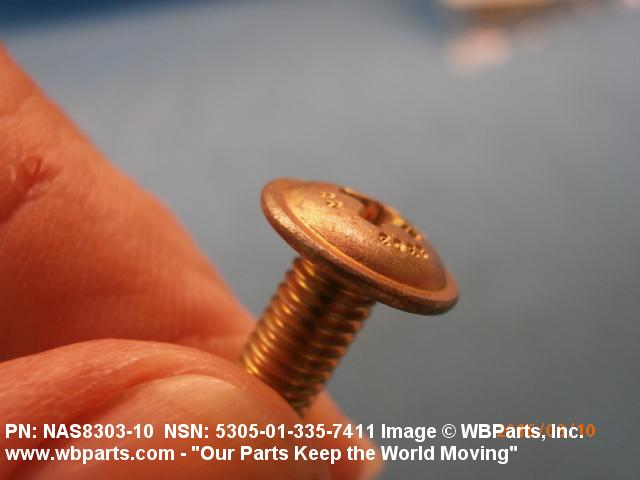

Drawings & Photos | NSN 5305-01-335-7411
Demand History | NSN 5305-01-335-7411
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-335-7411 | 2016-09-252 | 23376 | DIBBS |
| NAS830310 | 2016-08-222 | 20 | United States |
| 5305-01-335-7411 | 2012-10-289 | 5021 | DIBBS |
| 5305-01-335-7411 | 2012-10-289 | 5100 | DIBBS |
Cross Reference | NSN 5305-01-335-7411
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS8303-10 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-335-7411
Related Products | NSN 5305-01-335-7411
Technical Data | NSN 5305-01-335-7411
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |

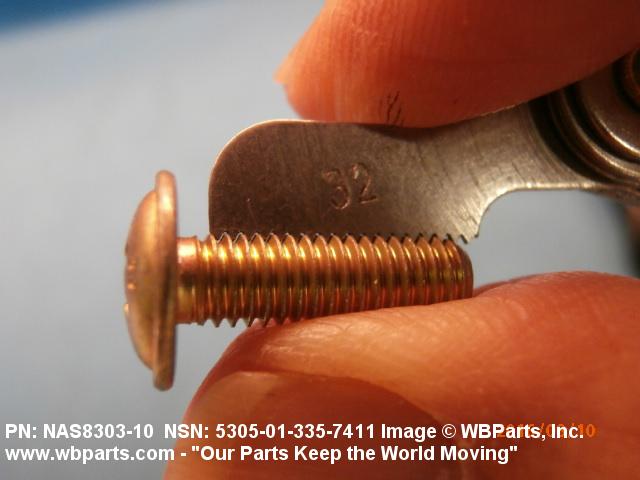

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

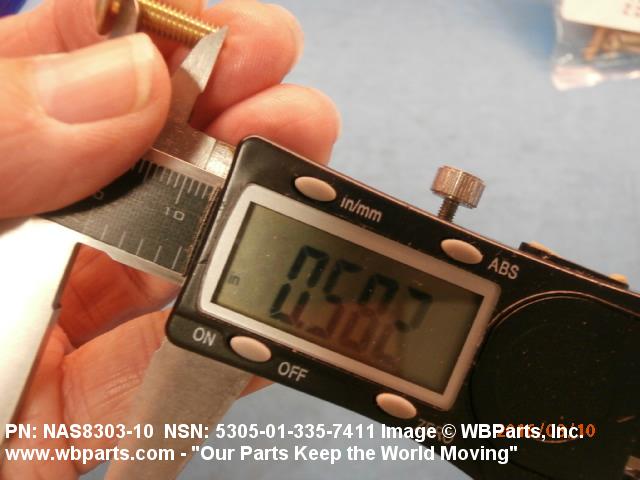

| THREAD LENGTH | 0.528 INCHES MINIMUM AND 0.620 INCHES MAXIMUM |

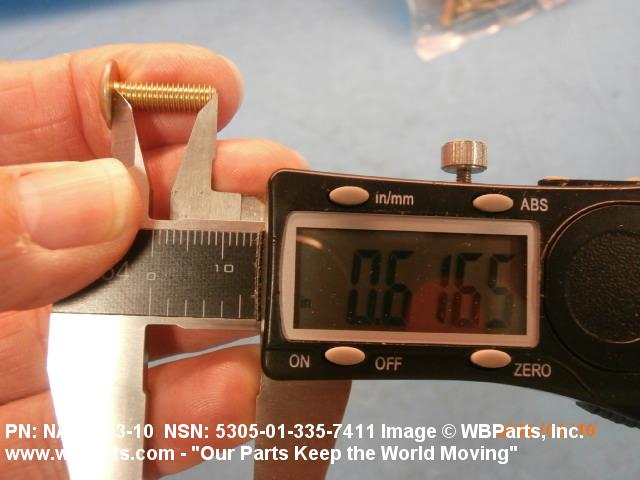

| FASTENER LENGTH | 0.590 INCHES MINIMUM AND 0.620 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 4340 OR STEEL COMP 8740 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR AMS 6322 ASSN STD 2ND MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2 CL2 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A34 FILLISTER EXTENDED WASHER |
| HEAD DIAMETER | 0.353 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |
| HEAD HEIGHT | 0.085 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |

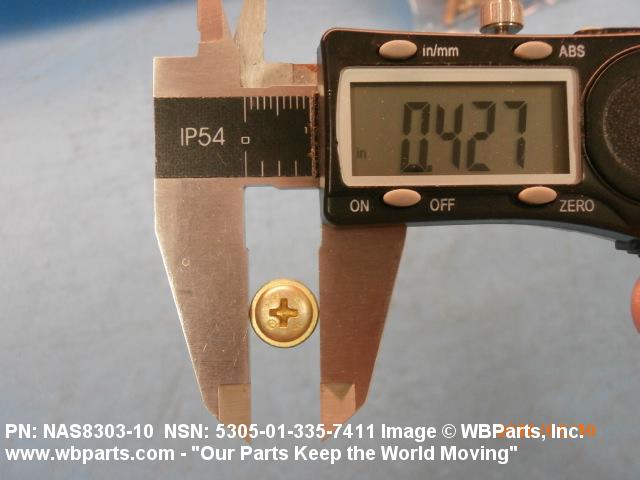

| EXTENDED WASHER DIAMETER | 0.413 INCHES MINIMUM AND 0.443 INCHES MAXIMUM |

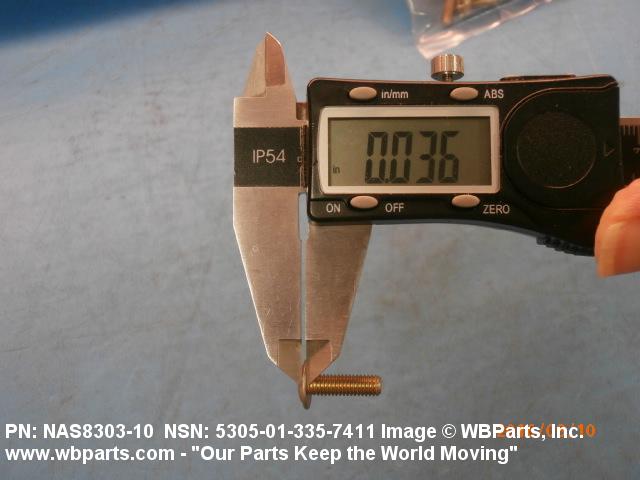

| EXTENDED WASHER THICKNESS | 0.030 INCHES MINIMUM AND 0.037 INCHES MAXIMUM |

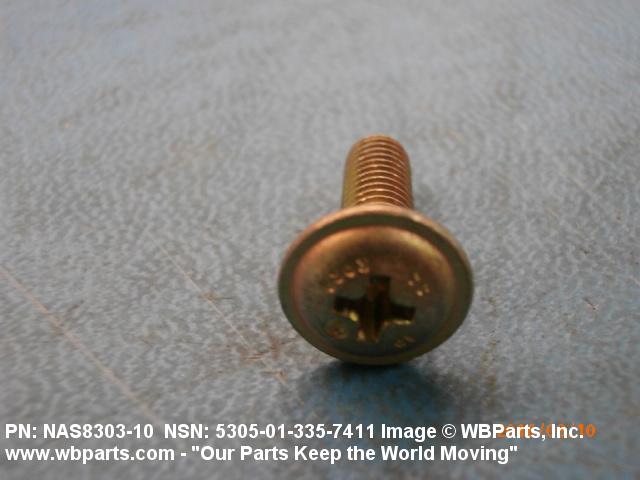

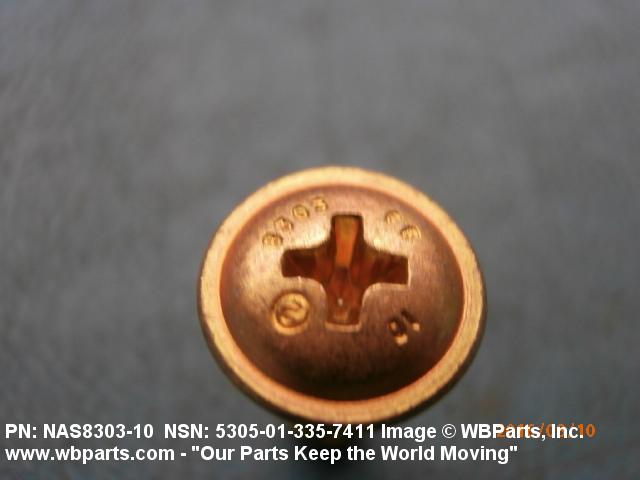

| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| SPECIFICATION/STANDARD DATA | 80205-NAS8303 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-01-335-7411
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-335-7411
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
