NSN 5305-01-338-1312 BACS12GU3K8, 01-338-1312, 013381312
Product Details | MACHINE SCREW
5305-01-338-1312 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: BACS12GU3K8, 5305-01-338-1312, 01-338-1312, 5305013381312, 013381312
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 APR 1991 | 01-338-1312 | 06657 ( SCREW, MACHINE ) |

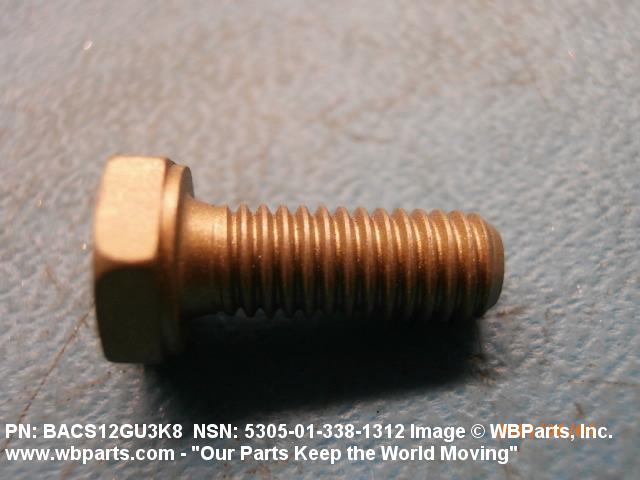

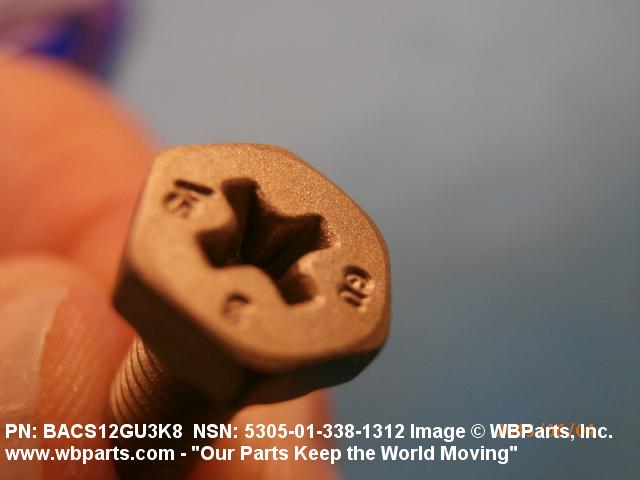

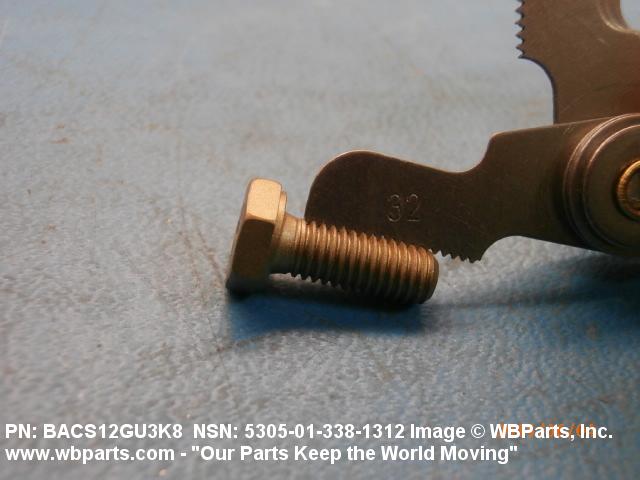

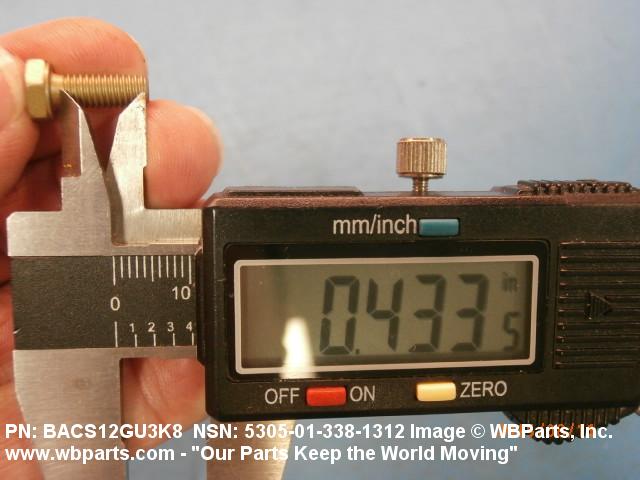

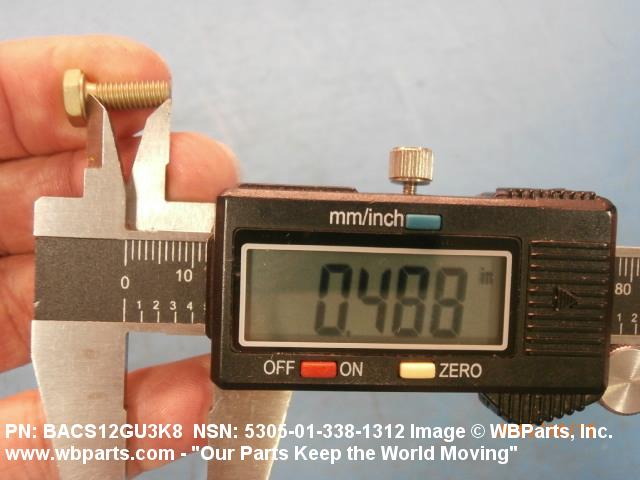

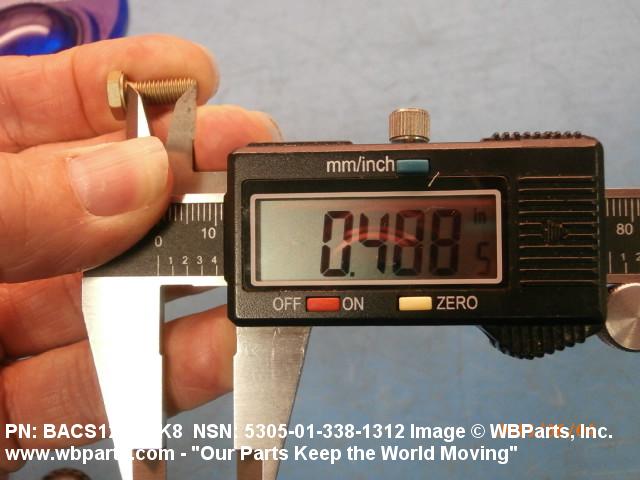

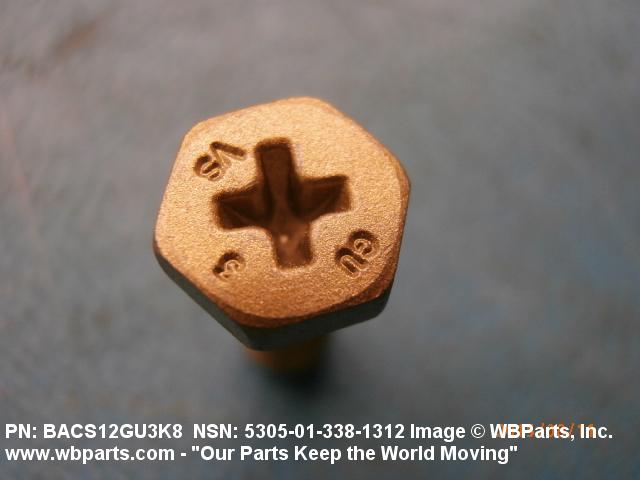

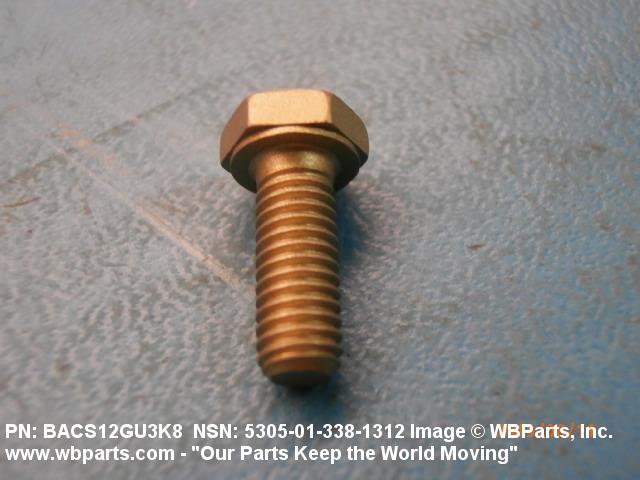

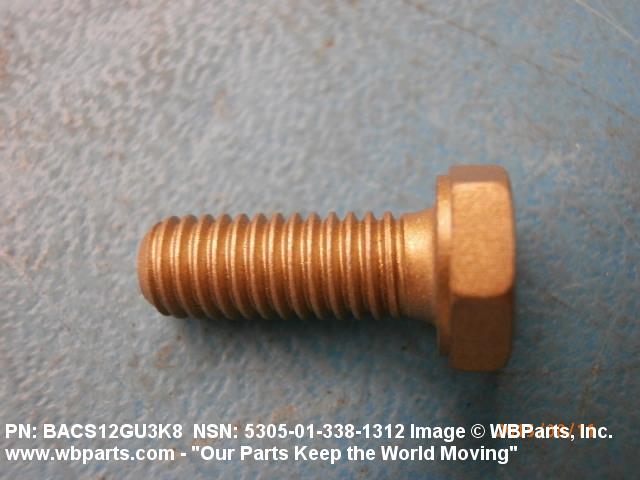

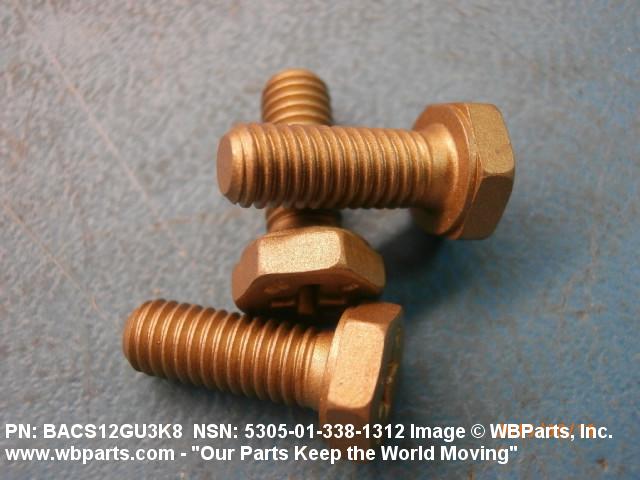

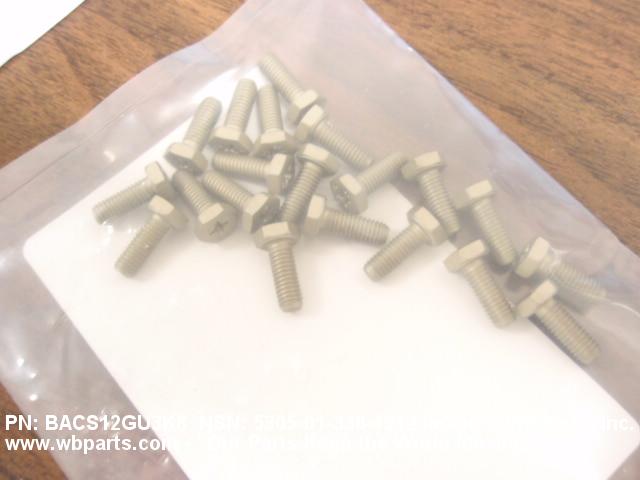

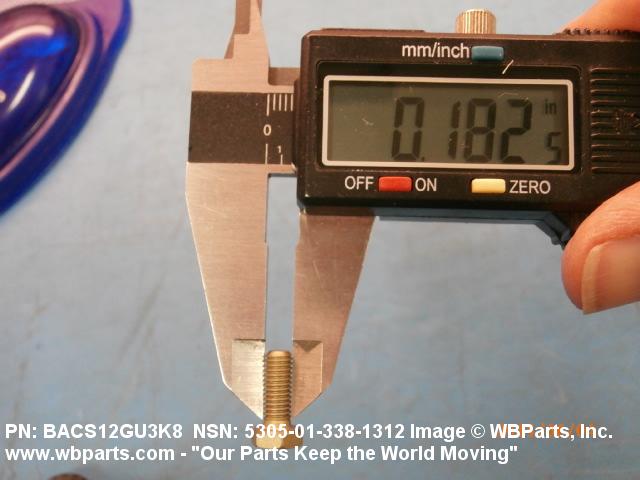

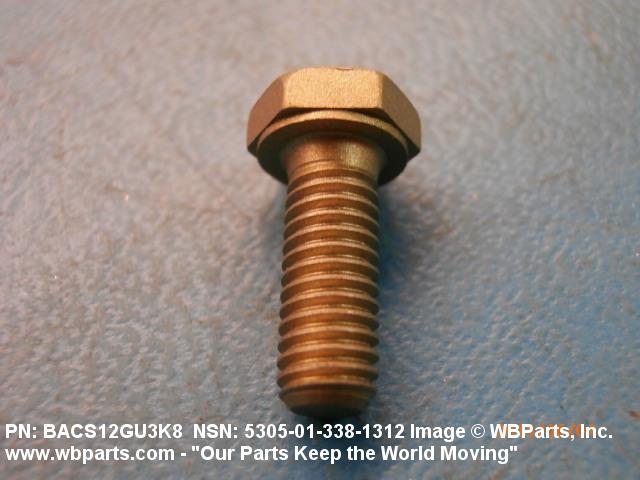

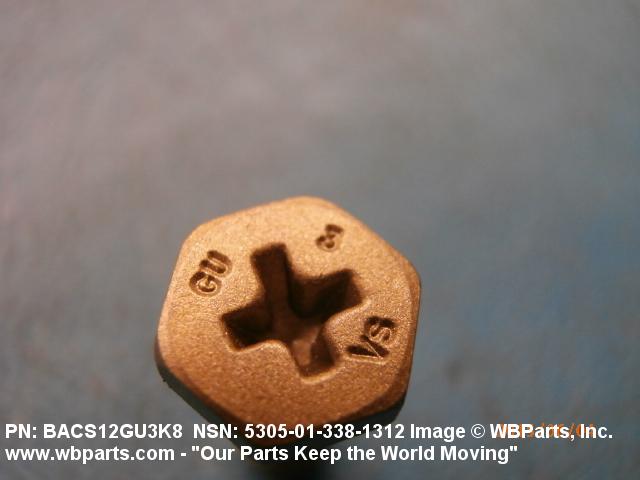

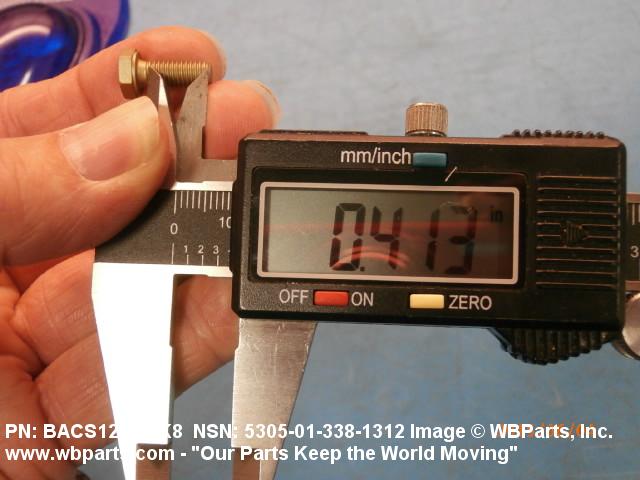

Drawings & Photos | NSN 5305-01-338-1312
Demand History | NSN 5305-01-338-1312
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACS12GU3K8 | 2024-04-108 | 4 | US |
| BACS12GU3K8 | 2024-02-59 | 100 | US |
| BACS12GU3K8 | 2023-10-304 | 25 | MA |
| BACS12GU3K8 | 2023-08-227 | 1 | US |
| BACS12GU3K8 | 2023-04-102 | 60 | US |
| BACS12GU3K8 | 2023-04-102 | 60 | US |
| BACS12GU3K8 | 2023-03-69 | 100 | United States |
| BACS12GU3K8 | 2022-11-333 | 10 | US |
| BACS12GU3K8 | 2022-11-322 | 3 | MA |
| BACS12GU3K8 | 2022-10-278 | 50 | IN |
| BACS12GU3K8 | 2022-10-276 | 300 | US |
| BACS12GU3K8 | 2022-03-82 | 1 | US |
| BACS12GU3K8 | 2021-05-137 | 280 | TR |
| BACS12GU3K8 | 2021-02-42 | 1000 | US |
| BACS12GU3K8 | 2020-09-272 | 50 | China |
| BACS12GU3K8 | 2020-04-114 | 25 | UK |
| BACS12GU3K8 | 2019-08-232 | 800 | US |
| BACS12GU3K8 | 2019-03-80 | 199 | DIBBS |
| BACS12GU3K8 | 2019-03-66 | 2786 | DIBBS |
| BACS12GU3K8 | 2016-02-48 | 20 | US |
| BACS12GU3K8 | 2015-10-301 | 50 | United States |
| 5305-01-338-1312 | 2015-10-299 | 150 | United States |
| BACS12GU3K8 | 2015-08-216 | 100 | United States |
| BACS12GU3K8 | 2015-08-216 | 50 | United States |
| BACS12GU3K8 | 2015-08-216 | 100 | United States |
| BACS12GU3K8 | 2015-05-149 | 100 | United States |
| BACS12GU3K8 | 2014-07-210 | 200 | United States |
| BACS12GU3K8 | 2014-07-210 | 500 | United States |
| BACS12GU3K8 | 2013-10-291 | 12 | United States |
| 5305-01-338-1312 | 2013-02-59 | 24 | DIBBS |
| 5305-01-338-1312 | 2012-08-216 | 2215 | DIBBS |
| 5305-01-338-1312 | 2012-07-187 | 2215 | DIBBS |
| 5305-01-338-1312 | 2012-06-181 | 2215 | DIBBS |
| 5305-01-338-1312 | 2012-05-152 | 2215 | DIBBS |
| BACS12GU3K8 | 2012-03-87 | 60 | United States |
| 5305-01-338-1312 | 2012-03-74 | 2242 | DIBBS |
| 5305-01-338-1312 | 2011-12-348 | 2242 | DIBBS |
| BACS12GU3K8 | 2010-11-306 | 20 | United States |
| BACS12GU3K8 | 2010-10-300 | 20 | US |
| 5305-01-338-1312 | 2008-04-99 | 6 | US |
Cross Reference | NSN 5305-01-338-1312
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACS12GU3K8 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| BACS12GU3K8 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACS12GU3K8 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| BACS12GU3K8 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| BACS12GU3K8 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| BACS12GU3K8 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACS12GU3K8 | 97928 | HUCK INTL INC |
| BACS12GU3K8 | Z03F0 | BOEING DEFENCE AUSTRALIA LTD |
| BACS12GU3K8 | Z8T75 | BOEING DEFENCE AUSTRALIA LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-338-1312
Related Products | NSN 5305-01-338-1312
Technical Data | NSN 5305-01-338-1312
| Characteristic | Specifications |
|---|---|

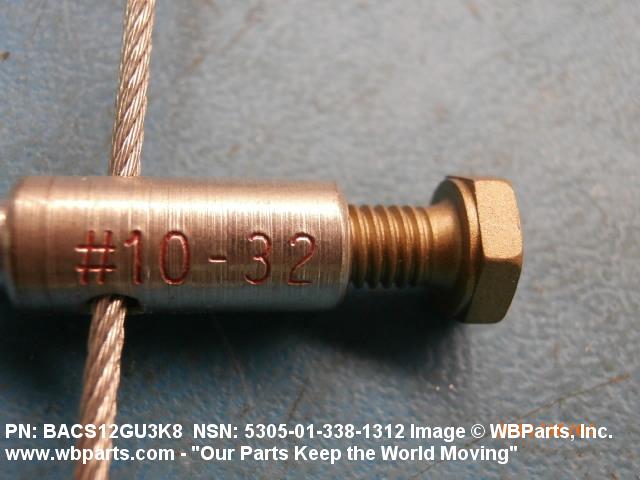

| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.406 INCHES NOMINAL |
| FASTENER LENGTH | 0.484 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| SCREW MATERIAL | TITANIUM ALLOY UNS R56400 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | AMS4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS4967 ASSN STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | ALUMINUM |
| HEAD STYLE | A1 HEXAGON |

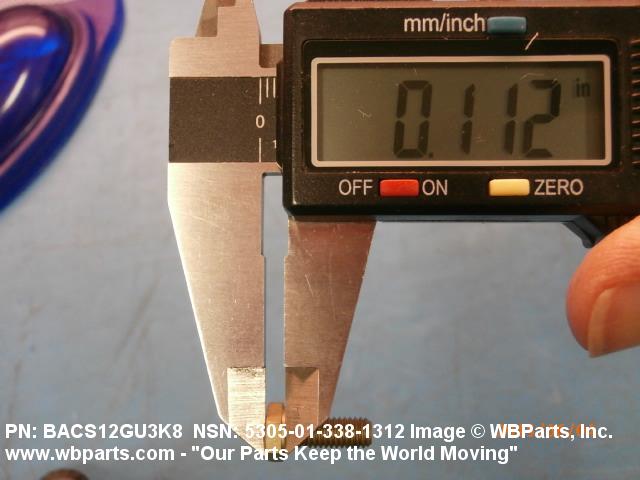

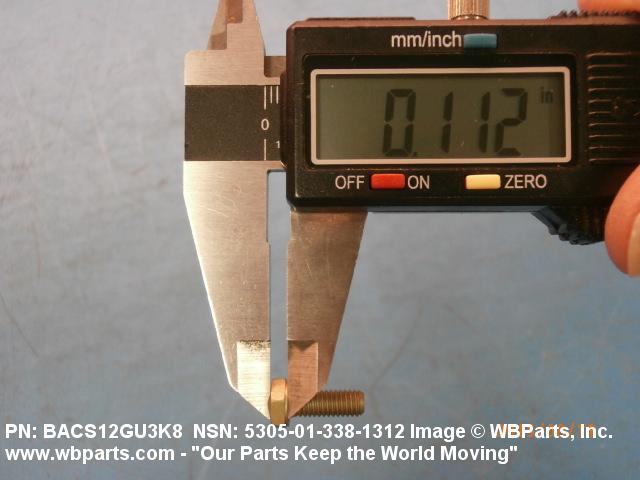

| HEAD HEIGHT | 0.105 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |

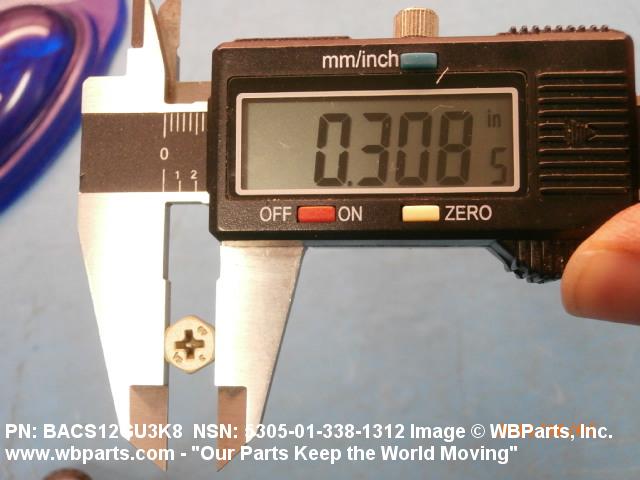

| WIDTH BETWEEN FLATS | 0.305 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |

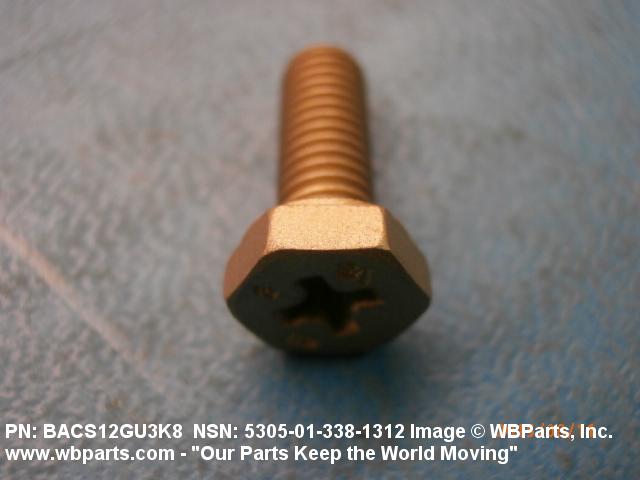

| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
Restrictions/Controls & Freight Information | NSN 5305-01-338-1312
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-338-1312
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
