NSN 5305-01-347-7110 MS2466759L, MS24667-59L, NASM24667
Product Details | SOCKET HEAD CAP SCREW
5305-01-347-7110 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: MS2466759L, MS24667-59L, NASM24667, FFS86, FF-S-86, 5305-01-347-7110, 01-347-7110, 5305013477110, 013477110
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 OCT 1991 | 01-347-7110 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

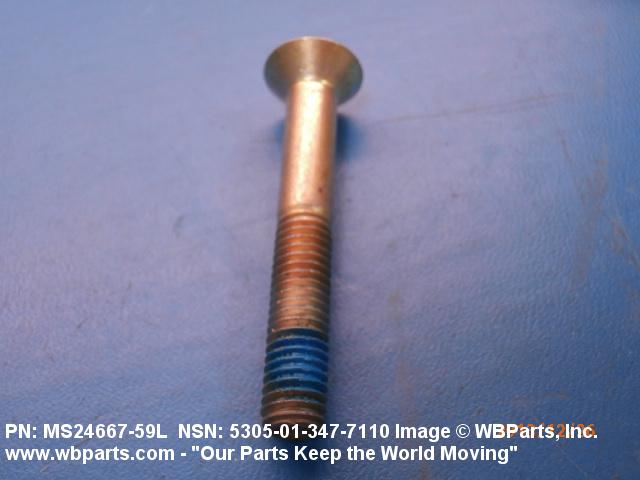

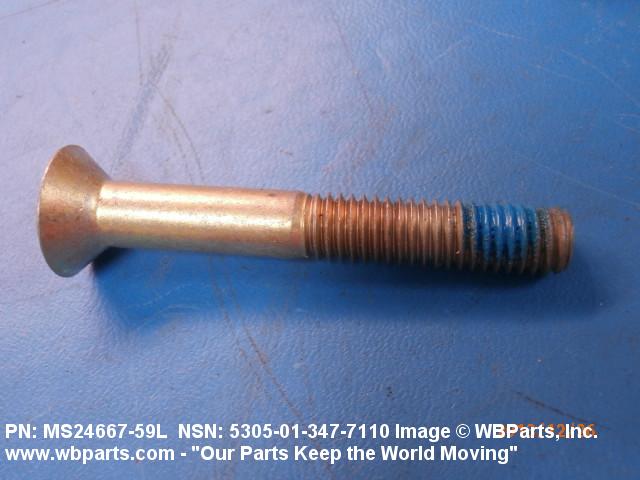

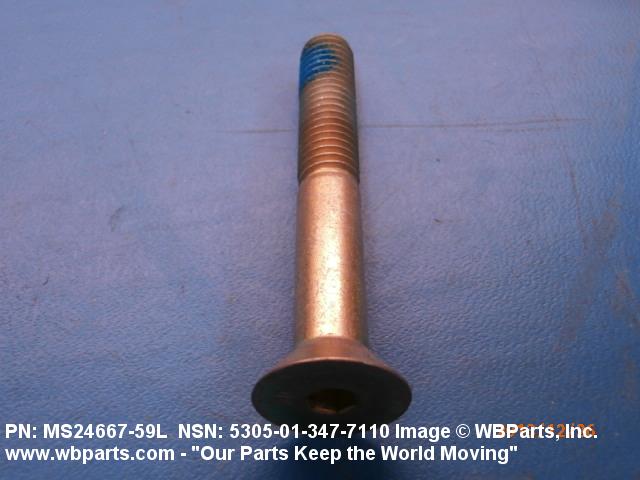

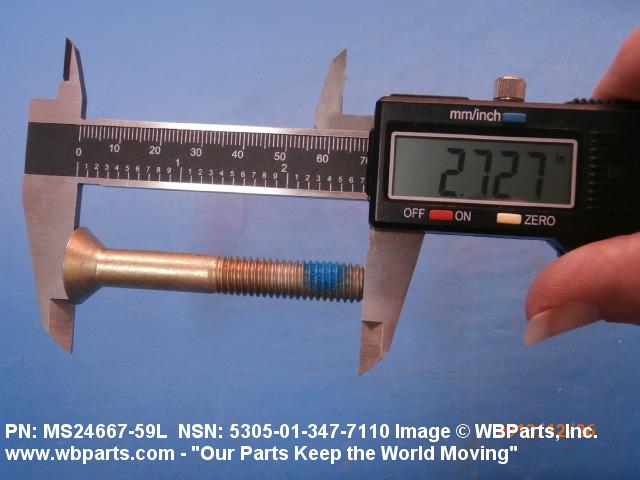

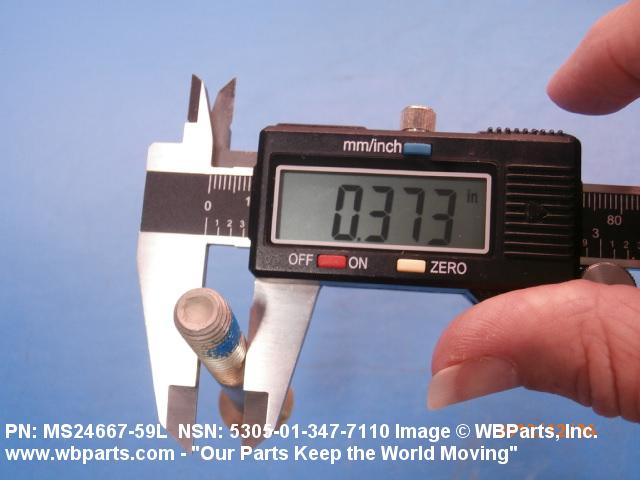

Drawings & Photos | NSN 5305-01-347-7110
Demand History | NSN 5305-01-347-7110
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-347-7110 | 2025-02-50 | 15 | DIBBS |
| 5305-01-347-7110 | 2025-02-49 | 10 | DIBBS |
| 5305-01-347-7110 | 2024-07-198 | 16 | DIBBS |
| 5305-01-347-7110 | 2024-04-114 | 1 | DIBBS |
| 5305-01-347-7110 | 2024-04-93 | 1 | DIBBS |
| 5305-01-347-7110 | 2022-09-255 | 500 | US |
| 5305-01-347-7110 | 2022-09-252 | 500 | US |
| MS2466759L | 2022-09-252 | 500 | US |
| FFS86 | 2022-05-143 | 40 | United States |
| FFS86 | 2021-12-347 | 40 | US |
| 5305-01-347-7110 | 2017-02-34 | 100 | US |
| MS2466759L | 2014-10-275 | 168 | United States |
| MS2466759L | 2014-04-120 | 20 | United States |
| MS2466759L | 2013-11-317 | 42 | United States |
| FFS86 | 2013-08-229 | 80 | Canada |
| FFS86 | 2012-03-74 | 2 | US |
| FFS86 | 2011-08-222 | 50 | US |
| FFS86 | 2011-08-214 | 50 | US |
| FFS86 | 2011-03-61 | 8 | US |
| FFS86 | 2011-03-60 | 5000 | US |
| 5305-01-347-7110 | 2009-08-219 | 77 | DIBBS |
| 5305-01-347-7110 | 2009-05-150 | 100 | DIBBS |
Cross Reference | NSN 5305-01-347-7110
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FF-S-86 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24667-59L | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24667-59L | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NASM24667 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-347-7110
Related Products | NSN 5305-01-347-7110
Technical Data | NSN 5305-01-347-7110
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |

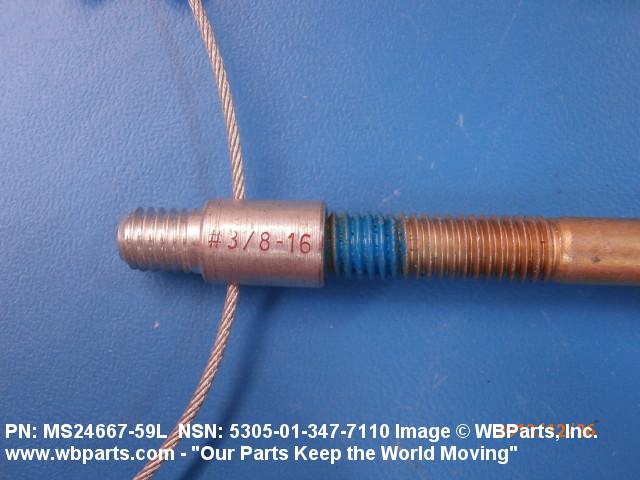

| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

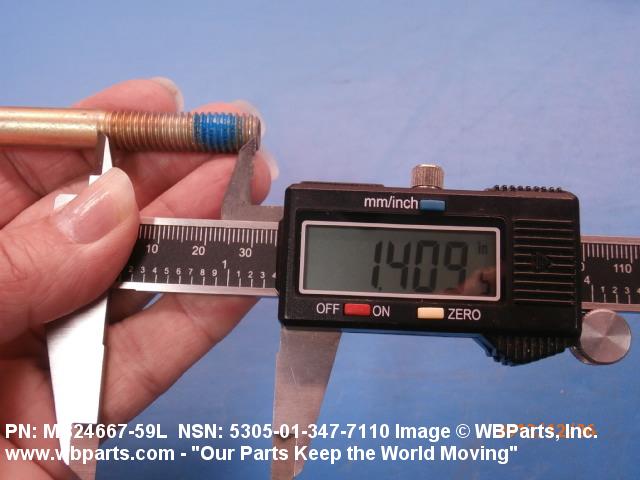

| THREAD LENGTH | 1.750 INCHES NOMINAL |
| FASTENER LENGTH | 2.690 INCHES MINIMUM AND 2.750 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2 CL3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C50 FLAT COUNTERSUNK |

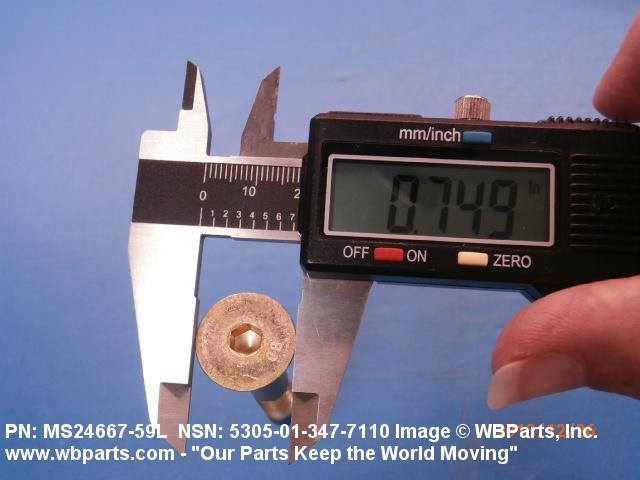

| HEAD DIAMETER | 0.720 INCHES MINIMUM AND 0.781 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 80.0 DEGREES MINIMUM AND 84.0 DEGREES MAXIMUM |

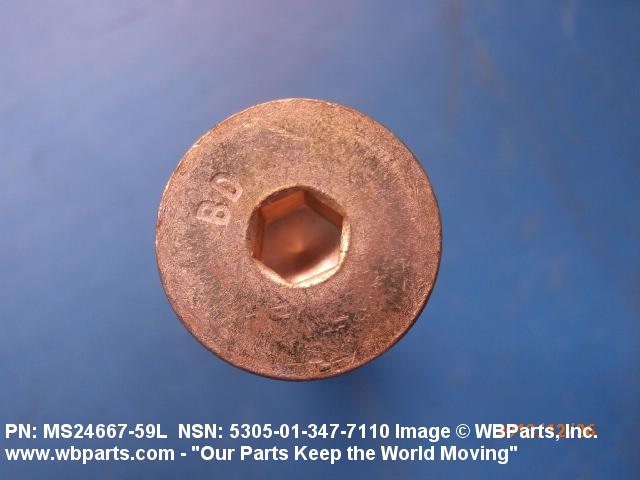

| INTERNAL DRIVE STYLE | D5 HEXAGON |

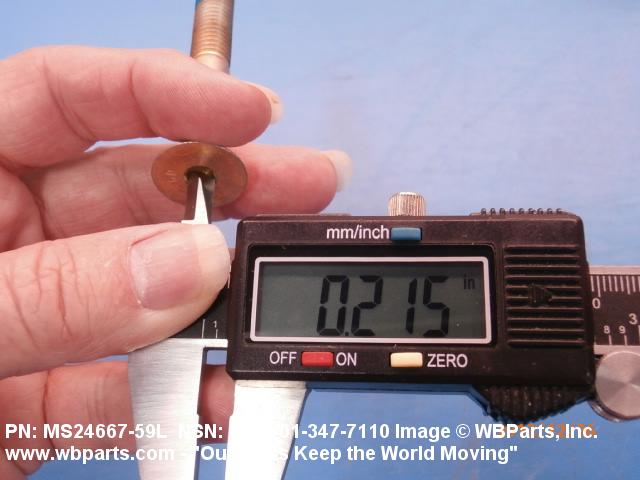

| WIDTH ACROSS FLATS | 0.219 INCHES NOMINAL |
| LOCKING FEATURE | PATCH OR STRIP THREADS |
| NONDEFINITIVE SPEC/STD DATA | 4 TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-S-86 |
Restrictions/Controls & Freight Information | NSN 5305-01-347-7110
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-347-7110
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
