NSN 5305-01-348-8097 MS955918, MS9559-18, 01-348-8097
Product Details | MACHINE SCREW

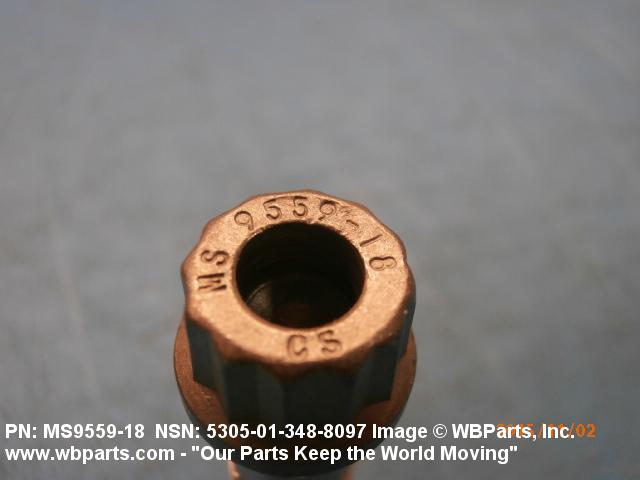

5305-01-348-8097 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS955918, MS9559-18, 5305-01-348-8097, 01-348-8097, 5305013488097, 013488097
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 NOV 1991 | 01-348-8097 | 06657 ( SCREW, MACHINE ) |

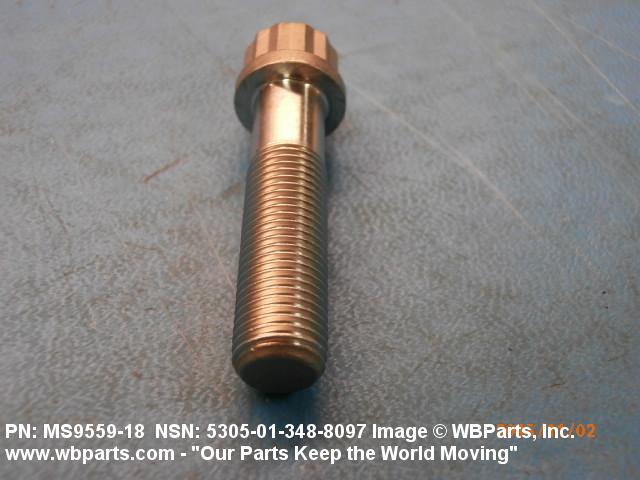

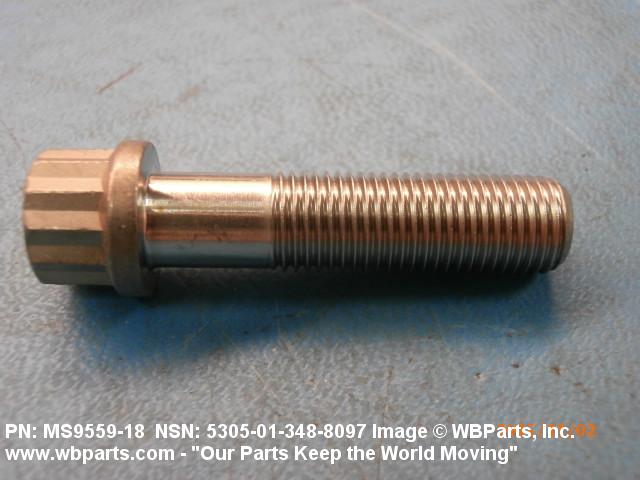

Drawings & Photos | NSN 5305-01-348-8097
Demand History | NSN 5305-01-348-8097
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS955918 | 2025-11-322 | 300 | us |
| MS955918 | 2016-09-246 | 2 | United States |
| MS955918 | 2015-10-293 | 14 | United States |
| MS955918 | 2015-10-293 | 50 | United States |
| MS955918 | 2015-09-247 | 30 | United States |
| 5305-01-348-8097 | 2014-08-223 | 22 | DIBBS |
| 5305-01-348-8097 | 2014-07-210 | 43 | DIBBS |
| 5305-01-348-8097 | 2014-01-14 | 18 | United States |
| MS955918 | 2013-04-93 | 18 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-348-8097
Technical Data | NSN 5305-01-348-8097

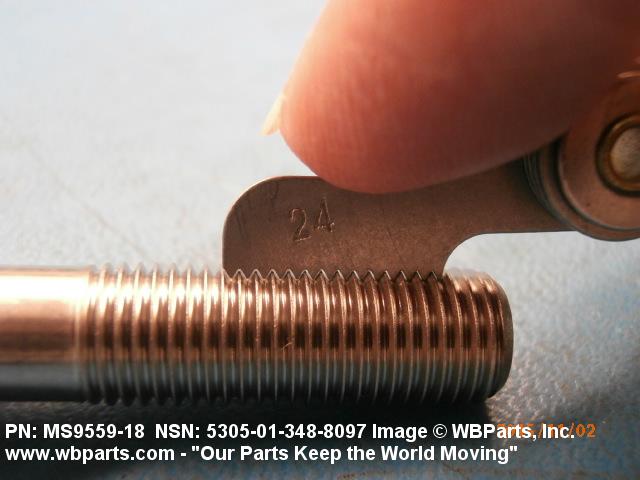

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 36 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

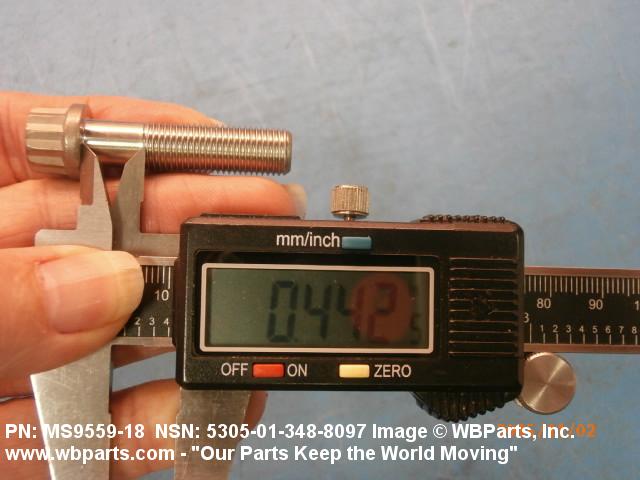

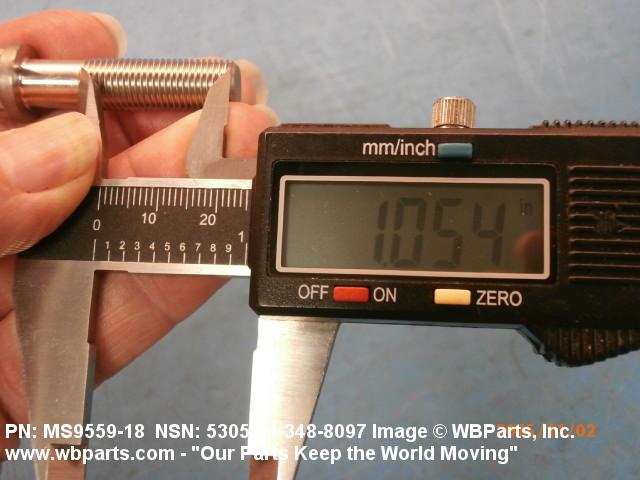

| THREAD LENGTH | 0.638 INCHES MINIMUM AND 0.678 INCHES MAXIMUM |

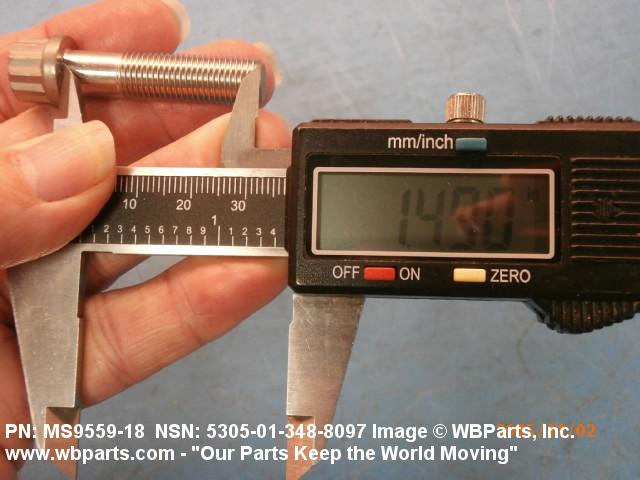

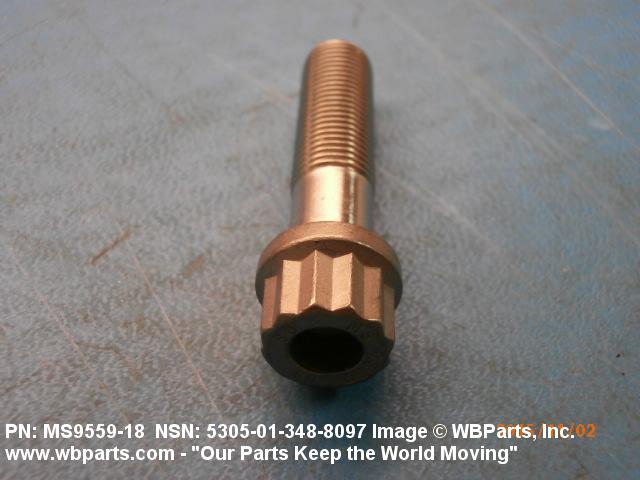

| FASTENER LENGTH | 1.250 INCHES NOMINAL |
| SCREW MATERIAL | IRON ALLOY 660 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | AMS5731 ASSN STD SINGLE MATERIAL RESPONSE |
| HEAD STYLE | A9 DOUBLE HEXAGON WITH HOLE |

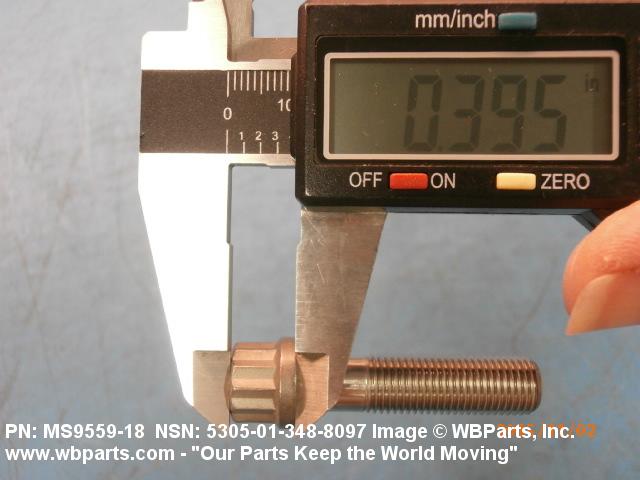

| HEAD HEIGHT | 0.230 INCHES NOMINAL |

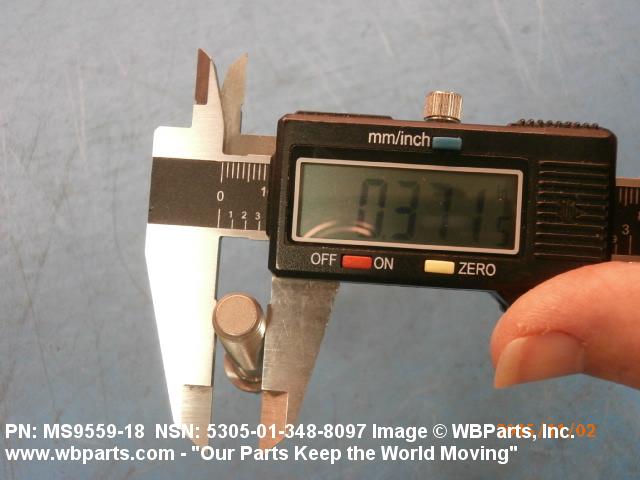

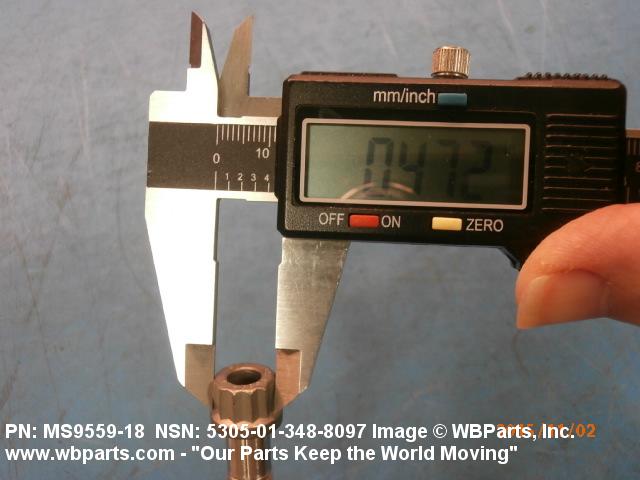

| WIDTH BETWEEN FLATS | 0.2188 INCHES NOMINAL |

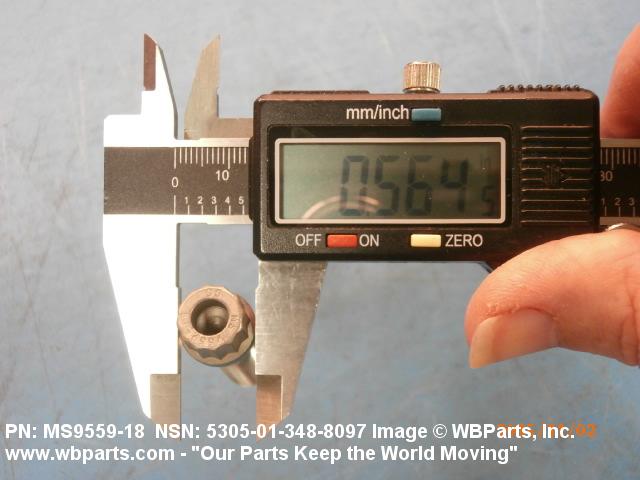

| EXTENDED WASHER DIAMETER | 0.312 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.030 INCHES MINIMUM |
| INTERNAL DRIVE STYLE | B24 W/O INTERNAL DRIVE |
| BEARING SURFACE OF HEAD SURFACE FINISH | 32.0 MICROINCHES |
| SHANK SURFACE FINISH | 32.0 MICROINCHES |
| THREAD SURFACE FINISH | 32.0 MICROINCHES |
Restrictions/Controls & Freight Information | NSN 5305-01-348-8097
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
