NSN 5305-01-349-9124 31722001, 3172200-1, 01-349-9124
Product Details | MACHINE SCREW
5305-01-349-9124 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 31722001, 3172200-1, 5305-01-349-9124, 01-349-9124, 5305013499124, 013499124
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 DEC 1991 | 01-349-9124 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-349-9124
Cross Reference | NSN 5305-01-349-9124
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3172200-1 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-349-9124
Technical Data | NSN 5305-01-349-9124
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.370 INCHES MINIMUM |
| FASTENER LENGTH | 0.440 INCHES MINIMUM AND 0.460 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP XM-12 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | AMS5659 ASSN STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CHROMATE |
| HARDNESS RATING | 31.0 ROCKWELL C MINIMUM AND 39.0 ROCKWELL C MAXIMUM |

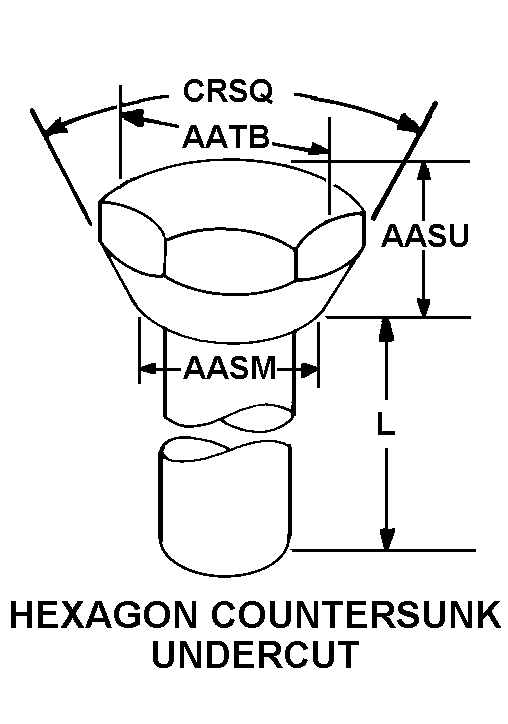

| HEAD STYLE | A6 HEXAGON COUNTERSUNK UNDERCUT |
| BOTTOM COUNTERSINK DIAMETER | 0.250 INCHES NOMINAL |
| HEAD HEIGHT | 0.180 INCHES MINIMUM AND 0.220 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.250 INCHES NOMINAL |
| COUNTERSINK ANGLE | 88.0 DEGREES MINIMUM AND 92.0 DEGREES MAXIMUM |

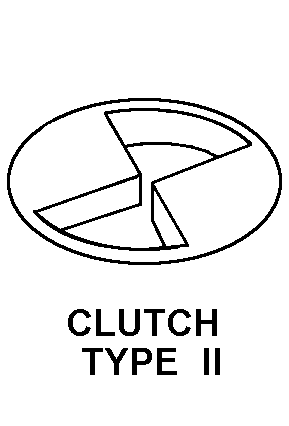

| INTERNAL DRIVE STYLE | B21 CLUTCH TYPE 11 |
