NSN 5305-01-353-0694 NAS1221614, NAS1221-6-14, 01-353-0694
Product Details | MACHINE SCREW
5305-01-353-0694 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS1221614, NAS1221-6-14, 5305-01-353-0694, 01-353-0694, 5305013530694, 013530694
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 FEB 1992 | 01-353-0694 | 06657 ( SCREW, MACHINE ) |

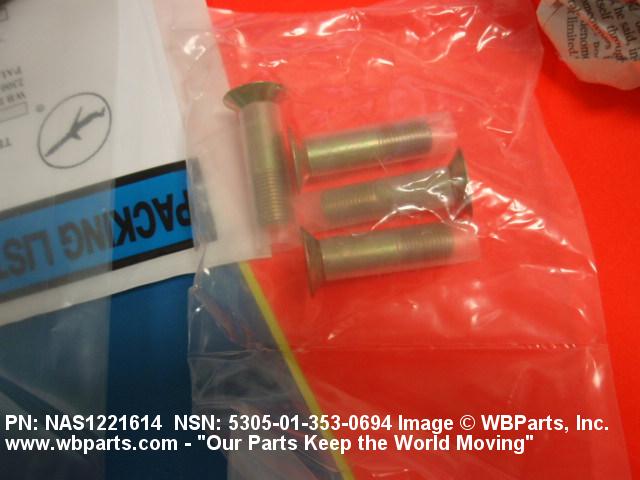

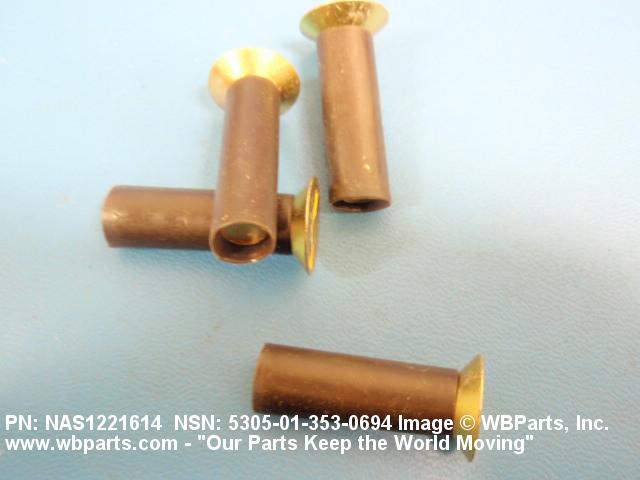

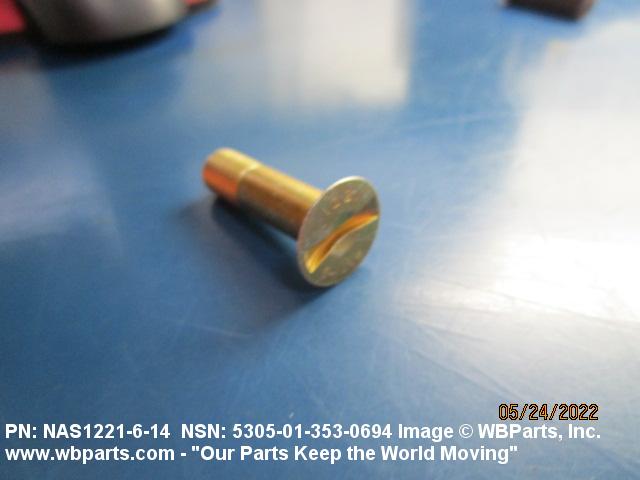

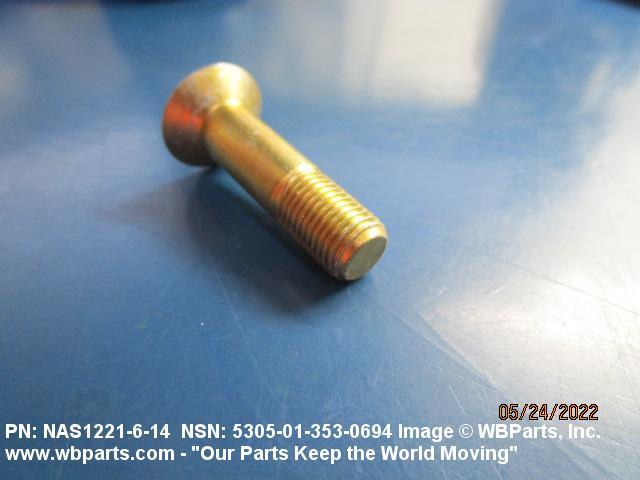

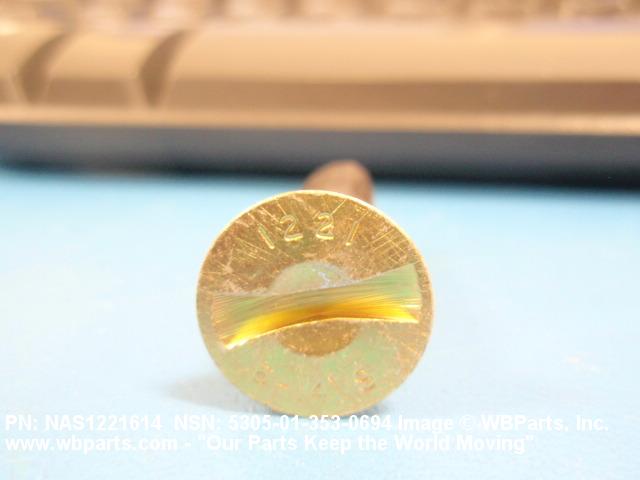

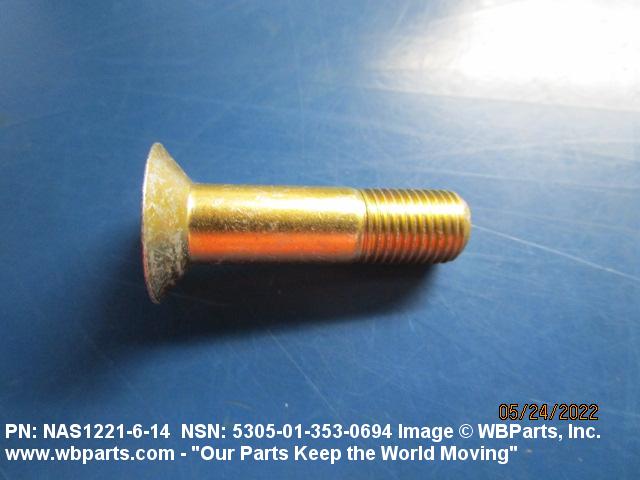

Drawings & Photos | NSN 5305-01-353-0694
Demand History | NSN 5305-01-353-0694
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-353-0694 | 2022-04-94 | 12 | United States |
| NAS1221614 | 2009-11-308 | 4 | United States |
| NAS1221614 | 2009-02-55 | 4 | United States |
Cross Reference | NSN 5305-01-353-0694
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1221-6-14 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-353-0694
Technical Data | NSN 5305-01-353-0694
| Characteristic | Specifications |
|---|---|

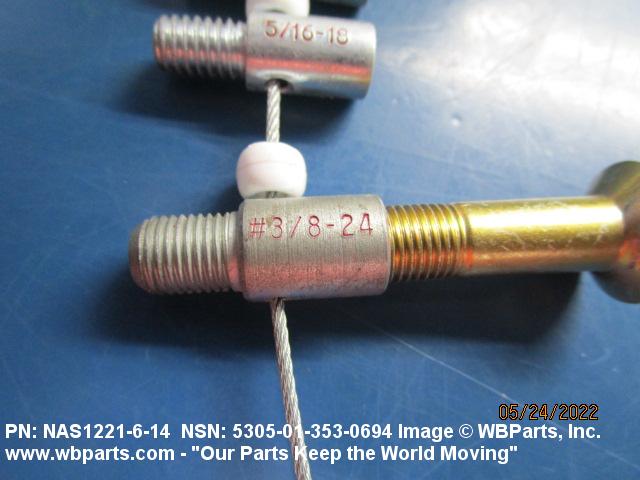

| THREAD SERIES DESIGNATOR | UNJF |

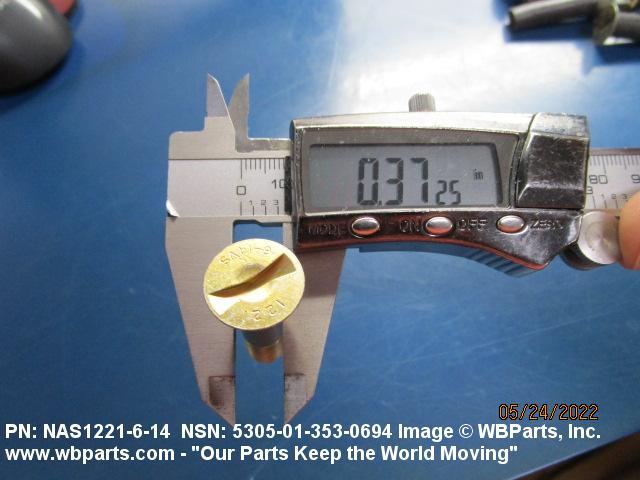

| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

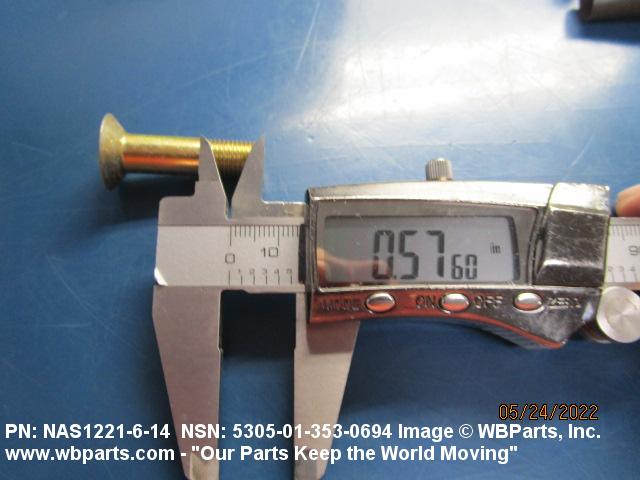

| THREAD LENGTH | 0.578 INCHES NOMINAL |

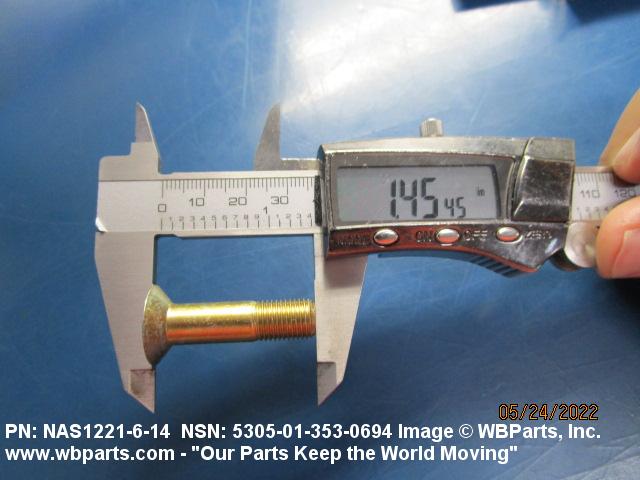

| FASTENER LENGTH | 1.443 INCHES MINIMUM AND 1.463 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 4140 OR STEEL COMP 4340 OR STEEL COMP 8740 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-8844 MIL SPEC 2ND MATERIAL RESPONSE OR AMS6414 ASSN STD 2ND MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 3RD MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM OR CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 1 CL 3 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416 TY 1 CL 3 FED SPEC 2ND TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A39 FLAT COUNTERSUNK |

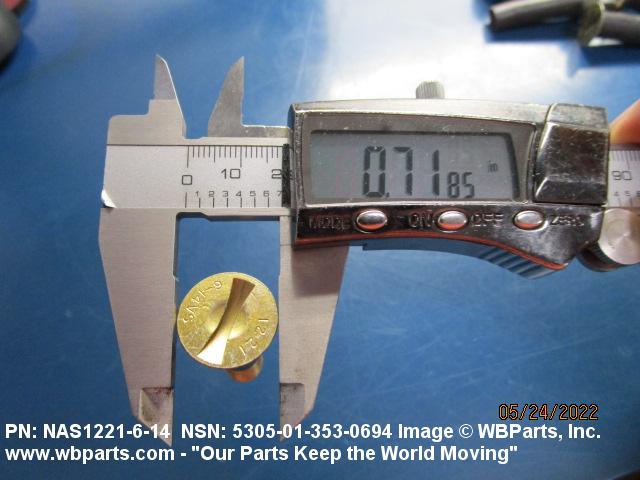

| HEAD DIAMETER | 0.703 INCHES MINIMUM AND 0.762 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

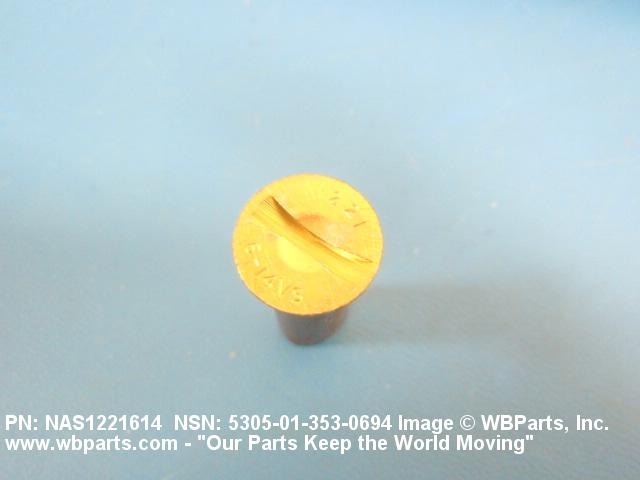

| INTERNAL DRIVE STYLE | B6 HIGH-TORQUE |
Restrictions/Controls & Freight Information | NSN 5305-01-353-0694
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
