Product Details | TAPPING SCREW
5305-01-373-0402 A hardened externally threaded fastener whose thread extends to the bearing surface of the head. The thread may be fluted or otherwise designed to cut or form its own mating thread. Excludes SCREW, ASSEMBLED WASHER.
Part Alternates: MS51869C14, MS51869-C14, FFS107, FF-S-107, 5305-01-373-0402, 01-373-0402, 5305013730402, 013730402
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 MAR 1993 | 01-373-0402 | 41756 ( SCREW, TAPPING ) |

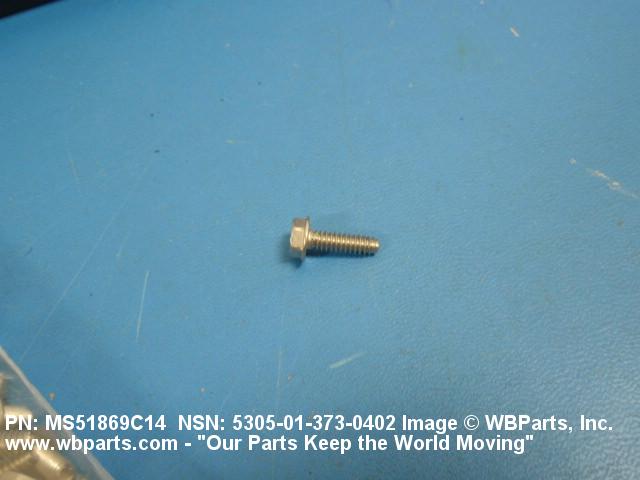

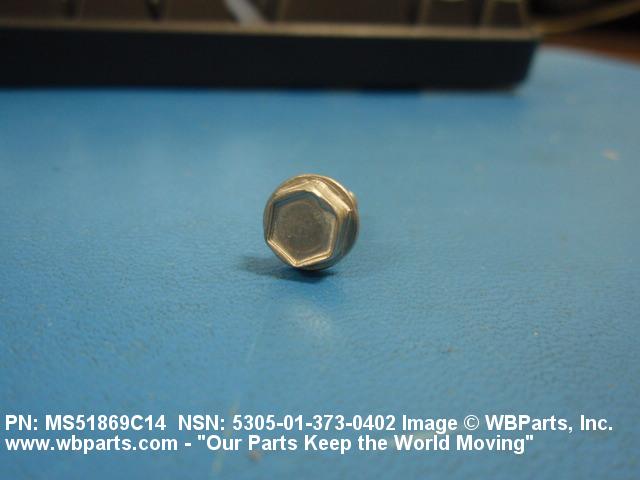

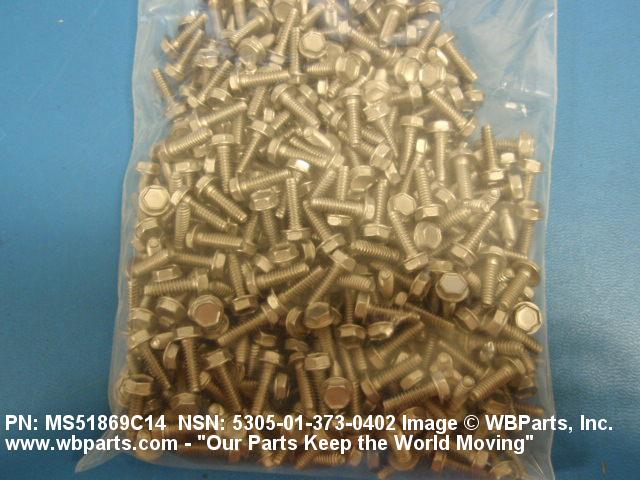

Drawings & Photos | NSN 5305-01-373-0402
Demand History | NSN 5305-01-373-0402
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FF-S-107 | 2014-02-28 | 150 | United States |
| FFS107 | 2011-02-18 | 10 | US |
| FFS107 | 2011-02-18 | 17 | US |
| MS51869C14 | 2009-10-21 | 300 | United States |
| MS51869C14 | 2009-10-21 | 13000 | United States |
| MS51869C14 | 2009-09-25 | 13000 | United States |
| MS51869C14 | 2009-08-11 | 377 | United States |
| FFS107 | 2009-03-03 | 1800 | US |
| 5305-01-373-0402 | 2008-08-14 | 15000 | US |
| FFS107 | 2007-12-13 | 600 | United States |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5305-01-373-0402
Related Products | NSN 5305-01-373-0402
5305-01-373-0578, 5305-01-373-0579, 5305-01-373-0985, 5305-01-373-0986, 5305-01-373-1290
Technical Data | NSN 5305-01-373-0402
| Characteristic | Specifications |
|---|---|

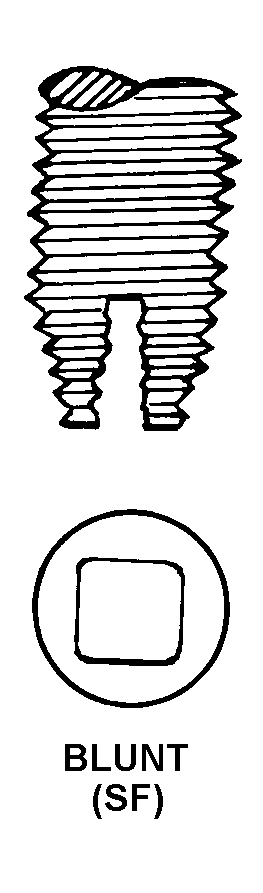

| NONMACHINE THREAD STYLE | A20 BLUNT OR A22 BLUNT OR A24 BLUNT |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.190 INCHES |
| FASTENER LENGTH | 0.345 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 410 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC 2ND TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C7 HEXAGON EXTENDED WASHER |
| HEAD HEIGHT | 0.324 INCHES MINIMUM AND 0.351 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.305 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.314 INCHES MINIMUM AND 0.414 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.019 INCHES MINIMUM AND 0.031 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D21 WITHOUT INTERNAL DRIVE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-S-107 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51869-C14 |
Restrictions/Controls & Freight Information | NSN 5305-01-373-0402
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-373-0402
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
Q EA : Each |
