NSN 5305-01-422-7298 MS35307466, MS35307-466, MS35307-466 CRE S 316 ONLY
Product Details | HEXAGON HEAD CAP SCREW
5305-01-422-7298 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: MS35307466, MS35307-466, MS35307-466 CRE S 316 ONLY, MS35307466CRES316ONLY, MS35307466S316, MS35307-466S316, 30640022, 306-40022, 5305-01-422-7298, 01-422-7298, 5305014227298, 014227298
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 DEC 1995 | 01-422-7298 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

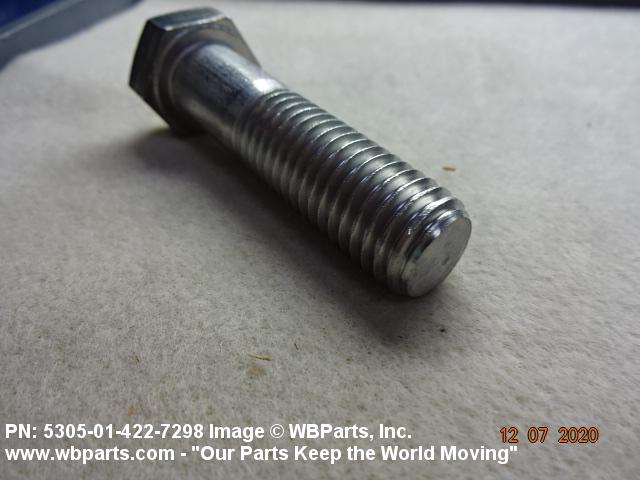

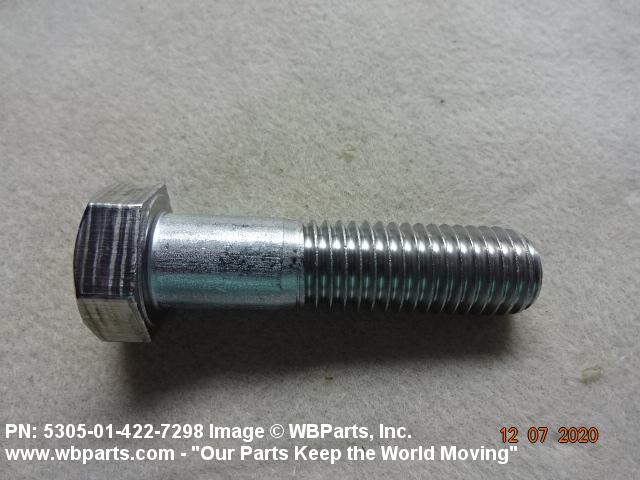

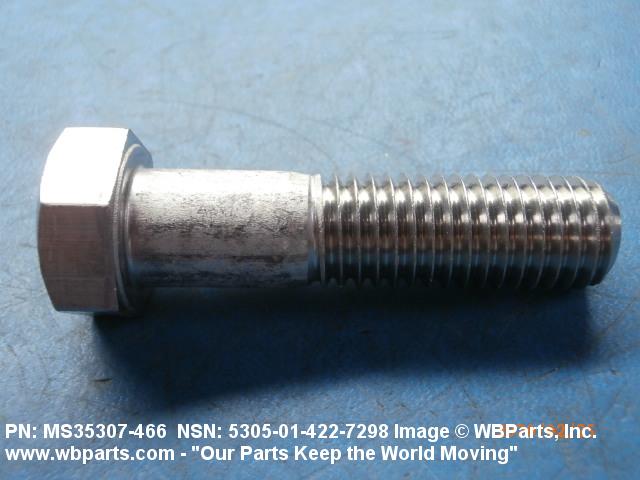

Drawings & Photos | NSN 5305-01-422-7298
Demand History | NSN 5305-01-422-7298
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-422-7298 | 2023-04-115 | 109 | DIBBS |
| MS35307466 | 2022-03-83 | 6 | United States |
| 5305-01-422-7298 | 2020-12-338 | 10 | United States |
| 5305-01-422-7298 | 2020-12-338 | 12 | United States |
| 5305-01-422-7298 | 2020-10-296 | 10 | United States |
| 5305-01-422-7298 | 2020-08-216 | 870 | us |
| 5305-01-422-7298 | 2020-04-120 | 230 | United States |
| 5305-01-422-7298 | 2020-02-48 | 160 | United States |
| 5305-01-422-7298 | 2016-11-327 | 1 | DIBBS-RFPs |
Cross Reference | NSN 5305-01-422-7298
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 306-40022 | 9F512 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION |
| MS35307-466 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35307-466 CRE S 316 ONLY | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS35307-466S316 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-422-7298
Related Products | NSN 5305-01-422-7298
Technical Data | NSN 5305-01-422-7298

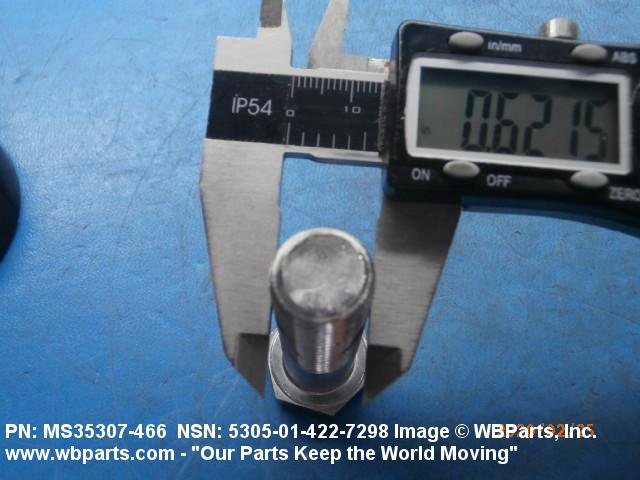

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |

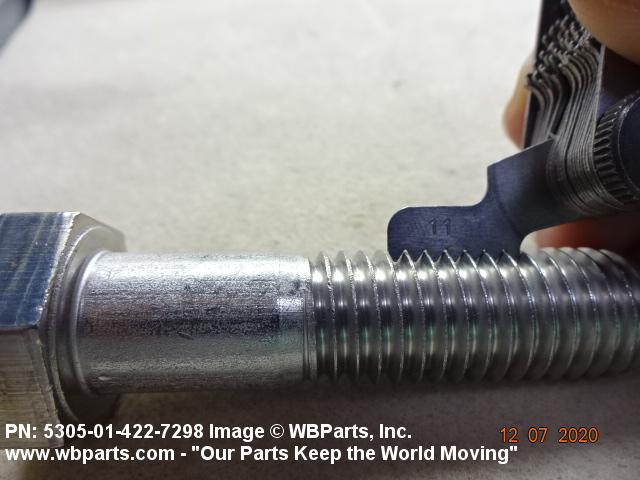

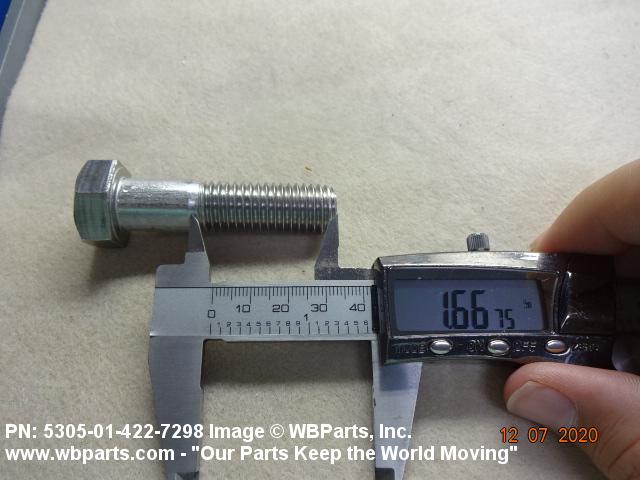

| THREAD QUANTITY PER INCH | 11 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.183 INCHES MAXIMUM |

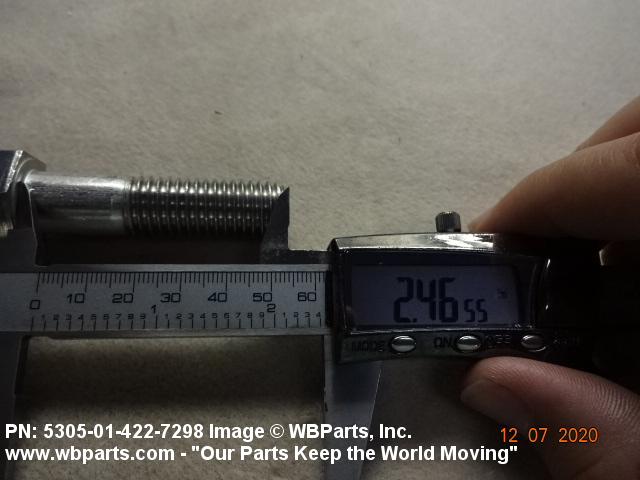

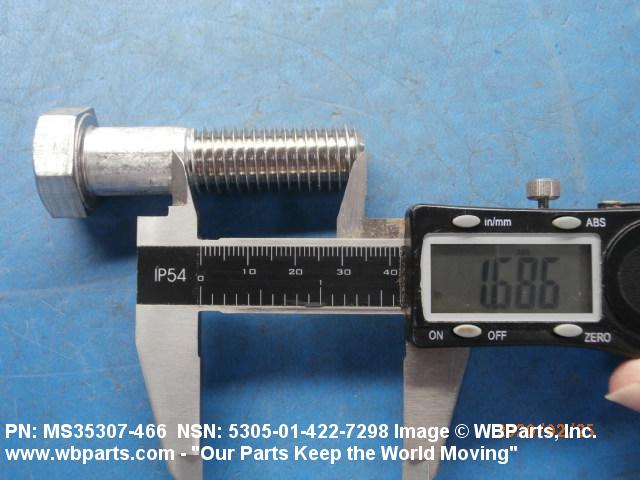

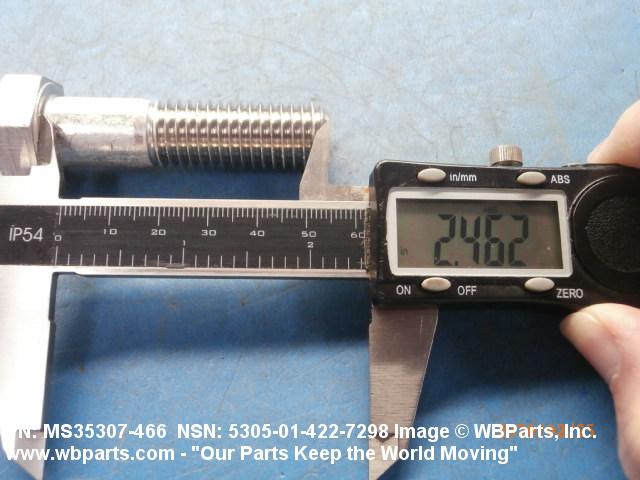

| FASTENER LENGTH | 2.406 INCHES MINIMUM AND 2.500 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FF-S-85 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | FF-S-85 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

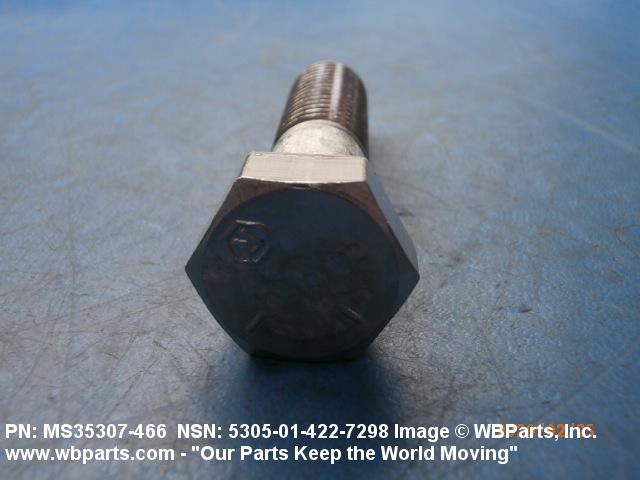

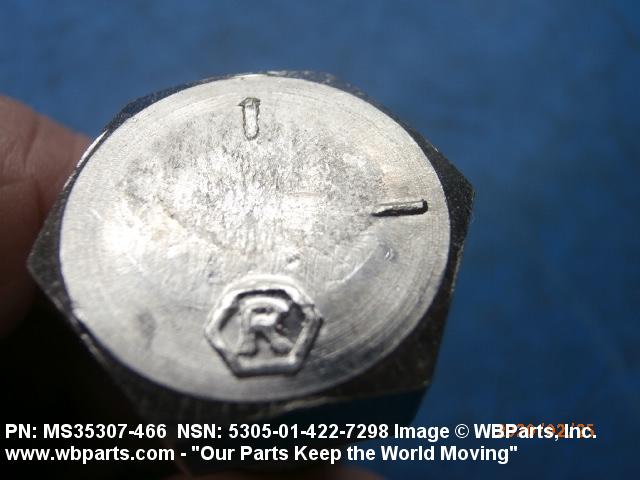

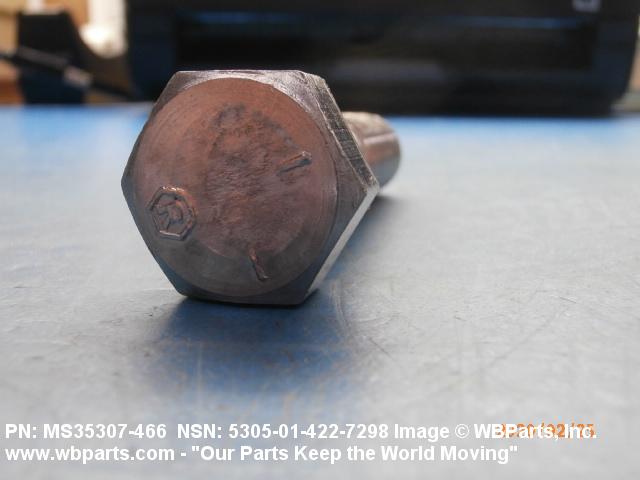

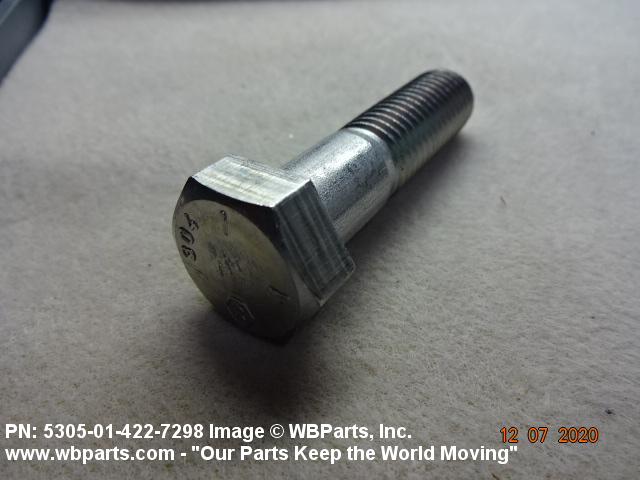

| HEAD STYLE | C1 HEXAGON |

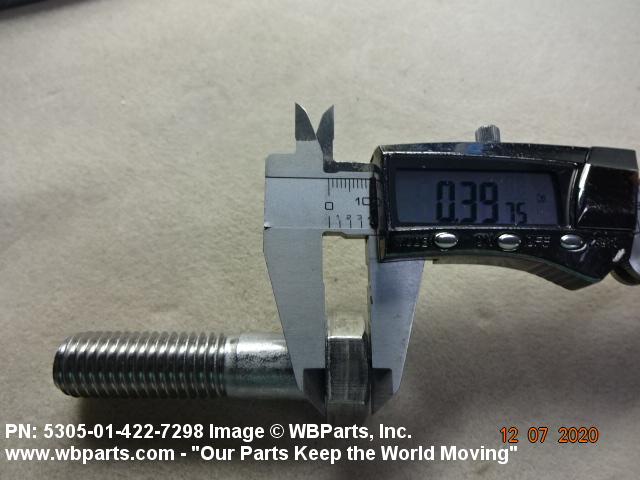

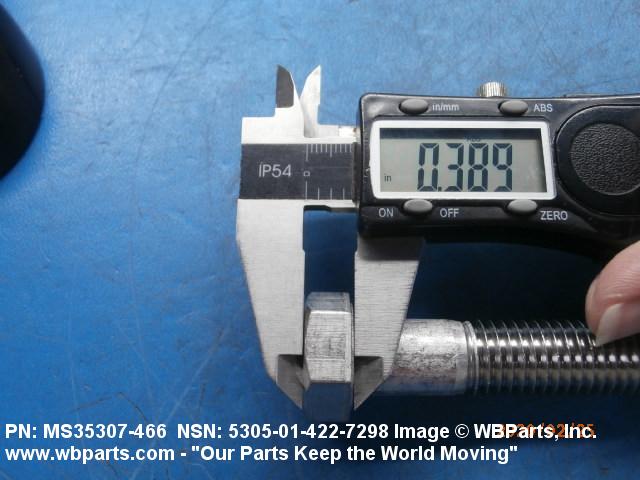

| HEAD HEIGHT | 0.378 INCHES MINIMUM AND 0.403 INCHES MAXIMUM |

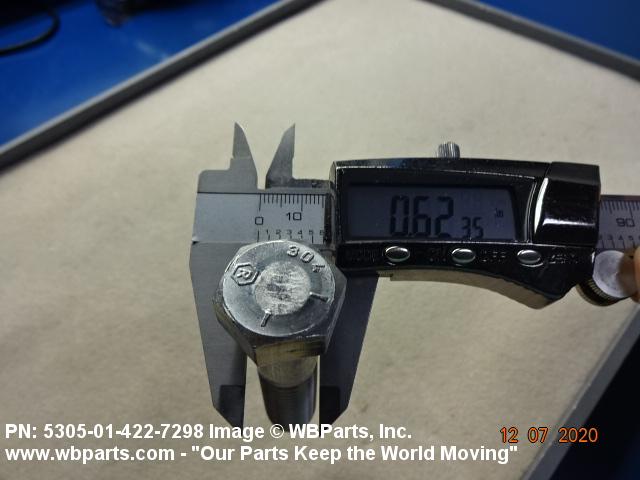

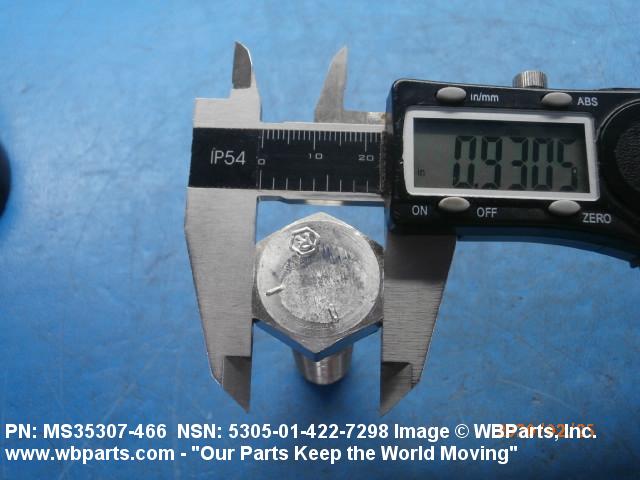

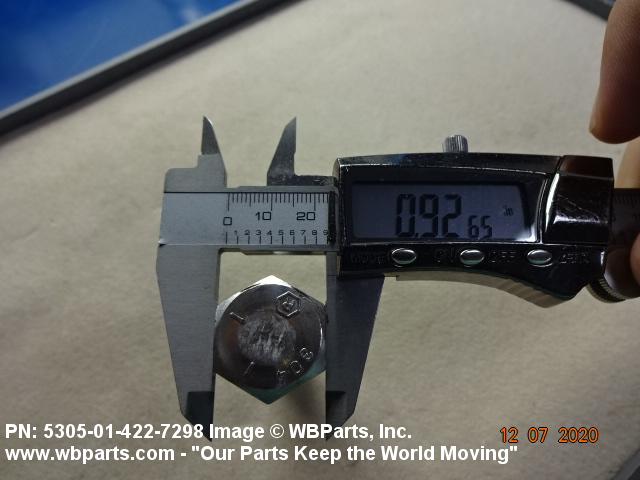

| WIDTH BETWEEN FLATS | 0.922 INCHES MINIMUM AND 0.937 INCHES MAXIMUM |
