NSN 5305-01-439-4220 A31328322, A3132832-2, D0078.1001
Product Details | THUMBSCREW
5305-01-439-4220 An externally threaded fastener whose threaded portion is of one nominal diameter. It may have an unthreaded portion with a diameter less than, equal to, or greater than the diameter of the threaded portion. It has either a vertically flattened, circular knurled, or wing type head, all of which are designed for rotation by the thumb and fingers. For items having wrenching facilities such as socket recess, multiple spline or slot heads, use SCREW (as modified) or BOLT (as modified).
Part Alternates: A31328322, A3132832-2, D0078.1001 , D00781001, 5305-01-439-4220, 01-439-4220, 5305014394220, 014394220
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 DEC 1996 | 01-439-4220 | 06673 ( THUMBSCREW ) |

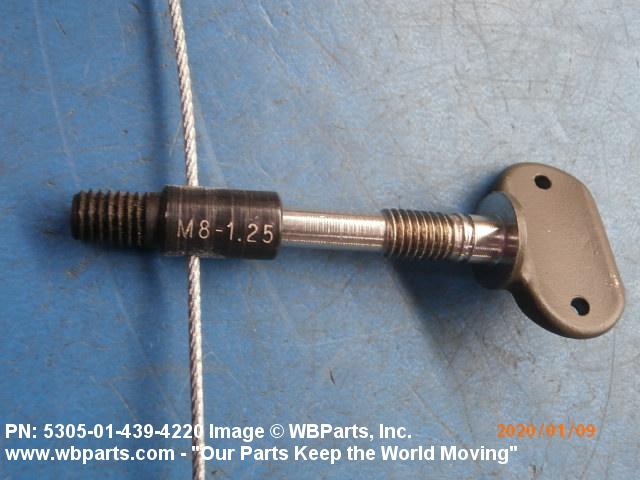

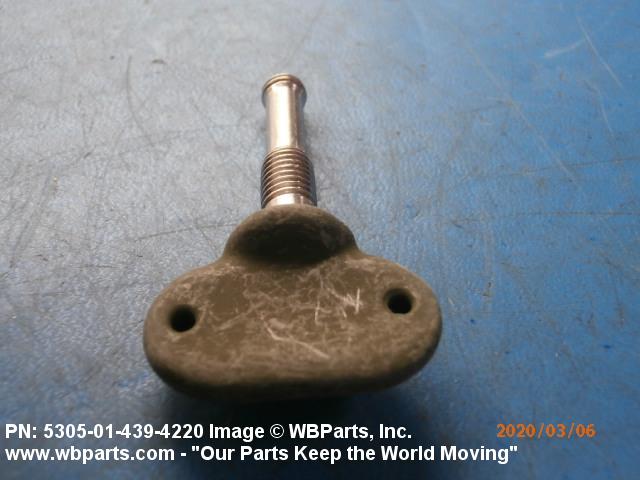

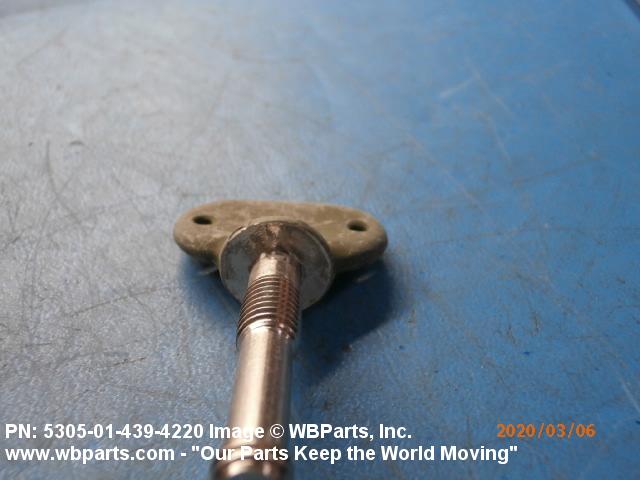

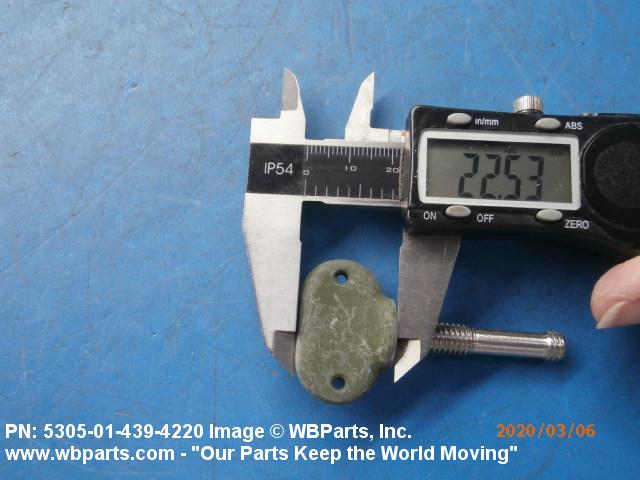

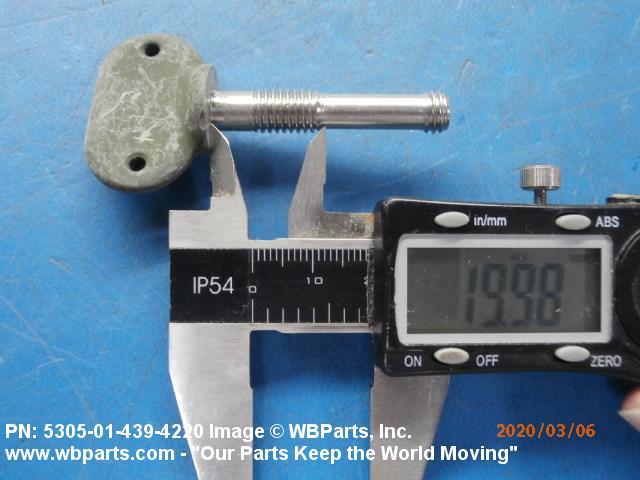

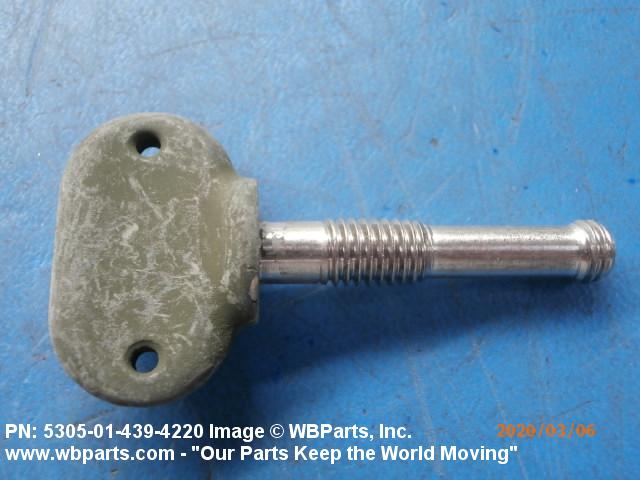

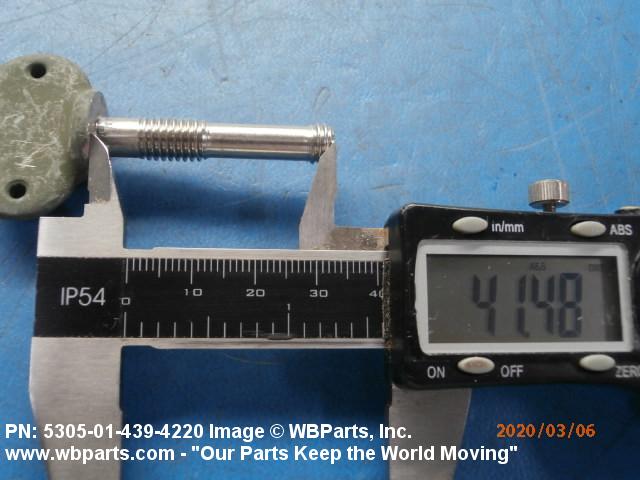

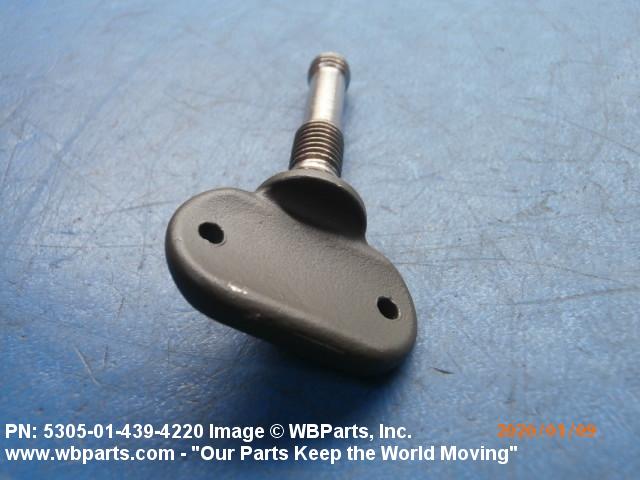

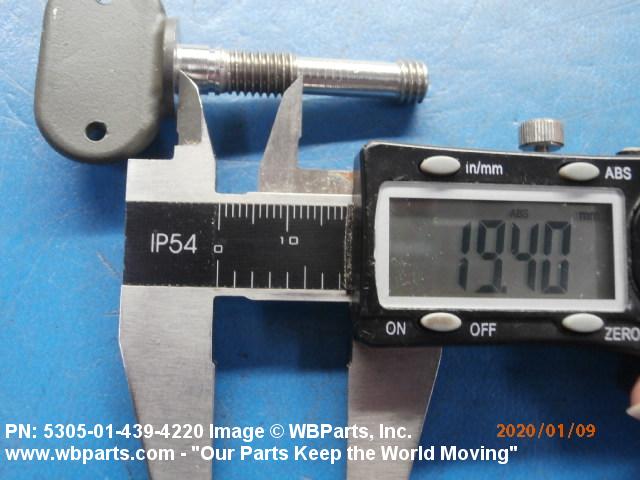

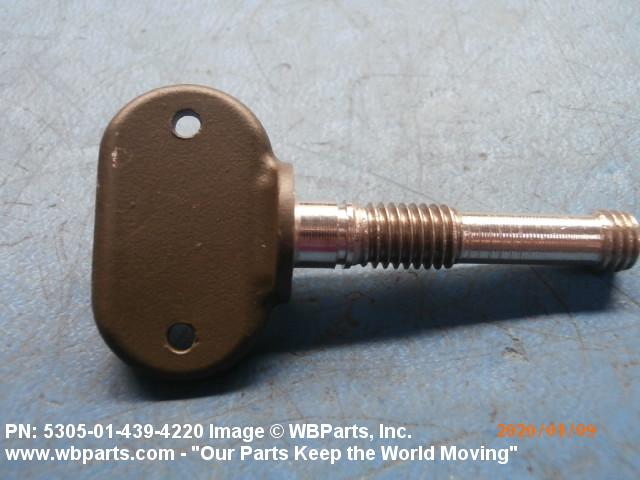

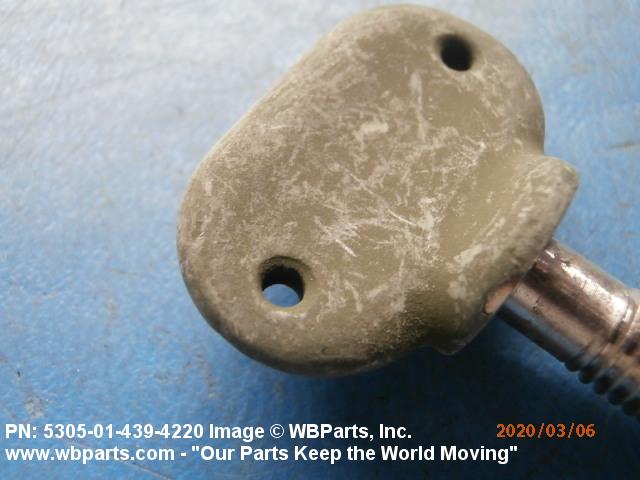

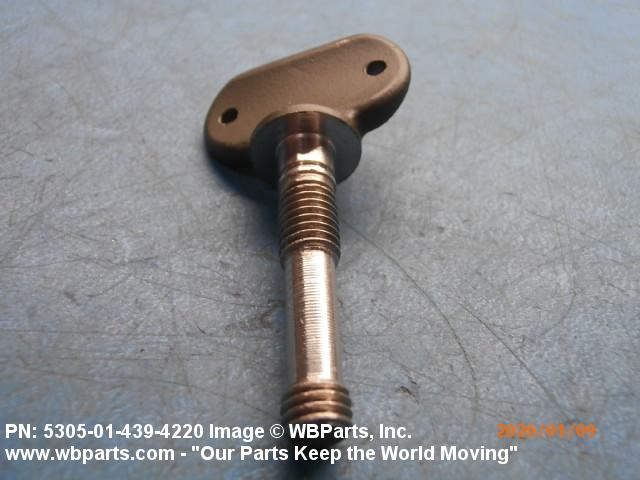

Drawings & Photos | NSN 5305-01-439-4220
Demand History | NSN 5305-01-439-4220
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-439-4220 | 2025-11-318 | 20 | United States |
| 5305-01-439-4220 | 2025-09-272 | 18 | Canada |
| A31328322 | 2025-09-272 | 18 | Canada |
| 5305-01-439-4220 | 2025-09-268 | 18 | Canada |
| A31328322 | 2023-12-361 | 10 | US |
| A31328322 | 2023-12-361 | 100 | US |
| A31328322 | 2023-12-361 | 500 | US |
| 5305-01-439-4220 | 2023-05-128 | 4 | US |
| 5305-01-439-4220 | 2023-04-101 | 110 | United States |
| 5305-01-439-4220 | 2021-11-317 | 2 | United States |
| 5305-01-439-4220 | 2021-11-309 | 50 | US |
| 5305-01-439-4220 | 2021-11-305 | 1600 | US |
| 5305-01-439-4220 | 2021-10-299 | 13138 | DIBBS |
| 5305-01-439-4220 | 2021-10-291 | 8396 | DIBBS |
| 5305-01-439-4220 | 2021-08-228 | 4742 | DIBBS |
| 5305-01-439-4220 | 2021-08-215 | 4742 | DIBBS |
| 5305-01-439-4220 | 2021-07-192 | 2611 | DIBBS |
| 5305-01-439-4220 | 2021-06-168 | 1657 | DIBBS |
| 5305-01-439-4220 | 2021-05-125 | 954 | DIBBS |
| A31328322 | 2021-02-35 | 110 | US |
| 5305-01-439-4220 | 2020-12-339 | 2 | United States |
| A31328322 | 2020-12-336 | 2 | United States |
| 5305-01-439-4220 | 2020-11-309 | 2024 | DIBBS |
| 5305-01-439-4220 | 2020-08-239 | 50 | US |
| A31328322 | 2020-07-205 | 6000 | US |
| A31328322 | 2020-07-197 | 6000 | US |
| 5305-01-439-4220 | 2020-02-49 | 110 | United States |
| 5305-01-439-4220 | 2019-12-361 | 1 | United States |
| 5305-01-439-4220 | 2019-11-332 | 4085 | DIBBS |
| A31328322 | 2019-04-115 | 6760 | United States |
| 5305-01-439-4220 | 2019-04-112 | 6757 | United States |
| 5305-01-439-4220 | 2019-04-94 | 3088 | DIBBS |
| 5305-01-439-4220 | 2019-03-87 | 3100 | US |
| 5305-01-439-4220 | 2019-03-86 | 3088 | DIBBS |
| 5305-01-439-4220 | 2018-08-232 | 6757 | DIBBS |
| 5305-01-439-4220 | 2018-08-224 | 6757 | DIBBS |
| 5305-01-439-4220 | 2018-08-217 | 3133 | DIBBS |
| 5305-01-439-4220 | 2018-07-186 | 3533 | DIBBS |
| 5305-01-439-4220 | 2018-06-179 | 3077 | DIBBS |
| 5305-01-439-4220 | 2018-06-178 | 3533 | DIBBS |
| 5305-01-439-4220 | 2018-06-171 | 3077 | DIBBS |
| A31328322 | 2017-02-38 | 5100 | US |
| 5305-01-439-4220 | 2015-03-65 | 108 | United States |
| 5305-01-439-4220 | 2015-03-65 | 528 | United States |
| 5305-01-439-4220 | 2014-07-205 | 8500 | US |
| 5305-01-439-4220 | 2014-07-203 | 8500 | DIBBS |
| 5305-01-439-4220 | 2014-05-132 | 2318 | DIBBS |
| 5305-01-439-4220 | 2014-04-120 | 2318 | DIBBS |
| A31328322 | 2013-10-275 | 12 | United States |
| 5305-01-439-4220 | 2013-06-172 | 1070 | United States |
| 5305-01-439-4220 | 2013-05-121 | 1000 | US |
| A31328322 | 2013-01-22 | 22 | US |
| 5305-01-439-4220 | 2012-06-165 | 5194 | DIBBS |
| 5305-01-439-4220 | 2010-05-140 | 1551 | DIBBS |
| 5305-01-439-4220 | 2010-01-12 | 2307 | DIBBS |
| 5305-01-439-4220 | 2008-05-137 | 1500 | US |
| 5305-01-439-4220 | 2008-03-72 | 50000 | US |
| 5305-01-439-4220 | 2008-01-30 | 22796 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-439-4220
Related Products | NSN 5305-01-439-4220
Technical Data | NSN 5305-01-439-4220
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | M |

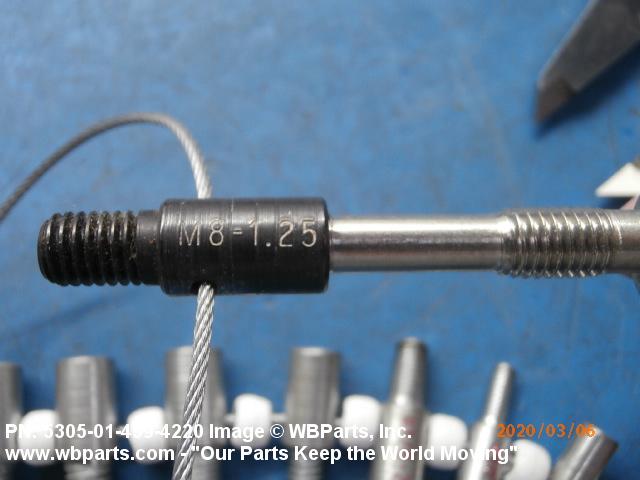

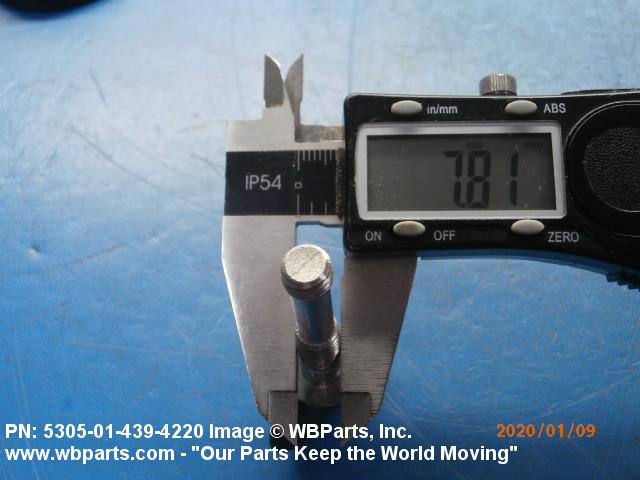

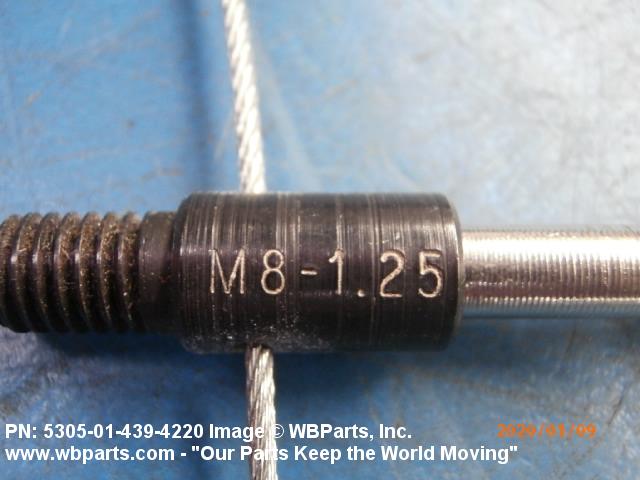

| NOMINAL THREAD DIAMETER | 8.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 1.25 |
| EXTERNAL THREAD TOLERANCE CLASS | 6G |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 22.0 MILLIMETERS NOMINAL |

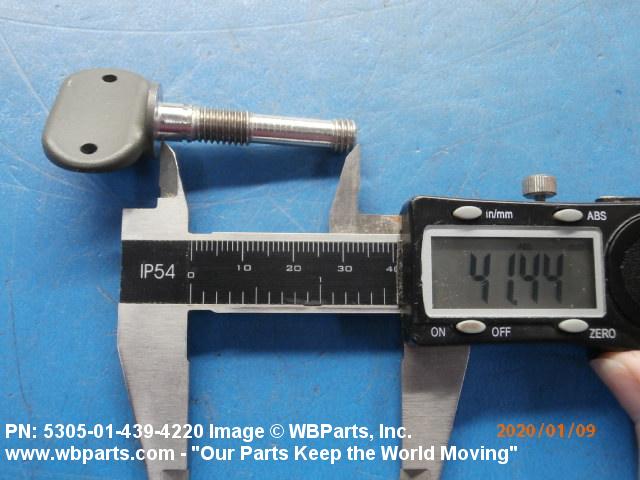

| FASTENER LENGTH | 41.0 MILLIMETERS NOMINAL |
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C80 THUMB NO. 4 |

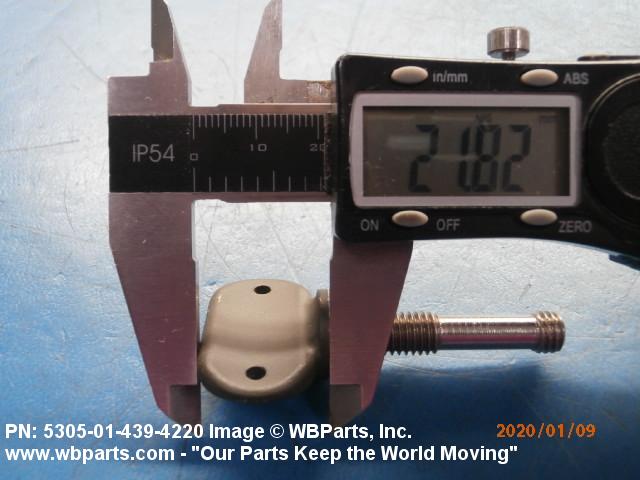

| HEAD HEIGHT | 22.0 MILLIMETERS NOMINAL |

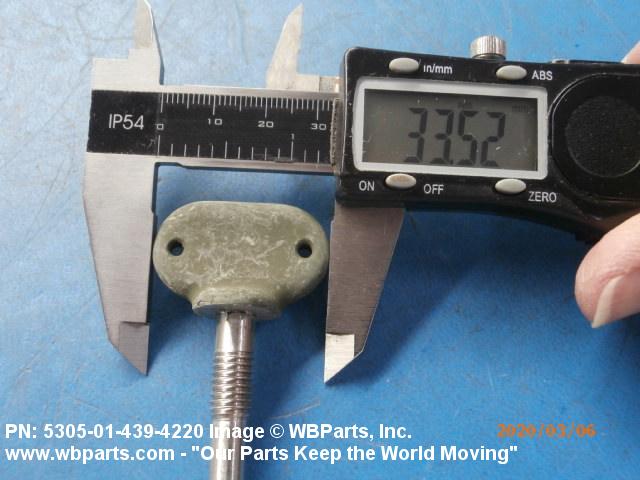

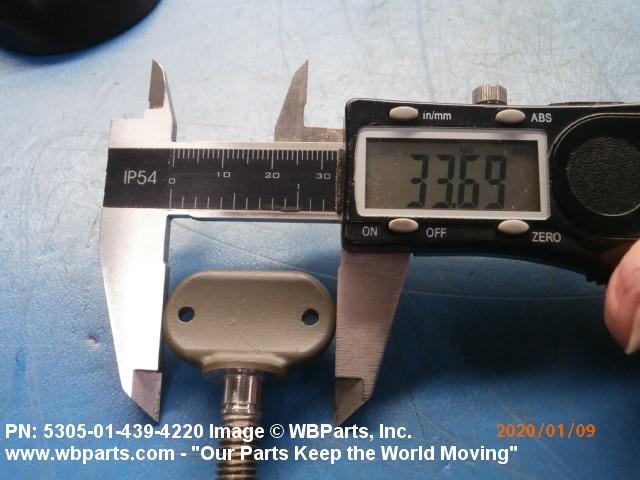

| WIDTH BETWEEN FLATS | 34.0 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | TWO UNTHREADED HOLES IN HEAD 3.0MM DIA,24.0MM DISTANCE CENTER TO CENTER;UNTHREADED PORTION ON SHANK IN MIDDLE OF THREADED AREA 27.0MM LG AND 6.42MM DIA |
Restrictions/Controls & Freight Information | NSN 5305-01-439-4220
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096630 | SCREWS NOI BRASS/BRONZE/COPPER |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
