NSN 5305-01-477-5999 CA2254106, CA2254-10-6, 3M123836
Product Details | MACHINE SCREW
5305-01-477-5999 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: CA2254106, CA2254-10-6, 3M123836, 3M1238-3-6, 5305-01-477-5999, 01-477-5999, 5305014775999, 014775999
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 AUG 2000 | 01-477-5999 | 06657 ( SCREW, MACHINE ) |

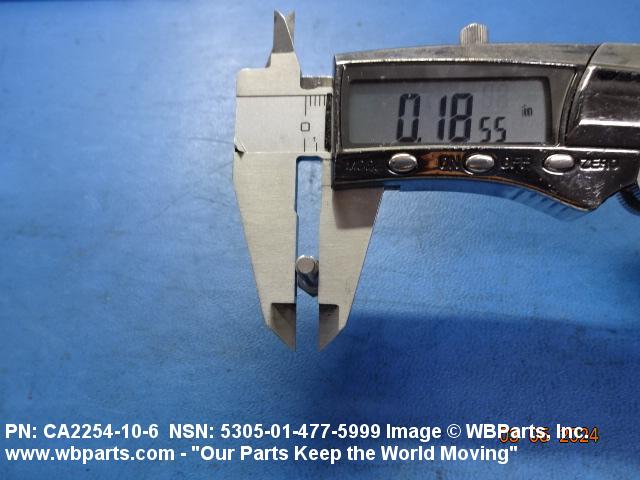

Drawings & Photos | NSN 5305-01-477-5999
Demand History | NSN 5305-01-477-5999
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M1238-3-6 | 2025-12-362 | 185 | DIBBS |
| CA2254-10-6 | 2025-12-362 | 185 | DIBBS |
| 5305-01-477-5999 | 2025-07-206 | 200 | us |
| 3M123836 | 2025-04-92 | 20 | United States |
| 3M123836 | 2024-04-100 | 5 | United States |
| CA2254106 | 2024-03-64 | 520 | United States |
| 3M123836 | 2024-02-59 | 100 | United States |
| 3M1238-3-6 | 2023-01-02 | 196 | DIBBS |
| CA2254-10-6 | 2023-01-02 | 196 | DIBBS |
| 3M1238-3-6 | 2022-09-261 | 91 | DIBBS |
| CA2254-10-6 | 2022-09-261 | 91 | DIBBS |
| 3M1238-3-6 | 2021-12-341 | 48 | DIBBS |
| CA2254-10-6 | 2021-12-341 | 48 | DIBBS |
| 5305-01-477-5999 | 2020-06-157 | 1 | DIBBS-RFPs |
| 3M123836 | 2020-04-121 | 100 | US |
| 3M123836 | 2020-04-121 | 200 | US |
| 5305-01-477-5999 | 2018-03-88 | 87 | DIBBS |
| 3M123836 | 2018-01-19 | 500 | US |
| 5305-01-477-5999 | 2015-05-131 | 62 | DIBBS |
| 3M123836 | 2012-03-86 | 10 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-477-5999
Related Products | NSN 5305-01-477-5999
Technical Data | NSN 5305-01-477-5999
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

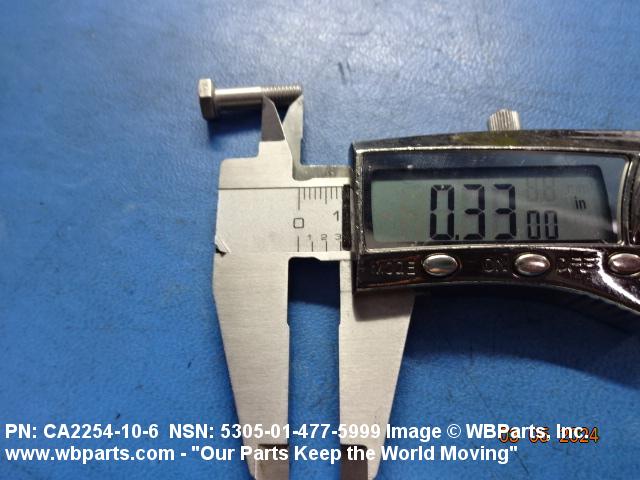

| THREAD LENGTH | 0.345 INCHES NOMINAL |

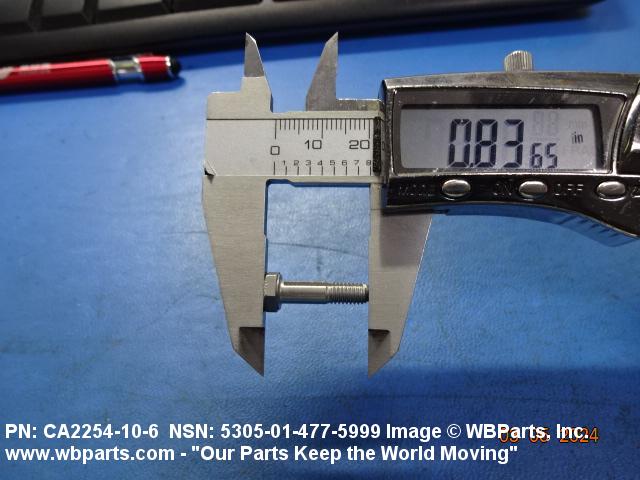

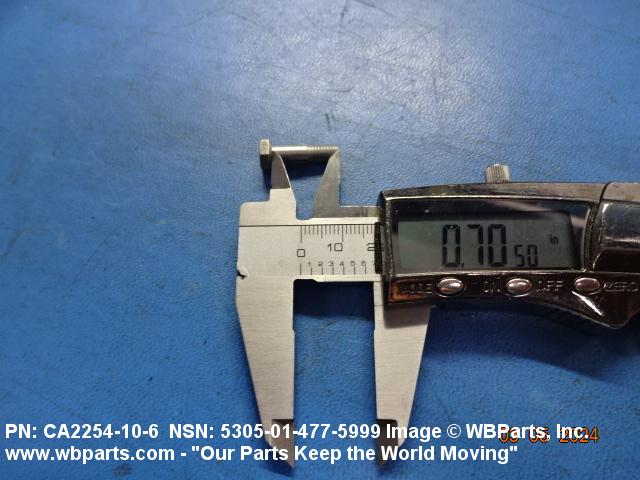

| FASTENER LENGTH | 0.705 INCHES MINIMUM AND 0.735 INCHES MAXIMUM |
| SCREW MATERIAL | IRON ALLOY 660 |
| SCREW SURFACE TREATMENT | PASSIVATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| HEAD STYLE | A1 HEXAGON |

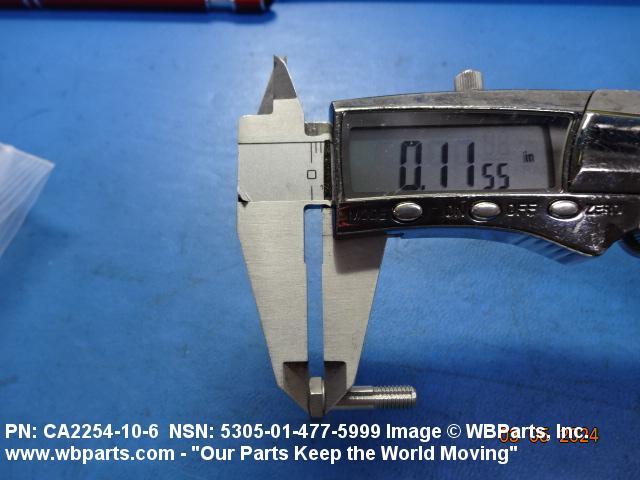

| HEAD HEIGHT | 0.105 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |

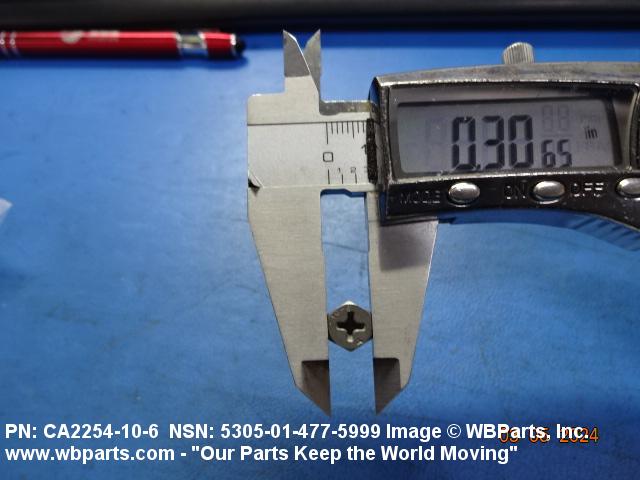

| WIDTH BETWEEN FLATS | 0.305 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B17 TORQUE-SET RIBBED |

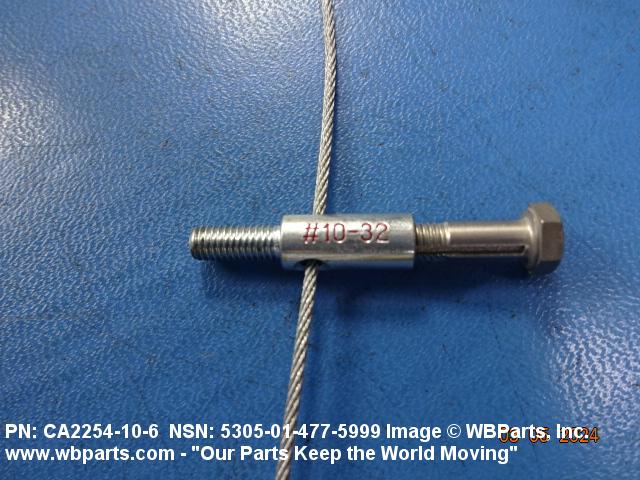

| LOCKING FEATURE | SLOTTED |
| III END ITEM IDENTIFICATION | FIGHTER AIRCRAFT F18 E&F |
Restrictions/Controls & Freight Information | NSN 5305-01-477-5999
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
