Product Details | SELF-DRILLING SCREW
5305-01-481-3197 A hardened, externally-threaded fastener with a self-drilling point. It drills, taps and fastens and may have a machine screw thread or a nonmachine screw thread. The threads usually extend from behind the pilot to the bearing surface of the head.
Part Alternates: 863-000519, 90628A284, 5305-01-481-3197, 01-481-3197, 5305014813197, 863000519, 014813197
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 DEC 2000 | 01-481-3197 | 38031 ( SCREW, SELF-DRILLING ) |

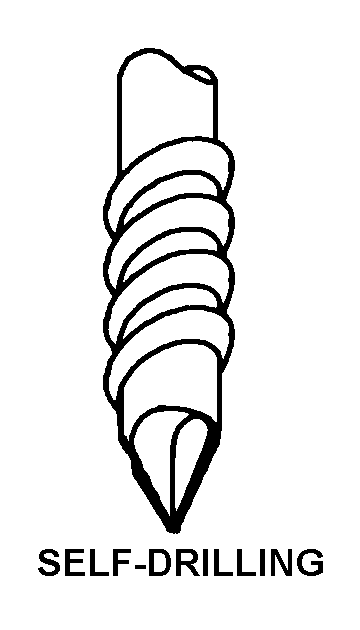

Drawings & Photos | NSN 5305-01-481-3197
Demand History | NSN 5305-01-481-3197
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 863-000519 | 2021-04-96 | 1 | DIBBS |
| 90628A284 | 2021-04-96 | 1 | DIBBS |
| 863-000519 | 2020-11-331 | 1 | DIBBS |
| 90628A284 | 2020-11-331 | 1 | DIBBS |
| 863-000519 | 2020-08-232 | 1 | DIBBS |
| 90628A284 | 2020-08-232 | 1 | DIBBS |
| 5305-01-481-3197 | 2018-04-93 | 1 | DIBBS |
| 5305-01-481-3197 | 2018-01-18 | 3 | DIBBS |
| 5305-01-481-3197 | 2015-09-246 | 7 | DIBBS |
| 5305-01-481-3197 | 2015-09-244 | 20 | DIBBS |
| 5305-01-481-3197 | 2015-08-235 | 7 | DIBBS |
| 5305-01-481-3197 | 2015-03-64 | 7 | DIBBS |
| 5305-01-481-3197 | 2015-02-53 | 7 | DIBBS |
| 5305-01-481-3197 | 2013-08-241 | 38 | DIBBS |
| 5305-01-481-3197 | 2012-03-75 | 9 | DIBBS |
| 5305-01-481-3197 | 2011-10-290 | 9 | DIBBS |
| 5305-01-481-3197 | 2011-08-224 | 9 | DIBBS |
| 5305-01-481-3197 | 2008-10-281 | 18 | DIBBS |
| 5305-01-481-3197 | 2008-03-70 | 15 | DIBBS |
