NSN 5305-01-481-6471 8457016098X051, 845-7016098-X-051, 01-481-6471
Product Details | SOCKET HEAD CAP SCREW
5305-01-481-6471 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: 8457016098X051, 845-7016098-X-051, 5305-01-481-6471, 01-481-6471, 5305014816471, 014816471
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JAN 2001 | 01-481-6471 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

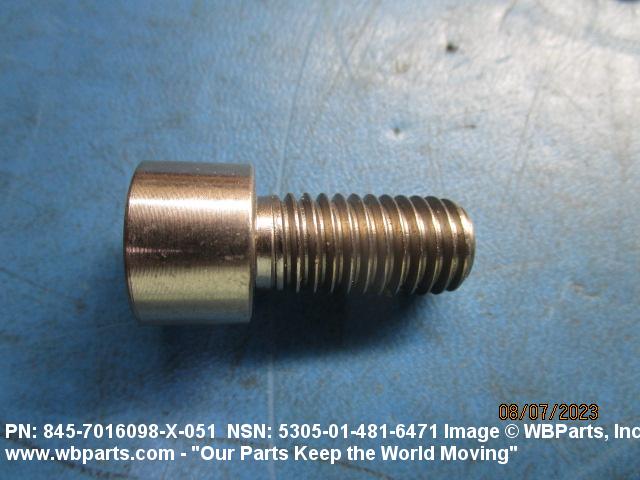

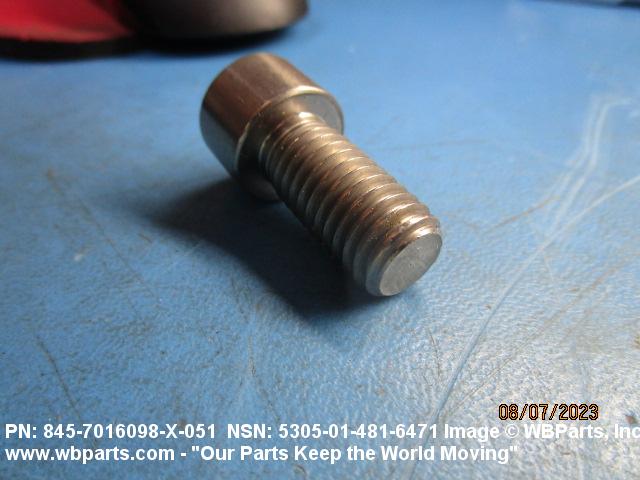

Drawings & Photos | NSN 5305-01-481-6471
Demand History | NSN 5305-01-481-6471
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-481-6471 | 2023-07-208 | 30 | us |
| 5305-01-481-6471 | 2022-07-185 | 51 | DIBBS |
| 5305-01-481-6471 | 2022-01-25 | 15 | DIBBS |
| 5305-01-481-6471 | 2021-02-49 | 24 | DIBBS |
| 5305-01-481-6471 | 2021-01-27 | 20 | DIBBS |
| 5305-01-481-6471 | 2020-12-344 | 31 | DIBBS |
| 5305-01-481-6471 | 2019-09-260 | 42 | DIBBS |
| 5305-01-481-6471 | 2019-04-114 | 26 | DIBBS |
| 5305-01-481-6471 | 2019-03-80 | 34 | DIBBS |
| 5305-01-481-6471 | 2018-02-51 | 25 | DIBBS |
| 5305-01-481-6471 | 2017-12-347 | 50 | DIBBS |
| 5305-01-481-6471 | 2017-12-339 | 50 | DIBBS |
| 5305-01-481-6471 | 2017-09-255 | 20 | DIBBS |
| 5305-01-481-6471 | 2017-09-247 | 20 | DIBBS |
| 5305-01-481-6471 | 2016-11-326 | 10 | DIBBS |
| 5305-01-481-6471 | 2016-05-147 | 50 | DIBBS |
| 5305-01-481-6471 | 2015-12-358 | 37 | DIBBS |
| 5305-01-481-6471 | 2013-11-317 | 117 | DIBBS |
| 5305-01-481-6471 | 2011-04-118 | 36 | DIBBS |
Cross Reference | NSN 5305-01-481-6471
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 845-7016098-X-051 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-481-6471
Related Products | NSN 5305-01-481-6471
Technical Data | NSN 5305-01-481-6471
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

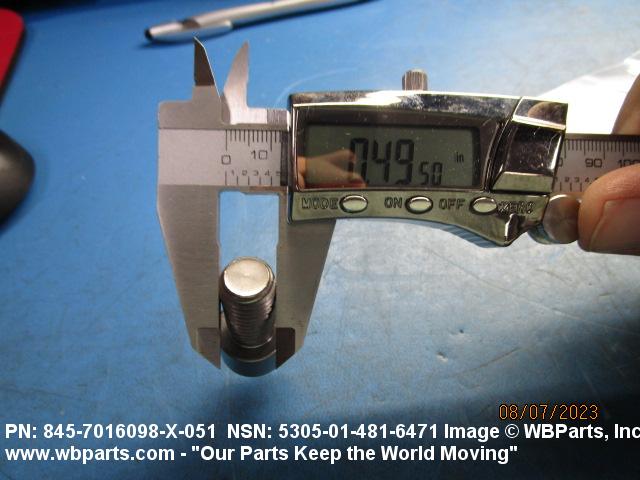

| NOMINAL THREAD DIAMETER | 0.500 INCHES |

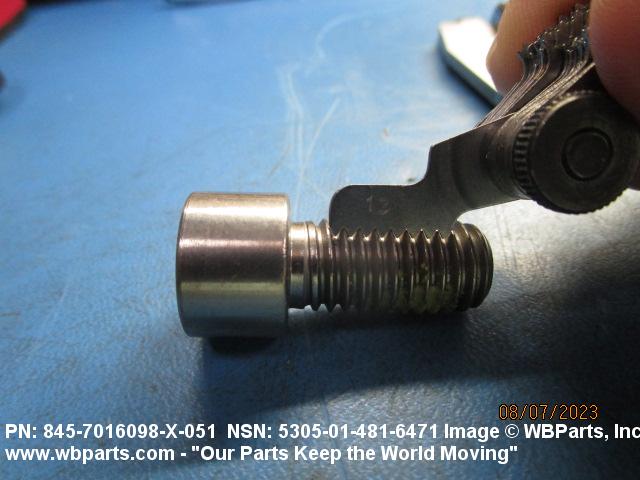

| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

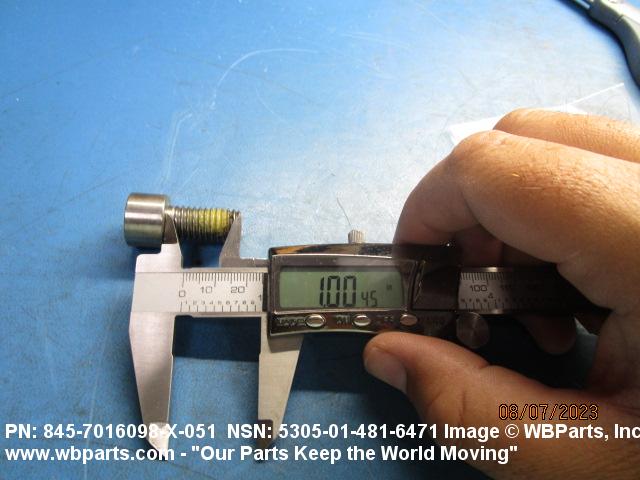

| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B348,GRADE 5 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C33 PAN NO. 2 |

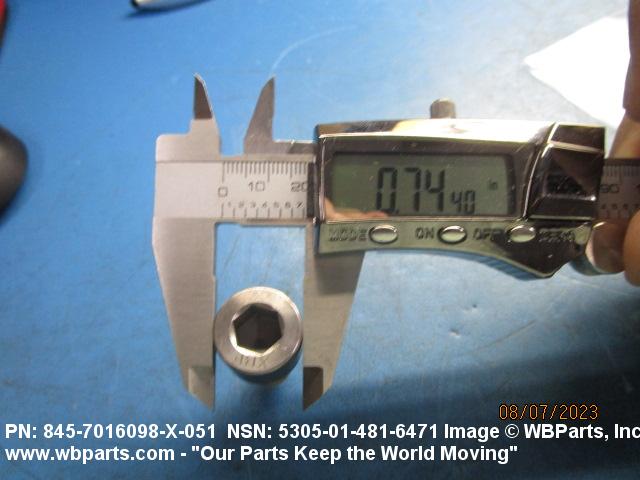

| HEAD DIAMETER | 0.735 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |

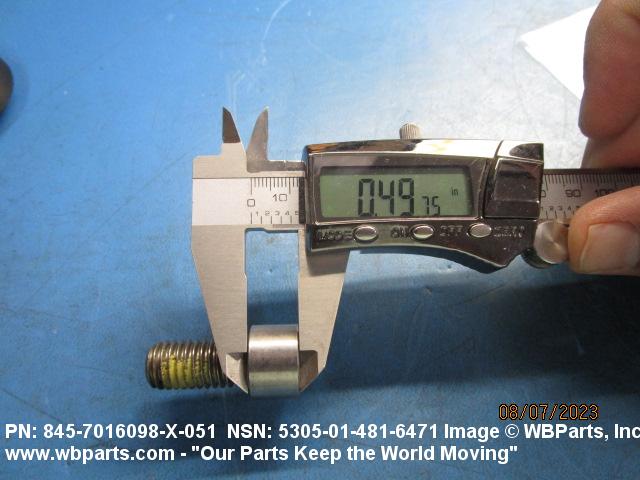

| HEAD HEIGHT | 0.492 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |

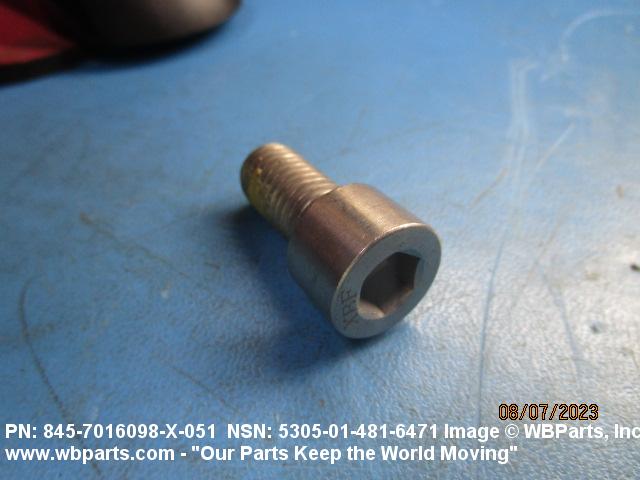

| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.375 INCHES NOMINAL |
| SPECIAL FEATURES | SELF LOCKING |
Restrictions/Controls & Freight Information | NSN 5305-01-481-6471
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-481-6471
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
