NSN 5305-01-484-2512 HP1007D45A, HP1007D4-5A, TX1027D45A
Product Details | MACHINE SCREW
5305-01-484-2512 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: HP1007D45A, HP1007D4-5A, TX1027D45A, TX1027D4-5A, 11825D45A, 11825D4-5A , 11845D45A, 11845D4-5A , 3M1170D45A, 3M1170D4-5A, 5305-01-484-2512, 01-484-2512, 5305014842512, 014842512
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 APR 2001 | 01-484-2512 | 06657 ( SCREW, MACHINE ) |

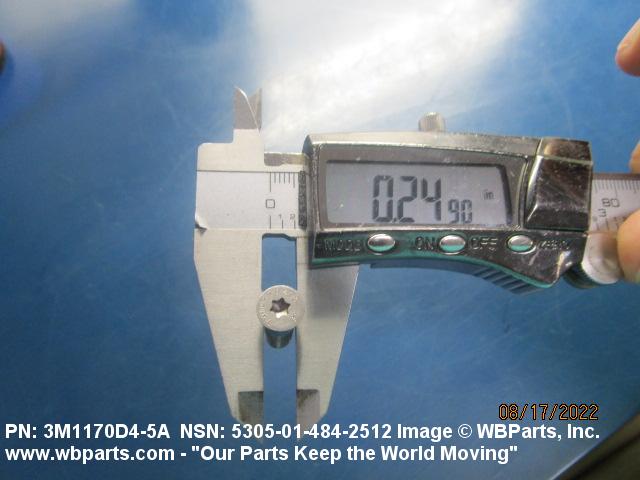

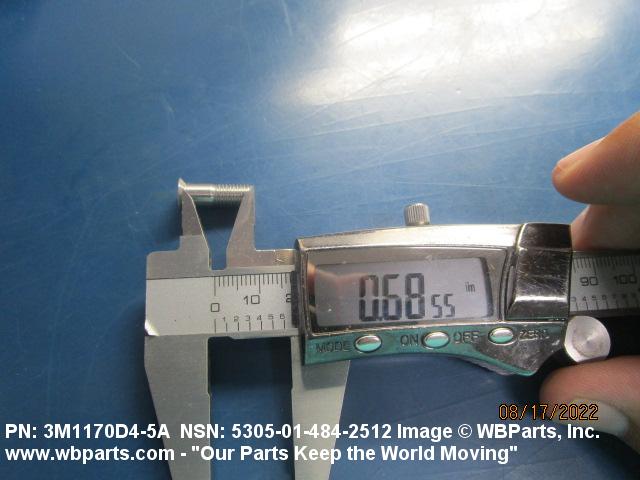

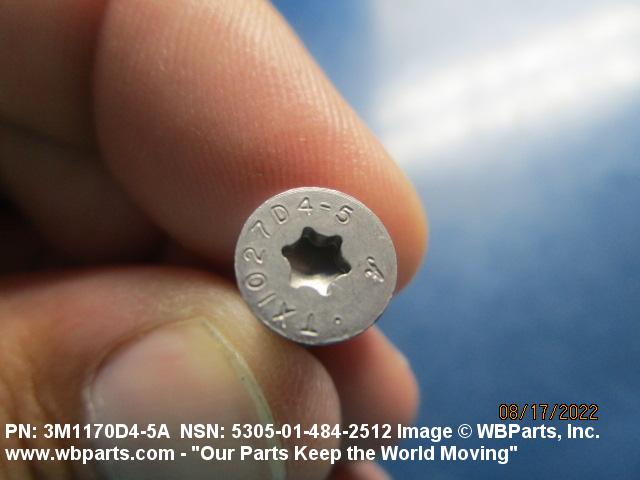

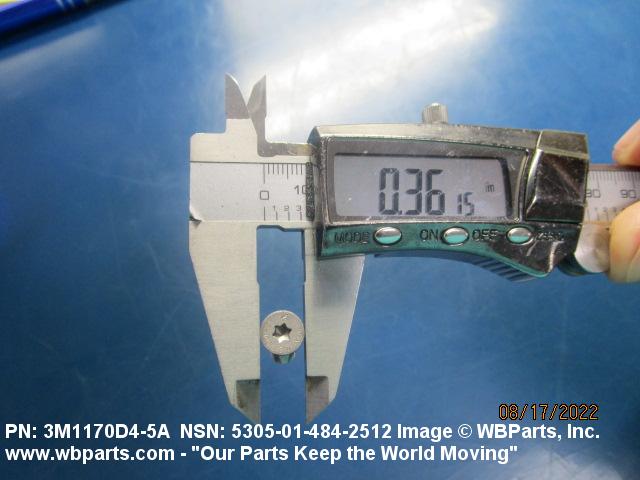

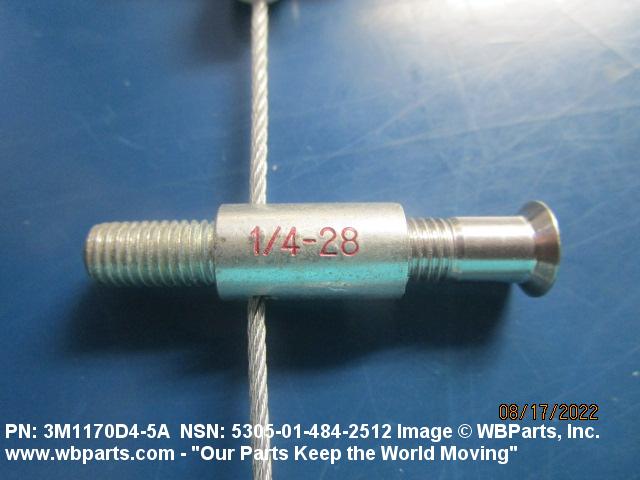

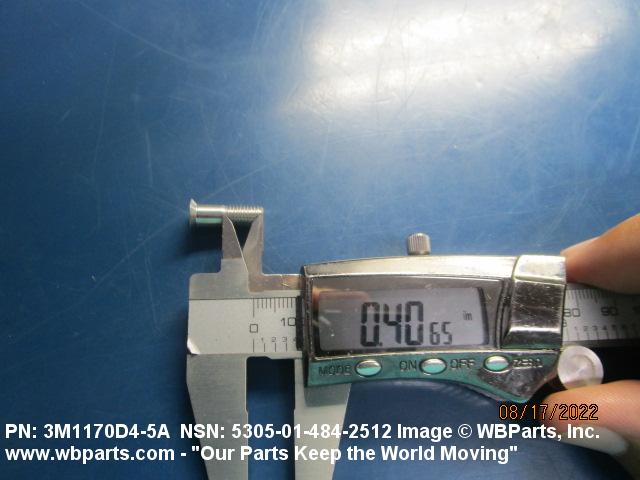

Drawings & Photos | NSN 5305-01-484-2512
Demand History | NSN 5305-01-484-2512
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11825D4-5A | 2022-11-312 | 5736 | DIBBS |
| 11845D4-5A | 2022-11-312 | 5736 | DIBBS |
| 3M1170D4-5A | 2022-11-312 | 5736 | DIBBS |
| HP1007D4-5A | 2022-11-312 | 5736 | DIBBS |
| TX1027D4-5A | 2022-11-312 | 5736 | DIBBS |
| 5305-01-484-2512 | 2022-08-222 | 250 | United States |
| 11825D4-5A | 2020-11-309 | 10245 | DIBBS |
| 11845D4-5A | 2020-11-309 | 10245 | DIBBS |
| 3M1170D4-5A | 2020-11-309 | 10245 | DIBBS |
| HP1007D4-5A | 2020-11-309 | 10245 | DIBBS |
| TX1027D4-5A | 2020-11-309 | 10245 | DIBBS |
| 5305-01-484-2512 | 2020-05-122 | 1 | DIBBS-RFPs |
| 5305-01-484-2512 | 2019-10-298 | 25 | US |
| 11825D4-5A | 2019-10-274 | 30 | DIBBS |
| 11825D4-5A | 2019-10-274 | 60 | DIBBS |
| 11845D4-5A | 2019-10-274 | 30 | DIBBS |
| 11845D4-5A | 2019-10-274 | 60 | DIBBS |
| 3M1170D4-5A | 2019-10-274 | 30 | DIBBS |
| 3M1170D4-5A | 2019-10-274 | 60 | DIBBS |
| HP1007D4-5A | 2019-10-274 | 30 | DIBBS |
| HP1007D4-5A | 2019-10-274 | 60 | DIBBS |
| TX1027D4-5A | 2019-10-274 | 30 | DIBBS |
| TX1027D4-5A | 2019-10-274 | 60 | DIBBS |
| 11825D4-5A | 2019-06-170 | 17155 | DIBBS |
| 11845D4-5A | 2019-06-170 | 17155 | DIBBS |
| 3M1170D4-5A | 2019-06-170 | 17155 | DIBBS |
| HP1007D4-5A | 2019-06-170 | 17155 | DIBBS |
| TX1027D4-5A | 2019-06-170 | 17155 | DIBBS |
| 11825D4-5A | 2019-01-31 | 8132 | DIBBS |
| 11845D4-5A | 2019-01-31 | 8132 | DIBBS |
| 3M1170D4-5A | 2019-01-31 | 8132 | DIBBS |
| HP1007D4-5A | 2019-01-31 | 8132 | DIBBS |
| TX1027D4-5A | 2019-01-31 | 8132 | DIBBS |
| 3M1170D45A | 2011-03-74 | 100 | US |
Cross Reference | NSN 5305-01-484-2512
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11825D4-5A | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| 11845D4-5A | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| 3M1170D4-5A | 76301 | BOEING COMPANY, THE DBA BOEING |
| HP1007D4-5A | 0ZC92 | HEARTLAND PRECISION FASTENERS, INC. |
| TX1027D4-5A | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| TX1027D4-5A | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| TX1027D4-5A | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| TX1027D4-5A | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| TX1027D4-5A | 73197 | HI-SHEAR CORPORATION |
| TX1027D4-5A | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| TX1027D4-5A | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| TX1027D4-5A | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| TX1027D4-5A | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-484-2512
Technical Data | NSN 5305-01-484-2512
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.312 INCHES NOMINAL |
| FASTENER LENGTH | 0.312 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP XM-13 |
| BEARING SURFACE OF HEAD SURFACE TREATMENT | PASSIVATE |
| HEAD SURFACE TREATMENT | PASSIVATE |
| SCREW SURFACE TREATMENT | PASSIVATE |
| COLOR | NATURAL |
| MINIMUM TENSILE STRENGTH | 4400 POUNDS PER SQUARE INCH |
| HEAD STYLE | A35 FILLISTER COUNTERSUNK |
| HEAD DIAMETER | 0.395 INCHES NOMINAL |
| HEAD HEIGHT | 0.060 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| INTERNAL DRIVE STYLE | B16 TORX |
| SPLINE MAJOR DIAMETER | 0.155 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | A/A42RREFUELS; A/A42R-1 REFUELING SYSTEM |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BOLT, 100 DEG. REDUCED HEAD, GEAR DRIVE |
Restrictions/Controls & Freight Information | NSN 5305-01-484-2512
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-484-2512
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
