NSN 5305-01-497-4166 MS1699518, MS16995-18, 01-497-4166

Product Details | SOCKET HEAD CAP SCREW

5305-01-497-4166 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS1699518, MS16995-18, 5305-01-497-4166, 01-497-4166, 5305014974166, 014974166

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	20 MAY 2002	01-497-4166	16282 ( SCREW, CAP, SOCKET HEAD )

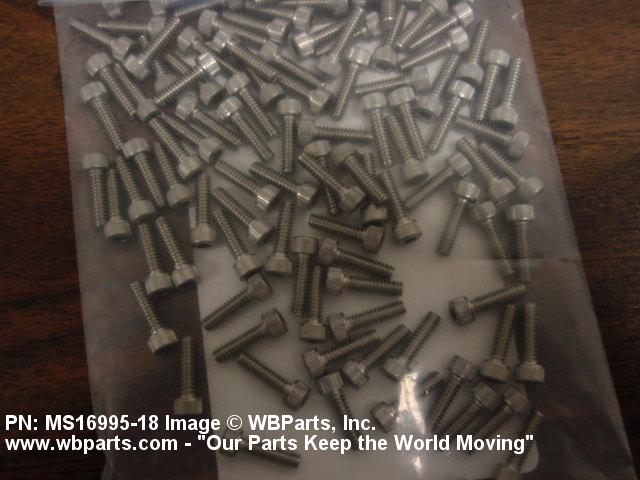

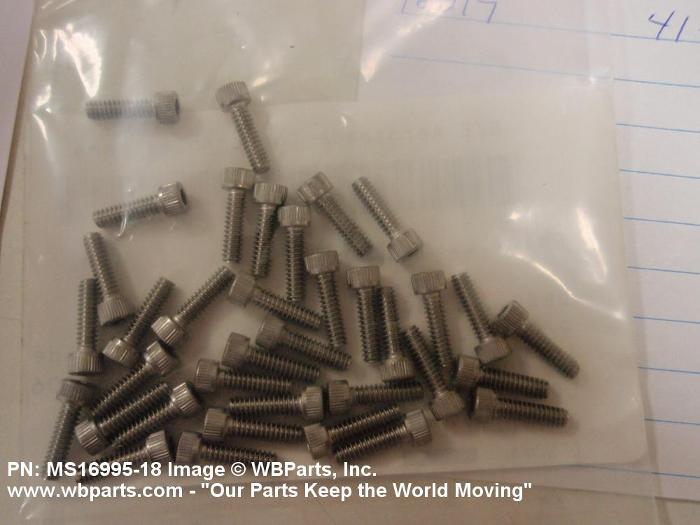

Drawings & Photos | NSN 5305-01-497-4166

Part Number	Request Date	QTY	Origin
MS1699518	2025-06-169	2000	Hong Kong
MS1699518	2024-12-344	88	Japan
MS1699518	2024-12-344	88	Japan
MS1699518	2024-12-344	88	Japan
MS1699518	2024-12-344	88	Japan
MS1699518	2024-05-142	500	us
MS1699518	2024-02-59	600	us
MS1699518	2022-01-04	60	United States
MS1699518	2021-06-161	5000	us
MS1699518	2021-06-161	10000	us
MS1699518	2021-06-161	15000	us
MS16995-18	2020-06-174	480	Hong Kong
MS1699518	2019-12-345	200	IN
MS1699518	2018-05-143	120	United States
MS1699518	2018-04-93	20	US
MS16995-18	2015-05-141	6	United States
MS16995-18	2015-05-141	6	United States
MS1699518	2014-10-304	24	United States
MS1699518	2014-06-168	2021	UM
MS1699518	2014-06-153	1200	CN
MS1699518	2014-06-153	2500	CN
MS1699518	2012-09-258	25	US
MS1699518	2011-06-159	3000	United States
MS1699518	2011-06-157	36	US
MS1699518	2011-04-116	500	US
MS1699518	2011-02-33	100	TW
MS1699518	2011-01-06	100	United States
MS1699518	2011-01-04	100	United States
MS1699518	2010-03-89	432	US
MS1699518	2009-01-22	148	Greece
MS1699518	2008-06-178	5000	United States

Cross Reference | NSN 5305-01-497-4166

Part Number	Cage Code	Manufacturer
MS16995-18	1E0F1	ROLLS ROYCE CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-497-4166

Compare

Related Products | NSN 5305-01-497-4166

5305-01-497-4239, 5305-01-497-4301, 5305-01-497-4355, 5305-01-497-4527, 5305-01-497-4643

Technical Data | NSN 5305-01-497-4166

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.500 INCHES NOMINAL
FASTENER LENGTH	0.500 INCHES NOMINAL
MATERIAL	STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 384 OR STEEL COMP 304L OR STEEL COMP XM-7 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM F593 ASSN STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC ALL TREATMENT RESPONSES OVERALL
HEAD STYLE	C49 FLAT CHAMFER
HEAD DIAMETER	0.218 INCHES MINIMUM AND 0.226 INCHES MAXIMUM
HEAD HEIGHT	0.134 INCHES MINIMUM AND 0.138 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.111 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5305-01-497-4166

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
No Freight Information

Management | NSN 5305-01-497-4166

Navy

Category	Code	Description
Cognizance Codes	0Q	Contractor supported items for NAVICP PHIL Consumables (1R) Naval Inventory Control Point, Philadelphia
Special Material ID	KF	KC130JAIRCRAFT ENGINEAE2100D3
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	NRP	NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Reparability	M	Medium Demand Velocity Items (consumables)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Y EA : Each
