NSN 5305-01-521-1071 S1007510F8GC, S10075-10F8GC, 01-521-1071
Product Details | ASSEMBLED WASHER SCREW
5305-01-521-1071 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: S1007510F8GC, S10075-10F8GC, 5305-01-521-1071, 01-521-1071, 5305015211071, 015211071
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUN 2004 | 01-521-1071 | 06660 ( SCREW, ASSEMBLED WASHER ) |

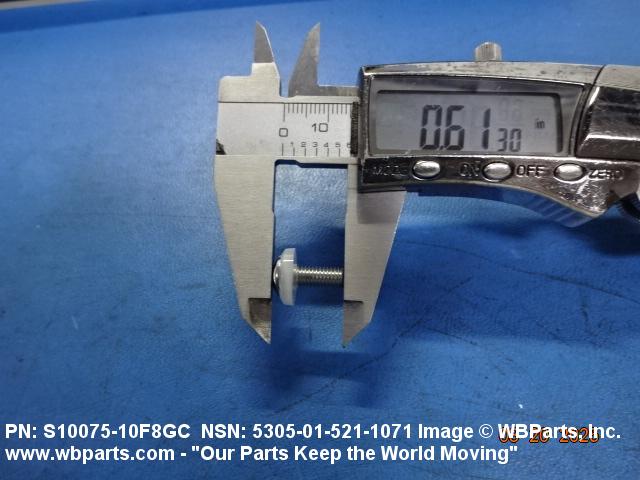

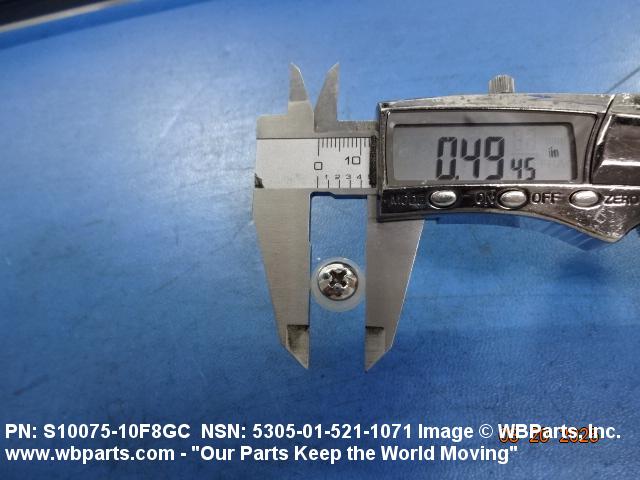

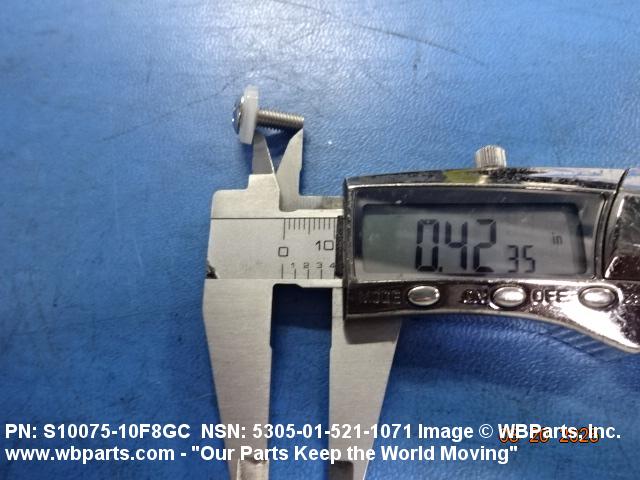

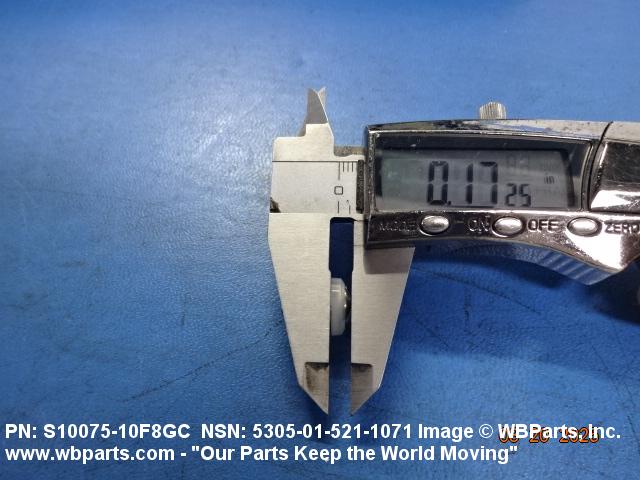

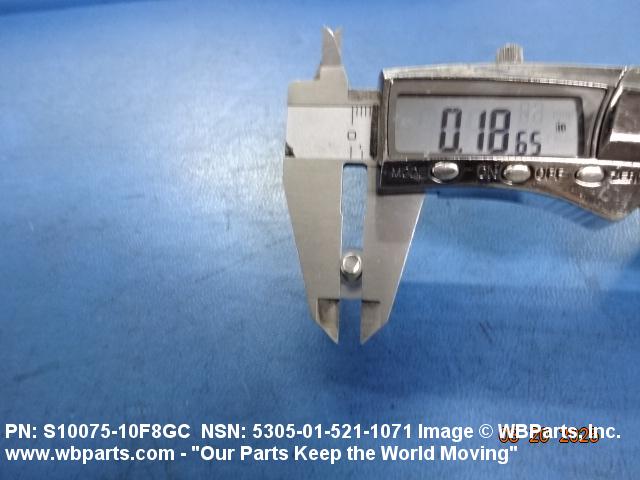

Drawings & Photos | NSN 5305-01-521-1071
Demand History | NSN 5305-01-521-1071
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S1007510F8GC | 2025-02-50 | 25 | Italy |
| S1007510F8GC | 2010-02-46 | 200 | Australia |
Cross Reference | NSN 5305-01-521-1071
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S10075-10F8GC | 05395 | L-3 COMMUNICATIONS CORPORATION DBA MISSION INTEGRATION DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-521-1071
Related Products | NSN 5305-01-521-1071
Technical Data | NSN 5305-01-521-1071
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HEAD STYLE | C36 ROOF |
| HEAD DIAMETER | 0.500 INCHES NOMINAL |
| HEAD HEIGHT | 0.179 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D2 CROSS RECESS TYPE 11 |
| WASHER QUANTITY | 1 |
| III END ITEM IDENTIFICATION | AIRBORNE RADAR, RATHEON SYSTEMS, ASTOR MODEL |
Restrictions/Controls & Freight Information | NSN 5305-01-521-1071
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
