NSN 5305-01-521-2012 FTD70032, FTD7003-2, 01-521-2012
Product Details | PANEL FASTENER SCREW
5305-01-521-2012 A headed, threaded fastening device with special square threads, which is designed to be attached to a panel by means of a retaining washer. The screw fastener is used in conjunction with a speed nut to facilitate fastening two items.
Part Alternates: FTD70032, FTD7003-2, 5305-01-521-2012, 01-521-2012, 5305015212012, 015212012
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUN 2004 | 01-521-2012 | 19665 ( SCREW, PANEL FASTENER ) |

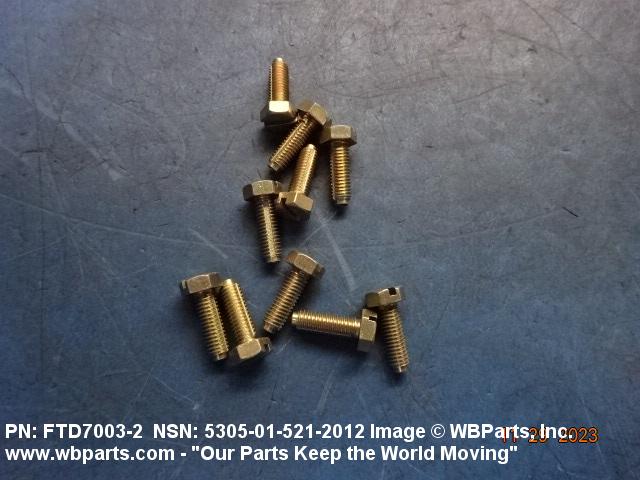

Drawings & Photos | NSN 5305-01-521-2012
Demand History | NSN 5305-01-521-2012
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-521-2012 | 2024-06-165 | 4 | United States |
| 5305-01-521-2012 | 2024-06-158 | 4 | United States |
| 5305-01-521-2012 | 2023-11-312 | 10 | United States |
| FTD70032 | 2012-03-90 | 50 | US |
Cross Reference | NSN 5305-01-521-2012
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FTD7003-2 | 58794 | FASTENER TECHNOLOGY CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-521-2012
Technical Data | NSN 5305-01-521-2012
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD LENGTH | 0.556 INCHES MINIMUM AND 0.586 INCHES MAXIMUM |

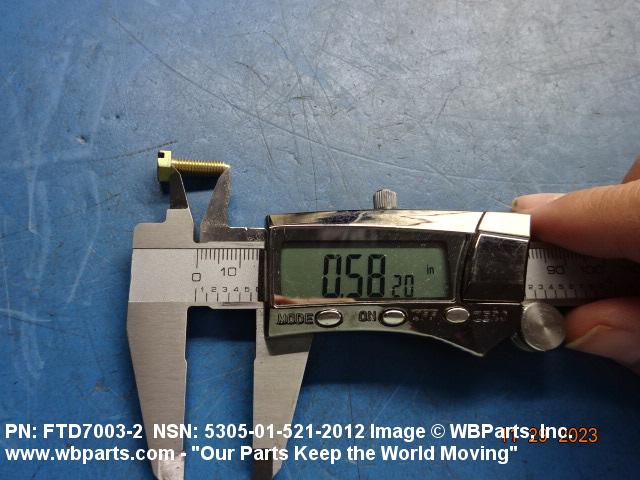

| FASTENER LENGTH | 0.556 INCHES MINIMUM AND 0.586 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY II, CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C1 HEXAGON |

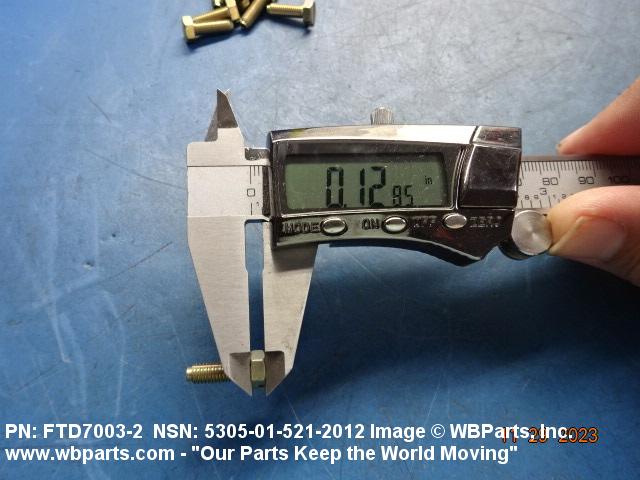

| HEAD HEIGHT | 0.125 INCHES NOMINAL |

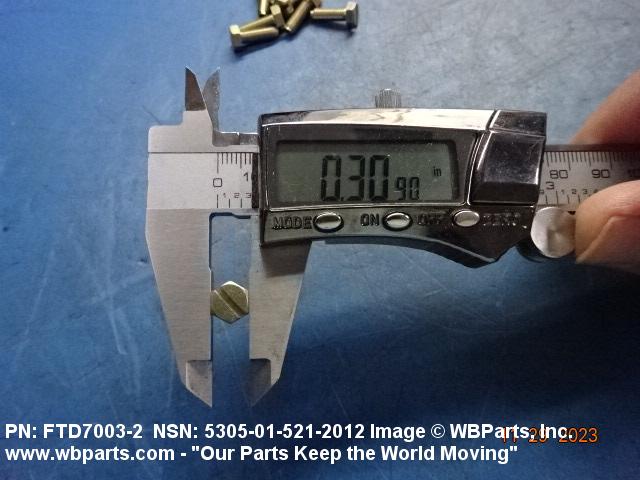

| WIDTH BETWEEN FLATS | 0.305 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D14 SLOT |
| III END ITEM IDENTIFICATION | C130J FIXED WING AIRCRAFT |

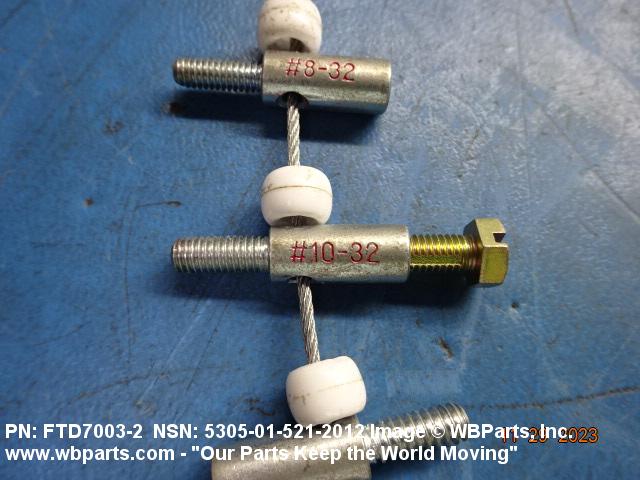

| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CAPTIVE SCREW, EDM SLOT, 10-32 |
Restrictions/Controls & Freight Information | NSN 5305-01-521-2012
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
