NSN 5305-01-521-6880 MS5157636, MS51576-36, 01-521-6880
Product Details | SHOULDER SCREW
5305-01-521-6880 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 IN.) (1.5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is designed to be driven with either a wrench or an inserted driver or both in sizes below No. 10 (0.190 IN.) (5 mm) nominal diameter. No. 10 (0.190 IN.) (5 mm) and larger sizes must be designed for any type of inserted driver, but may also provide for external wrenching of the head. A locking feature may be incorporated in the design of the head or threads. For items which are both shouldered and have an externally relieved body, use SCREW, EXTERNALLY RELIEVED BODY. For items with a No. 10 (0.190 IN.) (5 mm) or larger thread diameter without an inserted driver head, use BOLT, SHOULDER. Excludes BOLT, INTERNAL WRENCHING and SCREW, CAP, SOCKET HEAD.
Part Alternates: MS5157636, MS51576-36, 5305-01-521-6880, 01-521-6880, 5305015216880, 015216880
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JUN 2004 | 01-521-6880 | 22846 ( SCREW, SHOULDER ) |

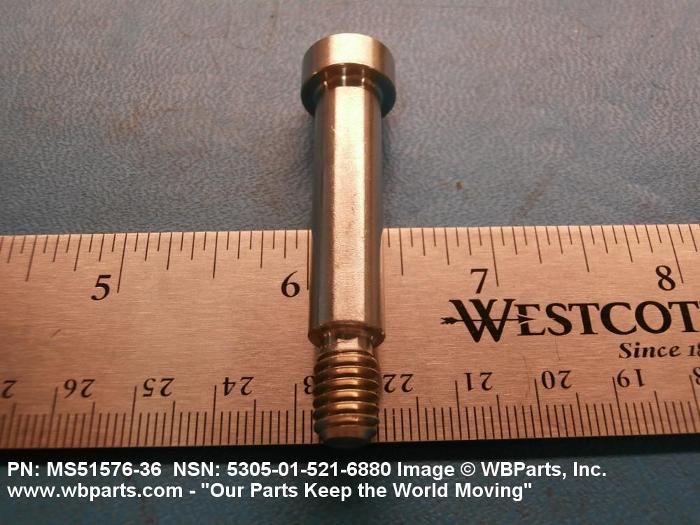

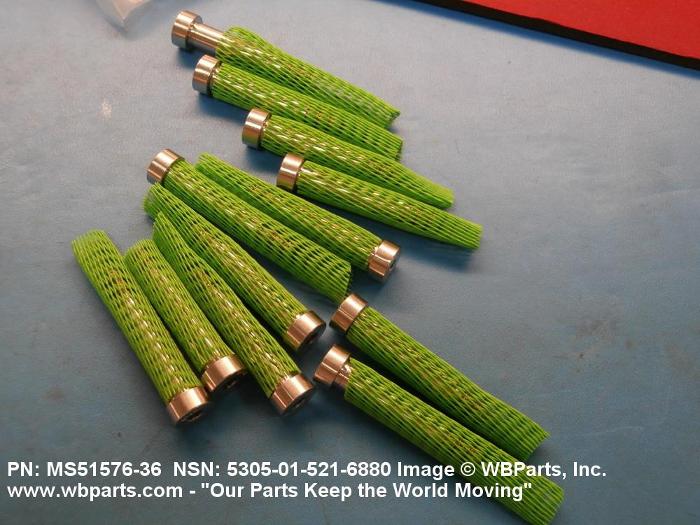

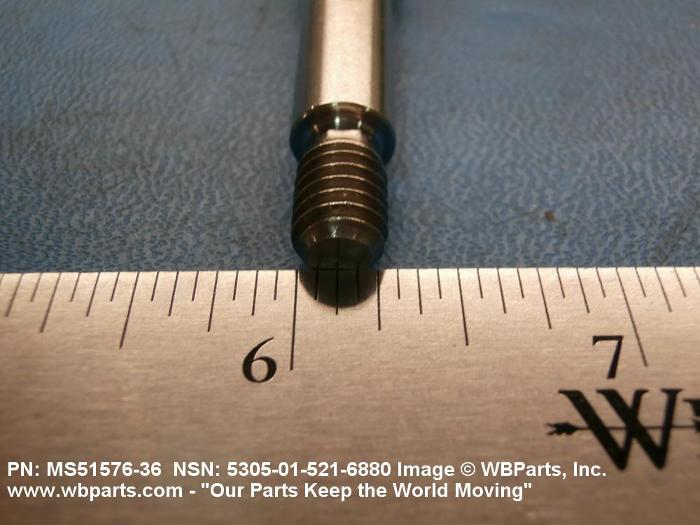

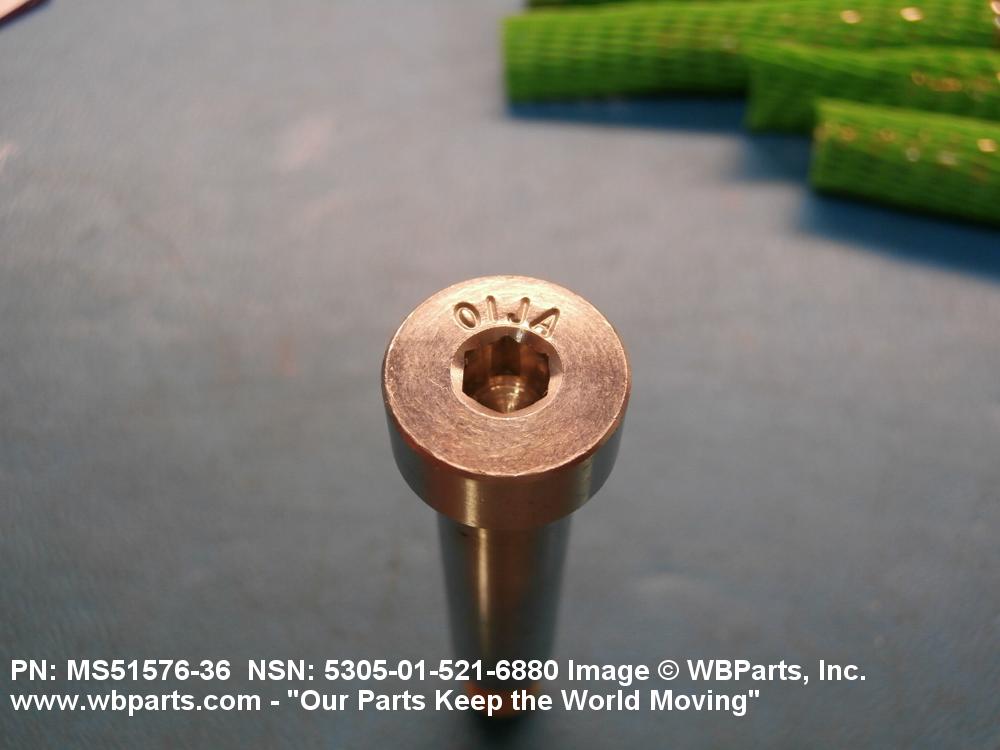

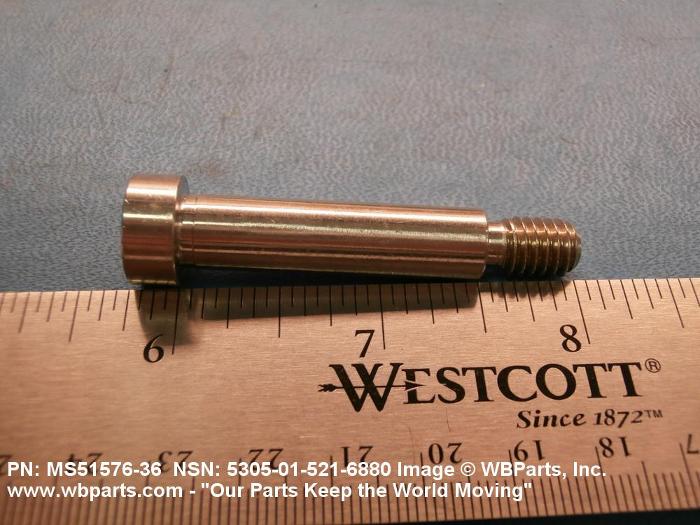

Drawings & Photos | NSN 5305-01-521-6880
Demand History | NSN 5305-01-521-6880
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-521-6880 | 2018-06-164 | 5 | US |
| 5305-01-521-6880 | 2014-08-241 | 49 | DIBBS |
| 5305-01-521-6880 | 2014-08-231 | 49 | DIBBS |
| 5305-01-521-6880 | 2014-08-229 | 49 | DIBBS |
| 5305-01-521-6880 | 2014-03-70 | 10 | US |
| 5305-01-521-6880 | 2013-03-62 | 48 | DIBBS |
| 5305-01-521-6880 | 2013-01-02 | 12 | United States |
| MS5157636 | 2012-10-298 | 6 | United States |
| 5305-01-521-6880 | 2009-11-314 | 10 | US |
Cross Reference | NSN 5305-01-521-6880
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51576-36 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-521-6880
Technical Data | NSN 5305-01-521-6880
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.4688 INCHES MINIMUM AND 0.5312 INCHES MAXIMUM |
| FASTENER LENGTH | 1.9658 INCHES MINIMUM AND 2.0342 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582/582M ASSN STD 1ST MATERIAL RESPONSE OR ASTM A193 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35, TYPE II ASSN STD 1ST TREATMENT RESPONSE OR QQ-P-35, TYPE VI OR VII ASSN STD 2ND TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.5313 INCHES MINIMUM AND 0.5937 INCHES MAXIMUM |
| HEAD HEIGHT | 0.2188 INCHES MINIMUM AND 0.2812 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.1880 INCHES NOMINAL |
| SHOULDER SHAPE | ROUND OVERALL |
| SHOULDER DIAMETER | 0.3735 INCHES MINIMUM AND 0.3745 INCHES MAXIMUM OVERALL |
| SHOULDER LENGTH | 1.497 INCHES MINIMUM AND 1.503 INCHES MAXIMUM OVERALL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51576-36 |
Restrictions/Controls & Freight Information | NSN 5305-01-521-6880
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | DF | U.S. Army Tank Automotive Command Warren, MI 48090 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-521-6880
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
