NSN 5305-01-523-4490 114058PP.500SSGF11, 114058PP500SSGF11, 1900474-34
Product Details | ASSEMBLED WASHER SCREW
5305-01-523-4490 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: 114058PP.500SSGF11, 114058PP500SSGF11, 1900474-34, 1983693-5 ITEM 28, 19836935ITEM28, 5305-01-523-4490, 01-523-4490, 5305015234490, 015234490, 190047434
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 SEP 2004 | 01-523-4490 | 06660 ( SCREW, ASSEMBLED WASHER ) |
Drawings & Photos | NSN 5305-01-523-4490
Demand History | NSN 5305-01-523-4490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 114058PP.500SSGF11 | 2023-07-211 | 125 | DIBBS |
| 1900474-34 | 2023-07-211 | 125 | DIBBS |
| 1983693-5 ITEM 28 | 2023-07-211 | 125 | DIBBS |
| 114058PP.500SSGF11 | 2023-07-201 | 1 | DIBBS |
| 1900474-34 | 2023-07-201 | 1 | DIBBS |
| 1983693-5 ITEM 28 | 2023-07-201 | 1 | DIBBS |
| 114058PP.500SSGF11 | 2022-08-223 | 20 | DIBBS |
| 1900474-34 | 2022-08-223 | 20 | DIBBS |
| 1983693-5 ITEM 28 | 2022-08-223 | 20 | DIBBS |
| 5305-01-523-4490 | 2018-06-156 | 1 | DIBBS |
| 5305-01-523-4490 | 2016-06-153 | 30 | DIBBS |
| 5305-01-523-4490 | 2014-05-149 | 126 | DIBBS |
| 5305-01-523-4490 | 2014-04-110 | 10 | DIBBS |
Cross Reference | NSN 5305-01-523-4490
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-523-4490
Related Products | NSN 5305-01-523-4490
Technical Data | NSN 5305-01-523-4490
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.500 INCHES NOMINAL |
| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| HEAD STYLE | C32 PAN |
| HEAD DIAMETER | 0.357 INCHES MINIMUM AND 0.403 INCHES MAXIMUM |
| HEAD HEIGHT | 0.122 INCHES MINIMUM AND 0.133 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| WASHER QUANTITY | 2 |

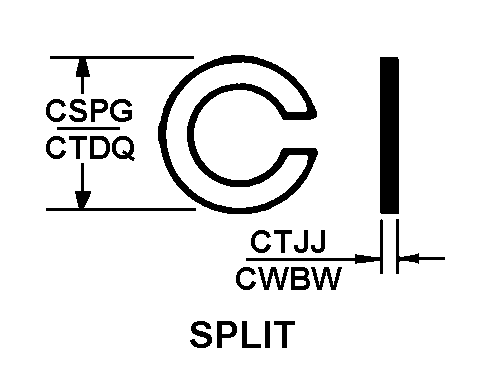

| PRIMARY WASHER STYLE | G18 SLIT |
| PRIMARY WASHER OUTSIDE DIAMETER | 0.334 INCHES NOMINAL |
| SECONDARY WASHER RELATIONSHIP TO PRIMARY WASHER | NOT IDENTICAL |
| SECONDARY WASHER STYLE | G30 FLAT |
| SECONDARY WASHER OUTSIDE DIAMETER | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-01-523-4490
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-523-4490
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
